NVIDIA - Mellanox LinkX

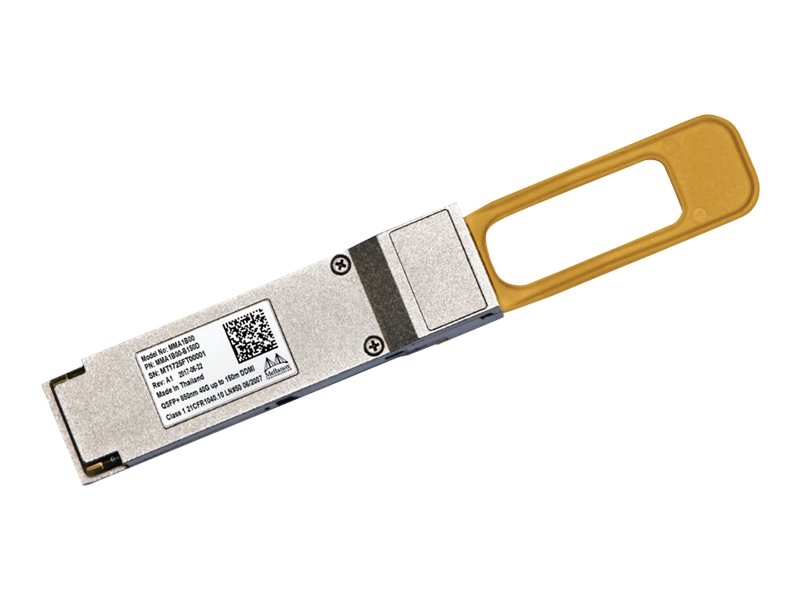

QSFP+ transceiver module - 40GbE - 40GBASE-SR4 - up to 492 ft - 850 nm
NVIDIA
MMA1B00-B150D
7290108486070
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Mellanox LinkX - QSFP+ transceiver module - 40GbE |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Cabling Type | 40GBASE-SR4 |
| Data Transfer Rate | 40 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 40GbE |
| Max Transfer Distance | 492 ft |
| Dimensions (WxDxH) | 0.7 in x 4.6 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBASE-SR4 - MPO multi-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 40GBASE-SR4 |
| Data Link Protocol | 40GbE |
| Data Transfer Rate | 40 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 492 ft |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 85% |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 4.6 in |
