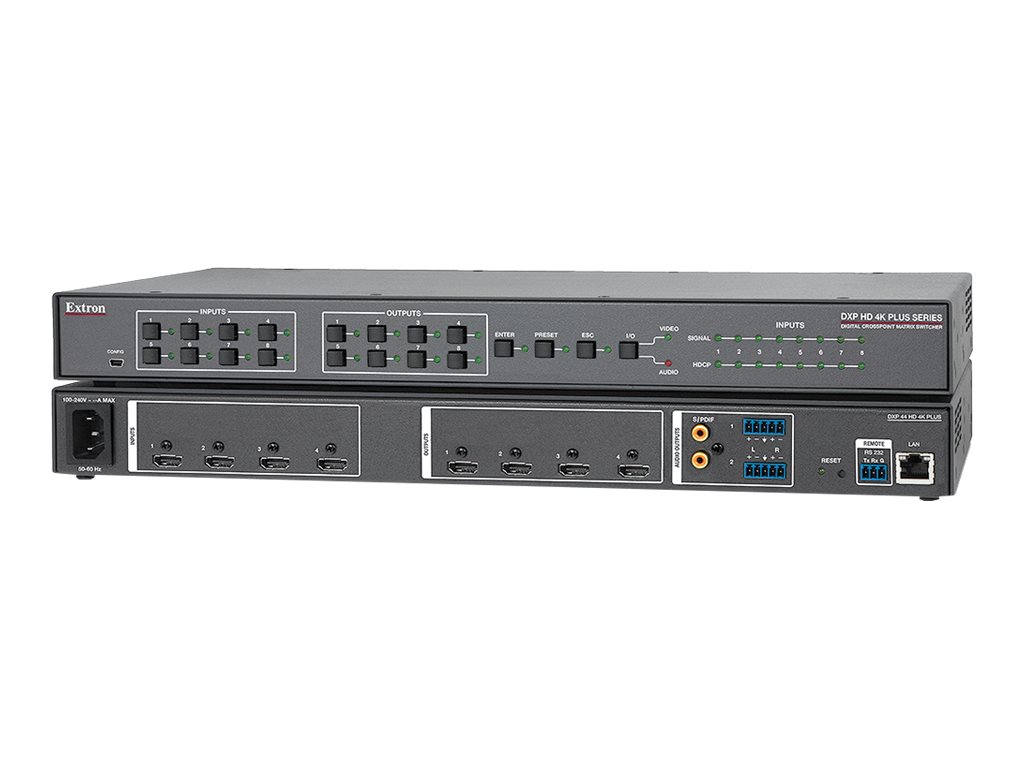

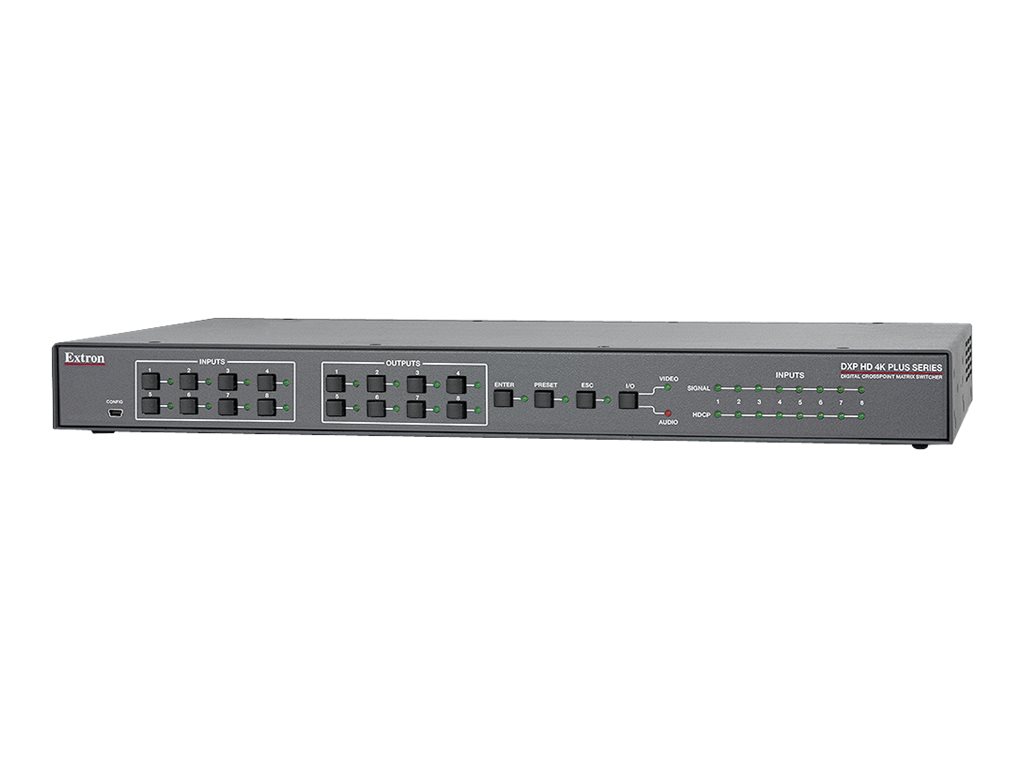

Extron - Extron DXP 44 HD 4K PLUS
4x4 matrix switcher / audio disembedder
Extron
60-1493-21
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Extron DXP 44 HD 4K PLUS 4x4 matrix switcher / audio disembedder |
| Type | 4x4 matrix switcher / audio disembedder |
| Dimensions (WxDxH) | 17.5 in - 9.5 in - 1.7 in |
| Weight | 5.07 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | 4x4 matrix switcher / audio disembedder |
| Width | 17.5 in |
| Depth | 9.5 in |
| Height | 1.7 in |
| Weight | 5.07 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50/60 Hz |
| Power Consumption | 20.4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Terminals | |
| Terminals | (4) x HDMI input ¦ (4) x HDMI output ¦ (2) x SPDIF output - RCA ¦ (2) x balanced/unbalanced audio output - terminal block - stereo ¦ (1) x serial - terminal block ¦ (1) x network - RJ-45 |
| Studio & Production Equipment | |
| Features | EDID support, signal equalizing, HDCP 2.2 compliant, SpeedSwitch technology, HDR (High Dynamic Range) support, automatic output reclocking, audio breakaway |
