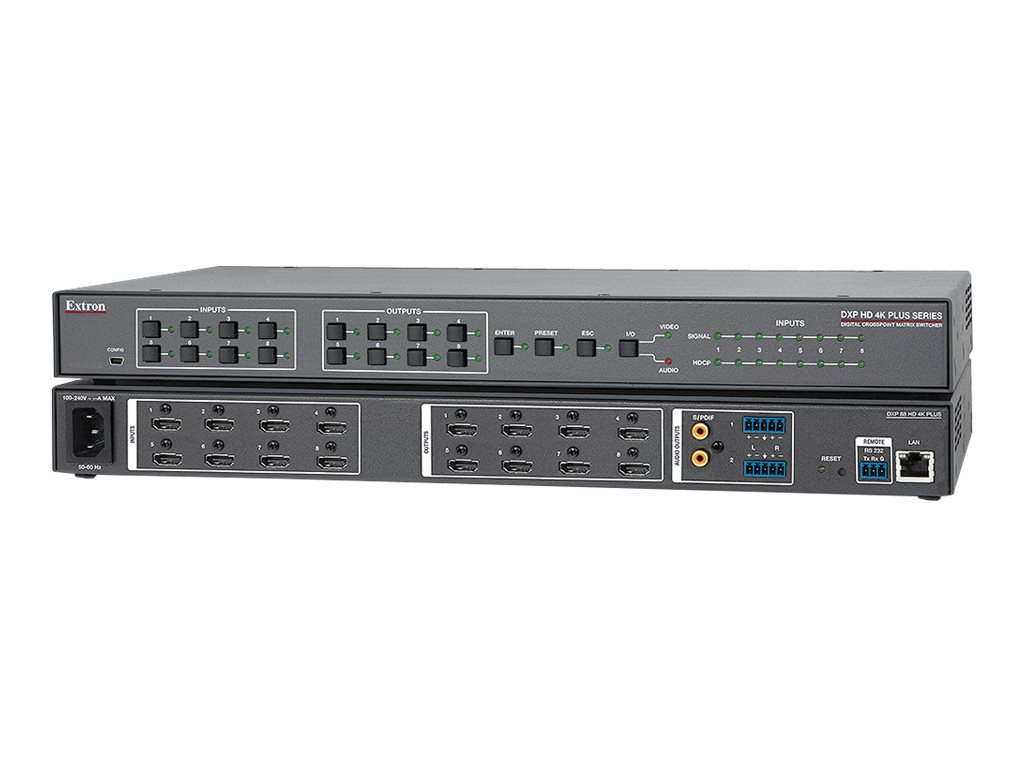

Extron - Extron DXP 88 HD 4K PLUS (8x8 Matrix Switch)
Video/audio switch - managed - rack-mountable
Extron
60-1495-21
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Extron DXP 88 HD 4K PLUS (8x8 Matrix Switch) - video/audio switch - managed - rack-mountable |
| Device Type | Video/audio switch - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | HDMI |
| Performance | Pixel clock: 600 MHz ¦ Maximum data rate: 18 Gbps ¦ Maximum data rate (per color): 6 Gbps |
| Capacity | Concurrent sessions: 200 |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, SSH, SFTP, SMTP, NTP |
| Features | ARP support, SMTP traffic control, HDCP compliant, input selection buttons, 3D support, 4K resolution support, metal housing, 12-bit Deep Color support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, ICMP, output selection buttons, NTP, DTS-HD support, Dolby Atmos support, Dolby Digital EX support, DTS ES Discrete 6.1 support, DTS ES Matrix 6.1 support, DTS Digital Surround 5.1 support, SpeedSwitch technology, AC3 support, Key Minder, bidirectional RS-232 |
| Compliant Standards | DVI 1.0, HDCP 1.4, HDCP 2.2 |
| Power | AC 120/230 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 17.5 in x 9.5 in x 1.7 in |
| Weight | 5.51 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio switch - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | HDMI |
| Performance | Pixel clock: 600 MHz ¦ Maximum data rate: 18 Gbps ¦ Maximum data rate (per color): 6 Gbps |
| Capacity | Concurrent sessions: 200 |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, SSH, SFTP, SMTP, NTP |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Features | ARP support, SMTP traffic control, HDCP compliant, input selection buttons, 3D support, 4K resolution support, metal housing, 12-bit Deep Color support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, ICMP, output selection buttons, NTP, DTS-HD support, Dolby Atmos support, Dolby Digital EX support, DTS ES Discrete 6.1 support, DTS ES Matrix 6.1 support, DTS Digital Surround 5.1 support, SpeedSwitch technology, AC3 support, Key Minder, bidirectional RS-232 |
| Compliant Standards | DVI 1.0, HDCP 1.4, HDCP 2.2 |
| Status Indicators | Audio, video, input, output, reset |
| Expansion / Connectivity | |
| Interfaces | 8 x HDMI input Type A ¦ 8 x HDMI output Type A ¦ 2 x audio output 5 pin terminal block ¦ 2 x SPDIF output RCA ¦ 1 x serial (RS-232) 3 pin terminal block management ¦ 1 x mini-USB 2.0 Type B management ¦ 1 x 100Base-TX RJ-45 management |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years ¦ Limited warranty - parts and labor - power supply - 7 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| MTBF | 30,000 hours |
| Compliant Standards | FCC Class A certified, UL, VCCI, C-Tick, cUL, RoHS, WEEE, ICES, DVI 1.0, HDCP 1.4, ISTA 1A, CEA-861E |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 30.8 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 9.5 in |
| Height | 1.7 in |
| Weight | 5.51 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14 in |
| Shipping Depth | 21.3 in |
| Shipping Height | 4 in |
| Shipping Weight | 7.43 lbs |
