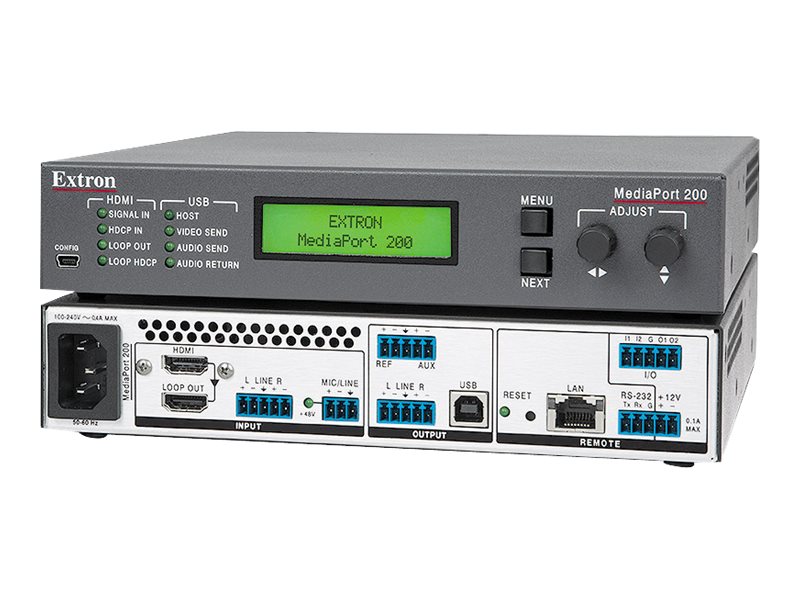

Extron - Extron MediaPort 200
HDMI to USB video and audio converter
Extron
60-1488-01
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Extron MediaPort 200 HDMI to USB video and audio converter |
| Type | HDMI to USB video and audio converter |
| Dimensions (WxDxH) | 8.7 in - 8.5 in - 1.7 in |
| Weight | 3.09 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | HDMI to USB video and audio converter |
| Width | 8.7 in |
| Depth | 8.5 in |
| Height | 1.7 in |
| Weight | 3.09 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V |
| Frequency | 50 - 60 Hz |
| Power Consumption | 18.9 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Terminals | |
| Terminals | (1) x HDMI input - 19 pin HDMI Type A - with loop through ¦ (1) x USB 2.0 - 4 pin USB type B ¦ (1) x network - RJ-45 ¦ Audio line-in / microphone - terminal block ¦ Audio line-out - terminal block ¦ (1) x AEC output - terminal block ¦ (1) x serial - terminal block |
| Studio & Production Equipment | |
| Features | HDCP compliant, phantom power, scaler function, built-in LCD |
