Lenovo - Lenovo

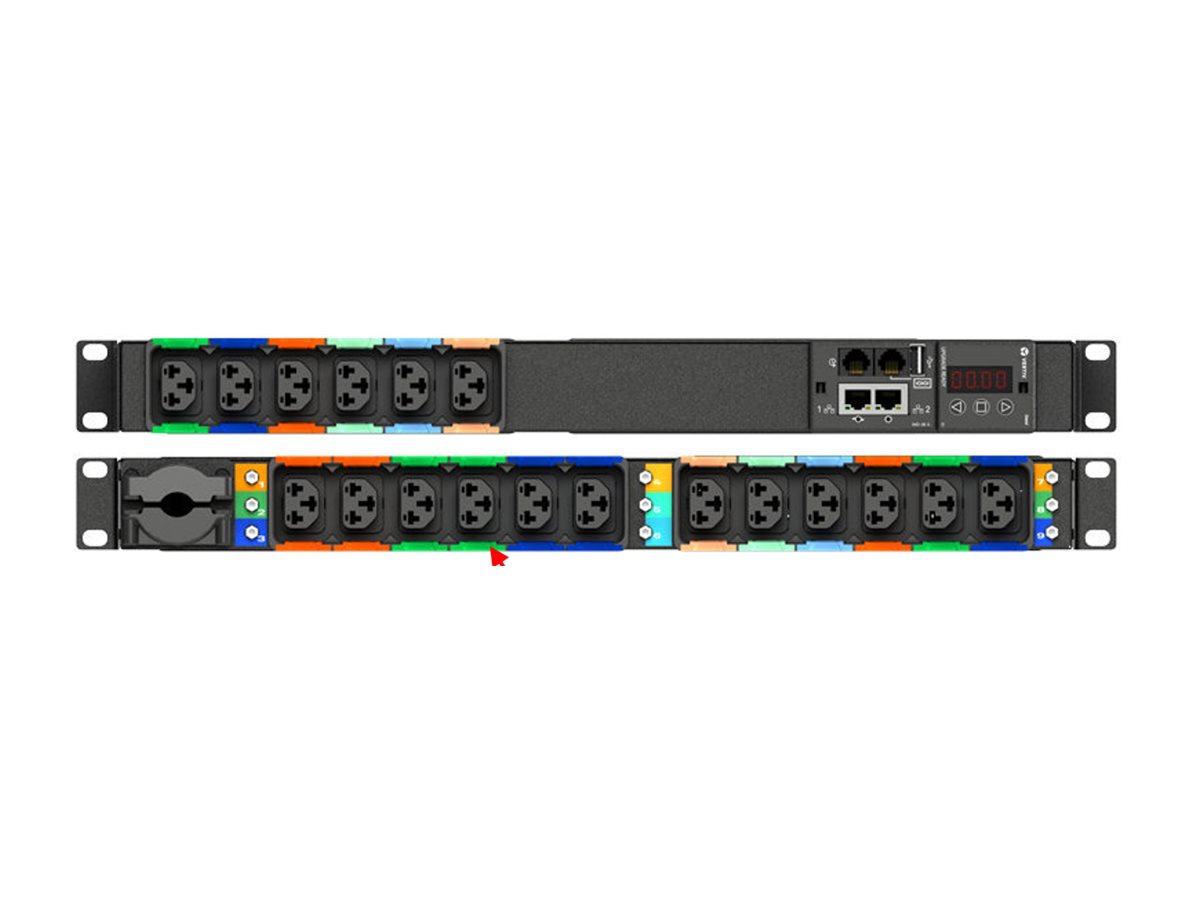

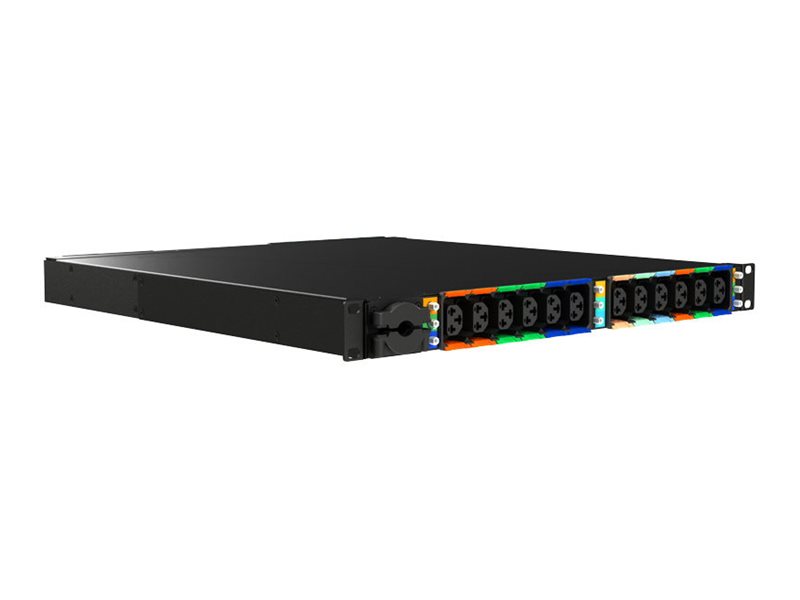

Power distribution unit (rack-mountable) - switched, monitored - AC 200-240 V - 3-phase delta - Ethernet 10/100/1000 - input: IEC 60309 3P+E - output connectors: 18 (18 x IEC 60320 C13/C19) - 1U - 19"
Lenovo
4PU7A77467
0889488590988
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Lenovo - power distribution unit - switched, monitored |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 19" - 1U |
| Weight | 35.05 lbs |
| Localization | Japan, Canada, United States |
| Input Wiring | 3-phase delta |
| Input Voltage | AC 200-240 V |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Output connectors | 18 x power IEC 60320 C13/C19 |
| Networking | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, RSTP, TACACS+, LDAP, RADIUS, Syslog |
| Dimensions (WxDxH) | 19 in x 17.6 in x 1.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Localization | Japan, Canada, United States |
| Expansion / Connectivity | |
| Interfaces | 1 x sensor - RJ-12 ¦ 2 x management (Ethernet) - RJ-45 ¦ 1 x serial - RJ-12 ¦ 1 x management (USB) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 10 ft |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, horizontal orientation, color-coded, 4-digit display, Interchangeable Monitoring Device (IMD) module, 9 x 18A double pole magnetic breakers |
| Compliant Standards | RoHS, FCC Part 15 A, UL 62368 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, RSTP, TACACS+, LDAP, RADIUS, Syslog |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 200-240 V |
| Frequency Provided | 50 - 60 Hz |
| Input Wiring | 3-phase delta |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Power Output Connectors Details | 18 x power IEC 60320 C13/C19 |
| Output Voltage | 50 - 60 Hz |
| Max Electric Current | 37 A |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 17.6 in |
| Height | 1.7 in |
| Weight | 35.05 lbs |
