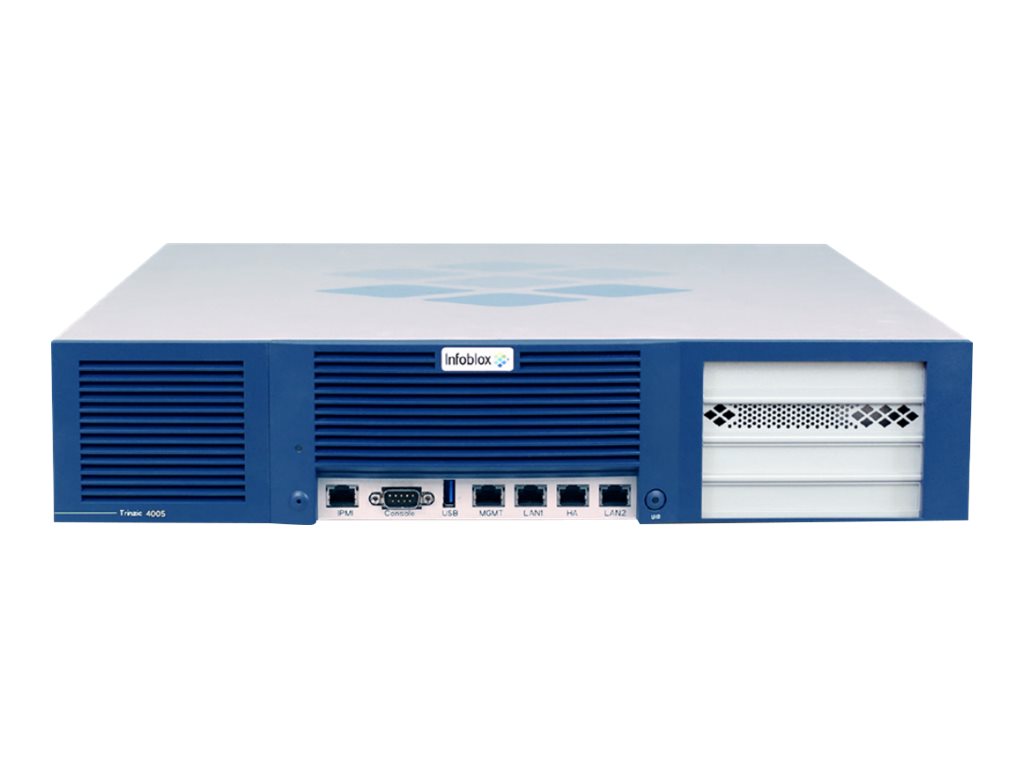

Infoblox - Infoblox Trinzic 4005
Network management device - 10GbE - 2U - rack-mountable
Infoblox
TE-4005-10GE-HW-AC-S
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Infoblox Trinzic 4005 - network management device |
| Device Type | Network management device |
| Form Factor | Rack-mountable - 2U |
| Hard Drive | 4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.5 in x 27.5 in x 3.4 in |
| Weight | 60.98 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network management device |
| Height (Rack Units) | 2U |
| Width | 17.5 in |
| Depth | 27.5 in |
| Height | 3.4 in |
| Weight | 60.98 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x management (Lights-Out) - RJ-45 ¦ 6 x USB 2.0 - Type A ¦ 1 x management - DB-9 ¦ 1 x 1000Base-T (HA) - RJ-45 ¦ 10Gb Ethernet - SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year ¦ Technical support - software application support - 90 days |
| Miscellaneous | |
| Compliant Standards | TUV, VCCI, C-Tick, NOM, CB, CCC, FCC, RoHS, KCC, WEEE, EAC, BIS |
| Networking | |
| Form Factor | Rack-mountable |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | DHCP, DNS |
| Remote Management Protocol | IPMI 2.0 |
| Features | Hot swappable 4 fans |
| Compliant Standards | USB 1.1, USB 2.0 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 600 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Hard Drive | HDD 4 |
| RAID Level | RAID 10 |
