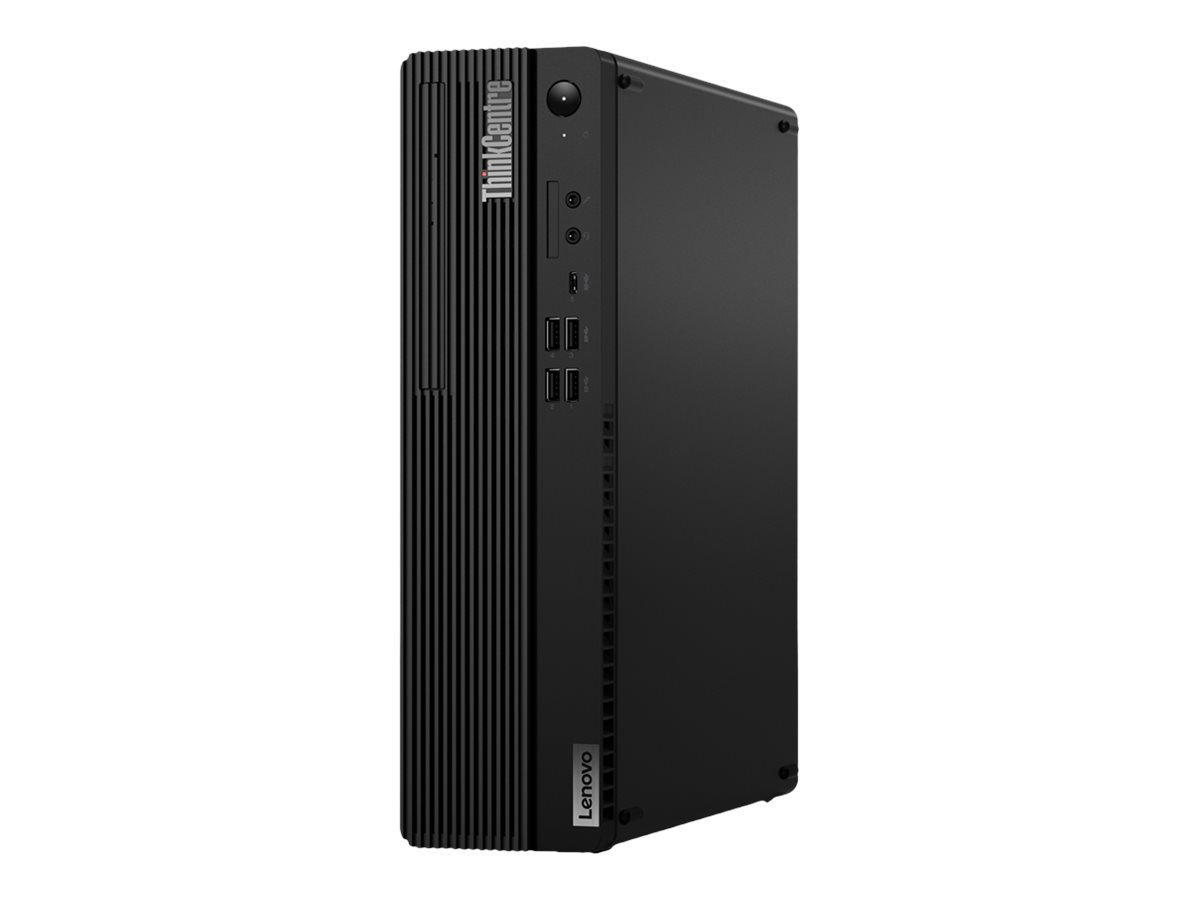

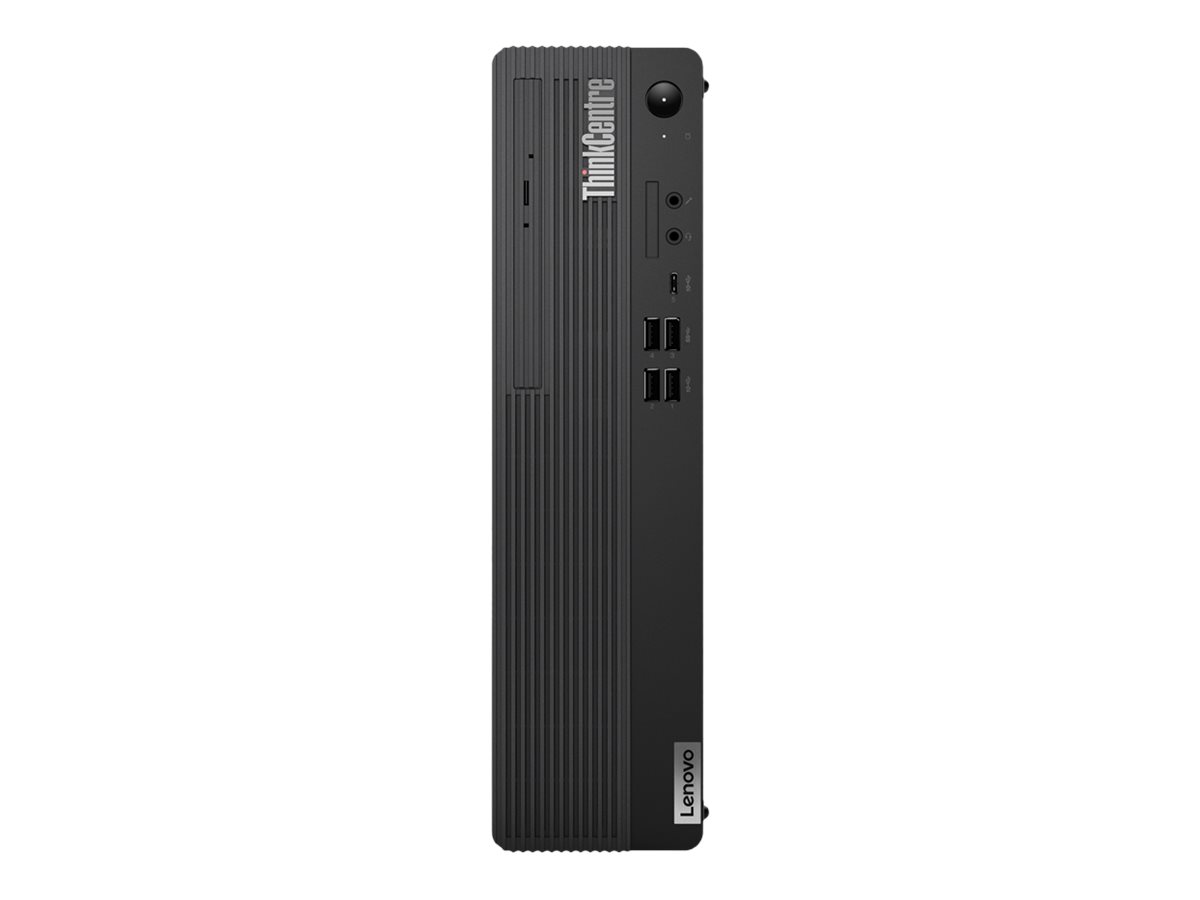

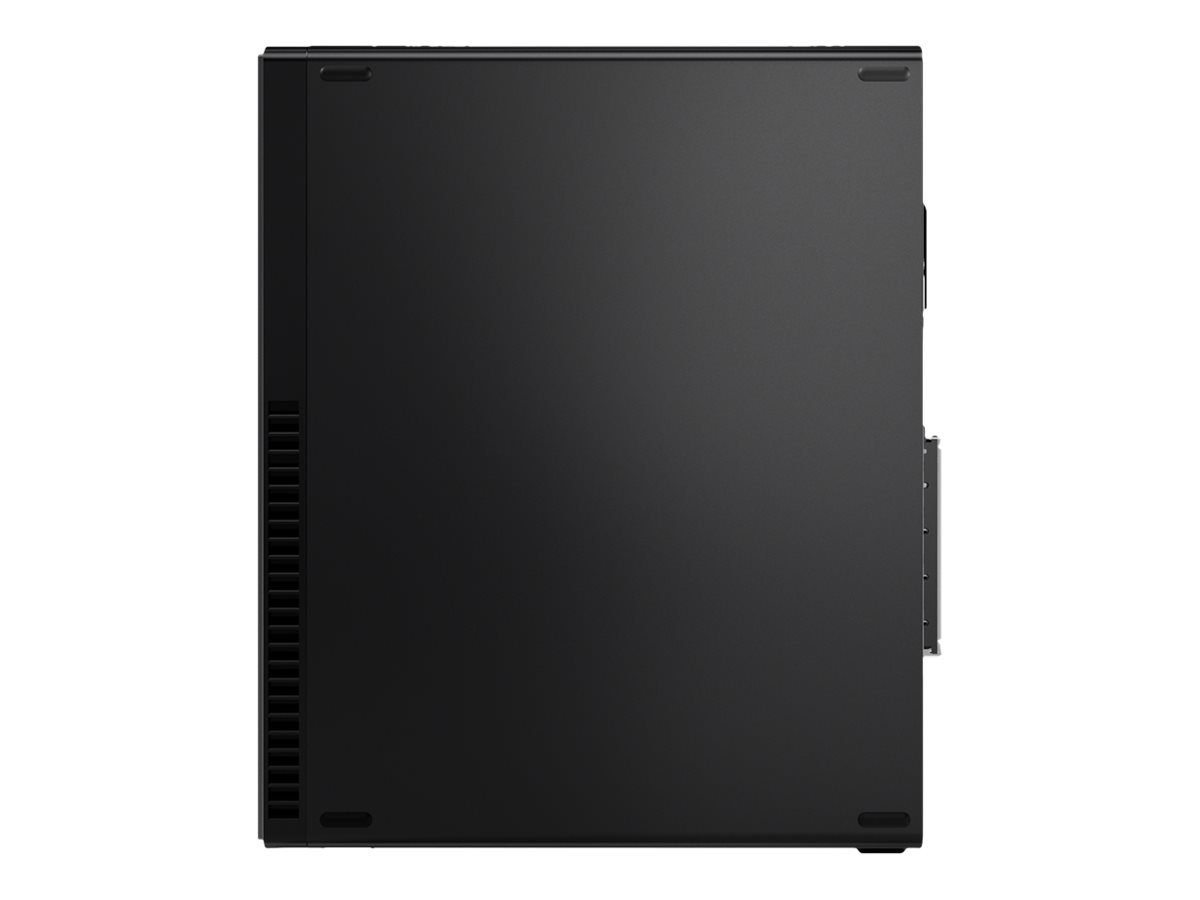

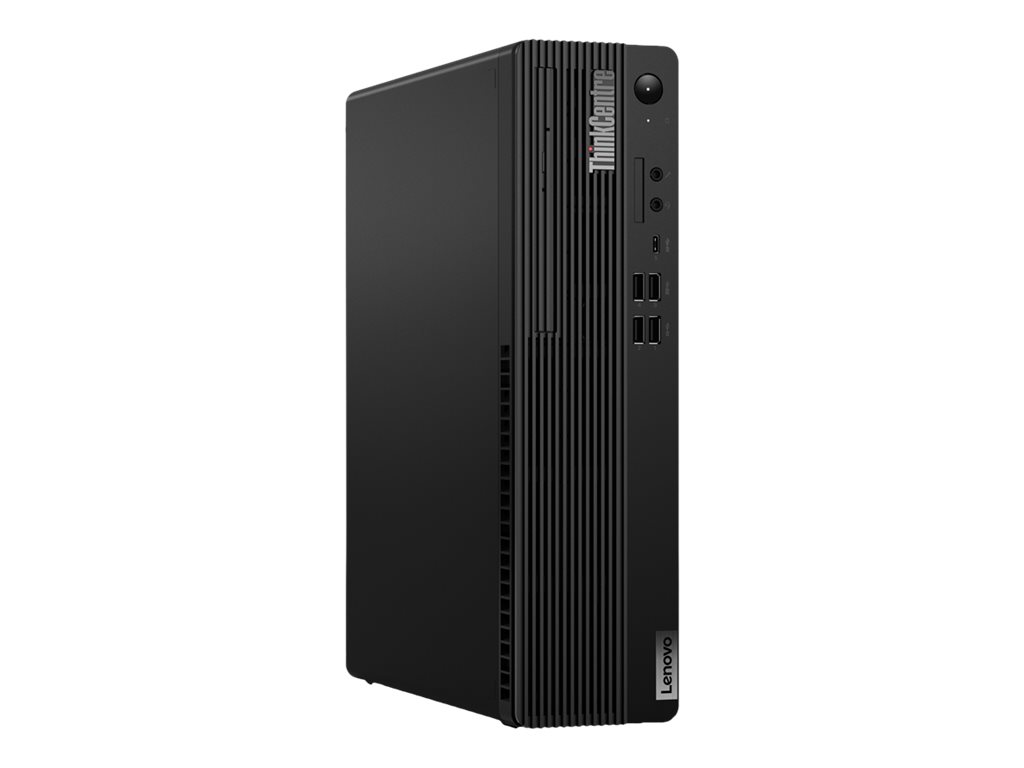

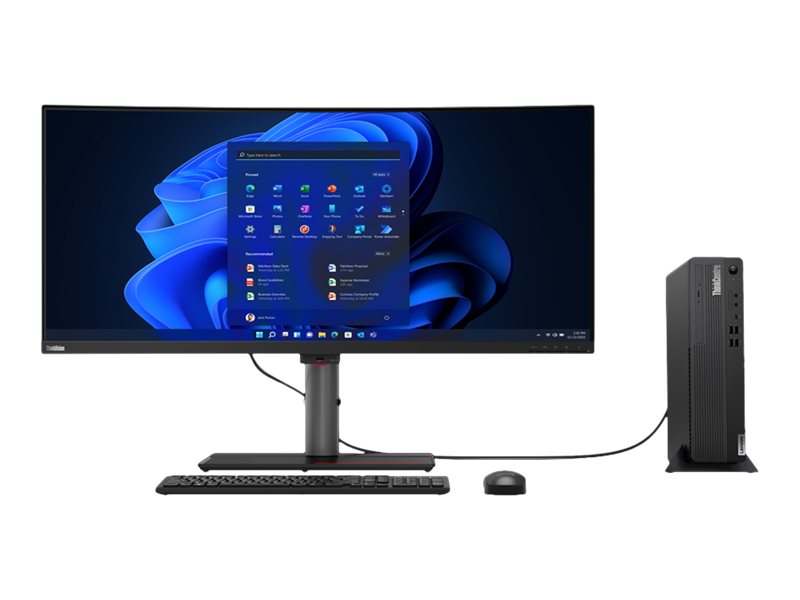

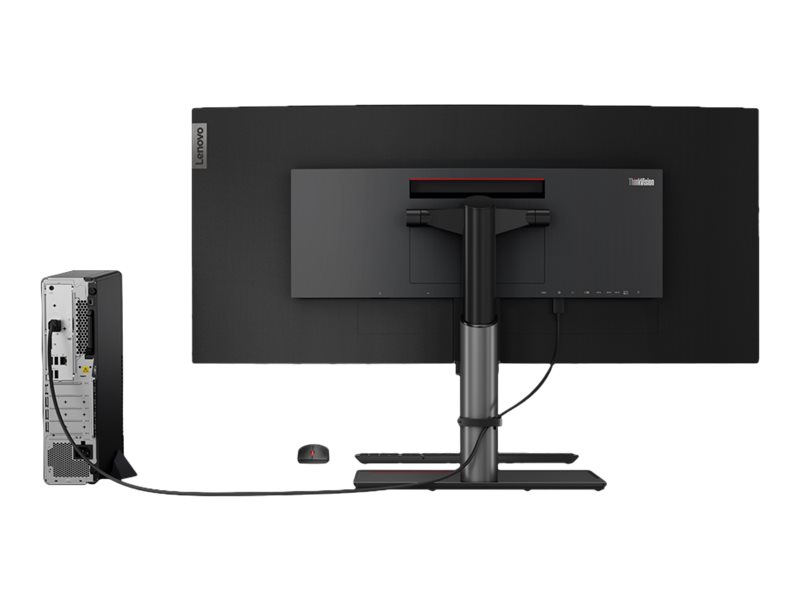

Lenovo - Lenovo ThinkCentre M80s Gen 3 11TK
SFF Core i7 12700 / up to 4.9 GHz - RAM 32 GB - SSD 512 GB - TCG Opal Encryption - UHD Graphics 770 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E) - Win 10 Pro 64-bit (includes Win 11 Pro License) - monitor: none - black
Lenovo
11TKS0BQ00
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Lenovo ThinkCentre M80s Gen 3 - SFF Core i7 12700 2.1 GHz - 32 GB - SSD 512 GB |
| Type | Personal computer - SFF |
| Processor | Intel Core i7 (12th Gen) 12700 / 2.1 GHz (up to 4.9 GHz, (12-core) |
| Cache Memory | 25 MB |
| Cache Per Processor | 25 MB |
| RAM | 32 GB (installed) / 128 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 512 GB - PCI Express 4.0 x4 - M.2 2280 - TCG Opal Encryption |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 shared video memory (UMA) |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.1, Wi-Fi 6E |
| Power | (50/60 Hz) |
| OS Provided | Windows 10 Pro 64-bit Edition (downgrade from Windows 11 Pro) + Windows 11 Pro License |
| Color | Black |
| Dimensions (WxDxH) | 3.6 in x 11.7 in x 13.4 in |
| Weight | 8.43 lbs |
| Environmental Standards | TCO Certified Desktops 9 |
| General | |
| Type | Personal computer |
| Product Form Factor | SFF |
| Built-in Devices | Speaker |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile ¦ 1 (total) / 0 (free) x PCIe 4.0 x16 - low-profile (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 - low-profile ¦ 2 (total) / 1 (free) x M.2 Card (for SSD) ¦ 1 (total) / 0 (free) x M.2 Card (for WLAN) |

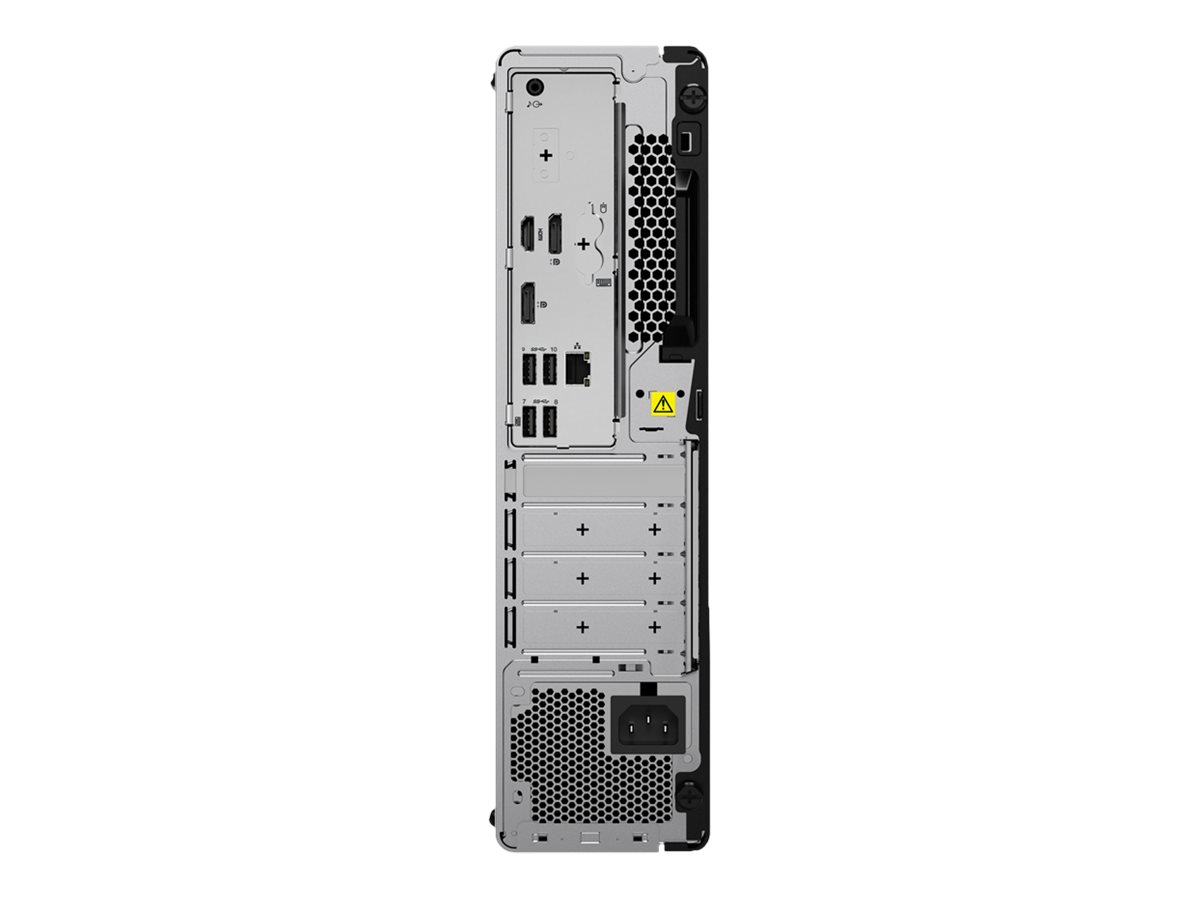

| Interfaces | 1 x USB-C 3.2 Gen 2 (1 in front) (data transfer, 15W charging) ¦ 6 x USB 3.2 Gen 1 (2 front, 4 rear) ¦ 2 x USB 3.2 Gen 2 (2 in front) ¦ 1 x microphone (1 in front) ¦ 1 x headphones/microphone (1 in front) ¦ 5 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out ¦ 1 x HDMI ¦ 2 x DisplayPort 1.4 |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), tool-less chassis access |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 3, TCG Certified, MIL-STD-810H, TCO Certified 9.0 |
| RAM | |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4400 MHz |
| Rated Memory Speed | 4400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Interface (Bus) Type | M.2 Card |
| Ethernet Ports | 5 x Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM, I350-T4 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.1, IEEE 802.11ax (Wi-Fi 6E) |
| Features | Wake on LAN (WoL) |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 260 Watt |
| Efficiency | 90% |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 25 MB |
| Cache Per Processor | 25 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 shared video memory (UMA) |
| Video Interfaces | HDMI, DisplayPort |

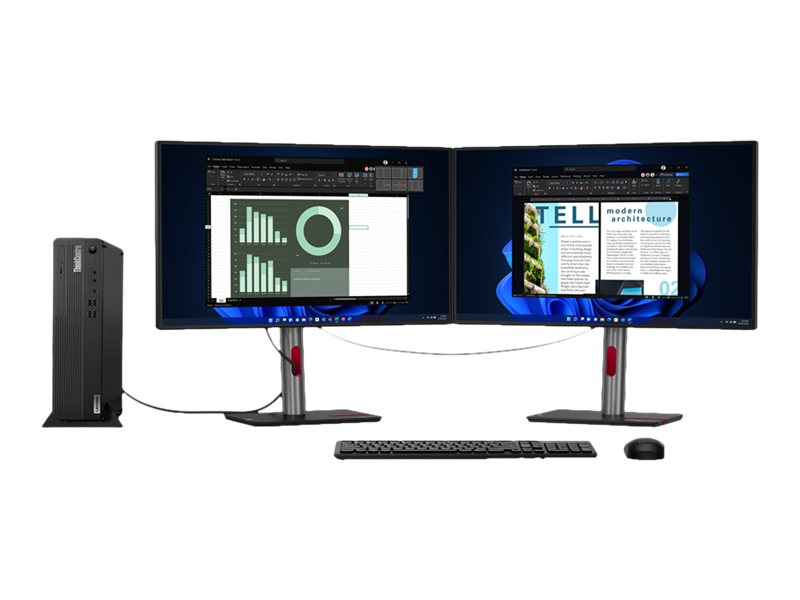

| Max Monitors Supported | 3 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 Pro 64-bit Edition (available through downgrade rights from Windows 11 Pro) + Windows 11 Pro License |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Manufacturer | Kioxia |
| Interface Type | PCI Express 4.0 x4 |
| Features | TCG Opal Encryption |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 3.6 in |
| Depth | 11.7 in |
| Height | 13.4 in |
| Weight | 8.43 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.7 in |
| Shipping Depth | 15.6 in |
| Shipping Height | 20.9 in |
| Shipping Weight | 16.75 lbs |
| Keyboard | |
| Interface | USB |
| Mouse | |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i7 (12th Gen) 12700 |
| Clock Speed | 2.1 GHz (P-core) / 1.6 GHz (E-core) |
| Max Turbo Speed | 4.9 GHz (P-core) / 3.6 GHz (E-core) |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel Q670 |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
