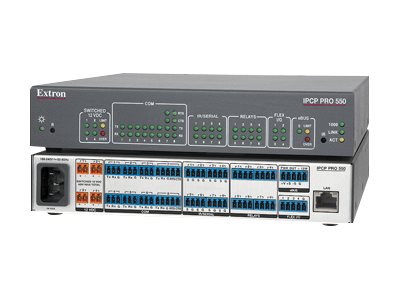

Extron - Extron IPCP Pro 550
Remote control device - RS-232, RS-422, RS-485 - 1U
Extron
60-1418-01A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Extron IPCP Pro 550 - remote control device |
| Device Type | Remote control device |
| Form Factor | External - 1U |
| RAM | 512 MB |
| Flash Memory | 4.5 GB |
| Data Link Protocol | RS-232, RS-422, RS-485 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.7 in x 10.5 in x 1.7 in |
| Weight | 2.43 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Remote control device |
| Height (Rack Units) | 1U |
| Width | 8.7 in |
| Depth | 10.5 in |
| Height | 1.7 in |
| Weight | 2.43 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x RS-232/422/485 ¦ 6 x RS-232 ¦ 1 x 1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, VCCI, C-Tick, cUL, UL 60950, UL 2043, RoHS, WEEE, ICES |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-422, RS-485 |
| Network / Transport Protocol | TCP/IP, UDP/IP, NTP, ICMP/IP, SMTP, DHCP, DNS |
| Remote Management Protocol | SNMP, HTTP, HTTPS, SSH |
| Status Indicators | Port status, power, link OK, 1000M device connected, link/activity |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 61.8 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 512 MB |
| Flash Memory | 4.5 GB |
