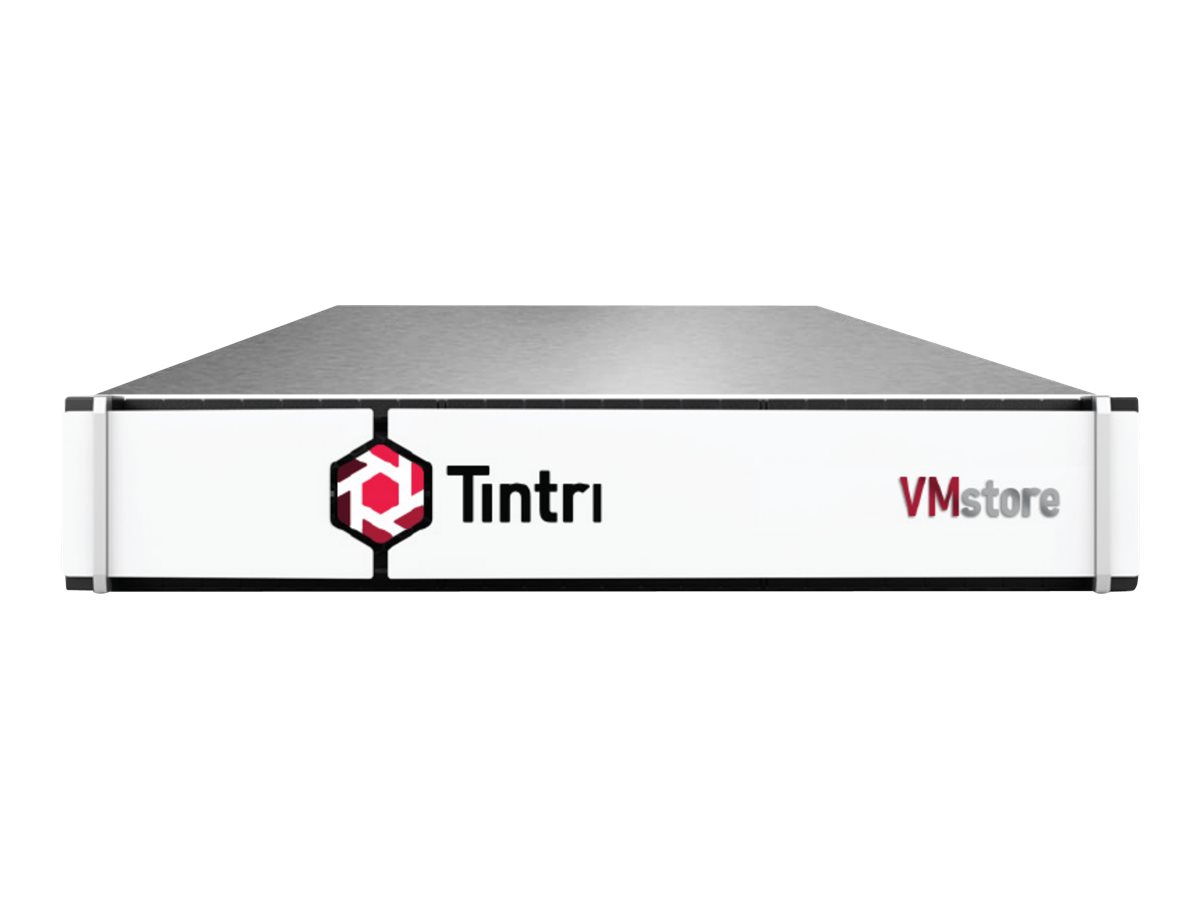

NAS server - 25 TB - rack-mountable - SSD - 10 Gigabit Ethernet - 2U
| Main Specifications | |
|---|---|
| Product Description | Tintri VMstore EC6000 All-Flash Series EC6050 - NAS server - 25 TB |
| Device Type | NAS server |
| Host Connectivity | 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 25 TB |
| Storage Capacity Details | Raw: 25 TB |
| Dimensions (WxDxH) | 19 in x 34.6 in x 3.5 in |
| Weight | ) |
| Networking | 10GbE |
| Power Redundancy | Yes |
| General | |
| Device Type | NAS server |
| Host Connectivity | 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 25 TB |
| Storage Capacity Details | Raw: 25 TB |
| Width | 19 in |
| Depth | 34.6 in |
| Height | 3.5 in |
| Weight | ) |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 10Gb ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x Ethernet 10Gb (replication) - RJ-45 |
| Miscellaneous | |
| Compliant Standards | VCCI, BSMI, IC, FCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, REACH, KC, EMC Class A, EAC, RCM |
| Networking | |
| Data Link Protocol | 10GbE |
| Network / Transport Protocol | SMTP, SMB, NFS |
| Remote Management Protocol | SNMP, HTTP |
| Network Services Compatibility | Network File System (NFS), Server Message Block (SMB), HTTP |
| Features | Manageable |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Hard Drive | |
| Type | SSD |
