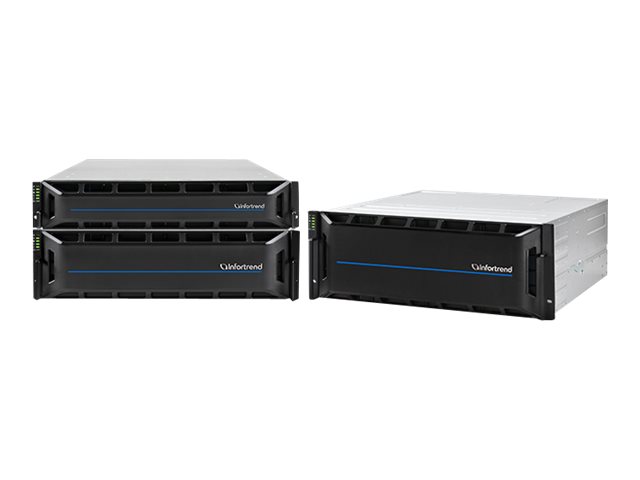

Infortrend - Infortrend EonStor GS 2012R
NAS server - 12 bays - 48 TB - rack-mountable - SAS 12Gb/s - HDD 4 TB x 12 - RAID RAID 0, 1, 3, 5, 6, 10, 30, 50, JBOD, 60 - RAM 16 GB - Gigabit Ethernet - iSCSI support - 2U
Infortrend
GS2012R0C0F0D-4T3
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Infortrend EonStor GS 2012R - NAS server - 48 TB |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 48 TB |
| Installed Devices / Modules Qty | 12 (installed) / 12 (max) |
| Dimensions (WxDxH) | 17.7 in x 19.7 in x 3.5 in |
| Weight | ) |
| Processor | Intel Pentium |
| Storage Controller | 2 x RAID SAS 12Gb/s RAID RAID 0, 1, 3, 5, 6, 10, 30, 50, JBOD, 60 |
| Hard Drive | 12 x 4 TB SAS 12Gb/s |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE |
| RAM | 16 GB |
| Power | AC 100 - 240 V (50/60 Hz) |
| Power Redundancy | Yes |
| System Requirements | SunSoft Solaris, Apple MacOS X, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows 7 SP1, Microsoft Windows Server 2012, Citrix XenServer, VMware ESX, Microsoft Windows Server 2012 R2, Windows 8.1, Red Hat Enterprise Linux OpenStack Platform, Microsoft Windows Server 2016, SUSE Linux Enterprise, Microsoft Windows Hyper-V Server, Microsoft Windows Server 2019 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 48 TB |
| Installed Devices / Modules Qty | 12 (installed) / 12 (max) |
| Width | 17.7 in |
| Depth | 19.7 in |
| Height | 3.5 in |
| Weight | ) |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Interfaces | 4 x Ethernet 1000Base-T - RJ-45 ¦ 2 x SAS 12Gb/s |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Technical support - phone consulting - 3 years ¦ Product info support - web support - 3 years ¦ Product info support - e-mail consulting - 3 years ¦ Limited warranty - battery - 2 years |
| Miscellaneous | |
| Compliant Standards | UL, BSMI, CB, FCC |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Network / Transport Protocol | iSCSI, FTP, DHCP, SMB, NFS |
| Remote Management Protocol | SNMP |
| Network Services Compatibility | Microsoft Active Directory (AD), DHCP, Microsoft CIFS, Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV) |
| Features | Hot swap module replacement, LDAP support, IPv6 support, antivirus analysis, SSH support, Jumbo Frames support, static IP mode, Thin Provisioning, dynamic IP mode, DHCP client, Link Aggregation, Google Drive support, Yandex Disk support, OpenStack compatible, Baidu cloud support, port trunking, Microsoft Azure support, Amazon S3 support, FXP support, Rsync compatible, WORM (Write Once Read Many protection), RESTful APIs, Alibaba Cloud OSS support, Tencent COS support, Battery Backup Unit (BBU) |
| Compliant Standards | IEEE 802.3ad (LACP) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100 - 240 V (50/60 Hz) |
| Power Provided | 460 Watt |
| 80 PLUS Certification | 80 PLUS |
| Software / System Requirements | |
| OS Required | SunSoft Solaris, Apple MacOS X, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows 7 SP1, Microsoft Windows Server 2012, Citrix XenServer, VMware ESX, Microsoft Windows Server 2012 R2, Windows 8.1, Red Hat Enterprise Linux OpenStack Platform, Microsoft Windows Server 2016, SUSE Linux Enterprise, Microsoft Windows Hyper-V Server, Microsoft Windows Server 2019 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Storage Controller | |
| Type | 2 x RAID |
| Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 30, RAID 50, JBOD, RAID 60 |
| Hard Drive | |
| Type | HDD - 3.5" |
| Capacity | 12 x 4 TB |
| Interface Type | SAS 12Gb/s |
| Data Transfer Rate | 12 Gbit/s |
| Spindle Speed | 7200 rpm |
| Compliant Standards | S.M.A.R.T. |
| Processor / Memory | |
| Processors Installed | Intel Pentium |
| RAM | 16 GB (installed) / 128 GB (supported) - DDR4 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 30.7 in |
| Shipping Depth | 23.1 in |
| Shipping Height | 14.9 in |
