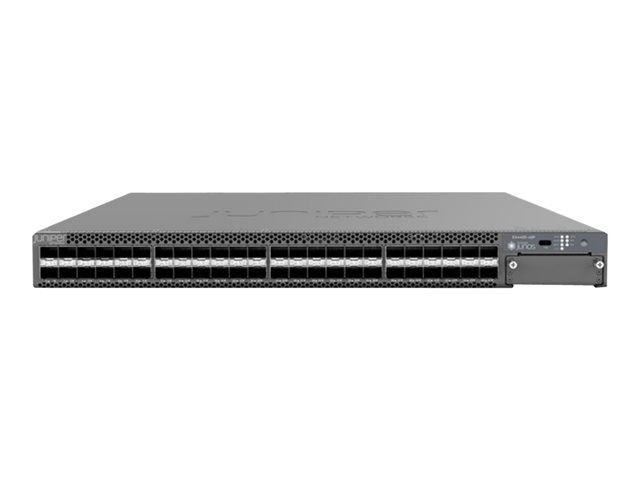

Juniper Networks - Juniper Networks EX Series EX4400-48F
Switch - L3 - managed - 12 x 1/10GBase-SX + 36 x 100/1000Base-SX + 2 x 100 Gigabit (stacking) - back to front airflow - rack-mountable - AC 100 - 120 / 200 - 240 V - TAA Compliant
Juniper Networks
EX4400-48F-AFI
N/A
0832938094437
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Juniper Networks EX Series EX4400-48F - switch - 48 ports - managed - rack-mountable - TAA Compliant |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 1/10GBase-SX + 36 x 100/1000Base-SX + 2 x 100 Gigabit (stacking) |
| Performance | Unidirectional switching capacity: 456 Gbps ¦ Bidirectional switching capacity: 912 Gbps |
| Capacity | VSTP instances: 510 ¦ MST instances: 64 ¦ Maximum member ports per LAG: 16 ¦ ARP entries: 24000 ¦ IPv4 routes (Unicast): 130048 ¦ IPv4 hosts (Unicast): 81000 ¦ IPv4 routes (Multicast): 40000 ¦ IPv6 neighbor discovery: 12000 ¦ IPv6 routes (Unicast): 87000 ¦ Host IPv6 routes (Unicast): 40000 ¦ IPv6 routes (Multicast): 20000 ¦ VLANs supported: 4093 |
| MAC Address Table Size | 112000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR, BGP for IPv6, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Features | Flow control, firewall protection, auto-sensing per device, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, store and forward, IPv6 support, High Availability, DPI, WRED, sFlow, STP support, MSTP support, event log, DHCP snooping, ACL support, QoS, DHCP server, VRF-Lite, MLD snooping, DHCP proxy, DAI, temperature sensor, RTG, TDR, NSB, NSR, GRES, PVST+, IPv4 support, DHCP relay, DHCP client, MIB, MVRP, NDP, VSTP, redundant hot swappable fans, CoS, SP, Captive Portal, DSCP support, ERPS, 2 fans, UFD, IP source guard, ECN, ICMP Router Discovery Protocol (IRDP), SCP, VXLAN, Link Aggregation, EVPN, MAC address learning, policy based routing, AAA, WDRR, Voice VLAN, LLDP-MED, RA guard, proxy ARP, DHCP Helper, WRR, RVI, VLAN Tagging, port-based VLAN, PVLAN support, DDoS Protection, flooding detection, MACsec, JTI, MAC Learning Disable, DNS support, MRP |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, ITU-T G.8032 |
| Power | AC 100-120/200-240 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 16.9 in x 1.7 in |
| TAA Compliant | Yes |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 1/10GBase-SX + 36 x 100/1000Base-SX + 2 x 100 Gigabit (stacking) |
| Performance | Unidirectional switching capacity: 456 Gbps ¦ Bidirectional switching capacity: 912 Gbps |
| Capacity | VSTP instances: 510 ¦ MST instances: 64 ¦ Maximum member ports per LAG: 16 ¦ ARP entries: 24000 ¦ IPv4 routes (Unicast): 130048 ¦ IPv4 hosts (Unicast): 81000 ¦ IPv4 routes (Multicast): 40000 ¦ IPv6 neighbor discovery: 12000 ¦ IPv6 routes (Unicast): 87000 ¦ Host IPv6 routes (Unicast): 40000 ¦ IPv6 routes (Multicast): 20000 ¦ VLANs supported: 4093 |
| MAC Address Table Size | 112000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR, BGP for IPv6, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Encryption Algorithm | MD5, TLS, PEAP, TTLS, 256-bit AES |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, firewall protection, auto-sensing per device, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, store and forward, IPv6 support, High Availability, DPI, WRED, sFlow, STP support, MSTP support, event log, DHCP snooping, ACL support, QoS, DHCP server, VRF-Lite, MLD snooping, DHCP proxy, DAI, temperature sensor, RTG, TDR, NSB, NSR, GRES, PVST+, IPv4 support, DHCP relay, DHCP client, MIB, MVRP, NDP, VSTP, redundant hot swappable fans, CoS, SP, Captive Portal, DSCP support, ERPS, 2 fans, UFD, IP source guard, ECN, ICMP Router Discovery Protocol (IRDP), SCP, VXLAN, Link Aggregation, EVPN, MAC address learning, policy based routing, AAA, WDRR, Voice VLAN, LLDP-MED, RA guard, proxy ARP, DHCP Helper, WRR, RVI, VLAN Tagging, port-based VLAN, PVLAN support, DDoS Protection, flooding detection, MACsec, JTI, MAC Learning Disable, DNS support, MRP |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, ITU-T G.8032 |
| Processor | 1 x Intel: 2.2 GHz |
| RAM | 4 GB |
| Flash Memory | 20 GB |
| Expansion / Connectivity | |
| Interfaces | 12 x 1/10GBase-SX ¦ 36 x 100/1000Base-SX ¦ 2 x 100Gbit LAN uplink/stacking ¦ 1 x serial RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Compliant Standards | VCCI, CISPR 24, ICES-003, EN55024, FCC CFR47 Part 15, FCC CFR21 Part 1040, UL 60950-1, IEC 60950-1, RoHS, BSMI CNS 13438, IEC 60825-1, IEC 60825-2, EN 300 386 V1.6.1, KN32, KN35, IEC 62368-1, TCVN 7189, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, TCVN 7317, EN 55035, CISPR 35, EN 300 386 V2.1.1, EMC-221, OCT-16, AS/NZS CISPR 32, TEC, IEC 62368-3, ETSI ES 203 136 V.1.1.1 |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Provided | 550 Watt |
| Voltage Required | AC 100-120/200-240 V |
| Software / System Requirements | |
| Software Included | Junos OS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 16.9 in |
| Height | 1.7 in |
