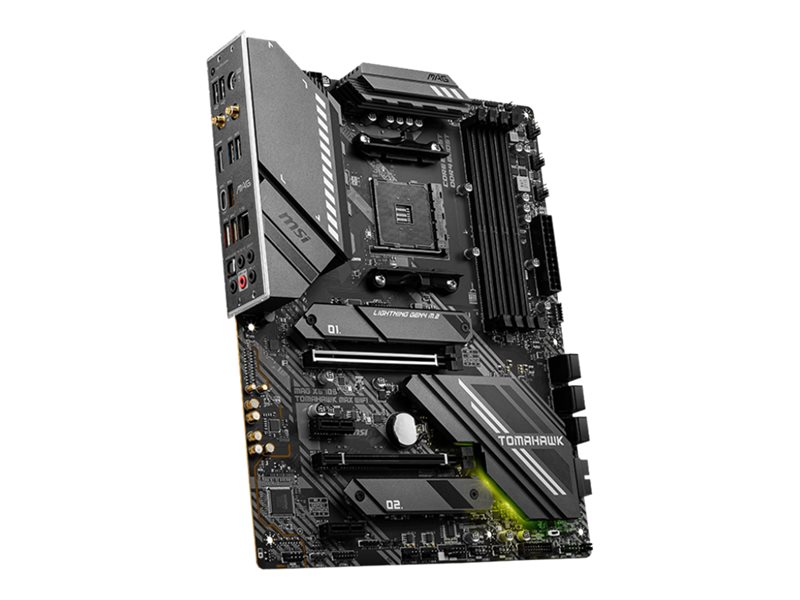

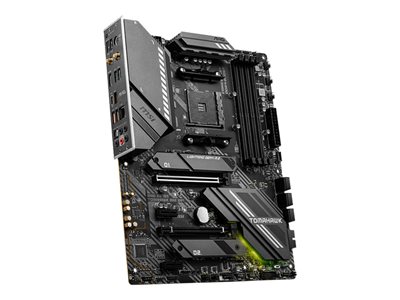

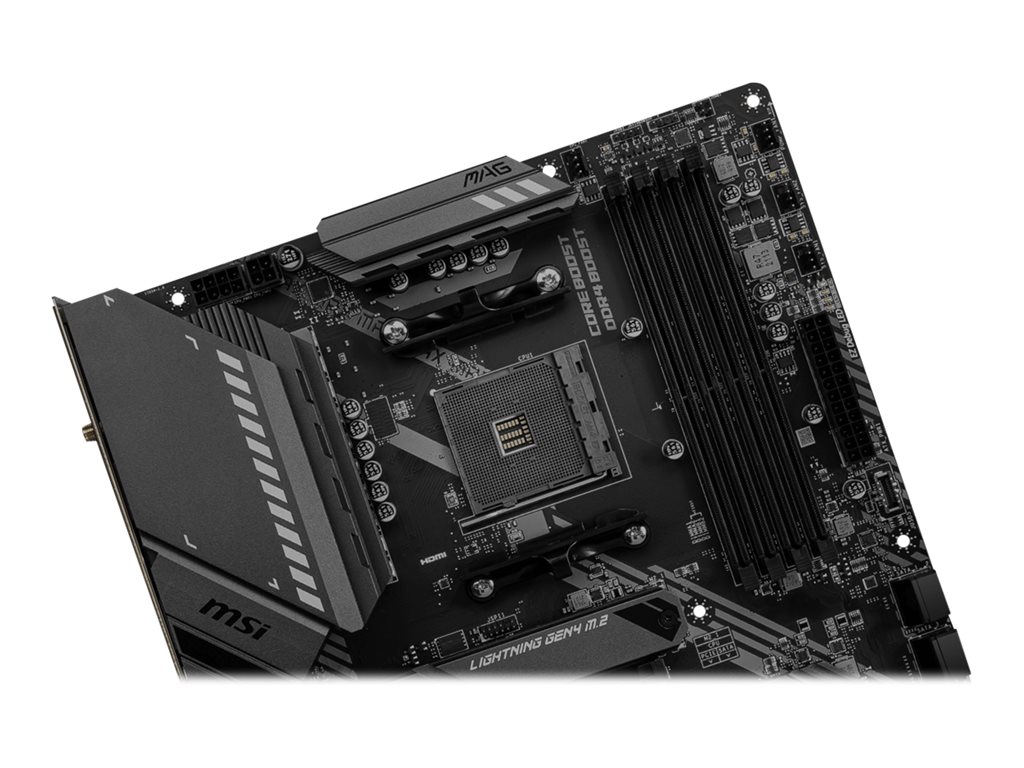

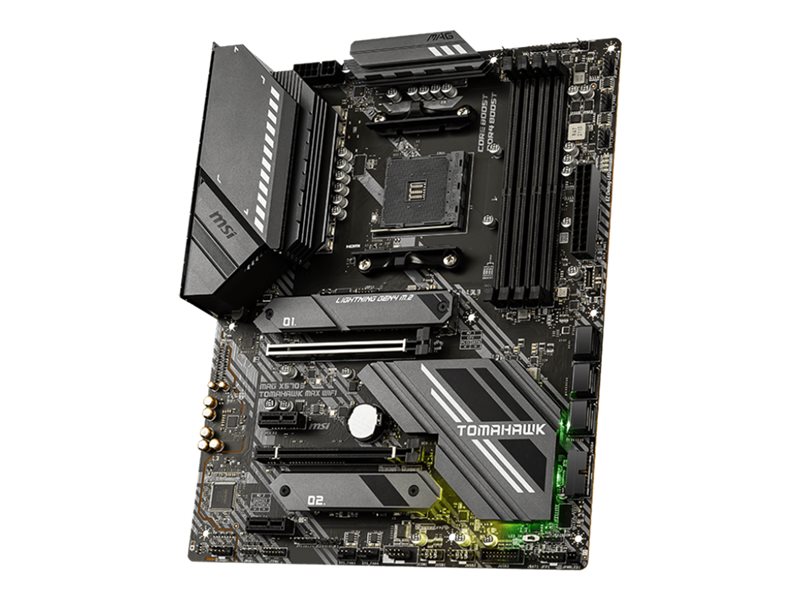

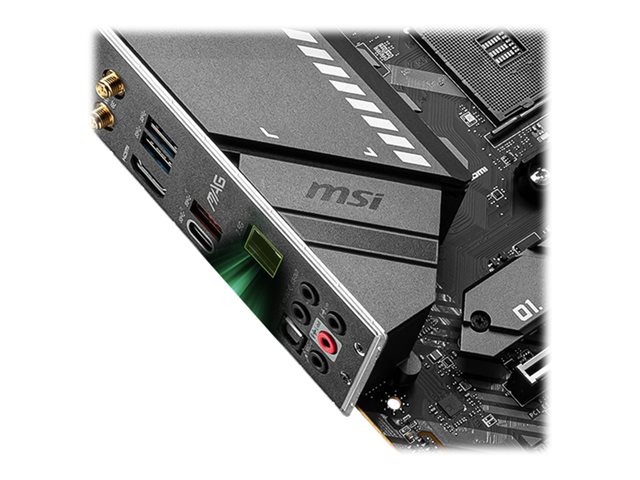

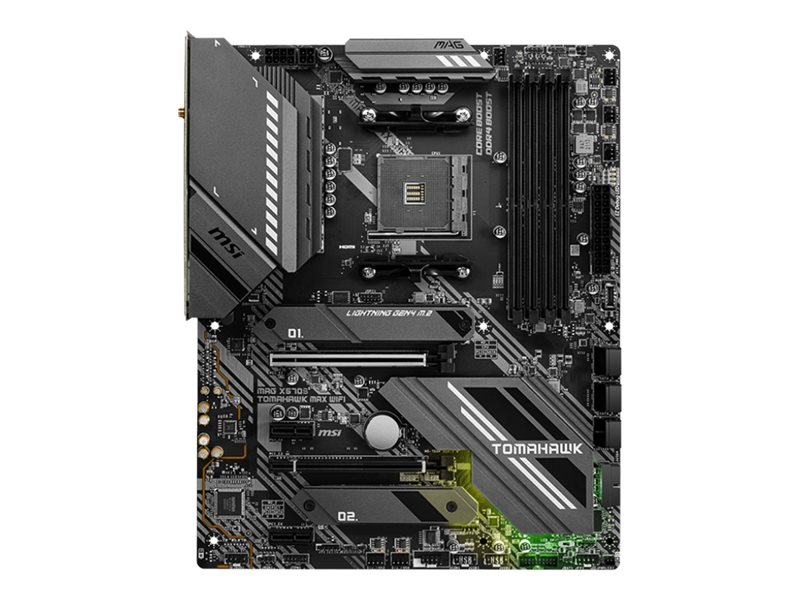

MSI - MSI MAG X570S TOMAHAWK MAX WIFI
Motherboard - ATX - Socket AM4 - AMD X570 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
MSI
X570STMHWIFI
N/A
0824142262771
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | MSI MAG X570S TOMAHAWK MAX WIFI - motherboard - ATX - Socket AM4 - AMD X570 |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X570 |
| Processor Socket | 1 x Socket AM4 |
| Compatible Processors | Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series) |
| Max RAM Size | 128 GB |
| RAM Supported | 4 DIMM slots - DDR4, non-ECC, unbuffered |
| Storage Ports | 6 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire Ports | 1 x USB-C Gen 2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X570 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs)) ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |

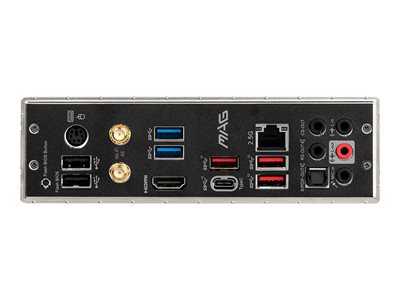

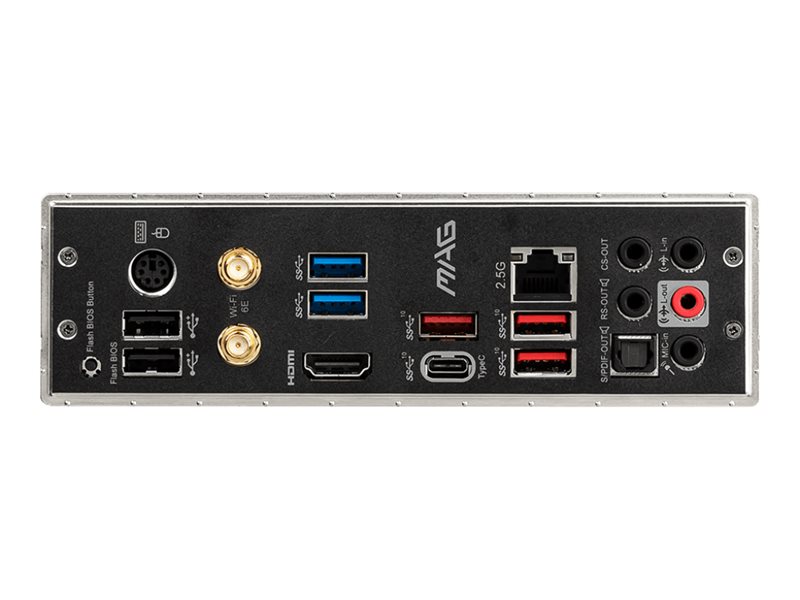

| Interfaces | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x HDMI |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x USB-C Gen2 ¦ 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Wi-Fi antenna, 3 x M.2 screws, 3 x standoff for M.2 socket, USB drive, case badge, MAG stickers |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & utilities |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Features | MSI ClickBIOS 5 |

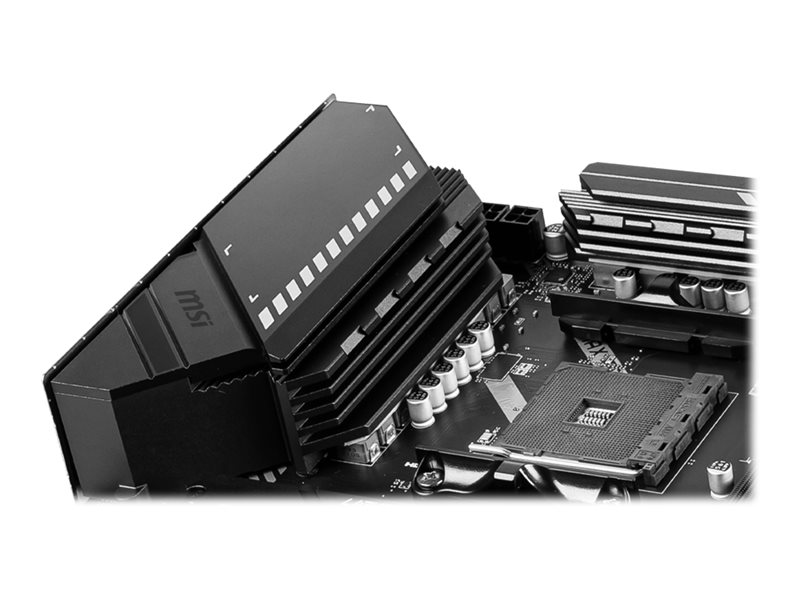

| Hardware Features | AMD CrossFireX technology support, M.2 Shield FROZR, MSI Audio Boost 5, MSI Core Boost, 6 Layer PCB, 2oz Copper PCB, MSI PCIe Steel Slot, 12+2 Phase Power Design, Game Boost, MSI Mystic Light |
| LAN | |
| Network Controller | Realtek RTL8125B / Intel AX210 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 5100 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, A-XMP support |
