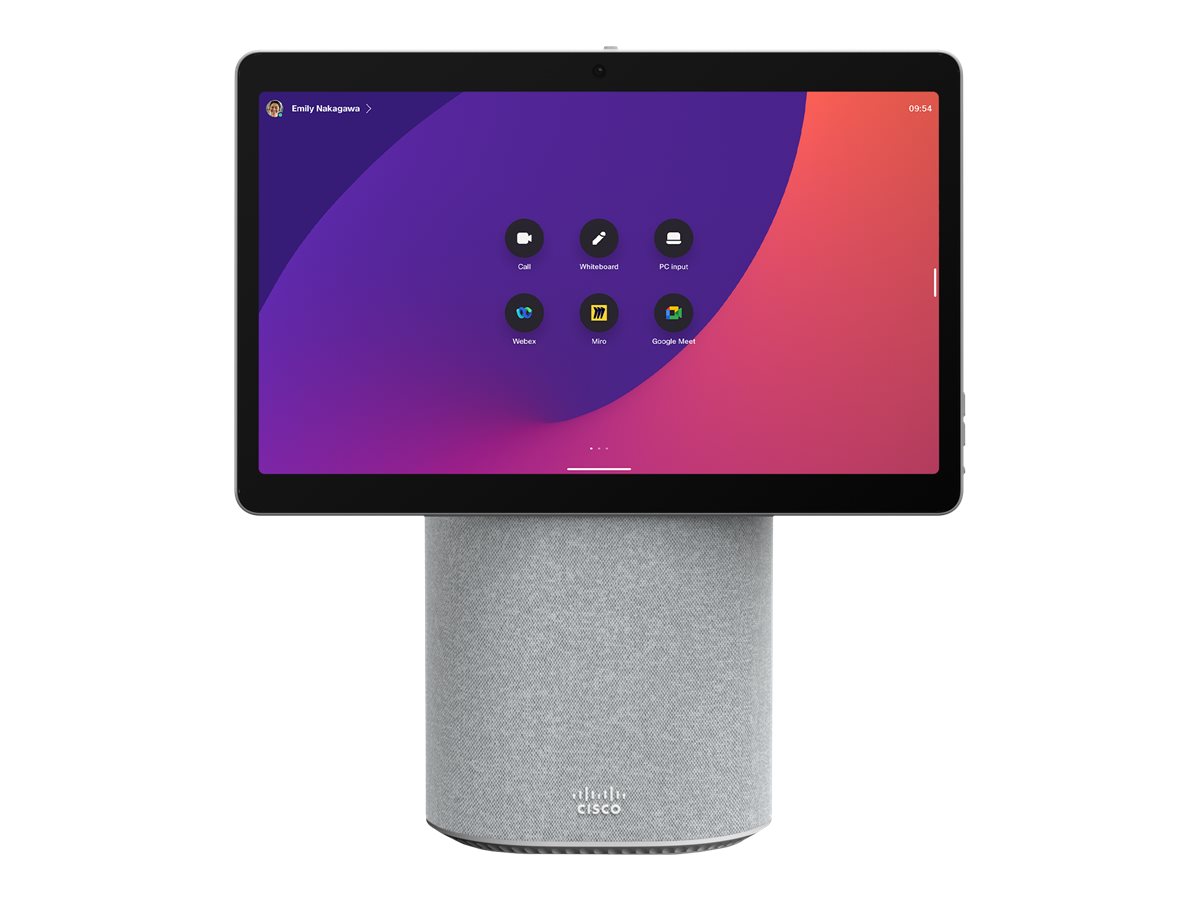

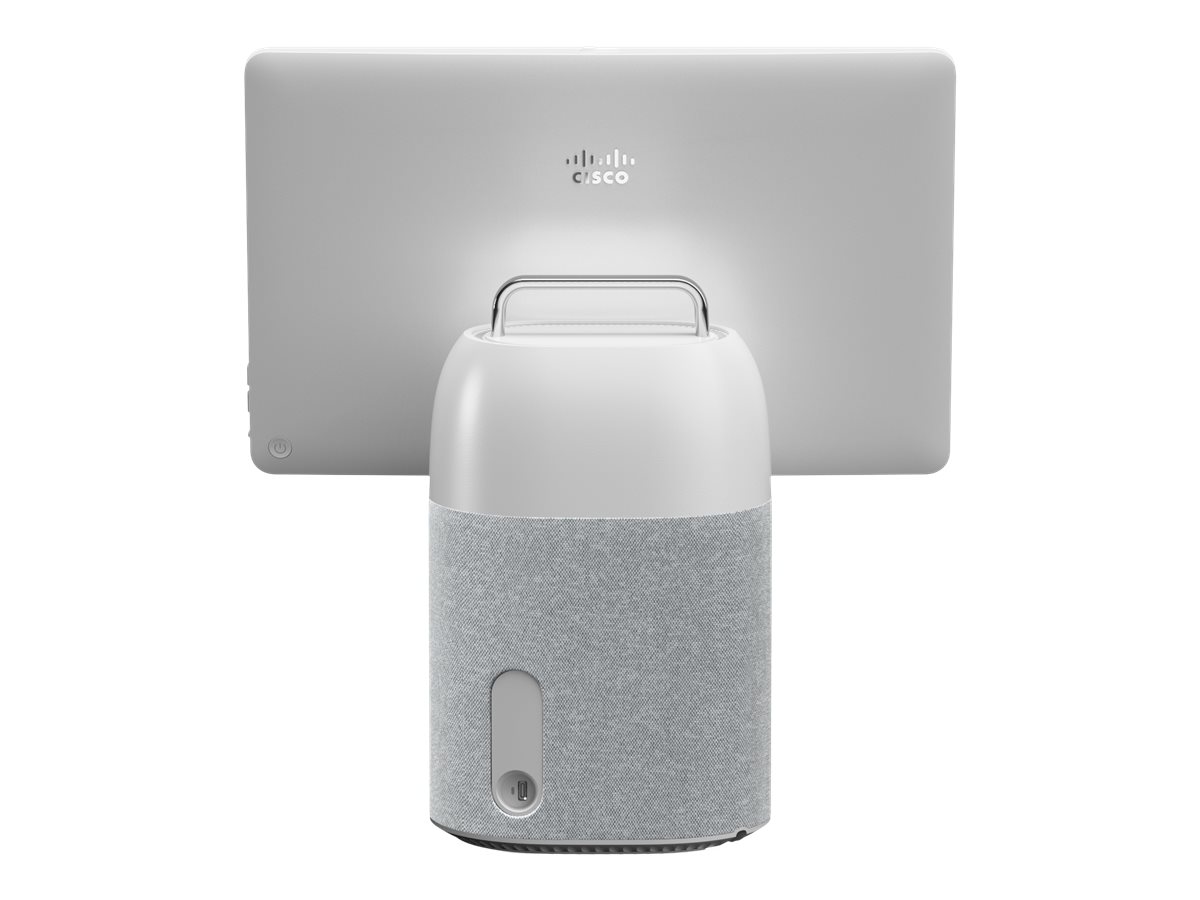

Cisco - Cisco Webex Desk Mini
No Radio - Video conferencing device - TAA Compliant
Cisco
CS-DESKMI-NR-K9++
N/A
0889728447690
N/A
New
Product Description
Additional Details
What's Included
Main Specifications | |
---|---|
Product Description | Cisco Webex Desk Mini - No Radio - video conferencing device - TAA Compliant |
Device Type | Video conferencing device |
VoIP Protocols | H.323, SIP |
Codec | H.263, H.264 AVC, G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Dimensions (WxDxH) | 14.6 in x 5.3 in x 16.3 in |
Weight | 8.6 lbs |
Display | 15.6" IPS / 1920 x 1080 |
Digital Signaling Protocol | H.323, SIP |
Data Compression Protocol | G.729, G.711, G.722, G.722.1 |
Video Input | Digital video camera |
Audio Input | 3-microphone array |
Audio Output | Speaker(s) |
Input Device | 15.6" touchscreen |
Networking | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Power | AC 100-240 V |
TAA Compliant | Yes |
General | |
Device Type | Video conferencing device |
VoIP Protocols | H.323, SIP |
Voice Codecs | G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Video Codecs | H.263, H.264 AVC |
Security | H.323 |
Width | 14.6 in |
Depth | 5.3 in |
Height | 16.3 in |
Weight | 8.6 lbs |
Expansion / Connectivity | |

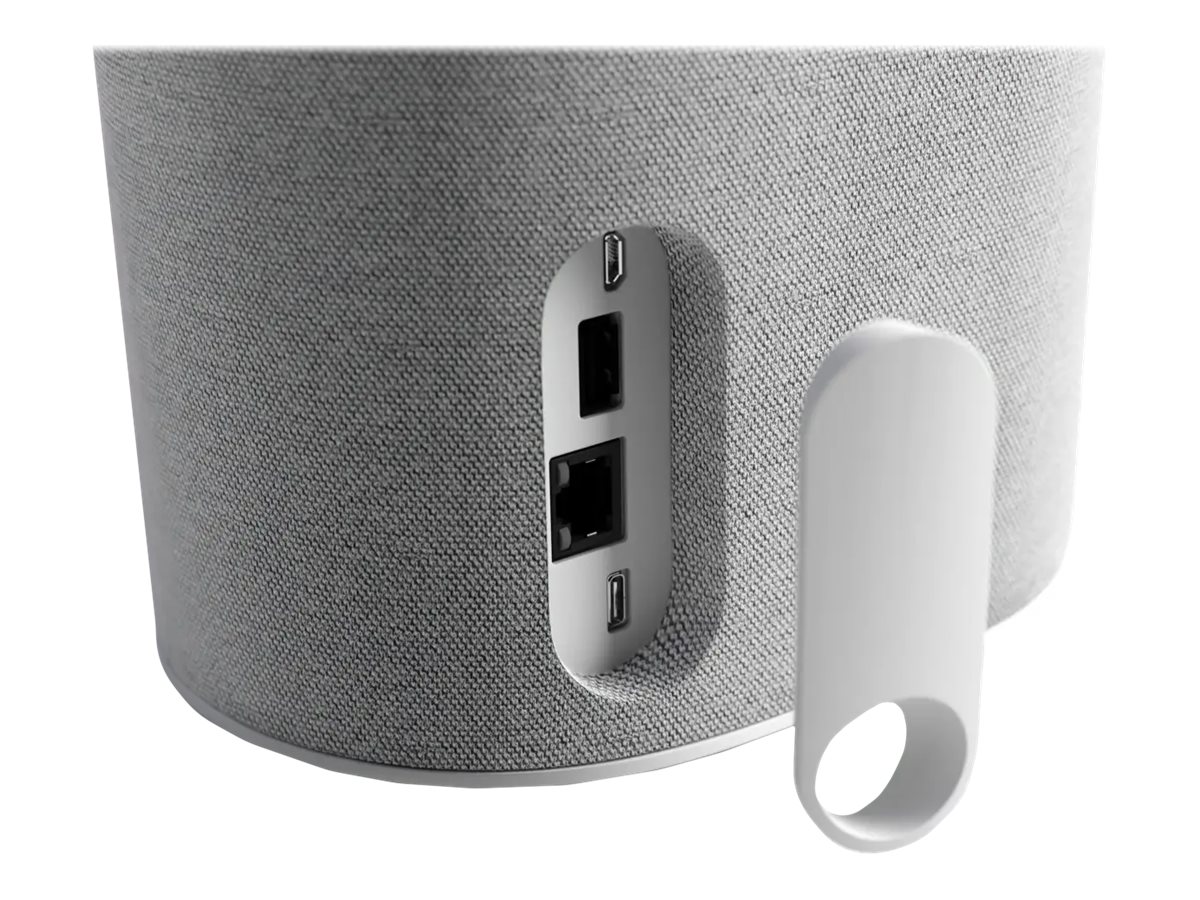

Interfaces | 1 x USB-C - DisplayPort input - 24 pin USB-C ¦ 1 x network - Ethernet 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 2.0 - 5 pin Micro-USB Type B |
Miscellaneous | |
Cables Included | 1 x USB-C cable |
Compliant Standards | FCC CFR47 Part 15 C, NRTL, Directive 2011/65/EU, Directive 2002/96/EU, FCC CFR47 Part 15 B Class B, Directive 2014/35/EU, Directive 2014/30/EU, FCC CFR47 Part 15 E |
TAA Compliant | Yes |
Networking | |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Network / Transport Protocol | HTTP |
Compliant Standards | G.711, G.722, G.729 |
Power | |
Voltage Required | AC 100-240 V |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 95 °F |
Humidity Range Operating | 20 - 90% RH |
Audio Output | |
Type | Speaker(s) |
Frequency Response | 65 - 20000 Hz |
Audio Input | |
Type | 3-microphone array - integrated |
Input Device | |
Type | 15.6" touchscreen |
Features | Volume control, Acoustic Echo Cancellation, Automatic Gain Control (AGC), multi-touch |
Display | |
Technology | IPS |
Diagonal Size | 15.6" |
Native Resolution | 1920 x 1080 |
Image Aspect Ratio | 16:9 |
Image Brightness | 250 cd/m² |
Image Contrast Ratio | 700:1 |
Color Gamut | 72% NTSC |
Monitor Features | 85° viewing angle |
Modem | |
Digital Signaling Protocol | H.323, SIP |
Data Compression Protocol | G.729, G.711, G.722, G.722.1 |
Video Input | |
Type | Digital video camera (color) - integrated |
Digital Video Capture Resolution | 1080p |
Video Modes | 1080/60p, 1080/30p |
Features | Brightness control, tilt adjustment, auto white balance, 50° field of view (vertical), 64° field of view (horizontal), 8 megapixels image sensor, 1/3.2 CMOS image sensor type, F 2.0 lens aperture |
Dimensions & Weight (Shipping) | |
Shipping Width | 21.5 in |
Shipping Depth | 18.9 in |
Shipping Height | 11 in |
Shipping Weight | 17.72 lbs |
