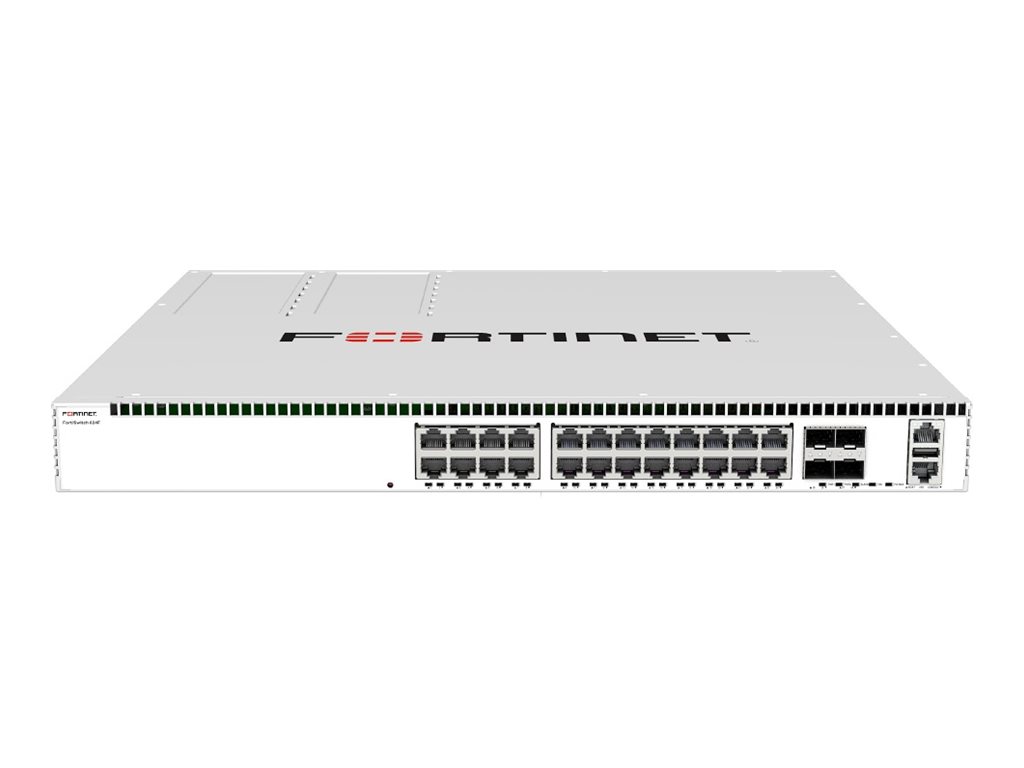

Fortinet - Fortinet FortiSwitch 624F
Switch - L3 - managed - 24 x 1000/2.5G/5GBase-T + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 - front to back airflow - rack-mountable
Fortinet
FS-624F
0195875217940
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Fortinet FortiSwitch 624F - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 5 Gigabit Ethernet |
| Ports | 24 x 1000/2.5G/5GBase-T + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 |
| Performance | Switching capacity (full duplex): 440 Gbps ¦ Forwarding performance (full duplex): 654 Mpps ¦ Latency: < 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ Link aggregation groups: 28 ¦ Packet buffer size: 8 MB ¦ ACL: 36000 ¦ Spanning Tree Protocol instances: 32 ¦ IPv4 routing entries: 16000 ¦ Host IPv4 routes: 192000 ¦ IP multicast entries: 12000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, IS-IS, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SSM, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), URPF, MSTP |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, Syslog |
| Features | Auto-negotiation, VLAN support, WOL, IGMP snooping, port mirroring, automatic topology detection, High Availability, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, TDR, STP Root Guard, DHCP relay, RSPAN, IP-MAC binding, NAC, IGMP proxy, 802.1x authentication, PTP, MACsec support, Storm Control, MLD proxy, IP source guard, ARP inspection, IGMP querier, Loop Guard, Private VLAN, RA guard, STP BPDU Guard, ERSPAN, port trunking, MAB, SPAN mode, MLD querier, MDI, Auto MDIX, VLAN / port mapping, MAC black/whitelist, FTP support, RPVST |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 13.8 in x 1.7 in |
| Weight | 15.27 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 5 Gigabit Ethernet |
| Ports | 24 x 1000/2.5G/5GBase-T + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 |
| Performance | Switching capacity (full duplex): 440 Gbps ¦ Forwarding performance (full duplex): 654 Mpps ¦ Latency: < 1 µs |
| Capacity | Virtual interfaces (VLANs): 4000 ¦ Link aggregation groups: 28 ¦ Packet buffer size: 8 MB ¦ ACL: 36000 ¦ Spanning Tree Protocol instances: 32 ¦ IPv4 routing entries: 16000 ¦ Host IPv4 routes: 192000 ¦ IP multicast entries: 12000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, IS-IS, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SSM, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), URPF, MSTP |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, Syslog |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Features | Auto-negotiation, VLAN support, WOL, IGMP snooping, port mirroring, automatic topology detection, High Availability, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, TDR, STP Root Guard, DHCP relay, RSPAN, IP-MAC binding, NAC, IGMP proxy, 802.1x authentication, PTP, MACsec support, Storm Control, MLD proxy, IP source guard, ARP inspection, IGMP querier, Loop Guard, Private VLAN, RA guard, STP BPDU Guard, ERSPAN, port trunking, MAB, SPAN mode, MLD querier, MDI, Auto MDIX, VLAN / port mapping, MAC black/whitelist, FTP support, RPVST |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 32 MB |
| Built-in Devices | 32 GB SSD |
| Status Indicators | Power, alarm, fan, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 24 x 1/2.5/5GBase-T RJ-45 ¦ 4 x 10/25GBase-X SFP28/SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB 2.0 Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 4 rubber feet |
| Cables Included | 1 x console cable ¦ 2 x AC power cable |
| Rack Mounting Kit | Included |
| MTBF | >10 years |
| Compliant Standards | UL, VCCI, BSMI, CB, FCC, RoHS2, RCM |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Provided | 350 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 13.8 in |
| Height | 1.7 in |
| Weight | 15.27 lbs |
