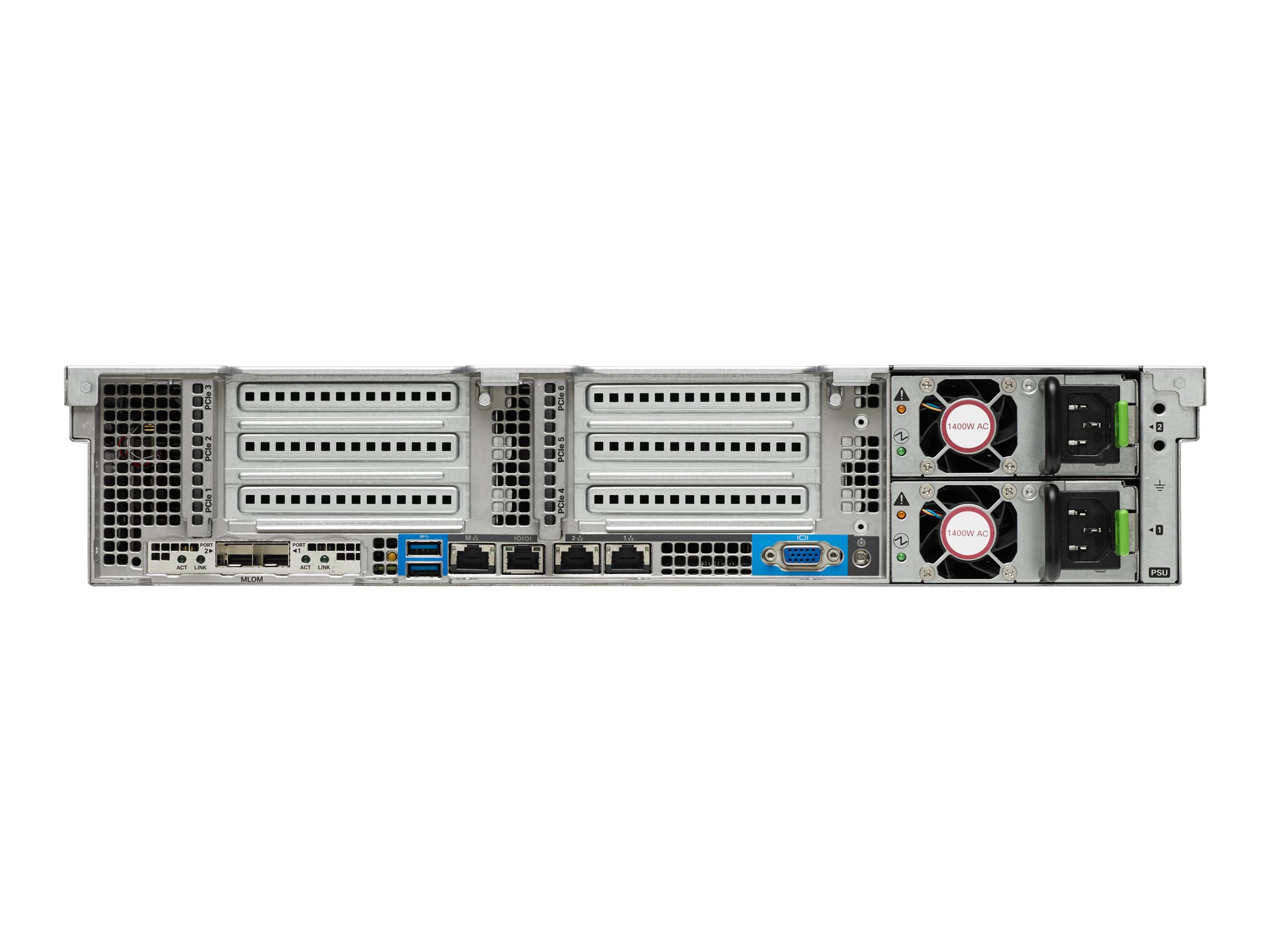

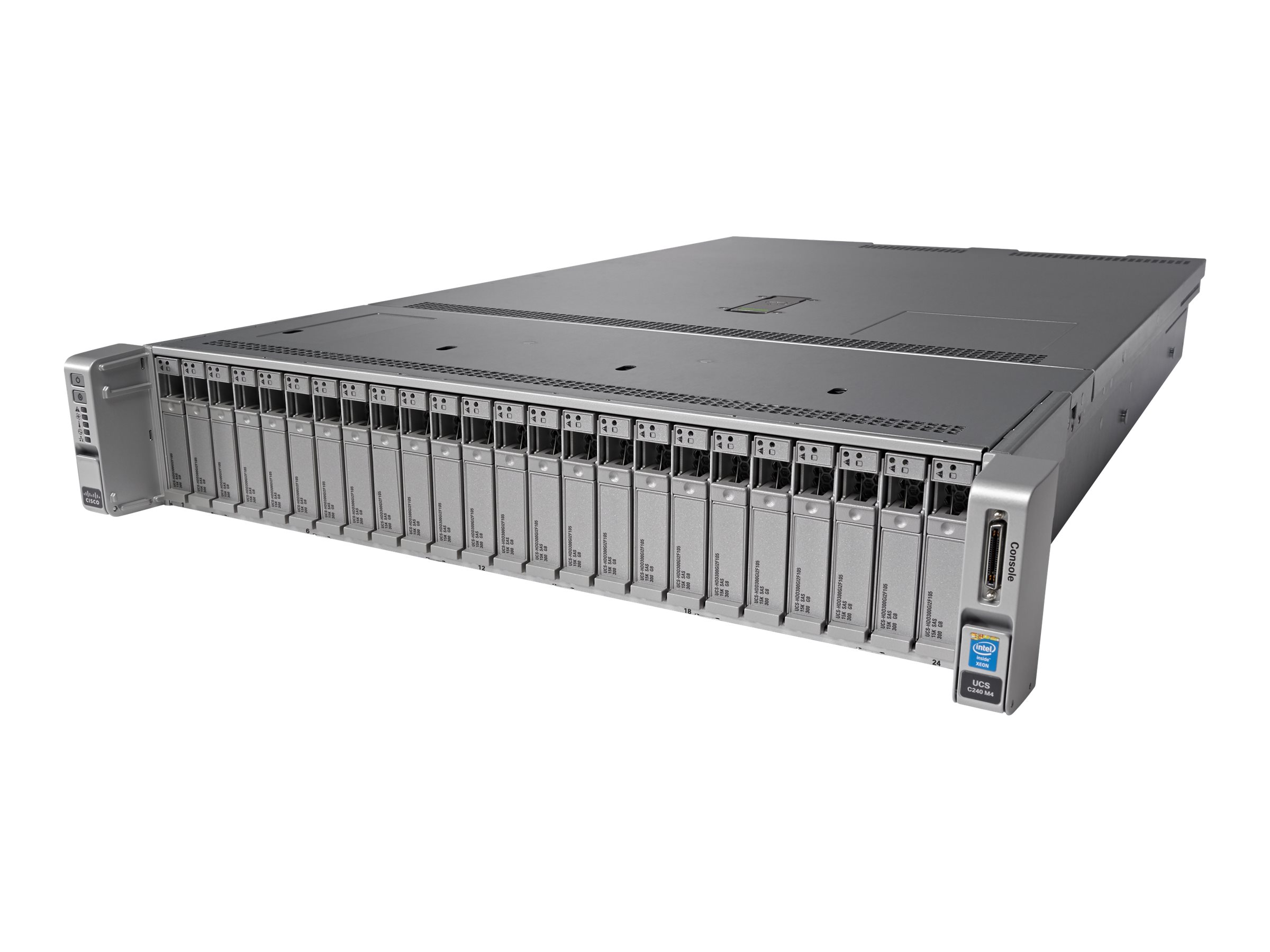

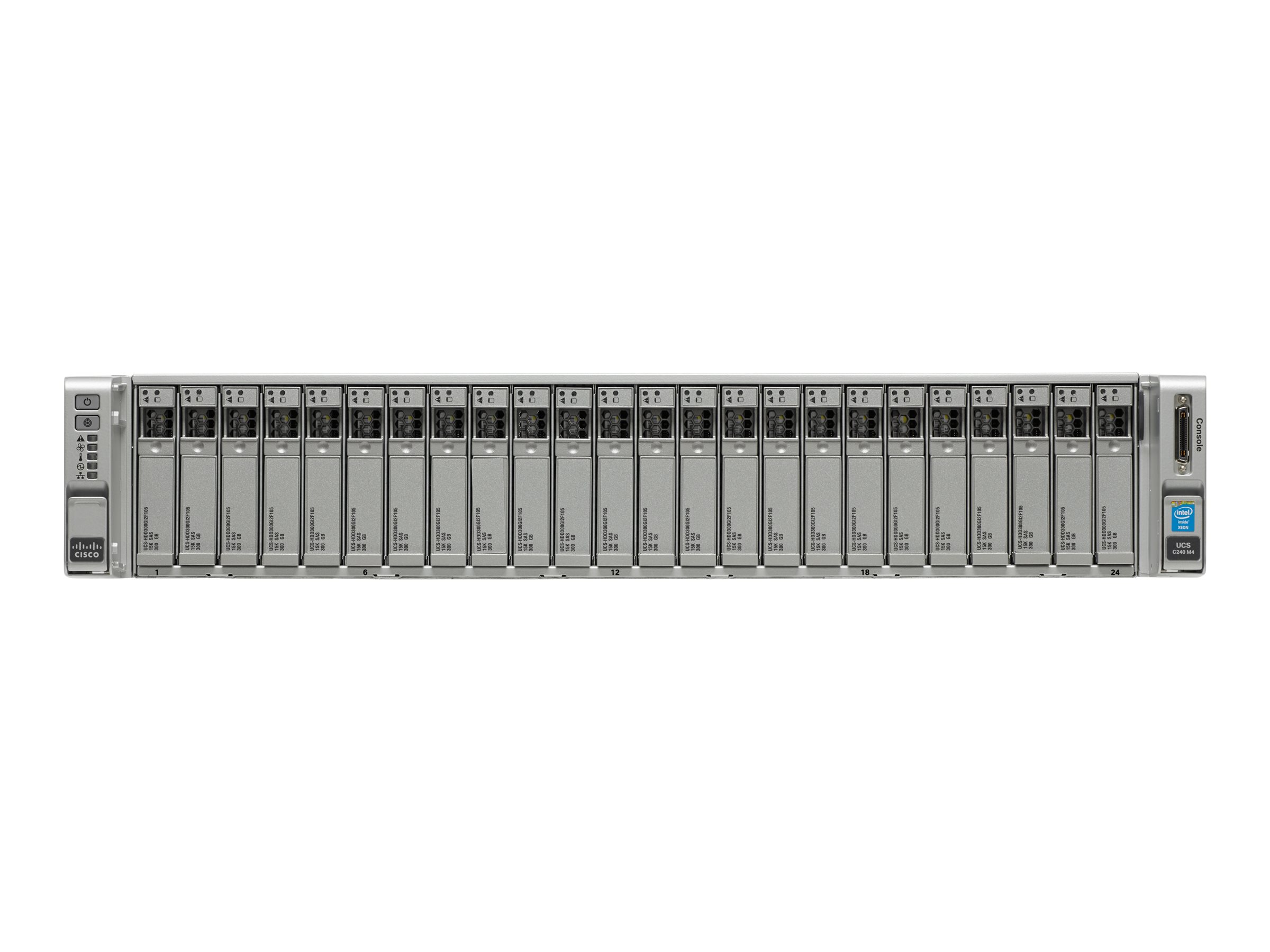

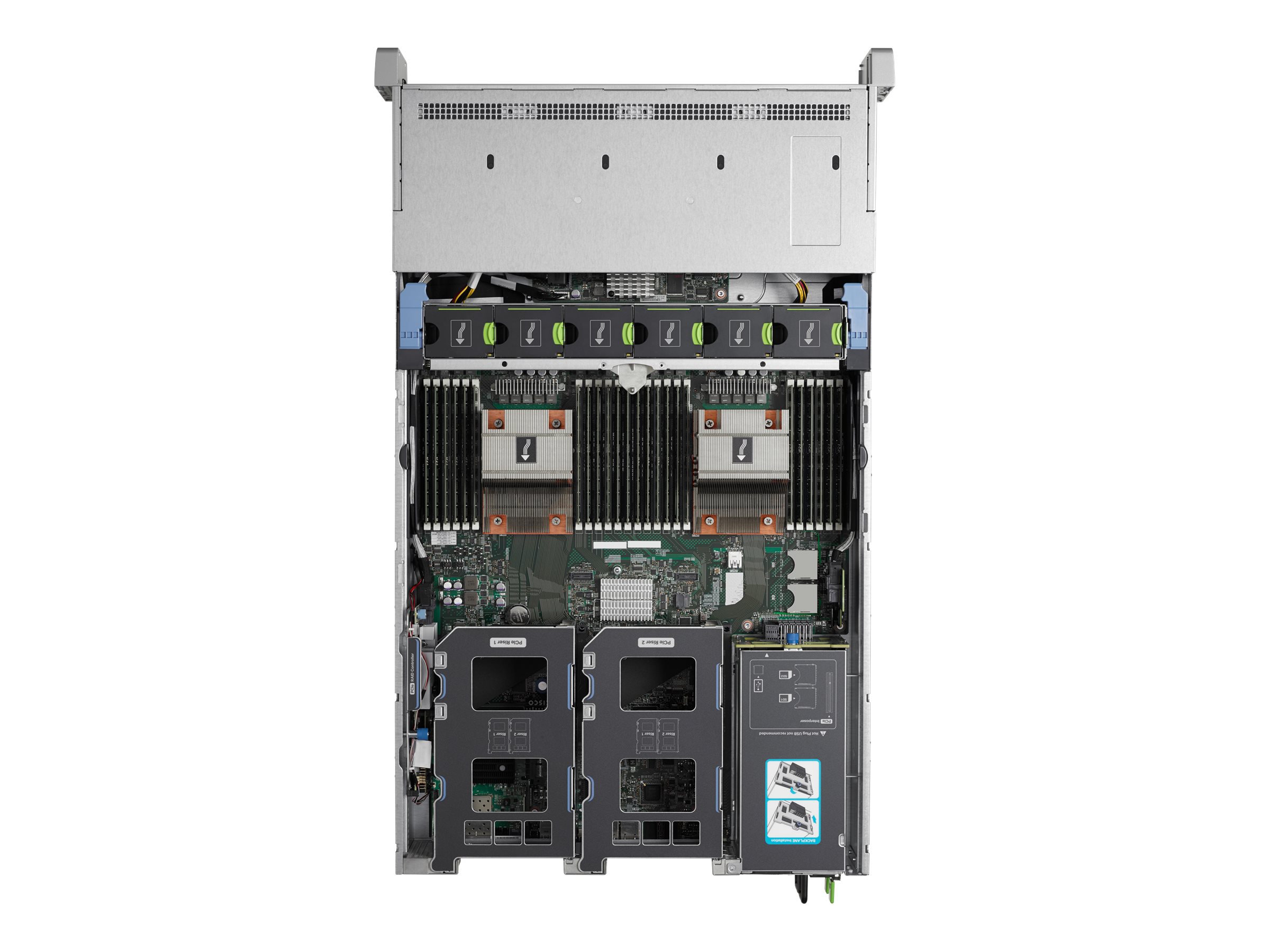

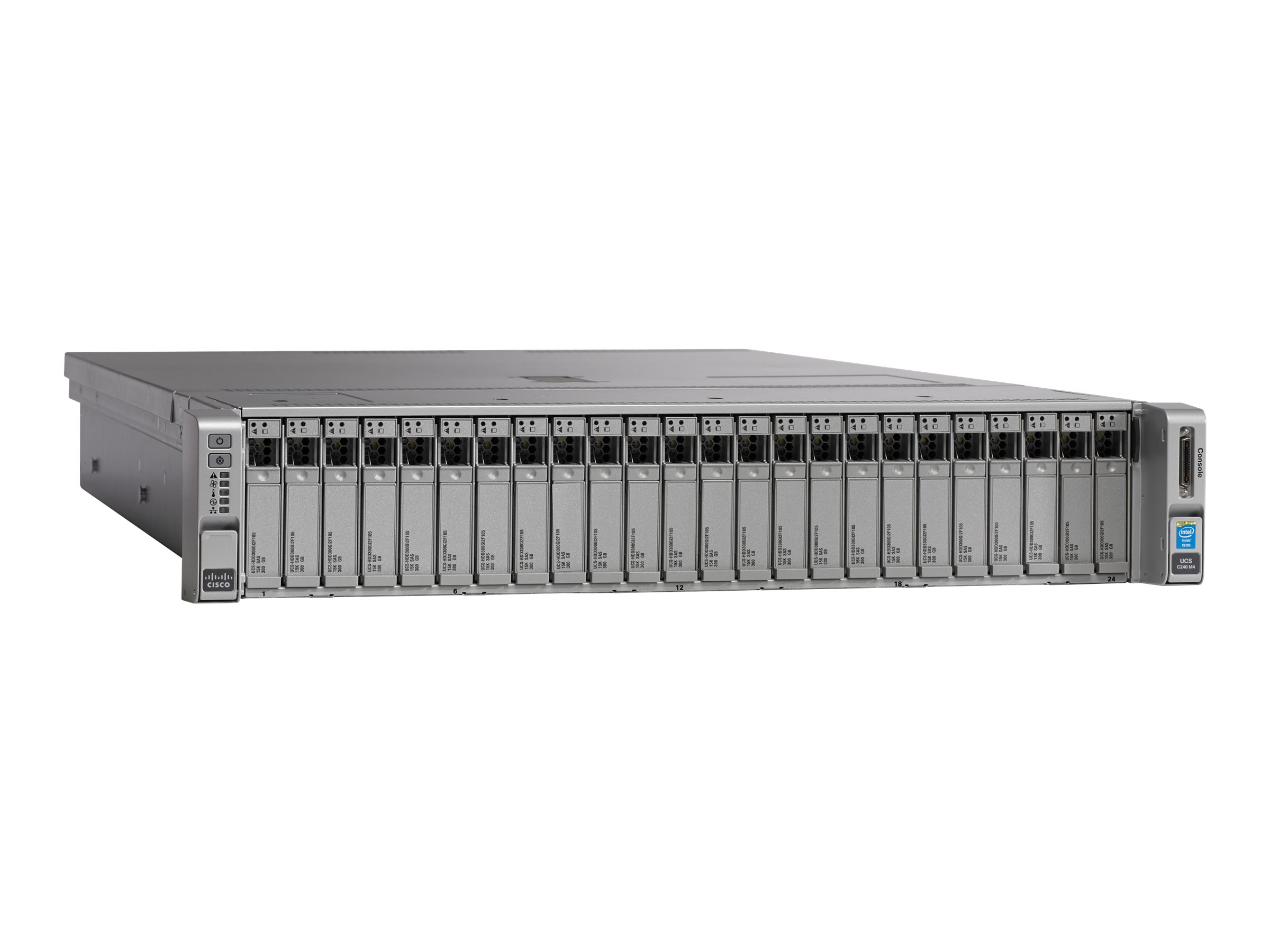

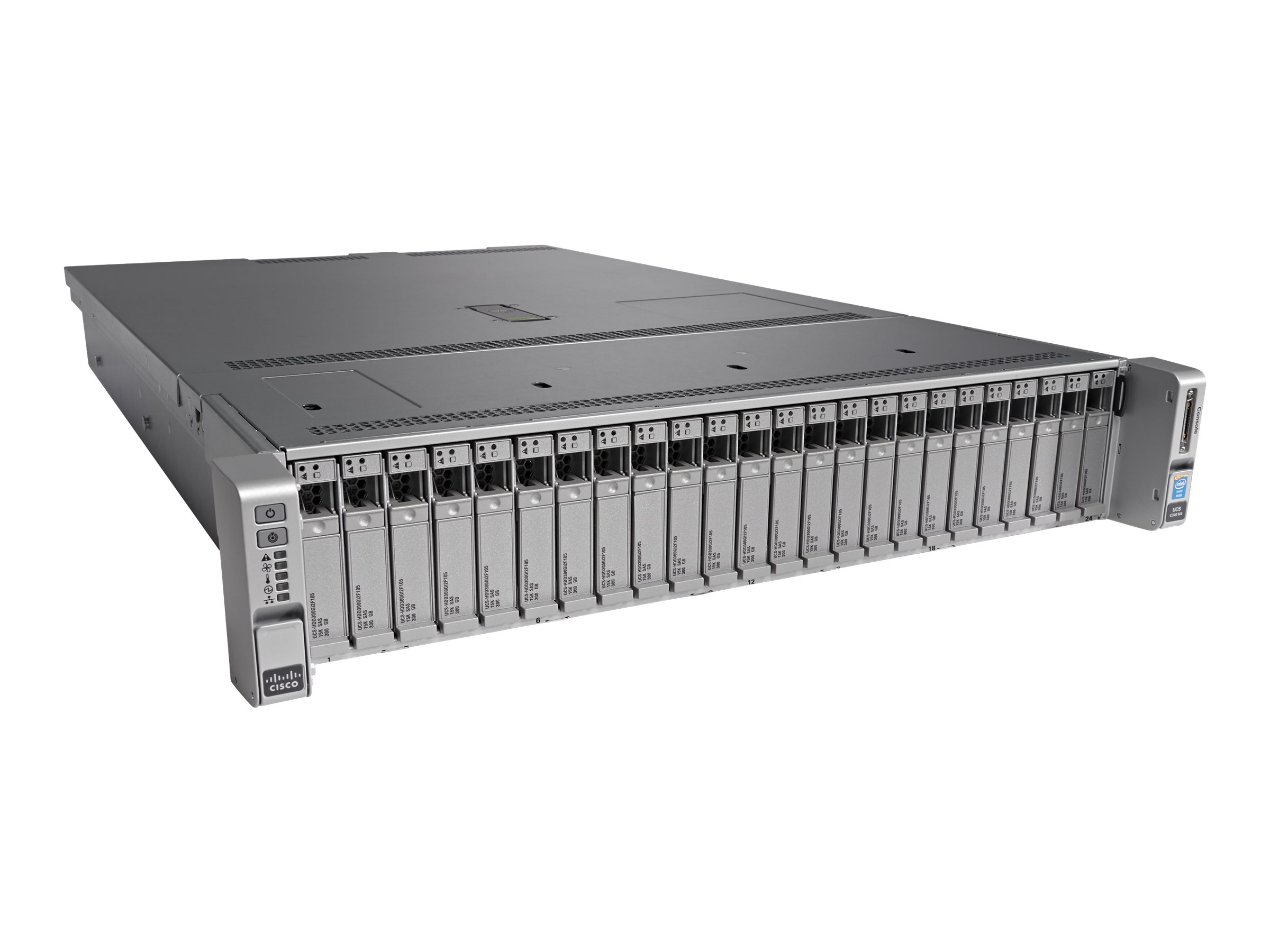

Cisco Systems - Cisco UCS SmartPlay Select C240 M4SX High Frequency 2 (Tracer)

Server - rack-mountable - 2U - 2-way - 2 x Xeon E5-2637V4 / 3.5 GHz - RAM 256 GB - SATA/SAS - hot-swap 2.5" - no HDD - G200e - GigE, 10 GigE, 10Gb FCoE - monitor: none

Cisco Systems
TR-SP-C240M4-BF2
N/A
N/A
New

Price: CALL

Total Available: 0

Product Description

Additional Details

    What's Included

    Main Specifications
    Product Description Cisco UCS SmartPlay Select C240 M4SX High Frequency 2 (Tracer) - rack-mountable - Xeon E5-2637V4 3.5 GHz - 256 GB
    Type Server - rack-mountable
    Height (Rack Units) 2U
    Server Scalability 2-way
    Processor 2 x Intel Xeon E5-2637V4 / 3.5 GHz (3.7 GHz) (Quad-Core)
    Processor Socket LGA2011-v3 Socket
    Cache Memory 30 MB
    Cache Per Processor 15 MB
    RAM 256 GB (installed) / 768 GB (max) DDR4 SDRAM - ECC - PC4-19200
    Storage Controller RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0
    Server Storage Bays Hot-swap 2.5"
    Hard Drive No HDD
    Optical Storage No optical drive
    Graphics Controller Matrox G200e
    Video Memory 8 MB
    Networking GigE, 10 GigE, 10Gb FCoE
    Power AC 200/240 V (50/60 Hz)
    Power Redundancy Yes
    Dimensions (WxDxH) 17.6 in x 29.1 in x 3.4 in
    Manufacturer Warranty Limited warranty - replacement - 3 years - response time: next business day
    General
    Type Server
    Product Form Factor Rack-mountable - 2U
    Built-in Devices Backplane
    Server Scalability 2-way
    Hot-Swap Bays Qty 24
    Expansion / Connectivity
    Bays 24 (total) / 24 (free) x hot-swap 2.5" SFF
    Slots 2 (total) / 0 (free) x CPU ¦ 24 (total) / 16 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x24 - three-quarter-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x24 - full-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode) ¦ 2 (total) / 2 (free) x SD card
    Interfaces 2 x USB 3.0 ¦ 1 x VGA ¦ 1 x serial - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management (NIC) - RJ-45 ¦ 1 x KVM ¦ 2 x LAN (10Gigabit Ethernet) (SFP+)
    Manufacturer Warranty
    Service & Support Limited warranty - replacement - 3 years - response time: next business day
    Miscellaneous
    Included Accessories 2 x CPU Heatsink, 8x 2.5 inch HDD blanking panel, Cisco Ball Bearing Rail Kit, CPU asset tab ID label
    Cables Included Video / USB / serial cable
    Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, UL 60950-1 Second Edition, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, KN24, KN22 Class A, GB4943.1-2001, EN 300386
    RAM
    Installed Size 256 GB / 768 GB (max)
    Technology DDR4 SDRAM - ECC
    Effective Memory Speed 2400 MHz
    Rated Memory Speed 2400 MHz
    Memory Specification Compliance PC4-19200
    Form Factor DIMM 288-pin
    Slots 24 (total) / 16 (empty)
    Features Registered, dual rank
    Configuration Features 8 x 32 GB
    Networking
    Ethernet Ports 2 x Gigabit Ethernet, 2 x SFP+
    Ethernet Controller Cisco UCS Virtual Interface Card 1227, Intel I350
    Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE)
    Features PXE support
    Power
    Device Type Power supply - hot-plug
    Power Redundancy Yes
    Power Redundancy Scheme 1+1
    Installed Qty 2
    Max Supported Qty 2
    Nominal Voltage AC 200/240 V (50/60 Hz)
    Power Provided 1400 Watt
    Environmental Parameters
    Min Operating Temperature 41 °F
    Max Operating Temperature 95 °F
    Humidity Range Operating 10 - 90% (non-condensing)
    Storage Controller
    Type 1 x RAID - PCIe 3.0
    Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
    RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
    Buffer Size 2 GB
    Cache Memory
    Installed Size 30 MB
    Cache Per Processor 15 MB
    Optical Storage
    Type No optical drive
    Monitor
    Monitor Type None.
    Graphics Controller
    Graphics Processor Matrox G200e
    Video Memory 8 MB
    Video Interfaces VGA
    Hard Drive
    Type No HDD
    Dimensions & Weight
    Width 17.6 in
    Depth 29.1 in
    Height 3.4 in
    Processor / Chipset
    CPU Intel Xeon E5-2637V4 / 3.5 GHz
    Max Turbo Speed 3.7 GHz
    Number of Cores Quad-Core
    CPU Qty 2
    Max CPU Qty 2
    CPU Upgradability Upgradable
    CPU Socket LGA2011-v3 Socket
