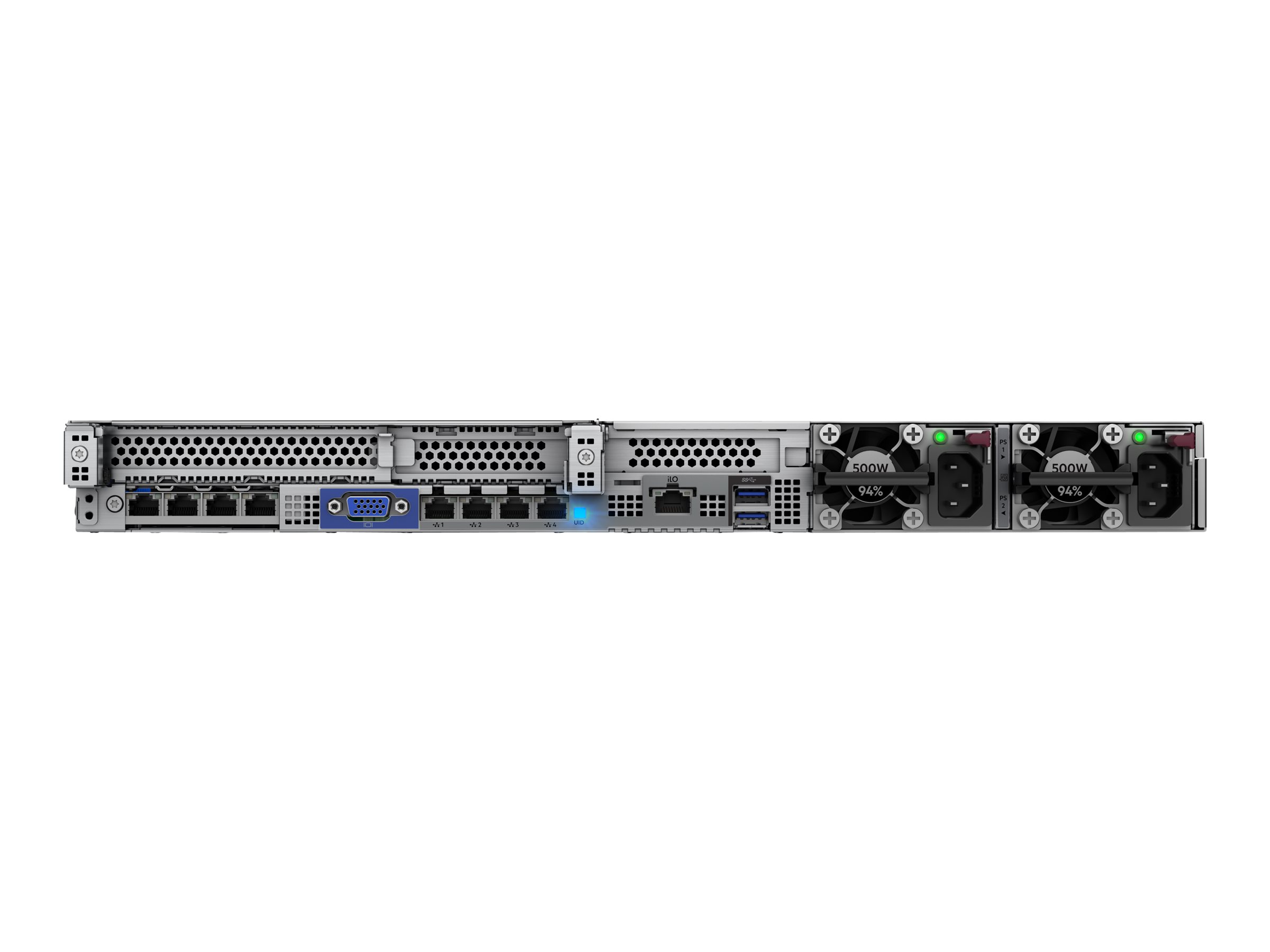

Hewlett Packard Enterprise - HPE ProLiant DL325 Gen10 Performance

Server - rack-mountable - 1U - 1-way - 1 x EPYC 7351P / 2.4 GHz - RAM 16 GB - SAS - hot-swap 2.5" - no HDD - GigE - monitor: none

Hewlett Packard Enterprise
P04647-B21
0190017285344
N/A
New

Price: CALL

Total Available: 0

Product Description

Additional Details

    What's Included

    Main Specifications
    Product Description HPE ProLiant DL325 Gen10 Performance - rack-mountable - EPYC 7351P 2.4 GHz - 16 GB
    Type Server - rack-mountable
    Height (Rack Units) 1U
    Server Scalability 1-way
    Processor 1 x AMD EPYC 7351P / 2.4 GHz (2.9 GHz) (16-core)
    Processor Socket Socket SP3
    Cache Memory 64 MB L3 cache
    Cache Per Processor 64 MB
    RAM 16 GB (installed) / 2 TB (max) DDR4 SDRAM - PC4-20800
    Storage Controller RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HPE Smart Array E208i-a)
    Server Storage Bays Hot-swap 2.5"
    Hard Drive No HDD
    Optical Storage No optical drive
    Card Reader Yes
    Video Memory 16 MB
    Networking GigE
    Power AC 120/230 V (50/60 Hz)
    Power Redundancy Optional
    Dimensions (WxDxH) 17.1 in x 24.2 in x 1.7 in
    Weight 22.05 lbs
    General
    Type Server
    Product Form Factor Rack-mountable - 1U
    Built-in Devices LED panel, battery
    Server Scalability 1-way
    Hot-Swap Bays Qty 8
    Expansion / Connectivity
    Bays 1 (total) / 1 (free) x external ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
    Slots 1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (low-profile) ¦ 1 (total) / 1 (free) x microSD Card (internal)
    Interfaces 1 x HP iLO (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 4 x LAN (Gigabit Ethernet) (4 rear) ¦ 1 x HP iLO (1 rear) ¦ 1 x VGA (1 rear)
    Miscellaneous
    Included Accessories HPE Easy Install Rails
    Compliant Standards AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
    RAM
    Installed Size 16 GB / 2 TB (max)
    Technology DDR4 SDRAM
    Effective Memory Speed 2666 MHz
    Rated Memory Speed 2666 MHz
    Memory Specification Compliance PC4-20800
    Form Factor DIMM 288-pin
    Slots 16 (total) / 14 (empty)
    Features Registered, HPE SmartMemory
    Configuration Features 2 x 8 GB
    RAM Supported PC4-20800 2 TB Load-Reduced ¦ PC4-20800 1 TB registered
    Networking
    Ethernet Ports 4 x Gigabit Ethernet
    Ethernet Controller HPE 331i
    Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
    Remote Management Protocol SNMP 3, IPMI 2.0, SMASH CLP
    Remote Management Controller Integrated Lights-Out 5
    Features Wake on LAN (WoL), PXE support
    Power
    Device Type Power supply - hot-plug
    Power Redundancy Optional
    Power Redundancy Scheme 1+1 (with optional power supply)
    Installed Qty 1
    Max Supported Qty 2
    Nominal Voltage AC 120/230 V (50/60 Hz)
    Power Provided 500 Watt
    Environmental Parameters
    Min Operating Temperature 50 °F
    Max Operating Temperature 95 °F
    Humidity Range Operating 8 - 90% (non-condensing)
    Sound Emission 37 dBA
    Storage Controller
    Type 1 x RAID - PCIe 3.0 x8
    Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
    Storage Controller Name HPE Smart Array E208i-a
    Channel Qty 8
    RAID Level RAID 0, RAID 1, RAID 5, RAID 10
    Cache Memory
    Installed Size L3 cache - 64 MB
    Cache Per Processor 64 MB
    Optical Storage
    Type No optical drive
    Monitor
    Monitor Type None.
    Graphics Controller
    Video Memory 16 MB
    Video Interfaces VGA
    Operating System / Software
    OS Certified CentOS, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, SuSE Linux Enterprise Server 12 SP3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, VMware vSphere 6.5 (ESXi) Update 2, VMware vSphere 6.7 (ESXi)
    Hard Drive
    Type No HDD
    Dimensions & Weight
    Width 17.1 in
    Depth 24.2 in
    Height 1.7 in
    Weight 22.05 lbs
    Card Reader
    Type Card reader
    Supported Flash Memory Cards microSD
    Processor / Chipset
    CPU AMD EPYC 7351P / 2.4 GHz
    Max Turbo Speed 2.9 GHz
    Number of Cores 16-core
    CPU Qty 1
    Max CPU Qty 1
    CPU Upgradability Upgradable
    CPU Socket Socket SP3
