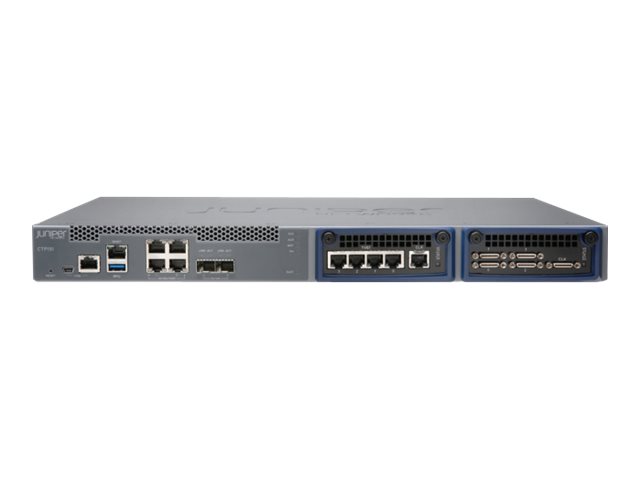

Juniper Networks - Juniper Networks CTP151
Modular expansion base - 10GbE - AC 100 - 240 V - 1U - rack-mountable
Juniper Networks
CTP151-AC
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Juniper Networks CTP151 - modular expansion base |
| Device Type | Modular expansion base |
| Form Factor | Rack-mountable - 1U |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Power | AC 100 - 240 V |
| Dimensions (WxDxH) | 17.4 in x 12 in x 1.7 in |
| Weight | 9.92 lbs |
| General | |
| Device Type | Modular expansion base |
| Height (Rack Units) | 1U |
| Width | 17.4 in |
| Depth | 12 in |
| Height | 1.7 in |
| Weight | 9.92 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot |
| Interfaces | 4 x 1000Base-T - RJ-45 ¦ 2 x 1Gb Ethernet/10Gb Ethernet - SFP (mini-GBIC) |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Features | Port mirroring, IPv6 support, IPv4 support, tagged VLAN, Type of Service (ToS), DiffServ Code Point (DSCP) support, VLAN Tagging |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100 - 240 V |
| Power Provided | 150 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
