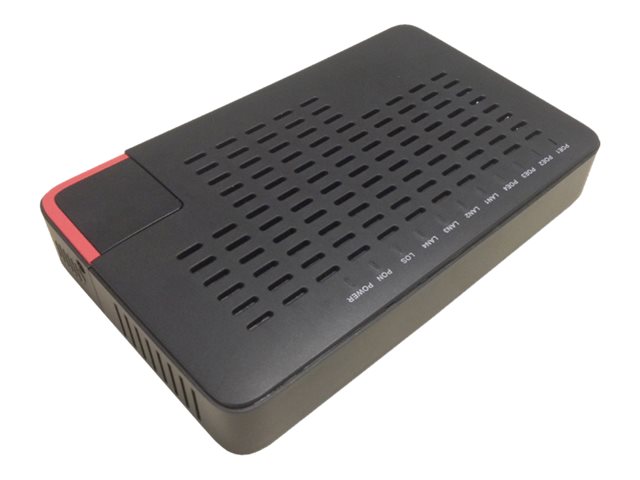

Nokia - Nokia 7368 G-040P-Q
GPON terminal - 2.488 Gbps - 1GbE - for 7368
Nokia
3FE56863AC
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Nokia 7368 G-040P-Q - GPON terminal |
| Device Type | GPON terminal |
| Form Factor | External |
| Max Transfer Rate | 2.488 Gbps |
| Protocols & Specifications | ITU G.984.3 |
| Networking | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | DC 54 V |
| Dimensions (WxDxH) | 13 cm x 20.9 cm x 4 cm |
| Weight | 400 g |
| Designed For | 7368 |
| General | |
| Device Type | GPON terminal |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | GPON ¦ 4 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Encryption Algorithm | AES |
| Compliant Standards | CB, FCC Part 15 B, UL 60950-1, IEEE 802.3af, IEEE 802.1p, ISE-003 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPv4 |
| Remote Management Protocol | OMCI |
| Features | VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Quality of Service (QoS), Forward Error Correction (FEC), fibre-to-the-home (FTTH), Class of Service (CoS), Power Sourcing Equipment (PSE), Type of Service (ToS), Optical Network Termination (ONT), Nokia Intelligent Services Access Manager (ISAM) compatible, Received Signal Strength Indication (RSSI) support, GPON Encapsulation Method (GEM) support, dynamic bandwidth reporting (DBR), 80W PoE power budget |
| Compliant Standards | IEEE 802.1p, IEEE 802.3af, ITU-T G.988 |
| Power | |
| Voltage Required | DC 54 V |
| Power Consumption Operational | 80 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% |
| Modem | |
| Connectivity Technology | Wired |
| Max Transfer Rate | 2.488 Gbps |
| Protocols & Specifications | ITU G.984.3 |
| Dimensions & Weight | |
| Width | 13 cm |
| Depth | 20.9 cm |
| Height | 4 cm |
| Weight | 400 g |
| Compatibility Information | |
| Designed For | Nokia 7368 |
