Areca - Areca ARC-4038-12

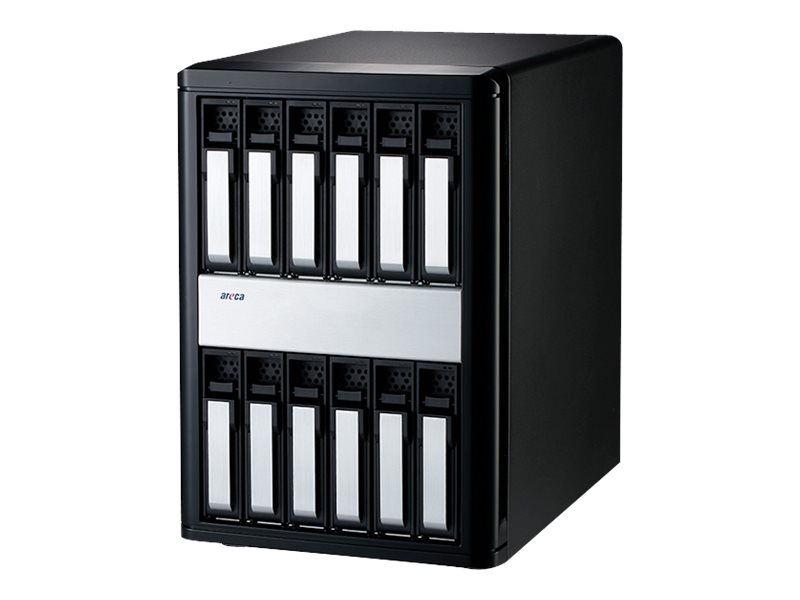

Hard drive array - 12 bays (SATA-600 / SAS-3) - SAS 6Gb/s, SAS 12Gb/s (external)
Areca
ARC-4038-12
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Areca ARC-4038-12 - hard drive array |
| Device Type | Hard drive array |
| Interface | SAS 6Gb/s, SAS 12Gb/s |
| Installed Devices / Modules Qty | 12 (max) |
| Supported Drives | SATA-600 / SAS-3 |
| Built-in Devices | LED panel |
| Storage Controller | (SATA 6Gb/s / SAS 12Gb/s) - RAID JBOD |
| Hard Drive | No HDD |
| Power | AC 100/240 V - 50/60 Hz |
| Dimensions (WxDxH) | 20.6 cm x 29 cm x 31 cm |
| Weight | 9.5 kg |
| General | |
| Device Type | Hard drive array |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces | 4 x SAS 12Gb/s - Mini SAS HD (SFF-8644) ¦ 1 x SAS 6Gb/s - 26 pin 4x Mini SAS (SFF-8088) ¦ 1 x management - RJ-11 (6 pin) ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| Features | Built-in 2 cooling fans |
| Storage | |
| HDD Array External Interface | SAS 6Gb/s, SAS 12Gb/s |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100/240 V - 50/60 Hz |
| Power Provided | 400 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Storage Controller | |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Max Storage Devices Qty | 12 |
| RAID Level | JBOD |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 20.6 cm |
| Depth | 29 cm |
| Height | 31 cm |
| Weight | 9.5 kg |
| Chassis | |
| Built-in Devices | LED panel |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SATA-600 / SAS-3 |
