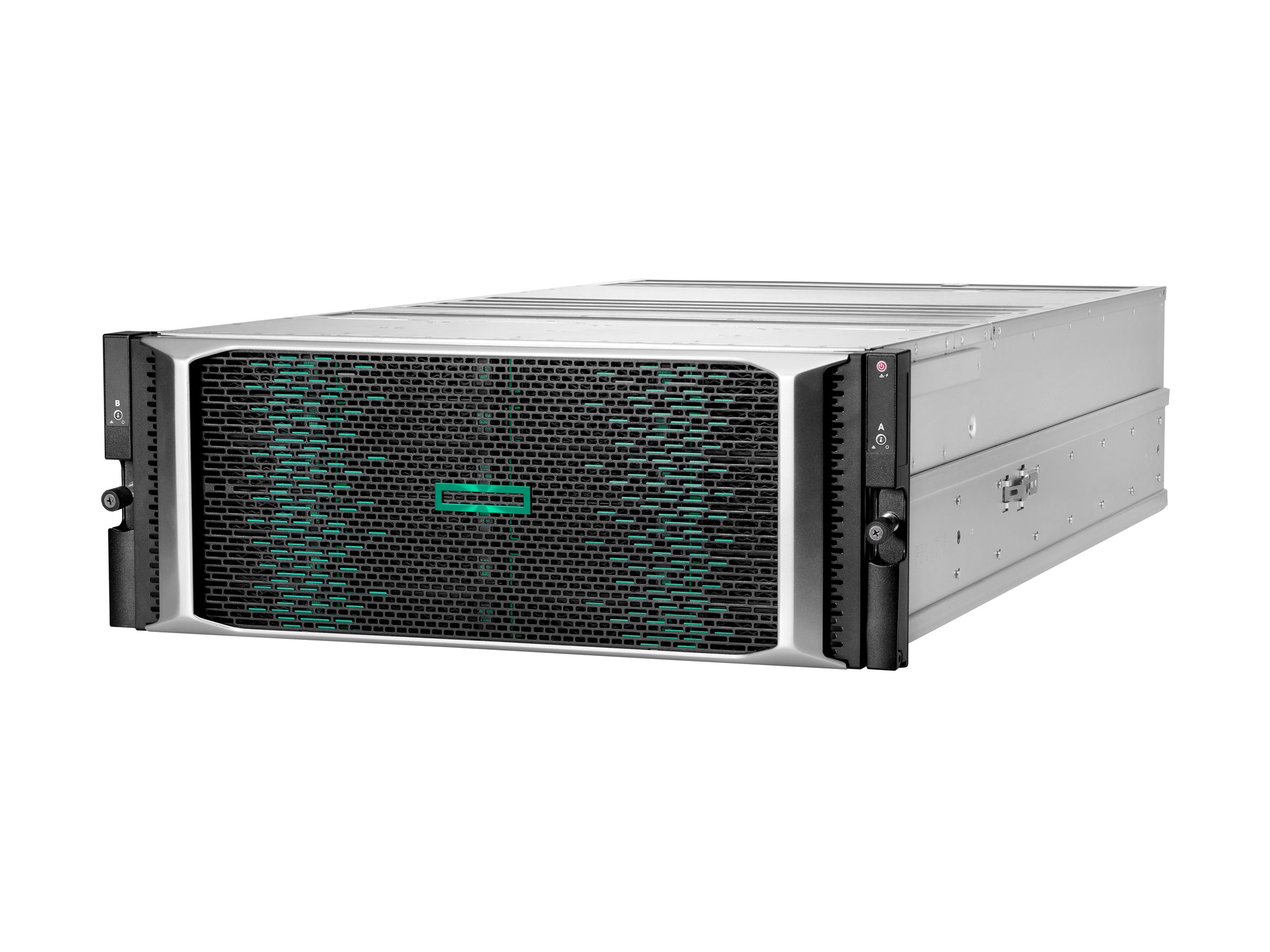

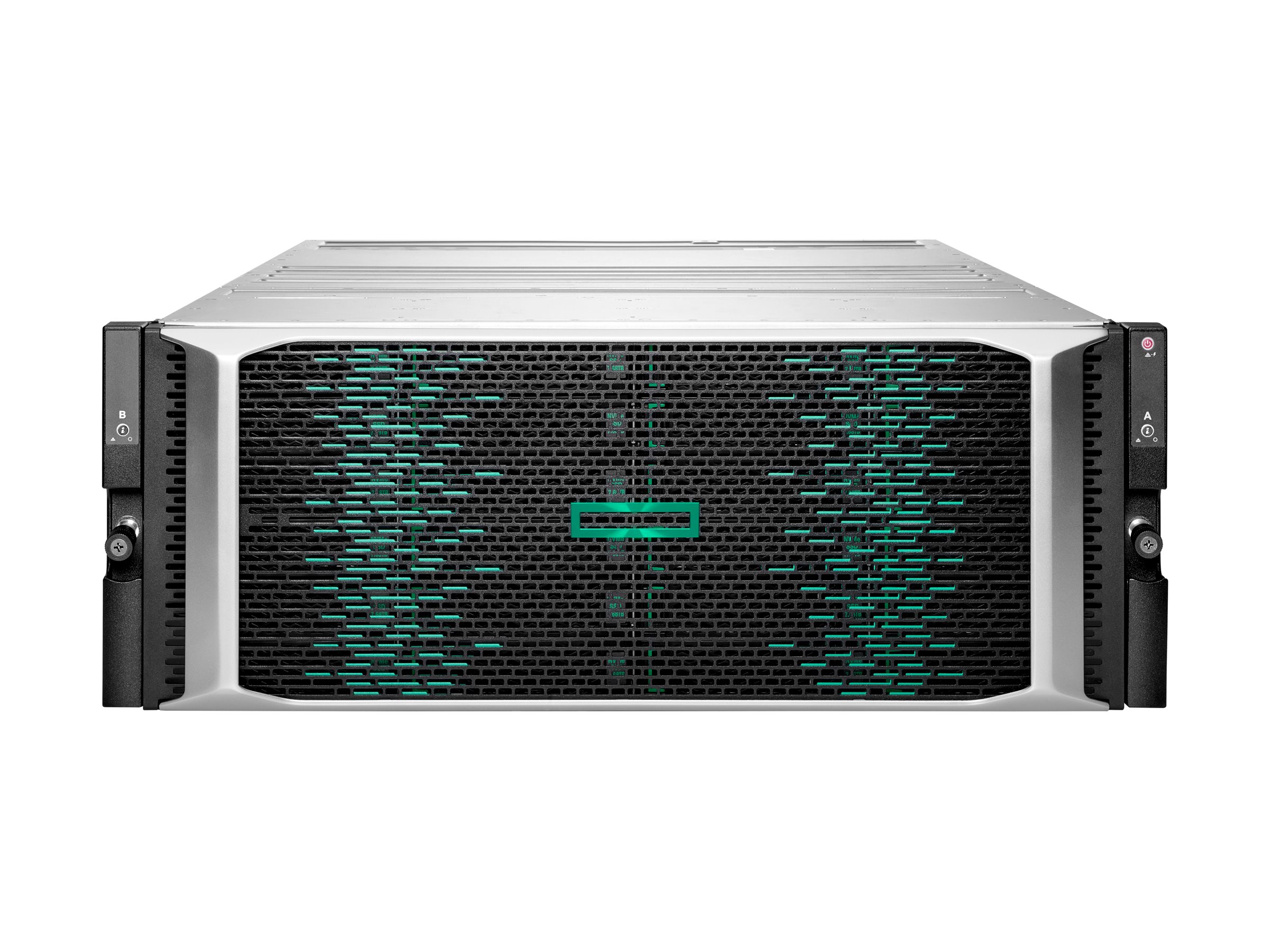

Hewlett Packard Enterprise - HPE Alletra 5030 Adaptive Flash Array Dual Controller Base Array
Solid state drive array - 24 bays (SAS-2) - iSCSI (1 GbE) (external) - rack-mountable - 4U - CTO
Hewlett Packard Enterprise
R4U34A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE Alletra 5030 Adaptive Flash Array Dual Controller Base Array - SSD array |
| Device Type | Solid state drive array |
| Enclosure Type | Rack-mountable - 4U |
| Interface | iSCSI (1 GbE) |
| Installed Devices / Modules Qty | 24 (max) |
| Supported Drives | SAS-2 |
| Storage Controller | RAID (SAS 6Gb/s) |
| Storage Controller Quantity | 2 |
| Hard Drive | No HDD |
| OS Required | Microsoft Windows Server, VMware vSphere, HP-UX, Ubuntu, SUSE Linux Enterprise, Red Hat Enterprise Linux, Microsoft Windows Hyper-V Server, CentOS, Oracle Linux, Oracle Solaris, IBM AIX, Citrix |
| Power Redundancy | Optional |
| Pricing Type | CTO |
| Dimensions (WxDxH) | 43.9 cm x 89 cm x 17.58 cm |
| Weight | 65 kg |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Solid state drive array |
| Enclosure Type | Rack-mountable - 4U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ New releases update - software - 90 days |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 B Class A, ICES-003 issue 6 Class A, VCCI V-3 Class A ITE, EN 55022:2010, CISPR 22:2008, AS/NZS CISPR22:2009+A1:2010, EN 55032:2012, CISPR 32:2012, EN 55024:2010, CISPR 24:2010+A1:2015, TCVN 7189: 2009, NBTC, TP TC 020/2011, EN 60950-1 Second Edition, Am1: 2009 + Am2: 2013, IEC 60950-1:2005 Second Edition, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, UL/IEC 60960-1 Second Edition Am1 + Am2, CNS 14336-1:99, CNS 13438(95) Class A, NOM-019-SCFI-1998, NBTC TS 4001-2550, TP TC 004/2011, IS 13252 (PART 1):2010 +A1:2013 + A2:2-15, SANS IEC 60950-1, UL, cUL, FCC Class A certified, IC Class A, VCCI Class A, BSMI Class A, RCM, KC, CCC, MoEc, NOM, CITC, CoC, sDoC, EAC, BIS, RoHS 2011/65/EU, EN 50581:2012, WEEE |
| Pricing Type | CTO |
| Storage | |
| HDD Array External Interface | iSCSI (1 GbE) |
| Power | |
| Power Device | 0 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 2 |
| Interface Type | SAS 6Gb/s |
| System Requirements | |
| OS Required | Microsoft Windows Server, VMware vSphere, HP-UX, Ubuntu, SUSE Linux Enterprise, Red Hat Enterprise Linux, Microsoft Windows Hyper-V Server, CentOS, Oracle Linux, Oracle Solaris, IBM AIX, Citrix |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 43.9 cm |
| Depth | 89 cm |
| Height | 17.58 cm |
| Weight | 65 kg |
| Chassis | |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-2 |
