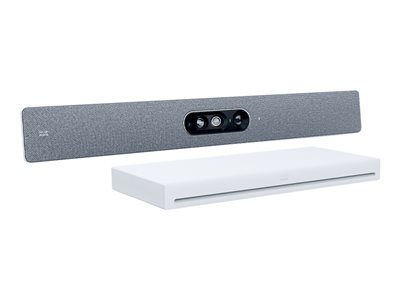

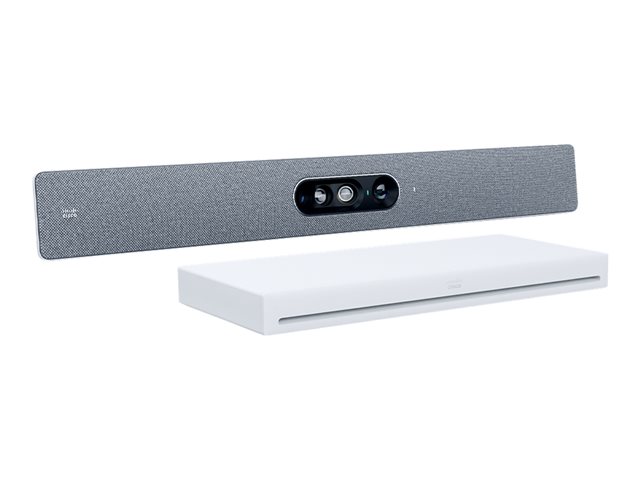

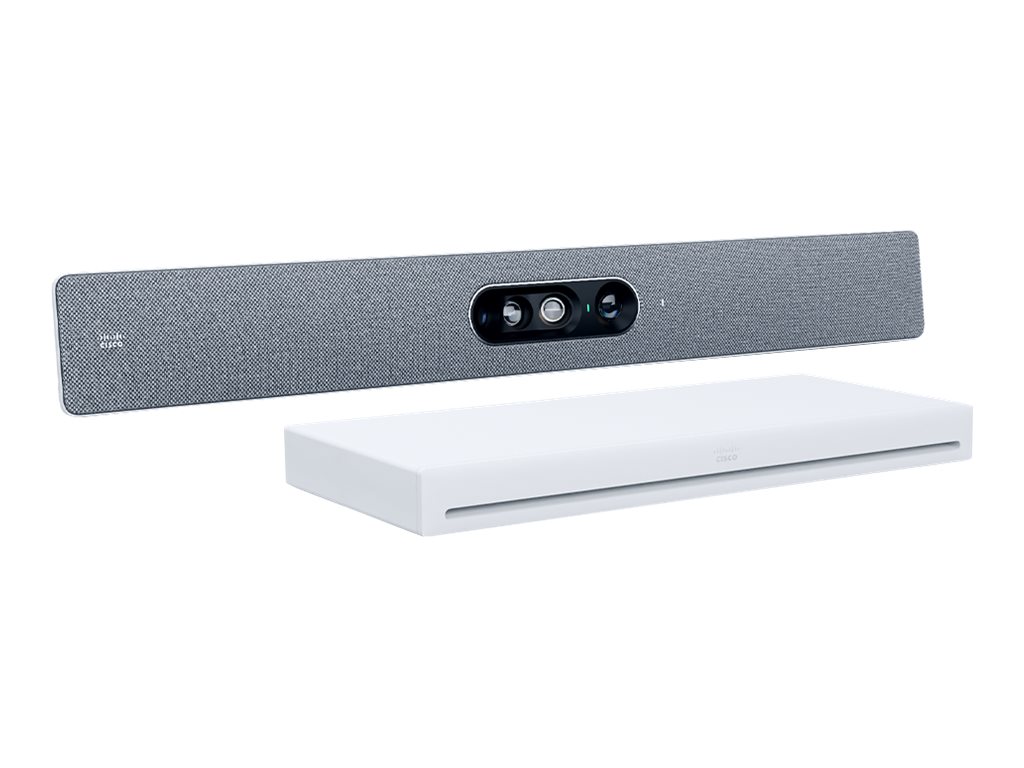

Cisco - Cisco Webex Room Kit EQ
Non-Radio - Video conferencing kit (Cisco Webex Codec EQ, Cisco Webex Quad Camera) - Cisco Webex Certified, Certified for Microsoft Teams Rooms - first light
Cisco
CS-KIT-EQ-NR-K9
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco Webex Room Kit EQ - Non-Radio - video conferencing kit |
| Device Type | Video conferencing kit |
| Kit Content | Cisco Webex Codec EQ, Cisco Webex Quad Camera |
| VoIP Protocols | H.323, H.245, SIP |
| Codec | H.263, H.264, H.265, G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Video Input | Digital video camera |
| Audio Input | 8-microphone array |
| Audio Output | Speaker(s) |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | AC 100-240 V (50/60 Hz) |
| Software Certification | Cisco Webex Certified, Certified for Microsoft Teams Rooms |
| Manufacturer Warranty | 90-day warranty |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Cisco Webex Codec EQ, Cisco Webex Quad Camera |
| VoIP Protocols | H.323, H.245, SIP |
| Voice Codecs | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Video Codecs | H.263, H.264, H.265 |
| Quality of Service | IEEE 802.1Q (VLAN), IEEE 802.1p, Differentiated Services (DiffServ) |
| IP Address Assignment | DHCP |
| Security | Secure Shell (SSH), 128-bit AES, 256-bit AES, H.235 v3, H.323, SRTP, IEEE 802.1X |
| Network Protocols | SSH, HTTP, HTTPS, SRTP, IPv6, IPv4, DNS |
| Dimensions & Weight Details | Codec - Width 47.3 cm Depth 20.2 cm Height 4.4 cm Weight 2.33 kg ¦ Camera - Width 95 cm Depth 10.3 cm Height 12 cm Weight 4.8 kg |
| Enclosure Color | First light |
| Expansion / Connectivity | |
| Interfaces | 3 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 3 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio - line-out - mini-phone stereo 3.5 mm ¦ 1 x audio - line-in - mini-phone 3.5 mm 4-pole ¦ 1 x USB-C - 24 pin USB-C ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE++) - RJ-45 ¦ 4 x SuperSpeed USB 3.0 - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type A ¦ 1 x audio - output - RCA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 90 days ¦ Limited warranty - advance hardware replacement - 10 days |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Mounting Kit | Included |
| Included Accessories | Wall mount |
| Software Certification | Cisco Webex Certified, Certified for Microsoft Teams Rooms |
| Compliant Standards | Directive 2002/96/EU, Directive 2011/65/EU, Directive 2014/30/EU, Directive 2014/35/EU, EMC, EU Low Voltage Directive, NRTL, RoHS, WEEE, FCC, FCC CFR47 Part 15 B Class A, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E, CEC 2.0, EDID compatible, X.509 |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | DNS, DHCP, HTTP, HTTPs, IPv4, IPv6, NTP |
| Features | Cisco Expressway technology, security slot (Kensington security lock compatible), Certificate Authority Proxy Function (CAPF), Manufacturer-Installed Certificates (MIC), Locally Significant Certificates (LSC), DiffServ support, Quality of Service (QoS), flow control, auto gatekeeper discovery, DTMF support, URI Dialing, 802.1x authentication, Class of Service (CoS), VLAN support, full duplex capability |
| Compliant Standards | IEEE 802.3bt, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1p |
| Performance | PoE power budget: 90 W |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 20 Watt |
| Software / System Requirements | |
| Software Included | RoomOS 11.1.2 or later |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% RH |
| Video Input | |
| Type | Digital video camera (color) - external |
| Digital Video Capture Resolution | 5056 x 3888, 1920 x 1080 |
| Video Modes | 1080p |
| Digital Zoom | 5 |
| Features | Machine intelligent switching, 60 frame per second, 1/1.7 CMOS image sensor type, F 2.0 lens aperture, 83° horizontal field of view (wide), 50° horizontal field of view (tele), automatic group framing, speaker tracking, Auto Focus, automatic brightness adjustment, auto white balance, group view mode, speaker view mode, frames mode, Acoustic Echo Cancellation (AEC), AI-powered, adjustable gain control, 4 x 20 megapixels image sensor |
| Audio Output | |
| Type | Speaker(s) |
| Frequency Response | 100 - 20000 Hz |
| Audio Input | |
| Type | 8-microphone array - integrated |
