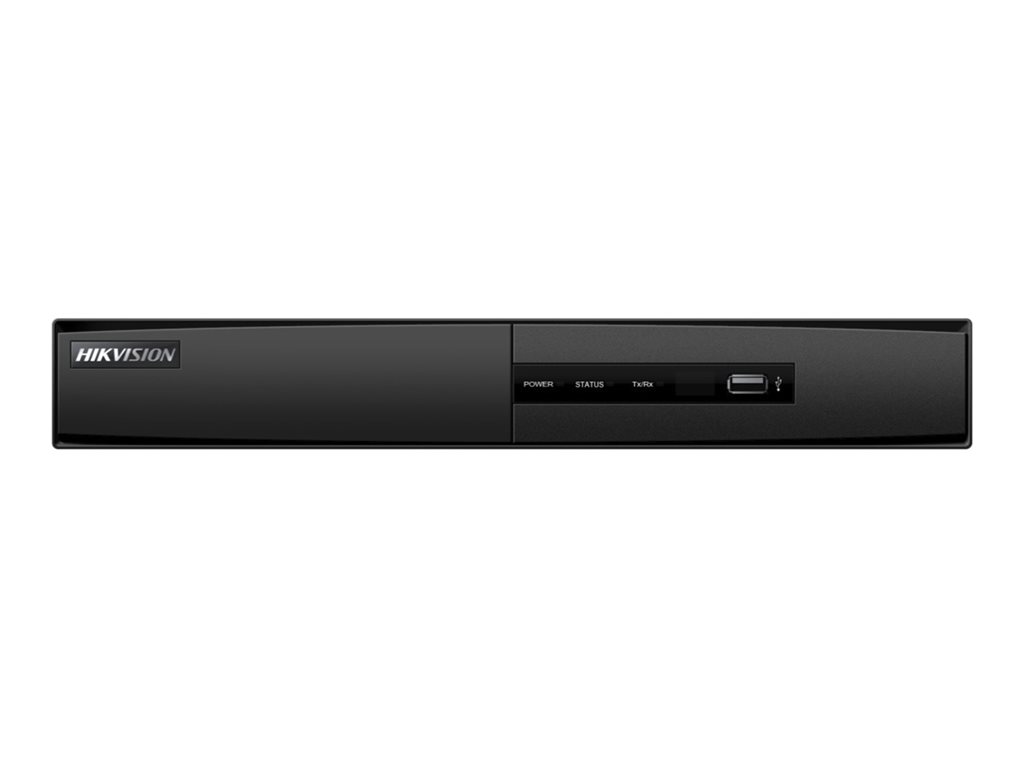

Hikvision - Hikvision I7604N1TP

NVR + camera(s) - wired - LAN 10/100 - 4 channels - 1 x 1 TB - 4 camera(s) - dome - CMOS

Hikvision
I7604N1TP
0842571101171
N/A

Price: CALL

MSRP: $1,576.00
Total Available: 0

Product Description

What's Included

Main Specifications
Product Description Hikvision I7604N1TP - NVR + camera(s) - wired
System NVR + camera(s) - wired - Ethernet 10Base-T/100Base-TX
Security DVR 4 channels
Hard Drive 1 x 1 TB
Camera 4 cameras - dome - night vision
Electronic Shutter Speed 1/3 - 1/10000
Lens Mount M12 mount
General
System NVR + camera(s) - wired
Network Interface Ethernet 10Base-T/100Base-TX
Hard Drive
Quantity Installed 1
Quantity Supported 1
Capacity 1 TB
Interface Serial ATA
Supported Max Total Capacity 6 TB
Connections
Video Input Ports HDMI x 1, VGA x 1
Audio Input Ports RCA x 1
Audio Output Ports RCA x 1
Alarm Ports Alarm output x 1, alarm input x 4
Network Port 10/100Base-TX x 4 (PoE/PoE+) / 1000Base-T x 1
Other Ports USB 2.0, USB 3.0 x 1
Dimensions & Weight
Details NVR: 12.4 in x 9.1 in x 1.8 in - 2.2 lbs ¦ Camera: 5 in x 5 in x 3.8 in - 23.6 oz
Security DVR
Video Channels 4
Frame Rate (Playback) 30 fps
Image Resolution 1600x1200, 1280x720, 1920x1080, 1024x768, 1280x1024
Compression Format MJPEG, H.264, H.264+
Features Motion detection, Power over Ethernet (PoE), Line Crossing Detection, intrusion detection, dynamic analysis
Video Server
Features ONVIF compliant, microSD/SDHC/SDXC memory card slot
Cameras
Quantity 4 cameras
Camera Type Dome
Sensor CMOS - 1/3" - 2 Megapixel
Field of View 106°
Scanning System Progressive
Sensitivity (lux) 0.028
Night Vision Yes
Electronic Shutter Speed 1/3 - 1/10000
Focal Length 2.8 mm
Lens Mount M12 mount
Voltage DC 12 V / PoE
Power Consumption 5.3 Watt
Min Operating Temperature -22 °F
Max Operating Temperature 140 °F
Operating Humidity 0-95% (non-condensing)
Compliant Standards IP67
