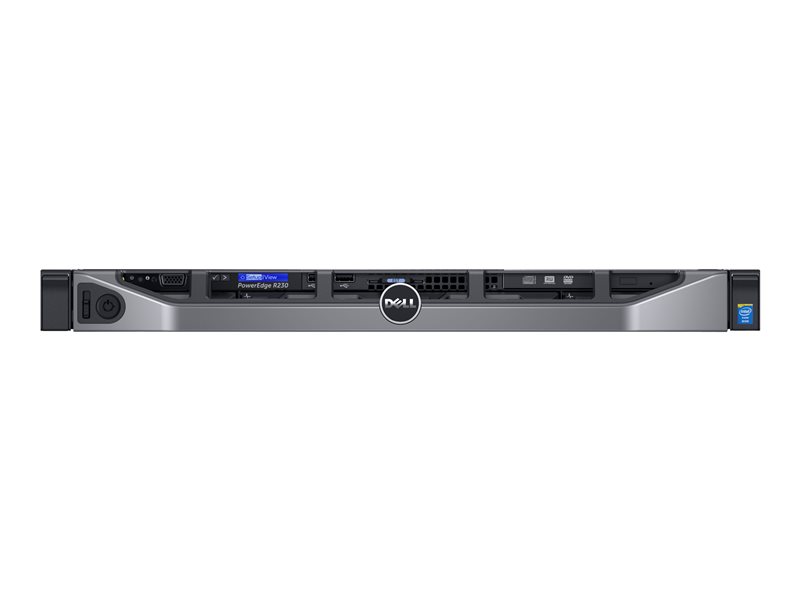

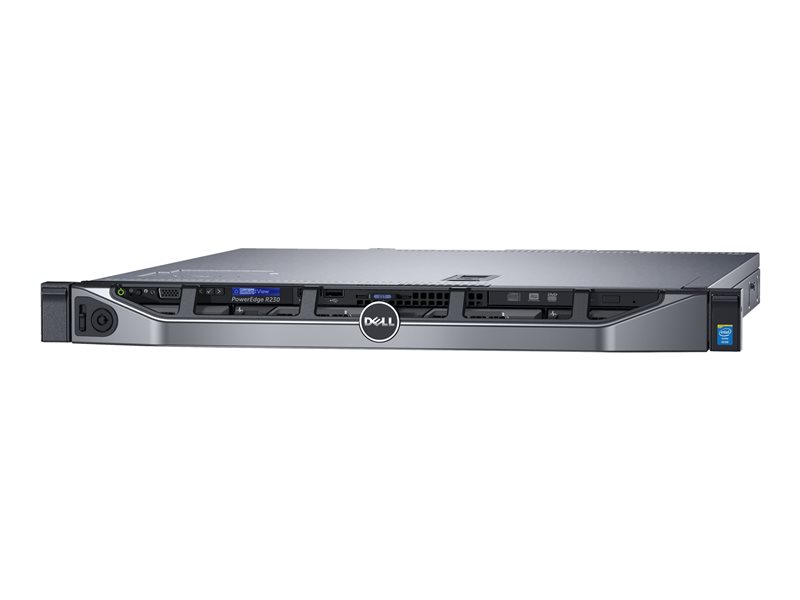

Dell - Dell EMC PowerEdge R230

Server - rack-mountable - 1U - 1-way - 1 x Xeon E3-1240V6 / 3.7 GHz - RAM 8 GB - HDD 1 TB - DVD - Matrox G200 - GigE - no OS - monitor: none - BTP - Dell Smart Value

Dell
D09H8
0884116282105
N/A

Price: $1,656.82

MSRP: $2,038.91
Total Available: 2

Product Description

What's Included

Main Specifications
Product Description Dell EMC PowerEdge R230 - rack-mountable - Xeon E3-1240V6 3.7 GHz - 8 GB - 1 TB
Type Server - rack-mountable
Height (Rack Units) 1U
Server Scalability 1-way
Processor 1 x Intel Xeon E3-1240V6 / 3.7 GHz (4.1 GHz) (Quad-Core)
Processor Socket LGA1151 Socket
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
Cache Memory 8 MB
Cache Per Processor 8 MB
RAM 8 GB (installed) / 64 GB (max) - DDR4 SDRAM - ECC
Storage Controller SATA (SATA 6Gb/s)
Hard Drive 1 x 1 TB - SATA 6Gb/s - 7200 rpm
Optical Storage DVD
Graphics Controller Matrox G200
Video Memory 16 MB
Networking GigE
Power AC 120/230 V (50/60 Hz)
OS Provided No operating system
Dimensions (WxDxH) 19 in x 19.6 in x 1.7 in
Pricing Type Build To Plan (BTP)
Manufacturer Selling Program Dell Smart Value
Manufacturer Warranty Limited warranty - 1 year
General
Type Server
Product Form Factor Rack-mountable - 1U
Server Scalability 1-way
Internal Bays Qty 2
Expansion / Connectivity
Bays 2 (total) / 1 (free) x internal 3.5" x 1/3H ¦ 1 (total) / 0 (free) x 5.25" Slim Line
Slots 2 PCIe 3.0
Interfaces 2 x VGA (1 front, 1 rear) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x serial ¦ 2 x USB 2.0 (2 in front) ¦ 2 x USB 3.0 ¦ 1 x management (NIC)
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Miscellaneous
Included Accessories PCI Express riser card, bezel, rack rail kit
Pricing Type Build To Plan (BTP)
Manufacturer Selling Program Dell Smart Value
RAM
Installed Size 8 GB / 64 GB (max)
Technology DDR4 SDRAM - ECC
Effective Memory Speed 2400 MHz
Rated Memory Speed 2400 MHz
Form Factor DIMM 288-pin
Slots 4 (total) / 3 (empty)
Features Unbuffered
Configuration Features 1 x 8 GB
Networking
Ethernet Ports 2 x Gigabit Ethernet
Ethernet Controller Broadcom BCM5720
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller Integrated Dell Remote Access Controller 8 (iDRAC8)
Power
Device Type Power supply
Installed Qty 1
Nominal Voltage AC 120/230 V (50/60 Hz)
Power Provided 250 Watt
80 PLUS Certification 80 PLUS Bronze
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 10 - 80%
Storage Controller
Type 1 x SATA
Controller Interface Type SATA 6Gb/s
Cache Memory
Installed Size 8 MB
Cache Per Processor 8 MB
Optical Storage
Type DVD - SATA
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Matrox G200
Video Memory 16 MB
Video Interfaces VGA
Operating System / Software
OS Provided No operating system
Hard Drive
Type HDD
Capacity 1 x 1 TB
Interface Type SATA 6Gb/s
Spindle Speed 7200 rpm
Dimensions & Weight
Width 19 in
Depth 19.6 in
Height 1.7 in
Processor / Chipset
CPU Intel Xeon E3-1240V6 / 3.7 GHz
Max Turbo Speed 4.1 GHz
Number of Cores Quad-Core
CPU Qty 1
Max CPU Qty 1
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
CPU Socket LGA1151 Socket
Chipset Type Intel C236
