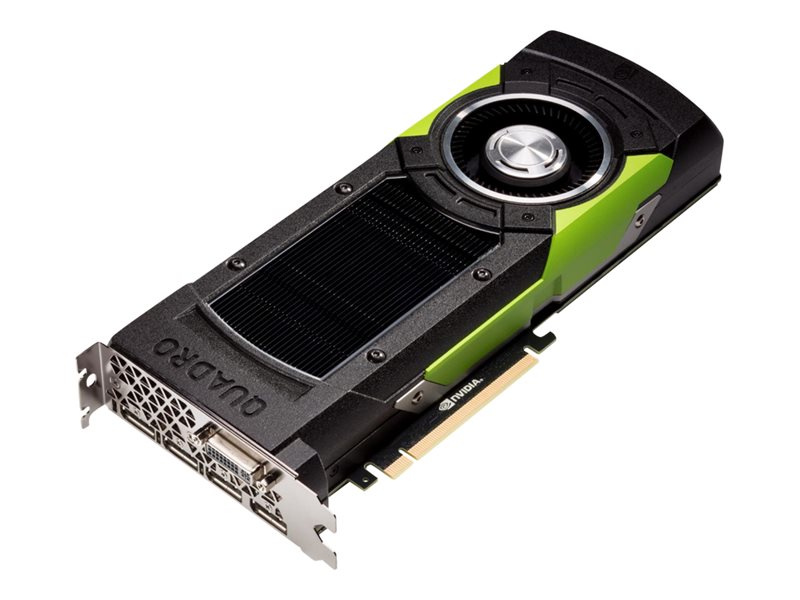

TDSourcing - NVIDIA TDSourcing Quadro M6000
Graphics card - Quadro M6000 - 24 GB GDDR5 - PCIe 3.0 x16 - DVI, 4 x DisplayPort - refurbished - for HP Workstation Z640, Z840
TDSourcing
T7T61AA-RF
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | NVIDIA TDSourcing Quadro M6000 - graphics card - Quadro M6000 - 24 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA Quadro M6000 |
| Memory | 24 GB GDDR5 |
| Core Clock | 1026 MHz |
| Boost Clock | 1152 MHz |
| CUDA Cores | 3072 |
| RAMDAC | 400 MHz |
| Memory Interface | 384-bit |
| Max Resolution | 4096 x 2160 |
| Max Resolution Details | DVI (Dual-Link): 2560 x 1600 at 60 Hz/ DVI (Single-Link): 1920 x 1200 at 60 Hz/ DisplayPort: 4096 x 2160 at 60 Hz/ VGA: 2048 x 1536 at 85 Hz/ HDMI: 4096 x 2160 at 60 Hz |
| Max Monitors Supported | 4 |
| Interfaces | 4 x DisplayPort ¦ DVI-I (dual link) |
| API Supported | OpenCL, DirectCompute 5.0, OpenGL 4.4, DirectX 12 |
| Dimensions (WxDxH) | 10.5 in x 4.4 in |
| Pricing Type | Refurbished |
| Designed For | HP Workstation Z640, Z840 |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA Quadro M6000 |
| Core Clock | 1026 MHz |
| Boost Clock | 1152 MHz |
| CUDA Cores | 3072 |
| RAMDAC | 400 MHz |
| Max Resolution | 4096 x 2160 at 60 Hz |
| Max Resolution Details | DVI (Dual-Link): 2560 x 1600 at 60 Hz/ DVI (Single-Link): 1920 x 1200 at 60 Hz/ DisplayPort: 4096 x 2160 at 60 Hz/ VGA: 2048 x 1536 at 85 Hz/ HDMI: 4096 x 2160 at 60 Hz |
| Max Monitors Supported | 4 |
| Interfaces | 4 x DisplayPort ¦ DVI-I (dual link) |
| API Supported | OpenCL, DirectCompute 5.0, OpenGL 4.4, DirectX 12 |
| Features | Nvidia nVIEW Multi-Display Technology, Nvidia Quad SLI technology, Nvidia CUDA technology, Nvidia 3D Vision technology, NVIDIA Mosaic, Shader Model 5.0, Quadro Sync, Multi-Stream Technology, High Bit Rate 2, Maxwell architecture, HDCP |
| Memory | |
| Size | 24 GB |
| Technology | GDDR5 SDRAM |
| Bus Width | 384-bit |
| Bandwidth | 317 GBps |
| Miscellaneous | |
| Power Consumption Operational | 250 Watt |
| Depth | 10.5 in |
| Height | 4.4 in |
| Weight | 2.26 lbs |
| Pricing Type | Refurbished |
| System Requirements | |
| OS Required | Linux, Microsoft Windows 7 Professional, Windows 8 / 8.1, Windows 10 |
| Additional Requirements | Dual-width x16 graphics slot, 8 pin PCI Express power connector |
| Compatibility Information | |
| Designed For | HP Workstation Z640, Z840 |
