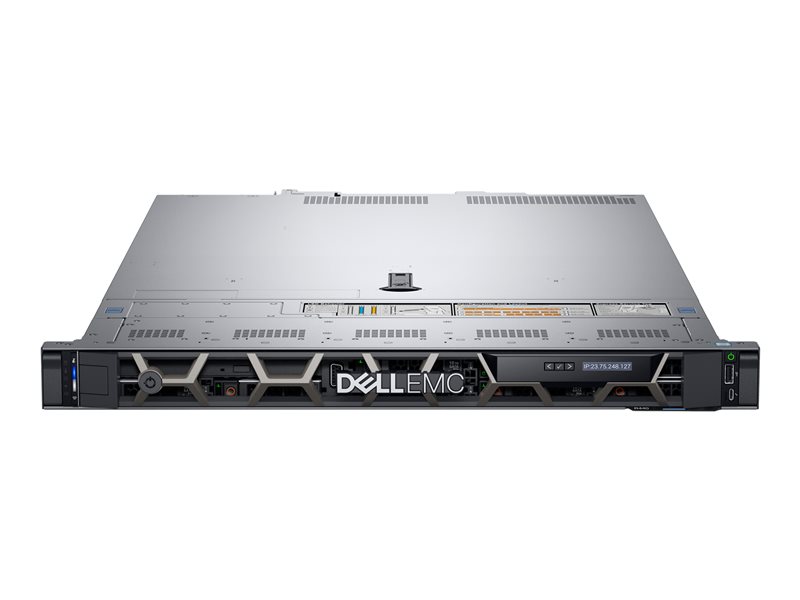

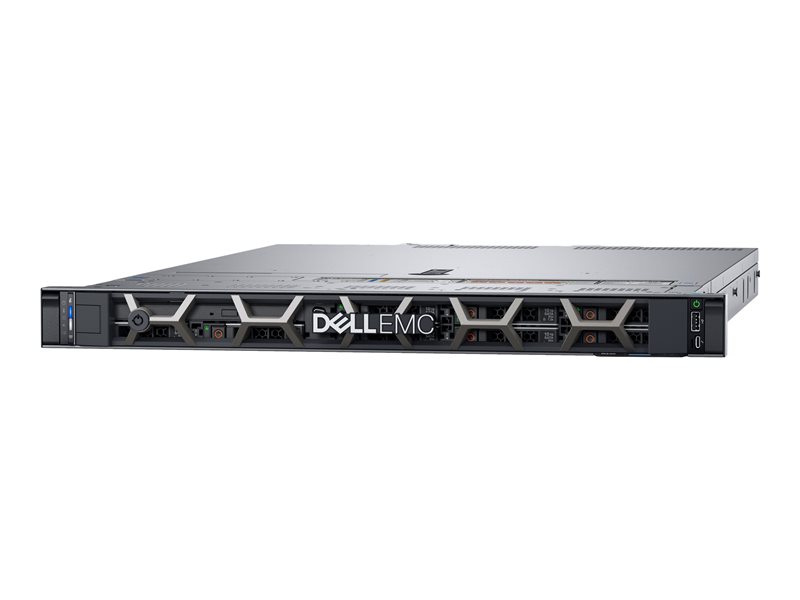

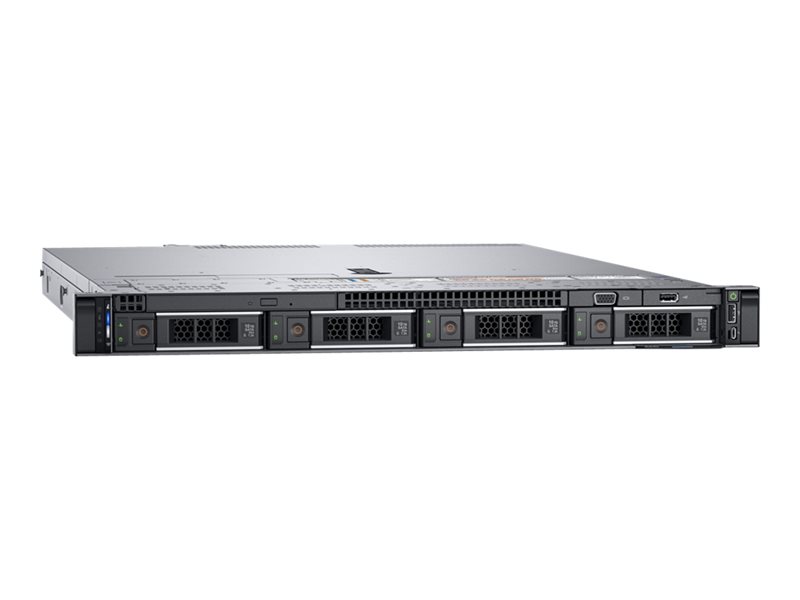

Dell - Dell PowerEdge R440
Server - rack-mountable - 1U - 2-way - 1 x Xeon Bronze 3106 / 1.7 GHz - RAM 16 GB - SAS - hot-swap 3.5" bay(s) - HDD 1 TB - G200eR2 - GigE - no OS - monitor: none - BTP - Dell Smart Value
Dell
MH6G6
0884116321200
N/A
New
Product Description
Additional Details
What's Included
Main Specifications | |
---|---|
Product Description | Dell PowerEdge R440 - rack-mountable - Xeon Bronze 3106 1.7 GHz - 16 GB - HDD 1 TB |
Type | Server - rack-mountable |
Height (Rack Units) | 1U |
Server Scalability | 2-way |
Processor | 1 x Intel Xeon Bronze 3106 / 1.7 GHz (8-core) |
Processor Socket | FCLGA3647 Socket |
Cache Memory | 11 MB L3 cache |
Cache Per Processor | 11 MB |
RAM | 16 GB (installed) / 512 GB (max) - DDR4 SDRAM - ECC |
Storage Controller | RAID (Dell PERC H730P) |
Server Storage Bays | Hot-swap 3.5" |
Hard Drive | HDD 1 TB (hot-swap) - SATA 6Gb/s - 7200 rpm |
Optical Storage | No optical drive |
Card Reader | Yes |
Graphics Controller | Matrox G200eR2 |
Video Memory | 16 MB |
Networking | GigE |
Power | AC 120/230 V (50/60 Hz) |
Power Redundancy | Yes |
OS Provided | No operating system |
Dimensions (WxDxH) | 19 in x 28.1 in x 1.7 in |
Weight | 38.58 lbs |
Pricing Type | Build To Plan (BTP) |
Manufacturer Selling Program | Dell Smart Value |
Manufacturer Warranty | Limited warranty - 3 years - on-site - response time: next business day |
General | |
Type | Server |
Product Form Factor | Rack-mountable - 1U |
Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability | 2-way |
Hot-Swap Bays Qty | 4 |
Expansion / Connectivity | |
Bays | 4 (total) / 3 (free) x hot-swap 3.5" |
Slots | 1 (total) / 1 (free) x PCIe x16 |
Interfaces | 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x USB 2.0 - Type A (1 in front) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x USB 2.0 - micro-USB (1 in front) ¦ 2 x USB 3.0 - Type A ¦ 1 x serial |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
Miscellaneous | |
Included Accessories | Riser card, ReadyRails sliding rails without cable management arm |
Pricing Type | Build To Plan (BTP) |
Manufacturer Selling Program | Dell Smart Value |
RAM | |
Installed Size | 16 GB / 512 GB (max) |
Technology | DDR4 SDRAM - ECC |
Effective Memory Speed | 2133 MHz |
Rated Memory Speed | 2666 MHz |
Form Factor | DIMM 288-pin |
Slots | 16 (total) / 15 (empty) |
Features | Registered, dual rank |
Configuration Features | 1 x 16 GB |
RAM Supported | 512 GB registered - ECC ¦ 1 TB Load-Reduced - ECC |
Networking | |
Interface (Bus) Type | LAN-on-motherboard (LOM) |
Ethernet Ports | 2 x Gigabit Ethernet |
Ethernet Controller | Broadcom BCM5720 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Controller | Integrated Dell Remote Access Controller 9 Enterprise (iDRAC9) |
Power | |
Device Type | Power supply - hot-plug |
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 |
Installed Qty | 2 |
Max Supported Qty | 2 |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Provided | 550 Watt |
Environmental Parameters | |
Min Operating Temperature | 50 °F |
Max Operating Temperature | 95 °F |
Humidity Range Operating | 10 - 80% |
Storage Controller | |
Type | 1 x RAID |
Storage Controller Name | Dell PERC H730P |
Buffer Size | 2 GB |
Cache Memory | |
Installed Size | L3 cache - 11 MB |
Cache Per Processor | 11 MB |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Graphics Processor | Matrox G200eR2 |
Video Memory | 16 MB |
Video Interfaces | VGA |
Operating System / Software | |
OS Provided | No operating system |
Hard Drive | |
Type | HDD - hot-swap |
Capacity | 1 x 1 TB |
Interface Type | SATA 6Gb/s |
Spindle Speed | 7200 rpm |
Features | 512 native ( 512n ) |
Dimensions & Weight | |
Width | 19 in |
Depth | 28.1 in |
Height | 1.7 in |
Weight | 38.58 lbs |
Card Reader | |
Type | Card reader |
Supported Flash Memory Cards | microSD |
Processor / Chipset | |
CPU | Intel Xeon Bronze 3106 |
Clock Speed | 1.7 GHz |
Number of Cores | 8-core |
CPU Qty | 1 |
Max CPU Qty | 2 |
CPU Upgradability | Upgradable |
CPU Socket | FCLGA3647 Socket |
