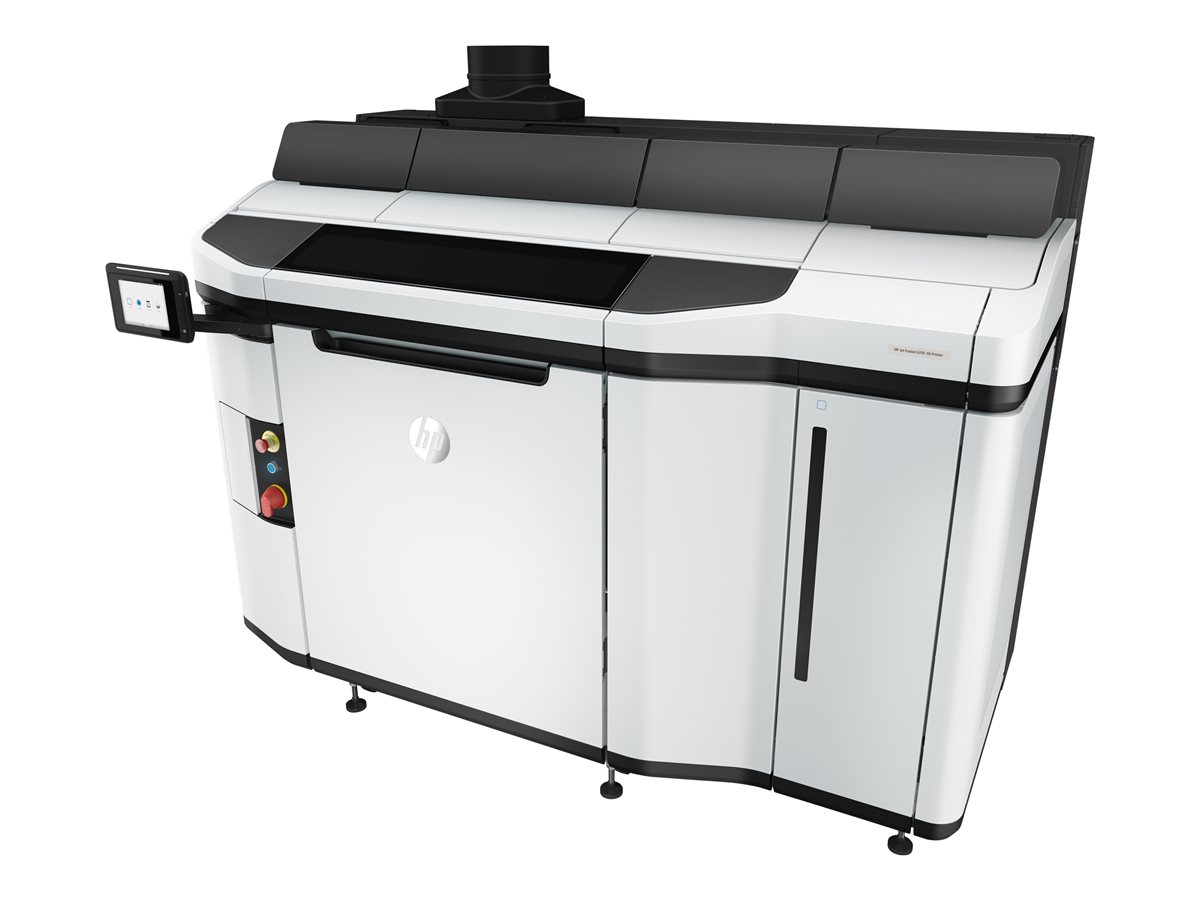

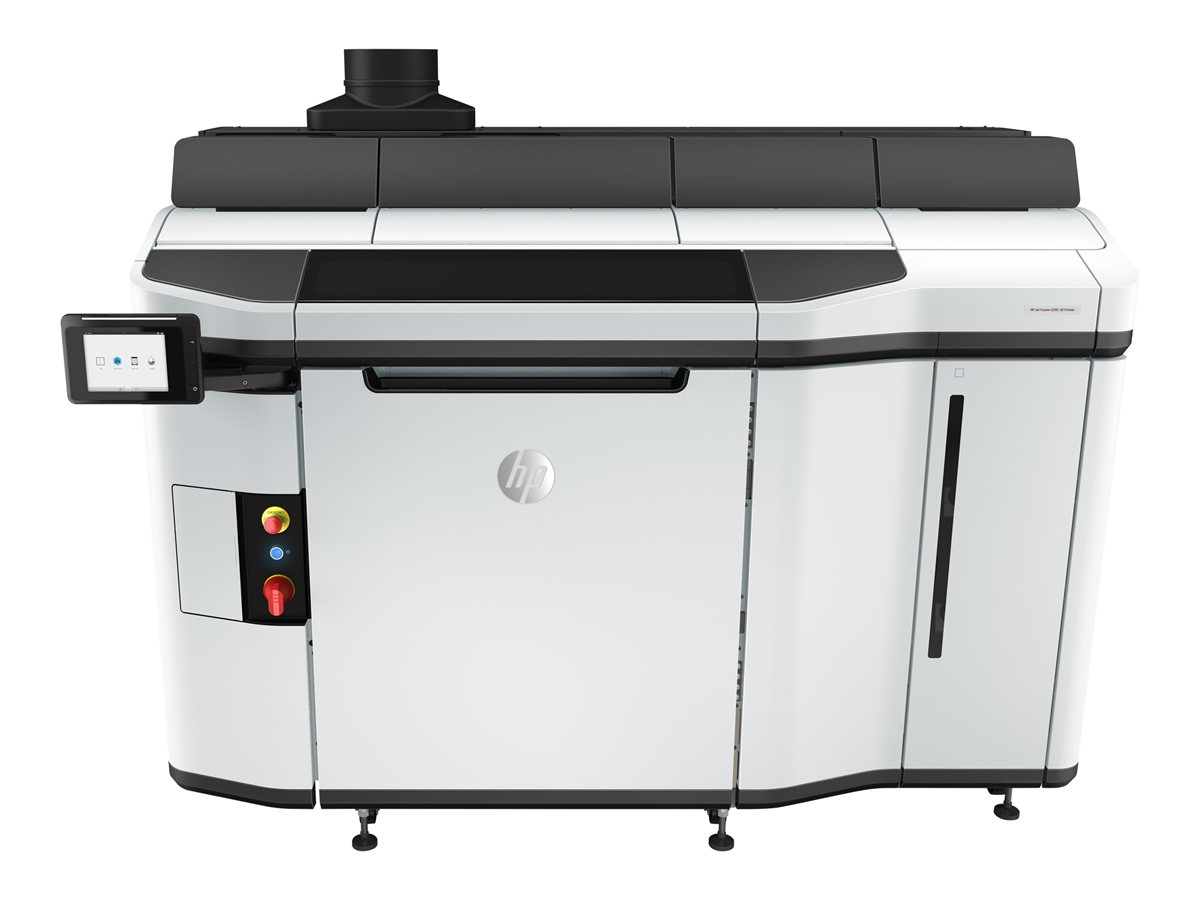

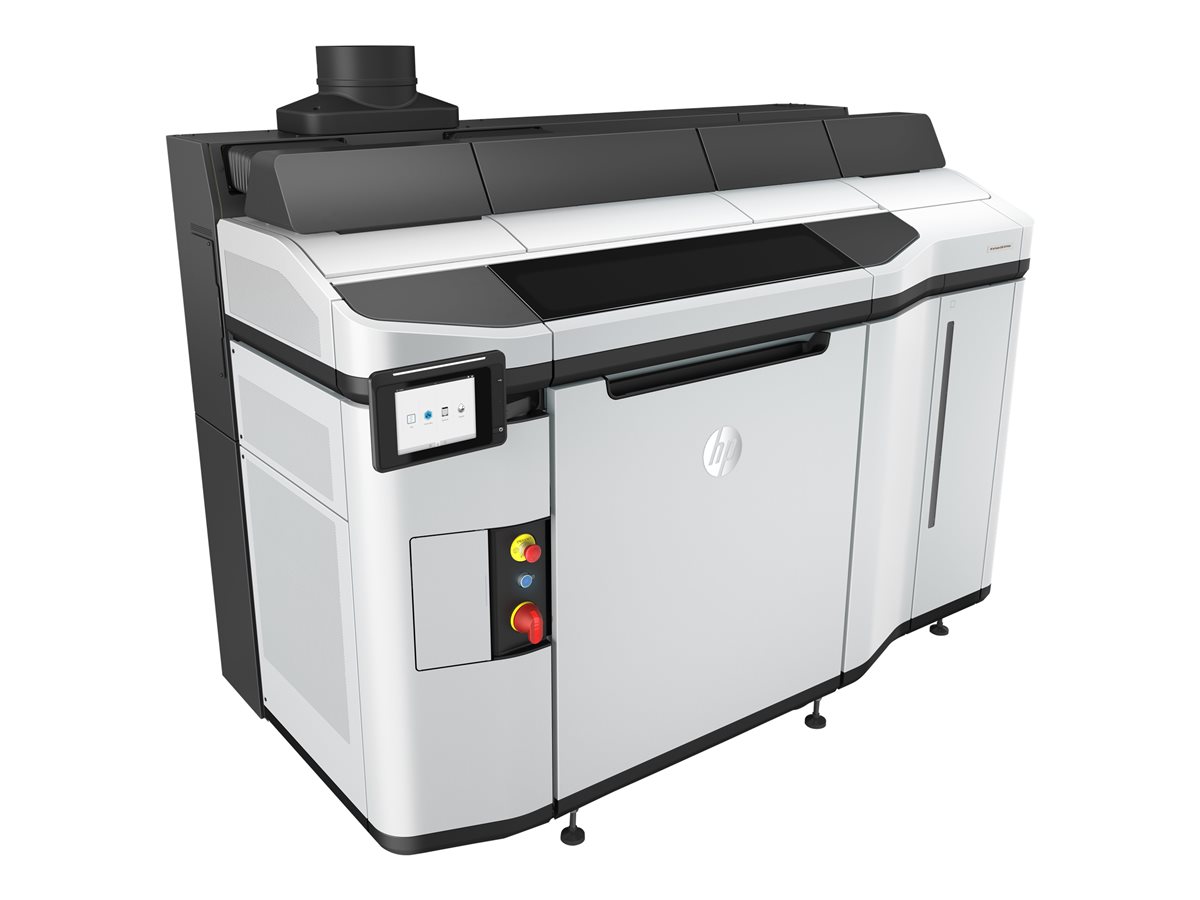

HP Inc. - HP Jet Fusion 5200

3D printer - MJF - build size up to 14.96 in x 14.96 in x 11.18 in - layer: 2.03 mil - Gigabit LAN

HP Inc.
3FW25B#BH1
0195122065898
N/A
New

Price: CALL

MSRP: $0.00
Total Available: 0

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description HP Jet Fusion 5200 - 3D printer
Printer Type 3D printer - MJF
Weight 1940.05 lbs
Localization Multilingual / Worldwide
Max Build Size 14.96 in x 14.96 in x 11.18 in
Build Speed 308.66 in3/hour
Resolution 1200 dpi
Min Layer Thickness 2.03 mil
Interface Gigabit LAN
Processor Intel Core i7 7700 4.2 GHz
RAM Installed (Max) 32 GB DDR4 SDRAM - SO-DIMM 260-pin
Hard Drive 2 TB
Build Materials Supported Thermoplastic polyurethane (TPU)
Networking Network adapter
Printer Features Fusing and detailing agents
Power AC 220-240/380-415 V
Manufacturer Warranty 1-year warranty
Dimensions (WxDxH) 87 in x 49.9 in x 71 in
General
Printer Type 3D printer
Technology Multi Jet Fusion (MJF)
Localization Multilingual / Worldwide
Manufacturer Warranty
Service & Support Limited warranty - parts - 1 year
Miscellaneous
Features Self-Encrypting Drive (SED) support, 256-bit AES security
Compliant Standards UL, EMC, FCC, EN 60950-1, KCC, ICES, REACH, LVD, OPAL 2.0, EN 12100-1, EN 60204-1, EN 1010, ACMA, RSM, IEC 60950-1+A1+A2
Printer
Build Speed 308.66 in3/hour
Built-in Devices LCD display
Interface Gigabit LAN
Resolution 1200 dpi
Min Layer Thickness 2.03 mil
Input File Formats Supported STL, OBJ, 3MF, VRML v.2
Printer Features Fusing and detailing agents
Processor
Processor Intel Core i7 7700 4.2 GHz
RAM
RAM Installed (Max) 32 GB
Technology / Form Factor DDR4 SDRAM - SO-DIMM 260-pin
Storage
Hard Drive 2 TB
Media Handling
Build Materials Supported Thermoplastic polyurethane (TPU)
Max Build Size 14.96 in x 14.96 in x 11.18 in
Networking
Networking Network adapter
Remote Management Protocol DHCP, IPv4
Security Protocols & Features SSL, TLS, AES-256
Power
Power Device Power supply - internal
Voltage Required AC 220-240/380-415 V
Frequency Required 50 - 60 Hz
Electric Current Required 50 A (three phase), 80 A (two phase)
Power Consumption Operational 12 kW
Software / System Requirements
Software Included HP SmartStream 3D Build Manager, HP SmartStream 3D Command Center, HP 3D Process Control, HP 3D Center
Dimensions & Weight
Width 87 in
Depth 49.9 in
Height 71 in
Weight 1940.05 lbs
Dimensions & Weight (Shipping)
Width (Shipping) 90.6 in
Depth (Shipping) 52.2 in
Height (Shipping) 79.8 in
Weight (Shipping) 2287.27 lbs
