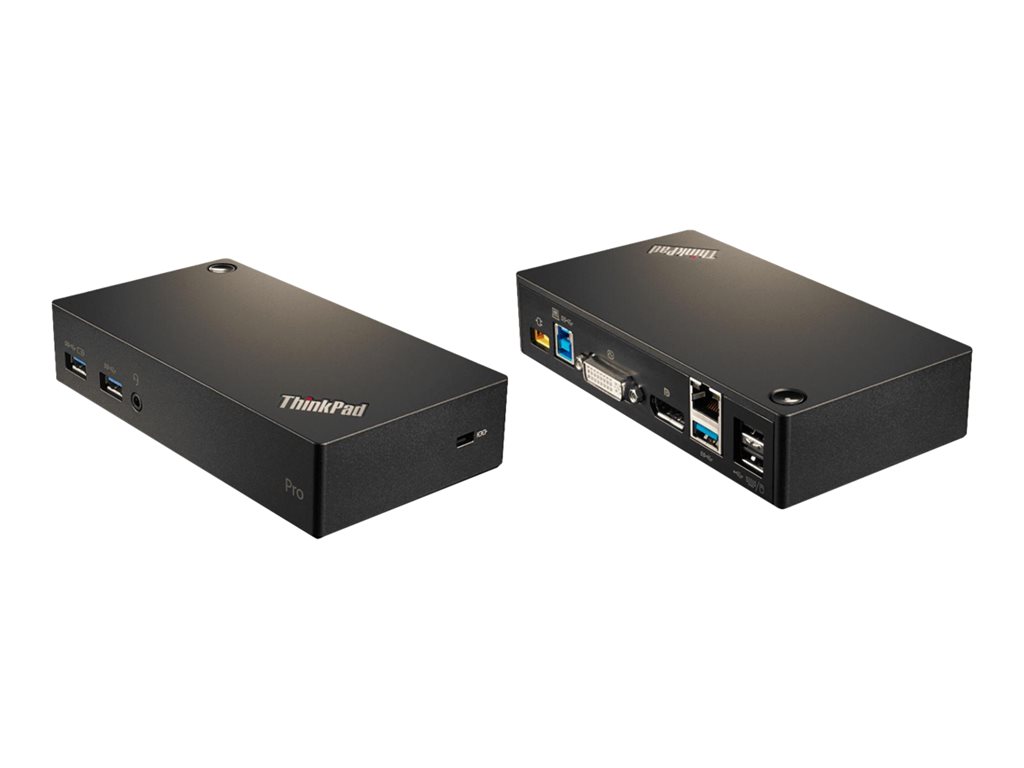

Lenovo - Lenovo ThinkPad USB 3.0 Pro Dock
Docking station - USB 3.0 - DP - GigE - 45 Watt - FRU
Lenovo
03X6897
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Lenovo ThinkPad USB 3.0 Pro Dock - docking station - USB 3.0 - DP - GigE |
| Product Type | Docking station |
| Docking Interface | USB 3.0 |
| Video Interfaces | DP |
| Dimensions (WxDxH) | 5.9 in x 3.1 in x 1.3 in |
| Weight | 8.32 oz |
| Localization | Belgium, Indonesia, Vietnam, Ukraine, Iceland, Austria, Finland, France, Germany, Netherlands, Norway, Portugal, Russia, Spain, Turkey |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 120/230 V (50/60 Hz) 45 Watt Power Provided |
| Pricing Type | Field Replaceable Unit (FRU) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 5.9 in |
| Depth | 3.1 in |
| Height | 1.3 in |
| Weight | 8.32 oz |
| Localization | Belgium, Indonesia, Vietnam, Ukraine, Iceland, Austria, Finland, France, Germany, Netherlands, Norway, Portugal, Russia, Spain, Turkey |
| Expansion / Connectivity | |
| Interfaces | 1 x SuperSpeed USB 3.0 - 4 pin USB Type B ¦ 3 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - DVI-Analog/Digital - 24+5 pin combined DVI ¦ 1 x network - RJ-45 ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately), on/off switch, VESA interface support, 1 USB 3.0 (Always On) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, SABS, CB, DOC, FCC, SII, KCC, ICES, Kvalitet, EAC, RCM |
| Pricing Type | Field Replaceable Unit (FRU) |
| Networking | |
| Data Link Protocol | Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 45 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 2560 x 1600 - 60 Hz (DisplayPort only) |
