ViewSonic - ViewSonic CDX4952-B9
49" Diagonal Class (48.5" viewable) LED video wall - digital signage - 1080p 1920 x 1080 - 9 x - Direct LED - with 9 x ViewSonic WMK-067 Wall Mounts
ViewSonic
CDX4952-B9
0766907878417
N/A
New
Product Description
Additional Details
What's Included
Main Specifications | |
---|---|
Product Description | ViewSonic CDX4952-B9 49" Class (48.5" viewable) LED video wall - Full HD - for digital signage |
Product Type | LED video wall |
Diagonal Class | 49" |
Diagonal Size | 48.5" |
Commercial Use | Yes - digital signage |

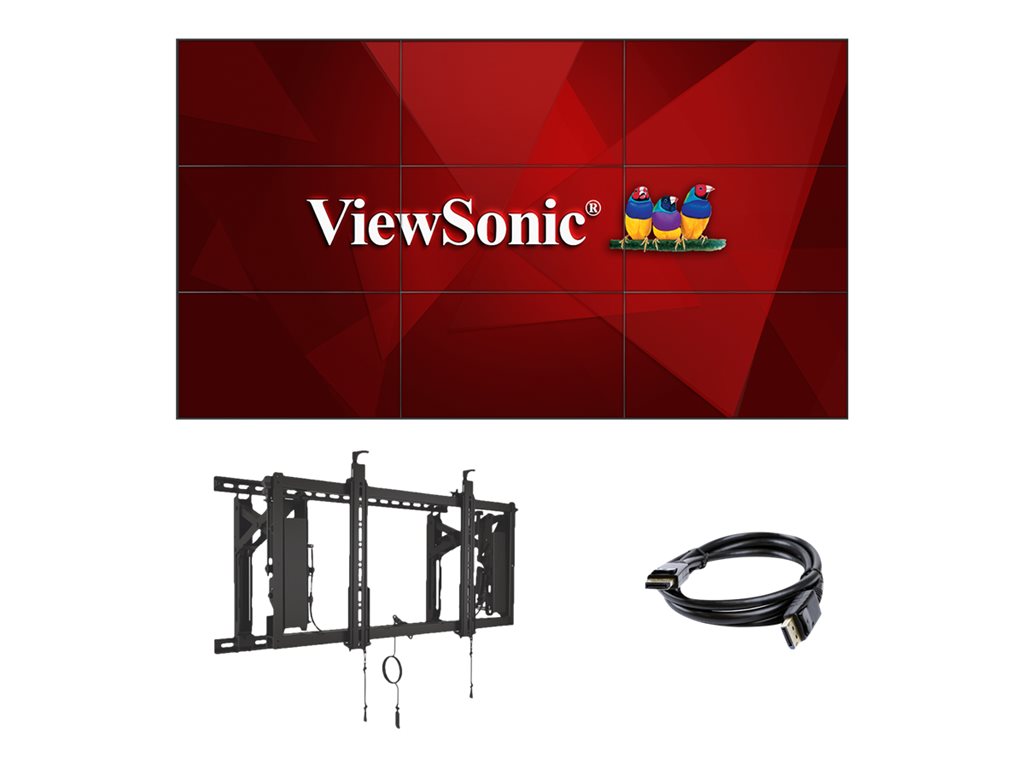

Bundled with | 9 x ViewSonic WMK-067 Wall Mounts |
Number of Screens | 9 |
Video Wall Configuration | 3x3 |
Resolution | 1920 x 1080 |
Display Format | 1080p |
Max Number of Screens | 9 |
Video Interface | Component, composite, HDMI |
HDMI Ports Qty | 2 ports |
PC Interface | DVI, VGA (HD-15), DisplayPort |
Technology | IPS |
LCD Backlight Technology | Direct LED |
Image Aspect Ratio | 16:9 |
TV Tuner | No tuner |
Speaker System | 2 speakers |
Included Accessories | Remote control, edge alignment plates, screw kit |
Voltage | AC 100 - 240 V (50/60 Hz) |
Power Consumption Operational | 110 Watt |
Power Consumption Stand by | 0.5 Watt |
Dimensions (WxDxH) - without stand | 42.4 in x 3.7 in x 23.9 in |
Weight | 47.62 lbs |
Environmental Standards | ENERGY STAR Qualified |
Manufacturer Warranty | 3-year warranty |
General | |
Product Type | LED video wall |
Power Consumption (Max) | 235 Watt |
Power Consumption Operational | 110 Watt |
Diagonal Class | 49" |
Diagonal Size | 48.5" |
Commercial Use | Yes - digital signage |
Bundled with | 9 x ViewSonic WMK-067 Wall Mounts |
TV Tuner | No tuner |
TV Tuner Presence | No |
Video Interface | Component, composite, HDMI |
HDMI Ports Qty | 2 ports |
PC Interface | DVI, VGA (HD-15), DisplayPort |
Design | Ultra Narrow Bezel Concept |
Protection | Tempered glass protection |
Dimensions | Without stand |
Width | 42.4 in |
Depth | 3.7 in |
Height | 23.9 in |
Weight | 47.62 lbs |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labor - 3 years ¦ Limited warranty - backlight - 3 years |
Miscellaneous | |
Included Accessories | Edge alignment plates, screw kit |
Cables Included | 9 x DisplayPort cable ¦ VGA cable ¦ RS-232 cable ¦ IR extender cable ¦ RS-232 daisy chain cable |
Compliant Standards | UL, cUL, FCC, Mexico Energy label, Mexico CoC |
Power | |
Power Device | Power supply |
Input Voltage | AC 100 - 240 V (50/60 Hz) |
Power Consumption Stand by | 0.5 Watt |
On / Off Switch | Yes |
Display | |
LCD Display Technology | IPS |
Resolution | 1920 x 1080 |
Display Format | 1080p |
Image Aspect Ratio | 16:9 |
LCD Backlight Technology | Direct LED |
Coating | Anti-glare, 3H Hard |
Image Contrast Ratio | 1300:1 |
Brightness | 450 cd/m² |
Viewing Angle | 178° |
Viewing Angle (Vertical) | 178° |
Response Time | 12 ms |
Backlight Life | 50,000 hour(s) |
Additional Features | 10 x10 Daisy-Chain support, designed for 24/7 operation |
Connections | |
Connector Type | Serial input ¦ Serial output ¦ LAN ¦ VGA input ¦ DVI-D output ¦ DVI-D input ¦ 2 x HDMI input ¦ Composite video / component video input ¦ Audio input ¦ Audio input ¦ Audio output ¦ Speakers output ¦ DisplayPort input ¦ Remote control input ¦ Remote control output ¦ DisplayPort output |
Remote Control | |
Type | Remote control |
Audio System | |
Speaker System | 2 speakers |
Output Power / Total | 20 Watt |
Speakers | 2 x main channel speaker - 20 Watt |
Stands & Mounts | |
Stand | Optional |
Flat Panel Mount Interface | 400 x 400 mm |
VESA Compatibility | Yes |
Environmental Standards | |
ENERGY STAR Certified | Yes |
ENERGY STAR Version | 6.0 |
Video Wall | |
Number of Screens | 9 |
Max Number of Screens | 9 |
Configuration | 3x3 |
