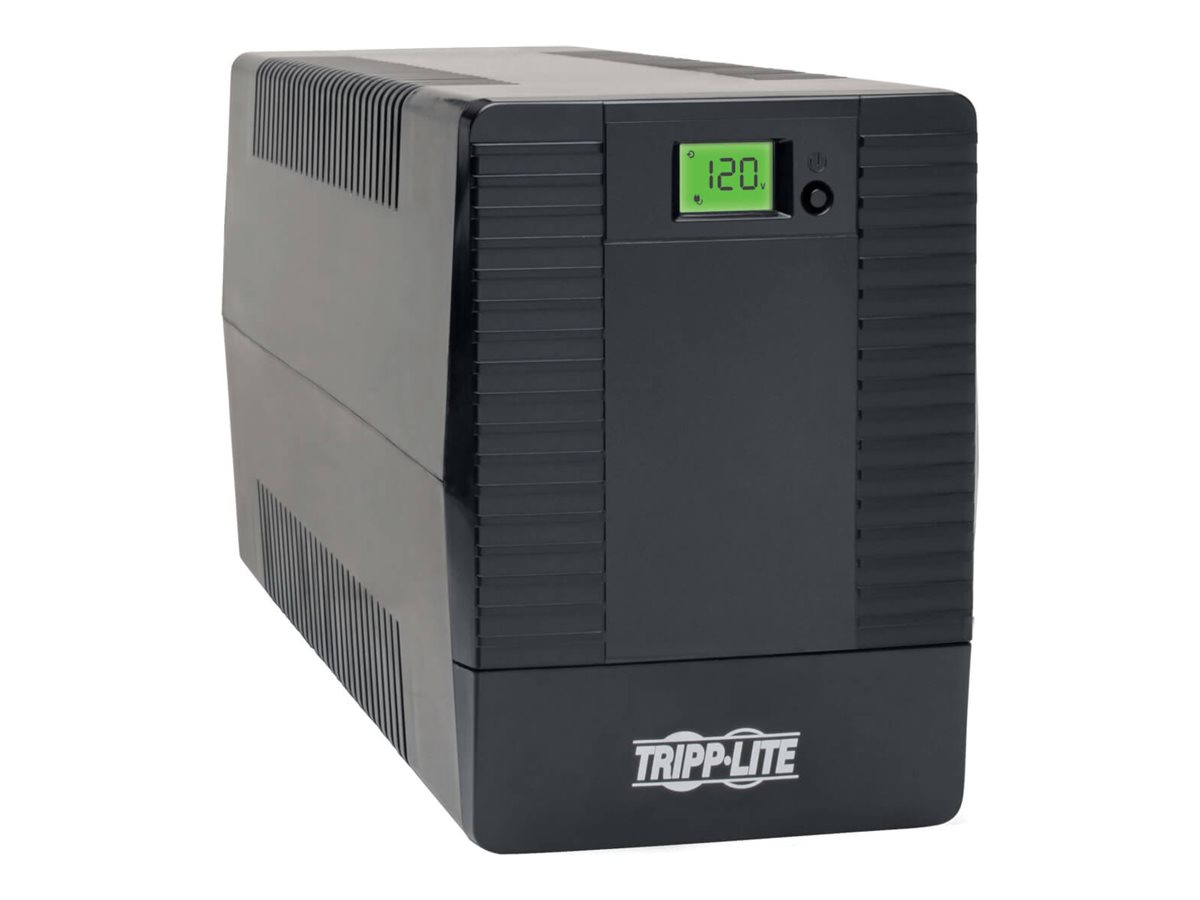

Tripp Lite - Tripp Lite 1440VA 1200W UPS Smart Tower Battery Back Up Desktop AVR USB LCD
UPS - 12 A - AC 120 V - 1200 Watt - 1440 VA - 1-phase - RS-232, USB - output connectors: 8
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 1440VA 1200W UPS Smart Tower Battery Back Up Desktop AVR USB LCD - UPS - 1200 Watt - 1440 VA |
| Device Type | UPS - external |
| Weight | 32.21 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V + 6% / - 12% |
| Power Capacity | 1200 Watt / 1440 VA |
| Input Connectors | 1 x power NEMA 5-15P |

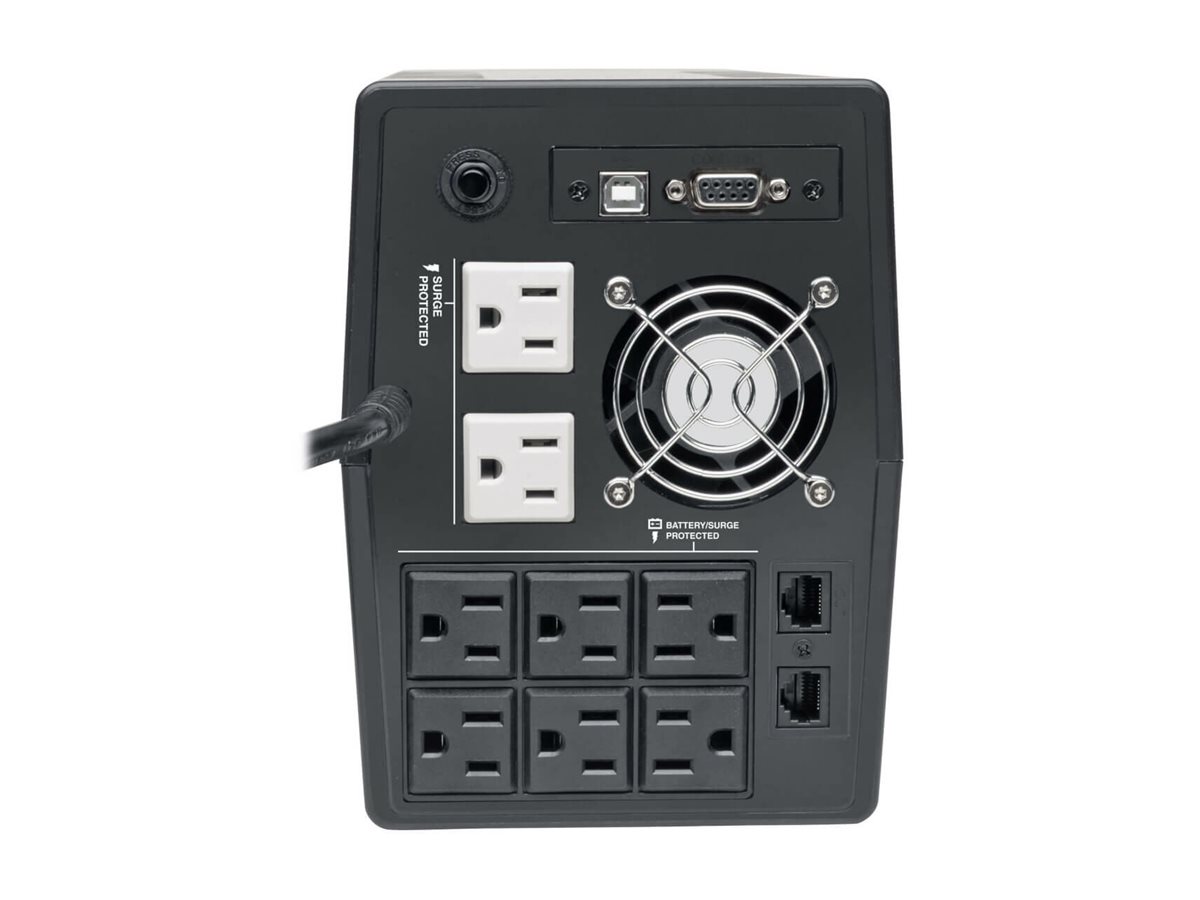

| Output connectors | 6 x power NEMA 5-15R (UPS and surge) ¦ 2 x power NEMA 5-15R (surge) |
| Run Time (Up To) | 2 min at full load |
| Networking | RS-232, USB |
| Dimensions (WxDxH) | 5.5 in x 15 in x 7.5 in |
| General | |
| Device Type | UPS - external |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 5 ft ¦ USB cable - external ¦ RS-232 cable - external |
| Equipment Protection Value | 250000 US Dollars |

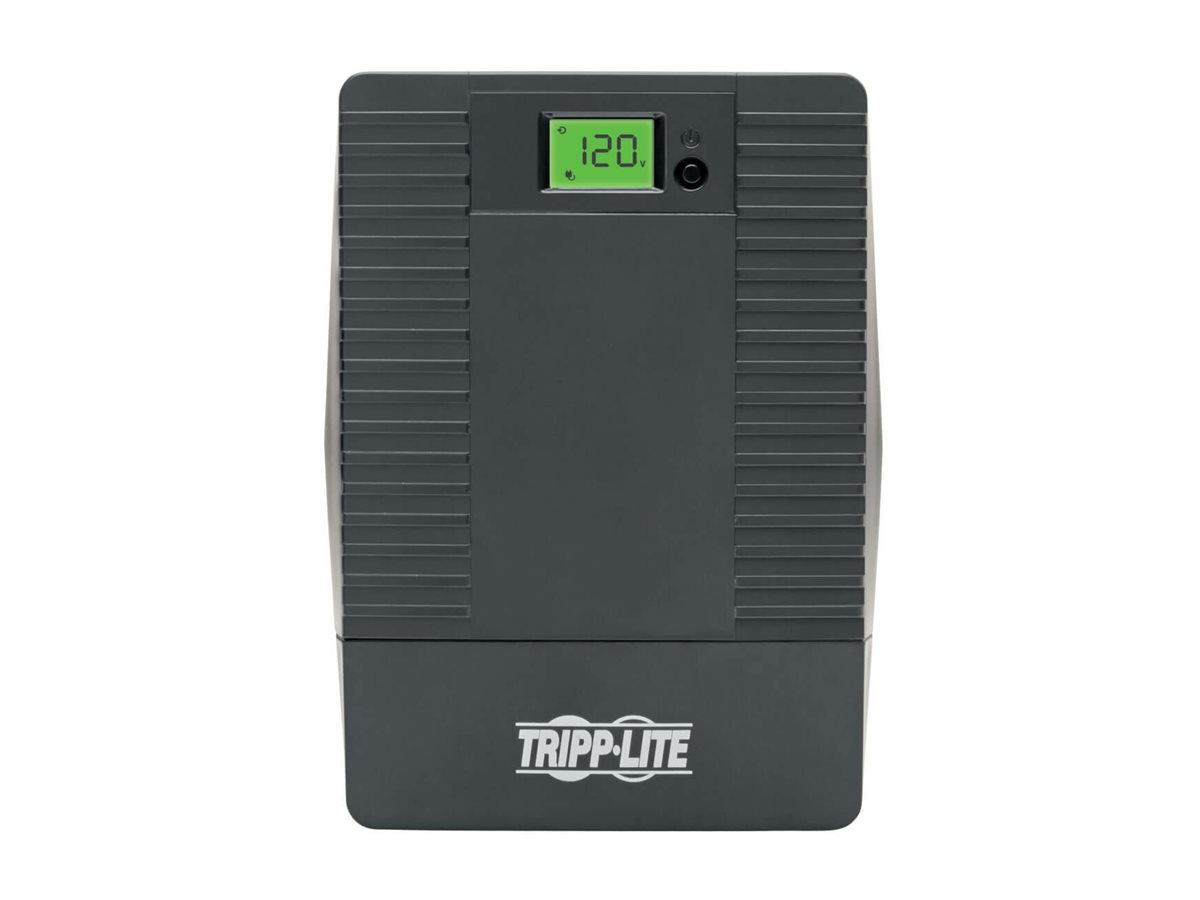

| Features | LCD display, Automatic Voltage Regulation (AVR), overvoltage protection, noise filtering, undervoltage protection, audible alarm, cold-start function, overload protection, cooling fan |
| Compliant Standards | FCC Part 15 A, EMI, CSA, NOM, UL 1778, CAN/CSA C22.2 No. 107.3:2014 3rd Edition, FCC Part 68, FCC Class A certified, RoHS |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Battery | |
| Run Time (Up To) | 2 min at full load ¦ 8 min at half load |
| Recharge Time | 8 hours |
| Transfer Time | 6 ms |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 6 x power NEMA 5-15R (UPS and surge) ¦ 2 x power NEMA 5-15R (surge) |
| Output Voltage | AC 120 V + 6% / - 12% - 50/60 Hz |
| Max Electric Current | 12 A |
| Power Capacity | 1200 Watt / 1440 VA |
| Dataline Surge Protection | Network/phone line - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 316 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 95% |
| Power Factor (PF) | 0.83 |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 15 in |
| Height | 7.5 in |
| Weight | 32.21 lbs |
