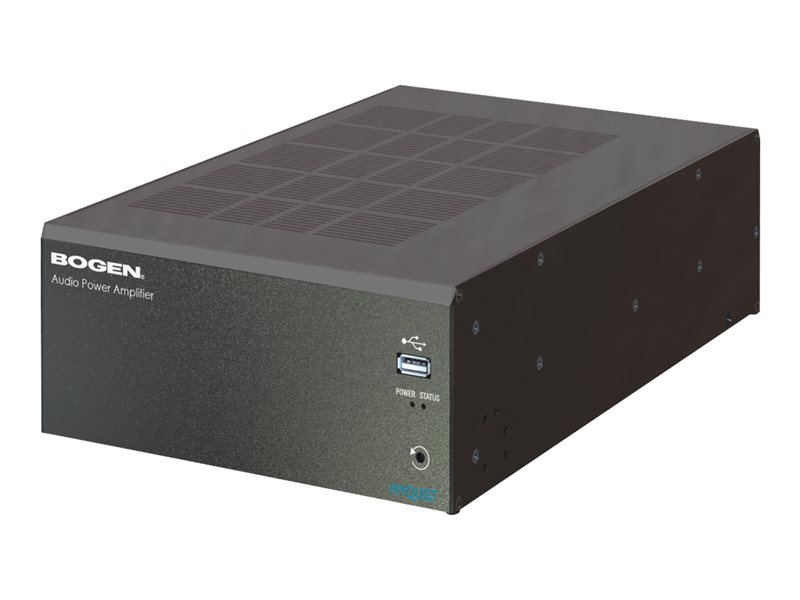

Bogen - Bogen Nyquist NQ-A4120
Power amplifier - 4 x 120 Watt
Bogen
NQ-A4120
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Bogen Nyquist NQ-A4120 - power amplifier |
| Product Type | Power amplifier |
| Audio Specifications | Amplifier - 20 - 200000 Hz - 97 dB 0.03% |
| Interfaces | Ethernet, Fast Ethernet |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 8 in x 13.5 in x 3.4 in |
| Weight | 6.39 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Power amplifier |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Connections | |
| Connectors | USB (4 pin USB Type A) - front ¦ 2 x balanced audio input (terminal block) - rear ¦ 2 x balanced audio input (3 pin XLR) - rear ¦ 4 x speakers output (terminal block) - rear ¦ LAN (RJ-45) - rear |
| Dimensions & Weight | |
| Width | 8 in |
| Depth | 13.5 in |
| Height | 3.4 in |
| Weight | 6.39 lbs |
| Audio System | |
| Functions | Amplifier, network audio player |
| Amplifier Class | D |
| Digital Sound Processor (DSP) | Yes |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 200000 Hz - SNR - 97 dB - THD - 0.03% |
| Input Channel Qty | 4 channels |
| Output Channel Qty | 4 channels |
| Output Power (per channel) | 120 Watt |
| Amplifier Output Details | 120 Watt - 4 Ohm - 4 channels ¦ 240 Watt - 8 Ohm - 2 channels (bridged) ¦ 240 Watt - 2 channels (70V bridged) |
| Features | Bridged output capability, rack mountable, 25V/70V or 4/8 Ohm operation |
| Network & Internet Multimedia | |
| Interfaces | Ethernet, Fast Ethernet |
