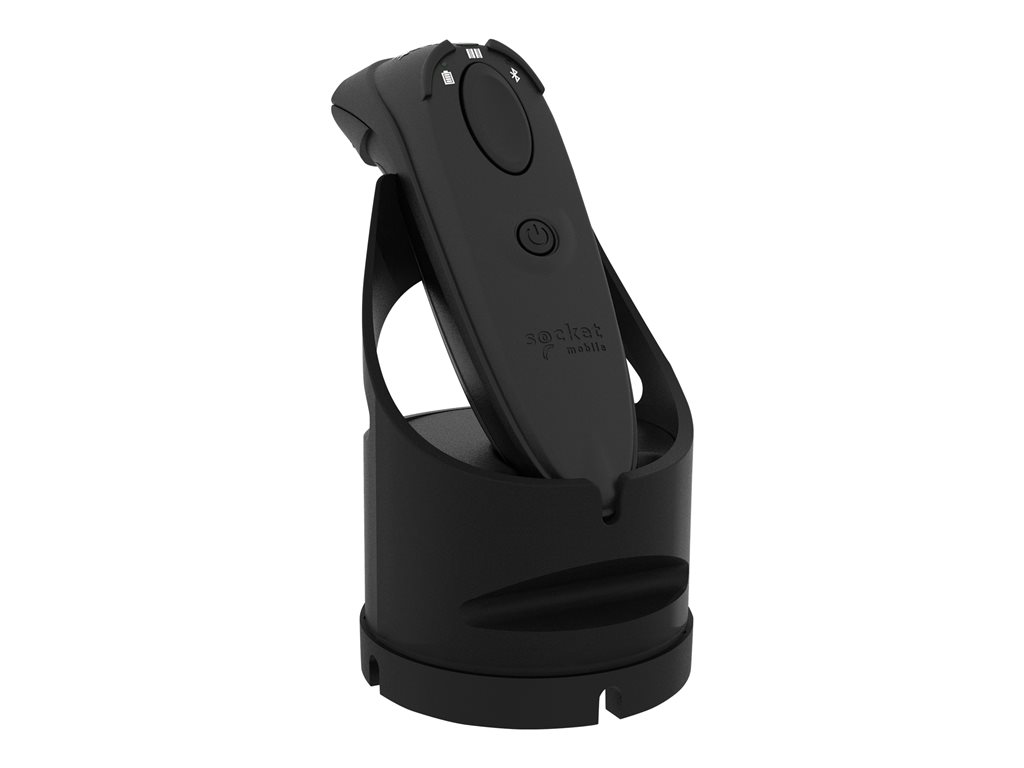

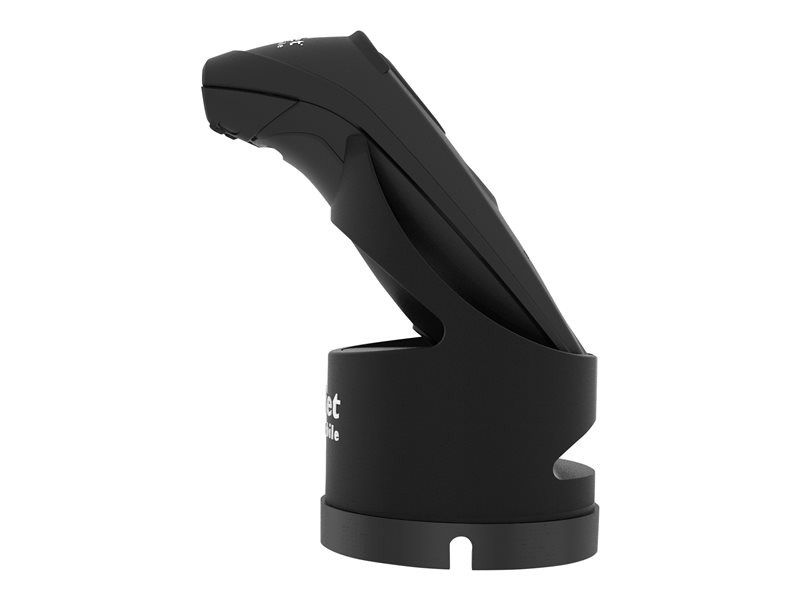

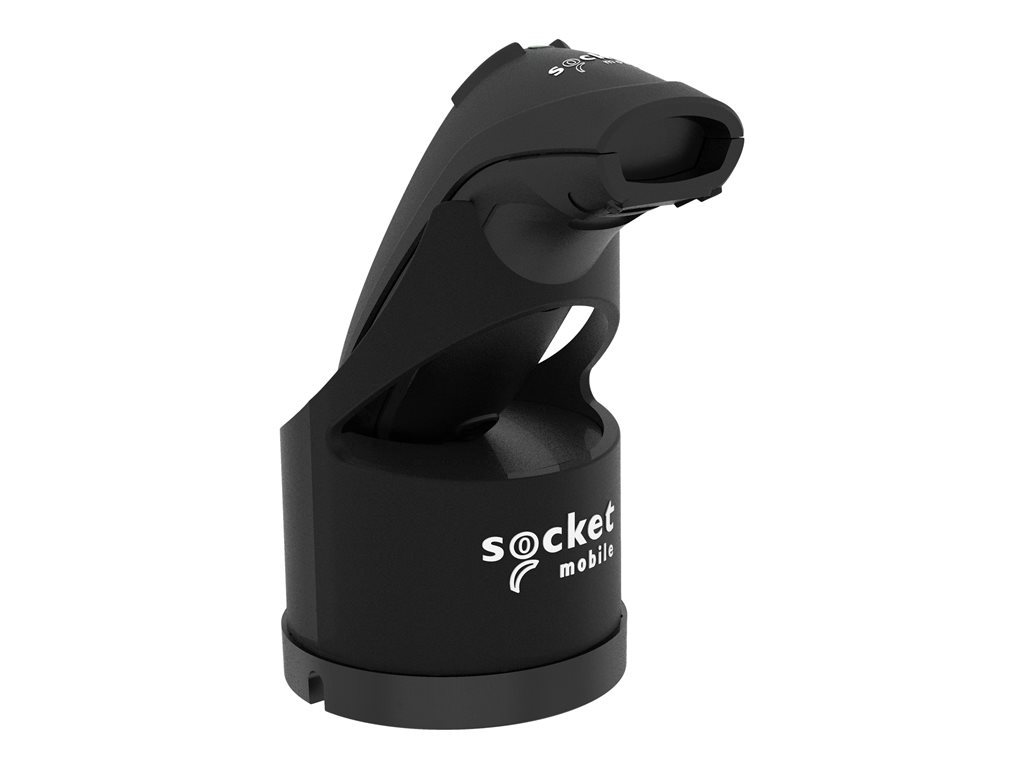

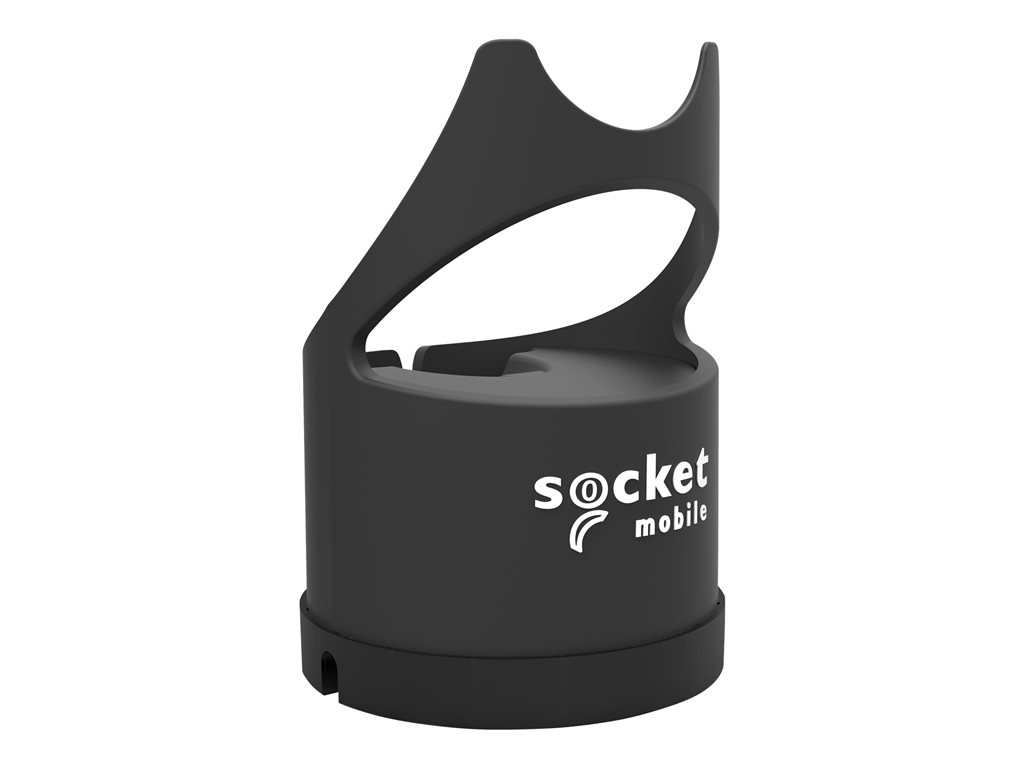

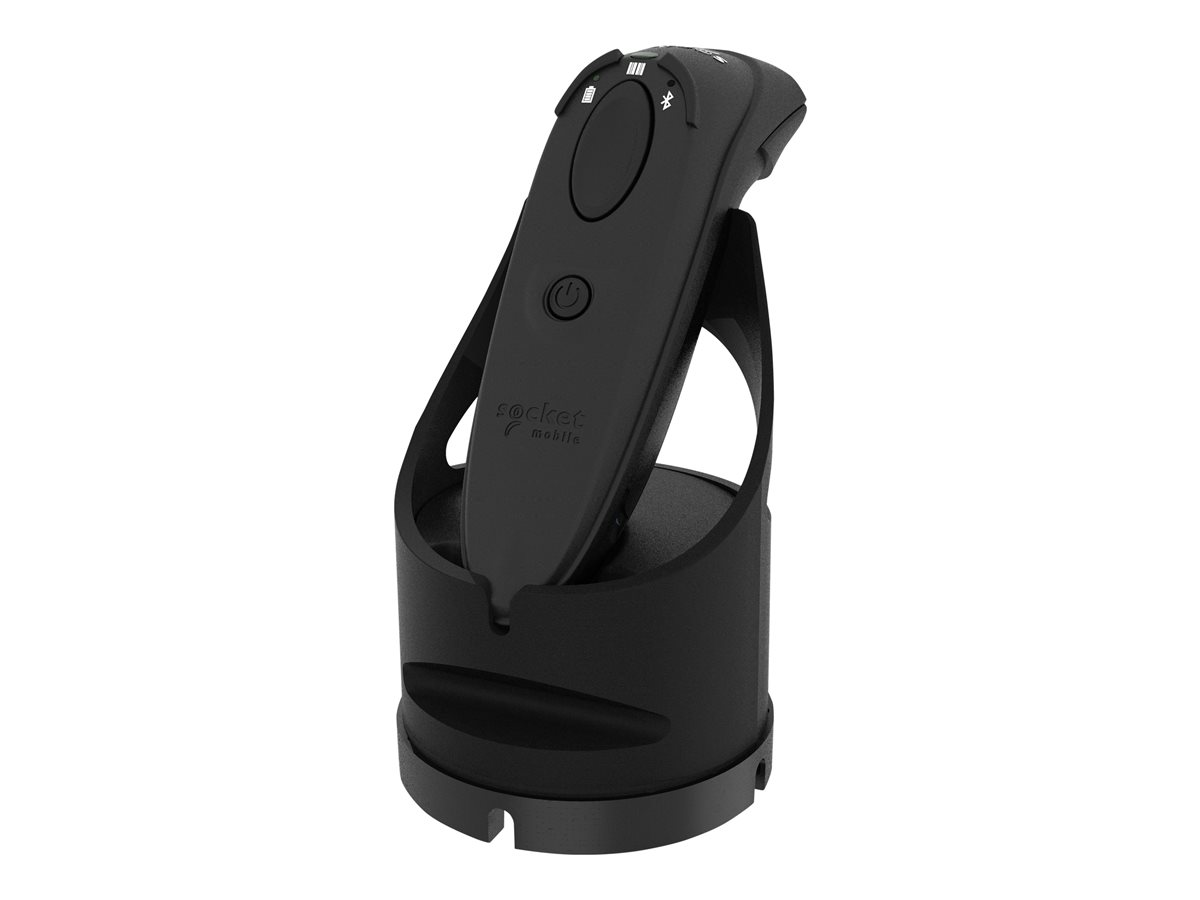

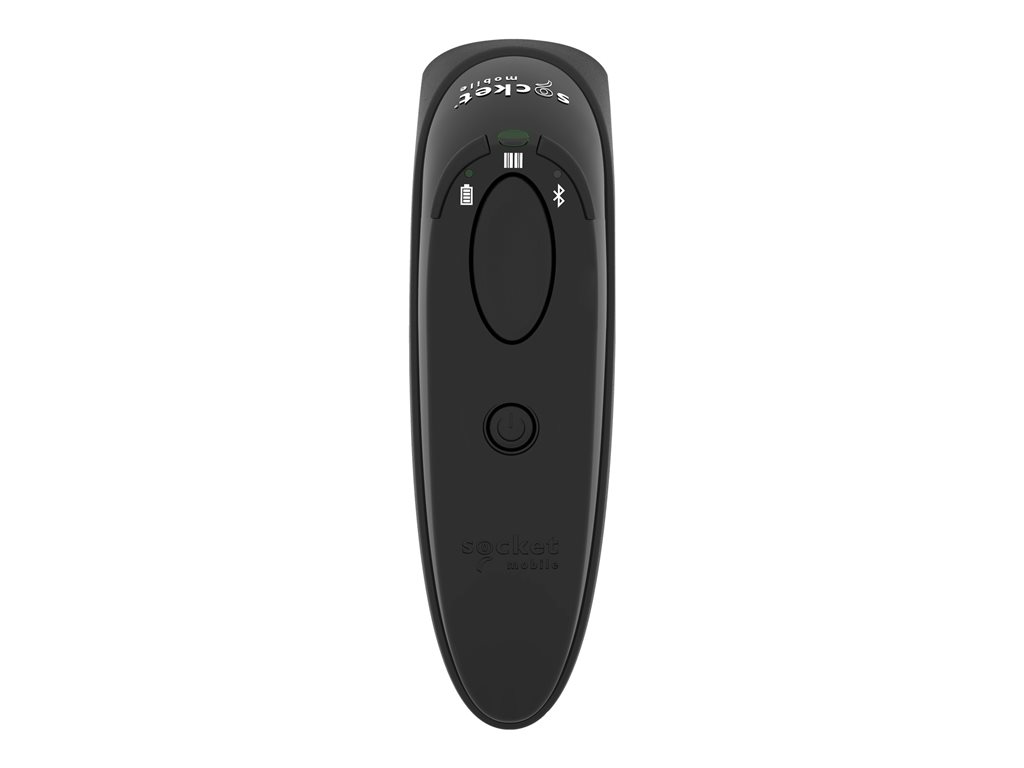

Socket Mobile - Socket Mobile DuraScan D760

V20 - with charging dock - barcode scanner - portable - 2D imager - decoded - Bluetooth 2.1 EDR

Socket Mobile
CX3797-2557
0758497118769
N/A
New

Price: $590.00

MSRP: $605.00
Total Available: 0

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description Socket Mobile DuraScan D760 - V20 - with charging dock - barcode scanner
Type Barcode scanner - portable - Bluetooth 2.1 EDR - decoded
Color Black
Minimum Bar Width 4 mil
Scan Element Type 2D imager
Sensor Resolution 640 x 400
Connectivity Technology Wireless
Wireless Connectivity Bluetooth 2.1 EDR
Battery 1 x lithium ion
System Requirements Apple MacOS, Linux, Microsoft Windows, Android, Apple iOS
Dimensions (WxDxH) 1.5 in x 5.2 in x 1.6 in
Weight 3.84 oz
Manufacturer Warranty 1-year warranty
General
Type Barcode scanner - portable
Color Black
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Miscellaneous
Included Accessories Wrist strap
Compliant Standards C-Tick, EN55022, ICES-003, EN55024, CISPR 22, RSS-210, IC, RoHS, UL 60950-1, IEC 60950-1, WEEE, IEC 60068-2-32, TELEC, cTUVus, IP54, IEC 60068-2-31, MFI, EN 50581, EN 60529, CAN/CSA C22.2, IEC/EN 62471, FCC Part 15 Class C, SIG
Networking
Wireless Connectivity Bluetooth 2.1 EDR
Power
Battery 1 x lithium ion
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 0 - 95% (non-condensing)
Drop Specification 3.3 ft to concrete
System Requirements
OS Required Apple MacOS, Linux, Microsoft Windows, Android, Apple iOS
Dimensions & Weight
Width 1.5 in
Depth 5.2 in
Height 1.6 in
Weight 3.84 oz
Barcode
Interface Type Bluetooth 2.1 EDR
Minimum Bar Width 4 mil
Scan Element Type 2D imager
Sensor Resolution 640 x 400
Light Source Wave Length 660 nm
Max Working Distance 30 in
Print Contrast Signal (PCS) 20%
Decode Capability Code 93, Matrix 2 of 5, Code 39, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, Bookland, EAN/JAN-8, EAN/JAN-13, UPC-A, Discrete 2 of 5, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, Australian Post, Japanese Post, Kix (Netherlands) Post, UPC-E0, ISSN, OCR-A, OCR-B, MICR E-13B, Micro QR code, CC-A, CC-B, CC-C, GS1 DataBar Expanded, GS1 DataBar Limited, Intelligent Mail Barcode, MSI, GS1-128, Chinese 2 of 5, UPU FICS, DotCode, US Planet, US Postnet, USPS 4-state (US4CB), Han Xin, UPC/EAN/JAN Composites, Composite TLC, US currency serial number
TTL Decoding Decoded
Connectivity Technology Wireless
OK Notification Beeper, LED indicator, vibration
Features Waterproof, dustproof, rugged, removable battery, red LEDs illumination, OMNI-directional reading, Human Interface Device Profile (HID), Serial Port Profile (SPP), MFi-Serial Port Profile (MFi-SPP), passport reader
