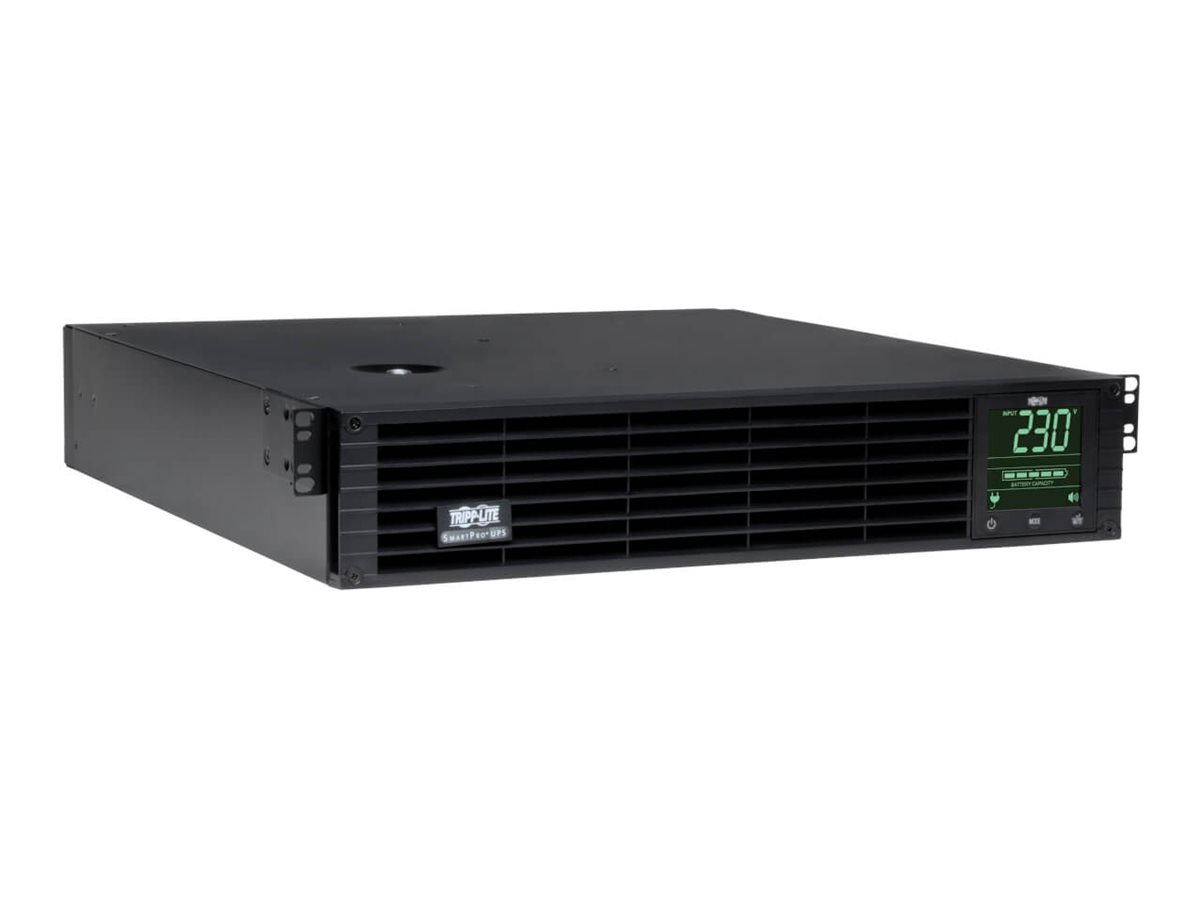

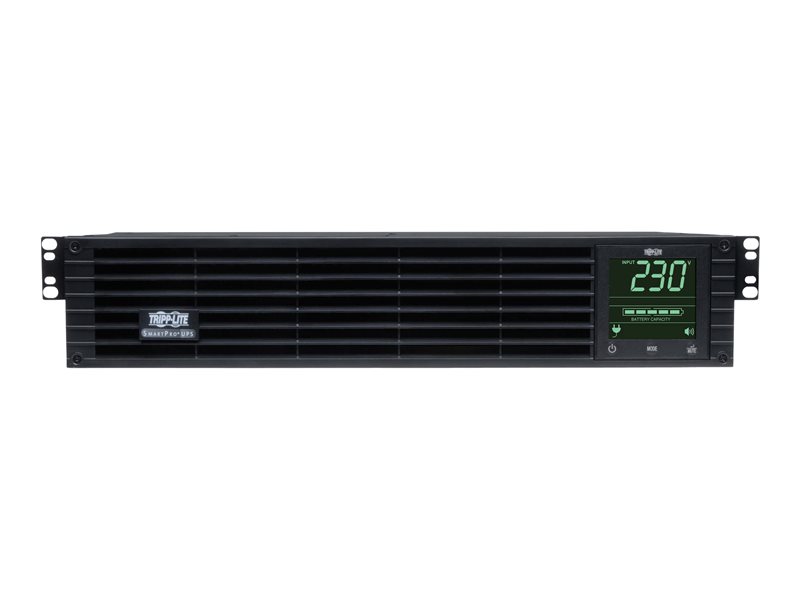

Tripp Lite - Tripp Lite UPS Smart 2200VA 1920W 230V LCD USB DB9 Extended Run WEBCARDLX 2URM
UPS (rack-mountable) - 15 A - AC 230 V - 1920 Watt - 2200 VA - 1-phase - RS-232, USB - output connectors: 8 - PFC - 2U - 19" - TAA Compliant
Tripp Lite
SMX2200XLRT2UN
0037332256430
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Tripp Lite UPS Smart 2200VA 1920W 230V LCD USB DB9 Extended Run WEBCARDLX 2URM - UPS - 1920 Watt - 2200 VA - TAA Compliant |
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable |
| Rack Size | 19" - 2U |
| Weight | 68.74 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V |
| Power Capacity | 1920 Watt / 2200 VA |
| Input Connectors | 1 |
| Output connectors | 8 x power IEC 60320 C13 |
| Run Time (Up To) | 5 min at full load |
| Networking | RS-232, USB |
| Included Accessories | Network interface card (WEBCARDLX) |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 17.5 in x 19.5 in x 3.5 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Network interface card (WEBCARDLX) |

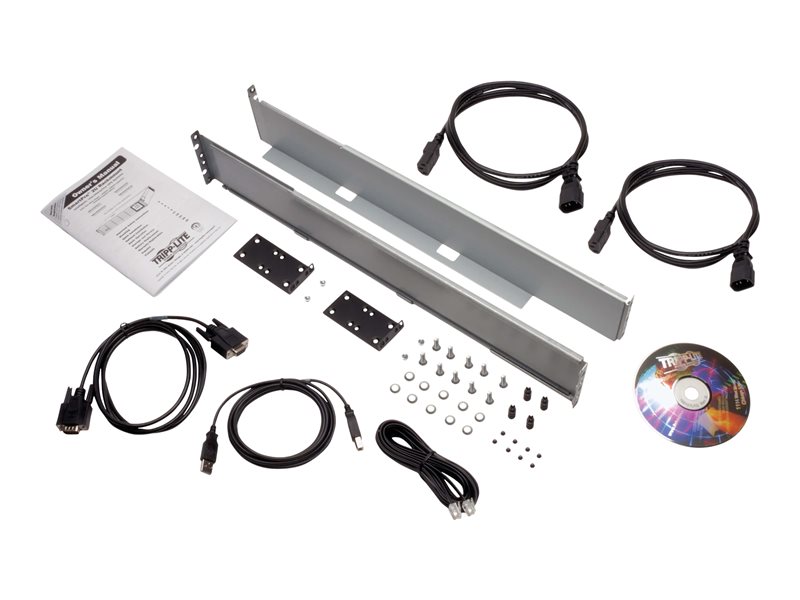

| Cables Included | Power cable ¦ USB cable - external ¦ Serial cable - external ¦ EPO cable - external |
| Rack Mounting Kit | Included |

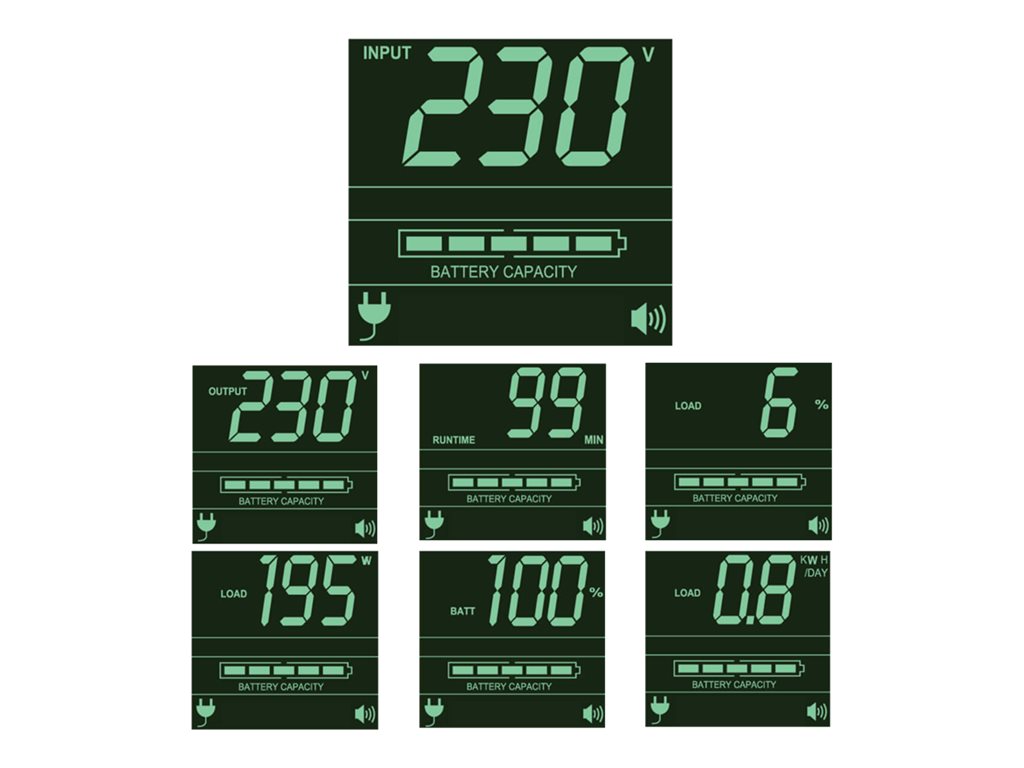

| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), noise filtering, cold-start function, cooling fan, hot-swappable batteries |
| Compliant Standards | GOST, IEC 62040-2, IEC 62040-1 |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 45 dBA |
| Battery | |
| Voltage Provided | 48 V |
| Run Time (Up To) | 5 min at full load ¦ 11.9 min at half load |
| Recharge Time | 4.5 hours |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Output Voltage | AC 230 V 50/60 Hz |
| Max Electric Current | 15 A |
| Power Capacity | 1920 Watt / 2200 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 350 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 98% at 100% Load |
| Power Factor (PF) | 0.9 |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 19.5 in |
| Height | 3.5 in |
| Weight | 68.74 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 81.04 lbs |
