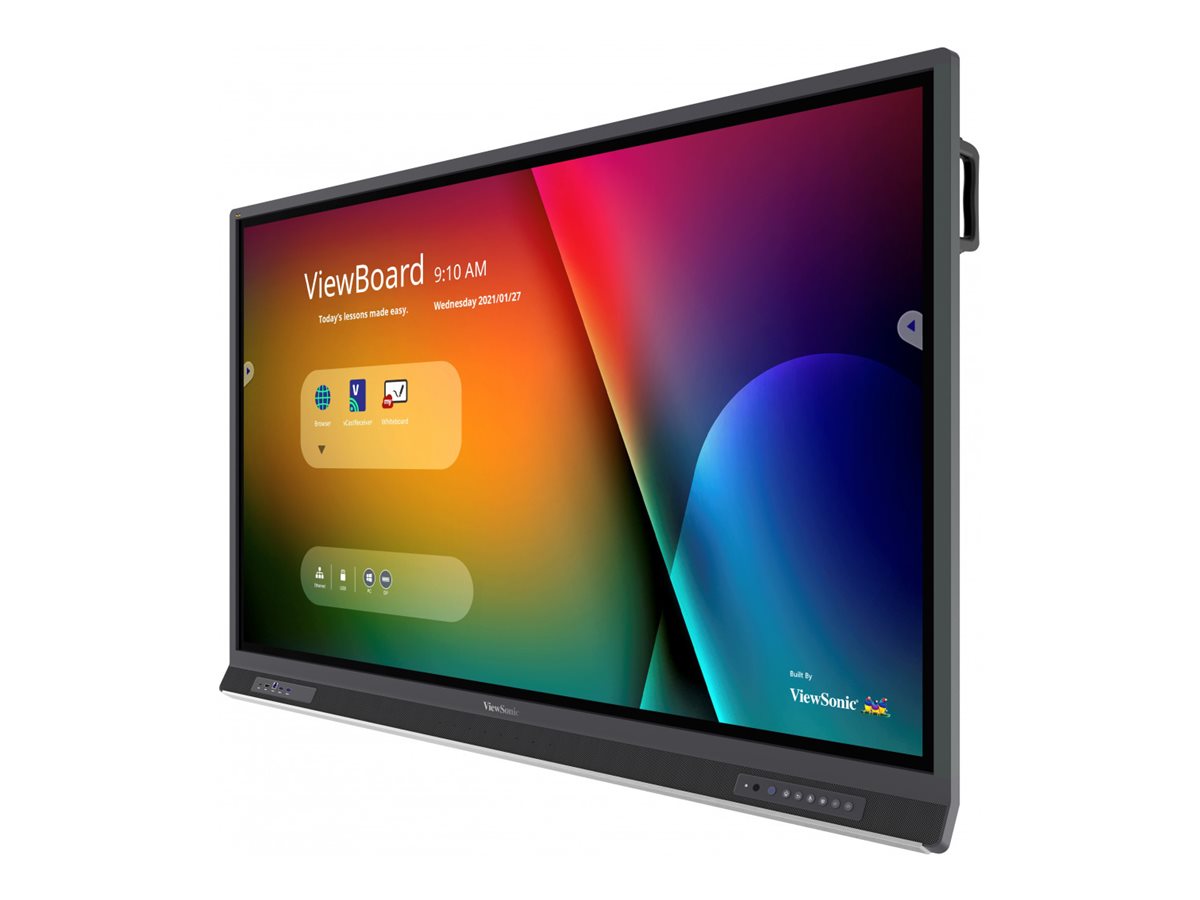

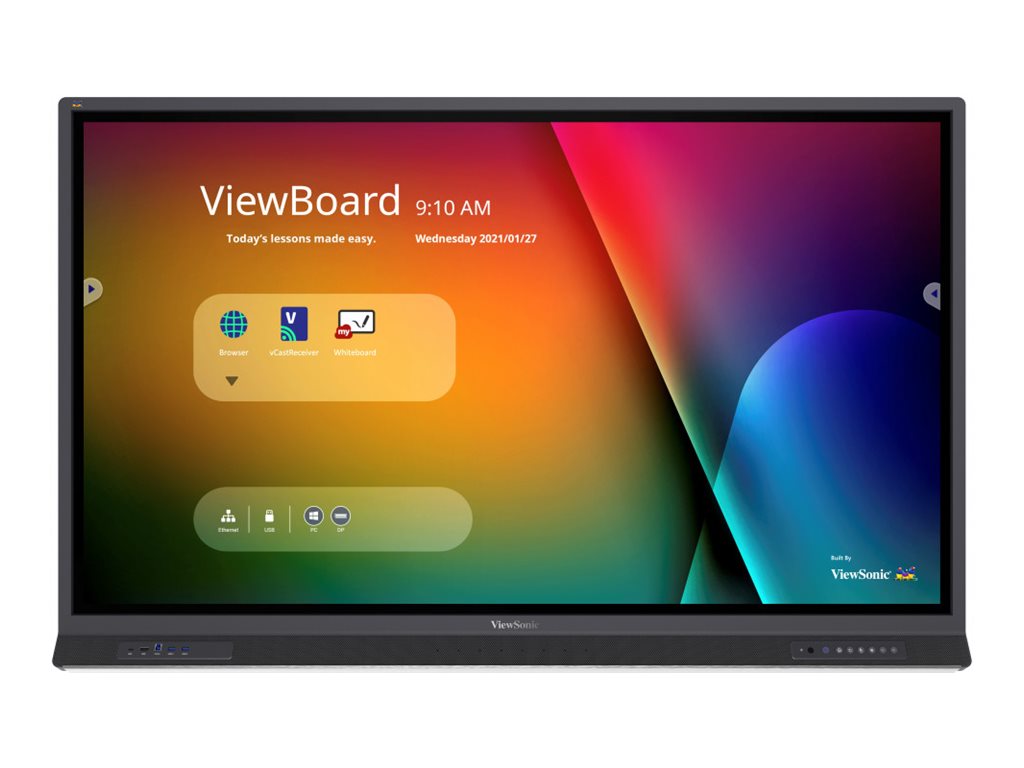

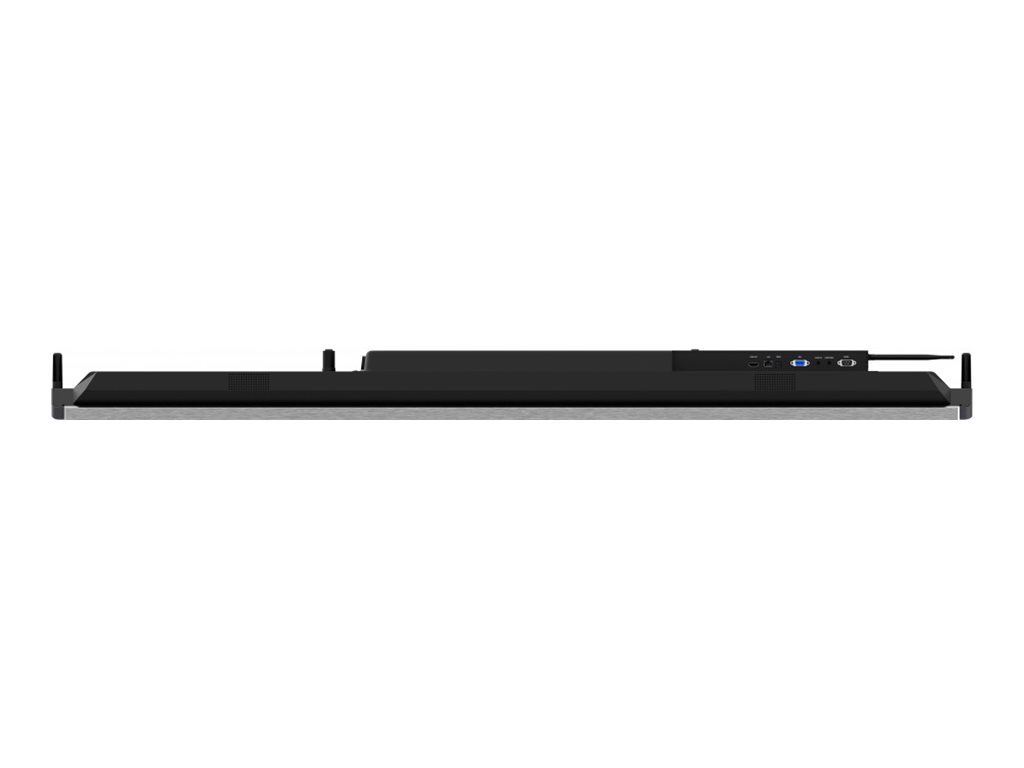

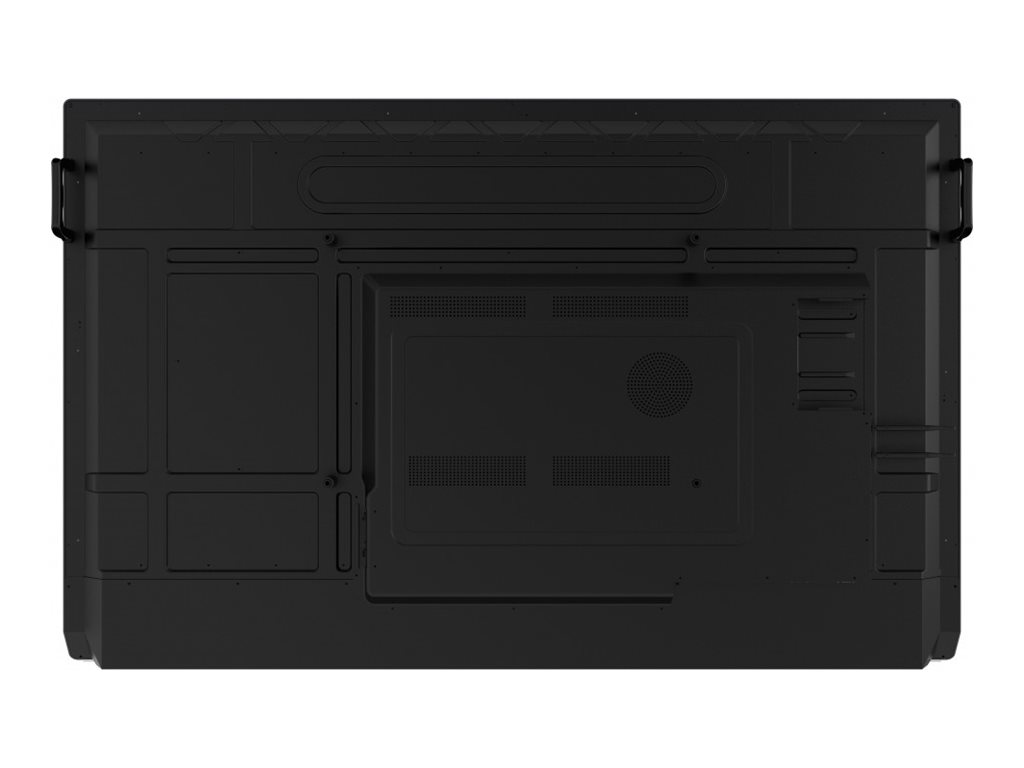

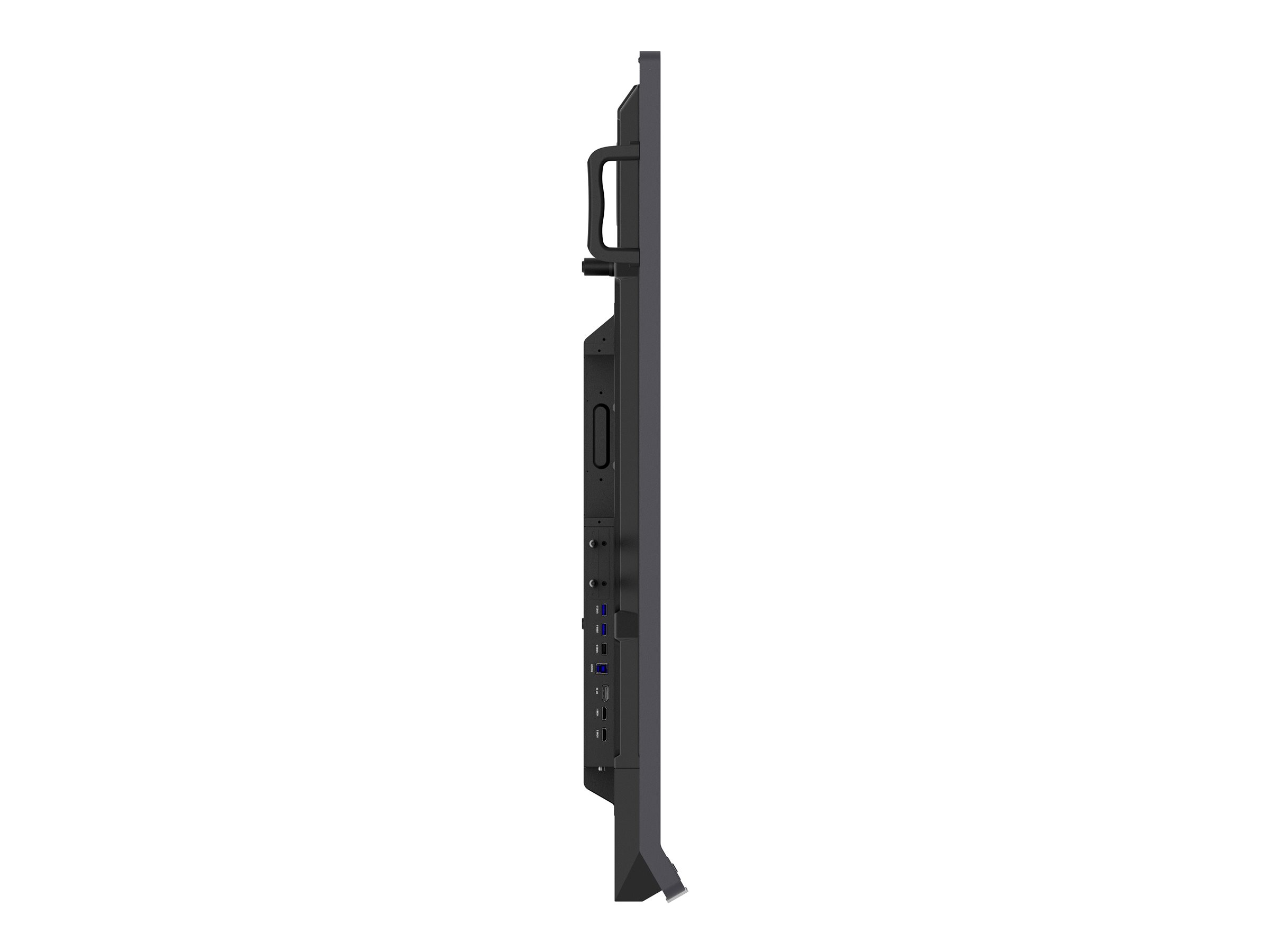

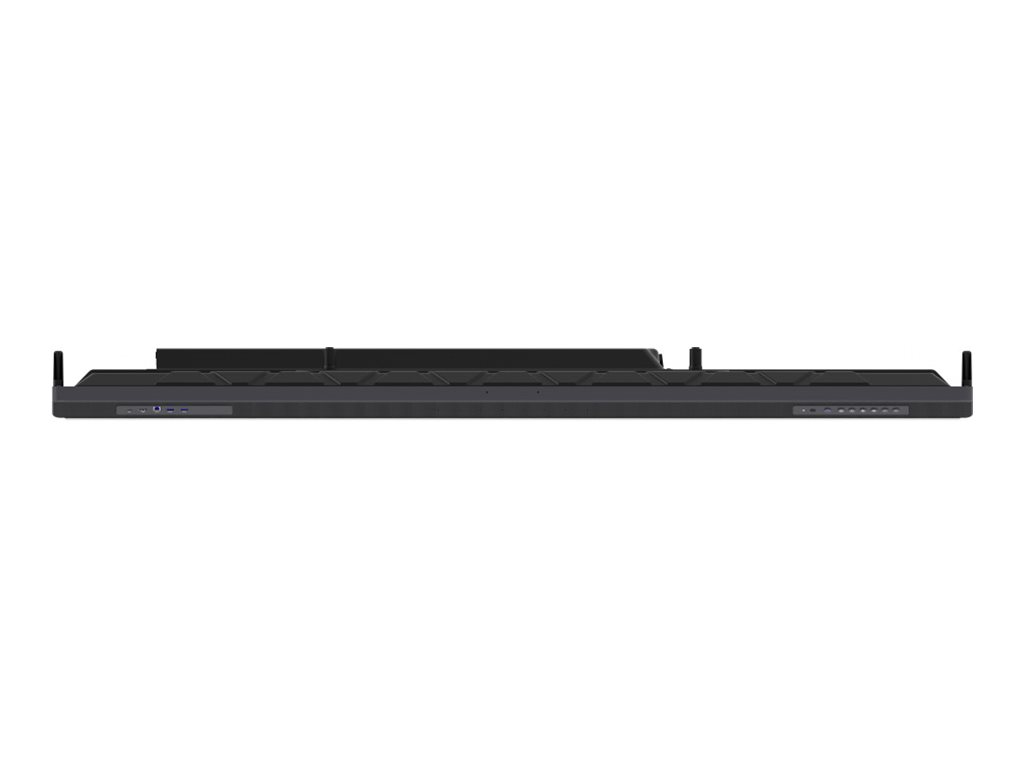

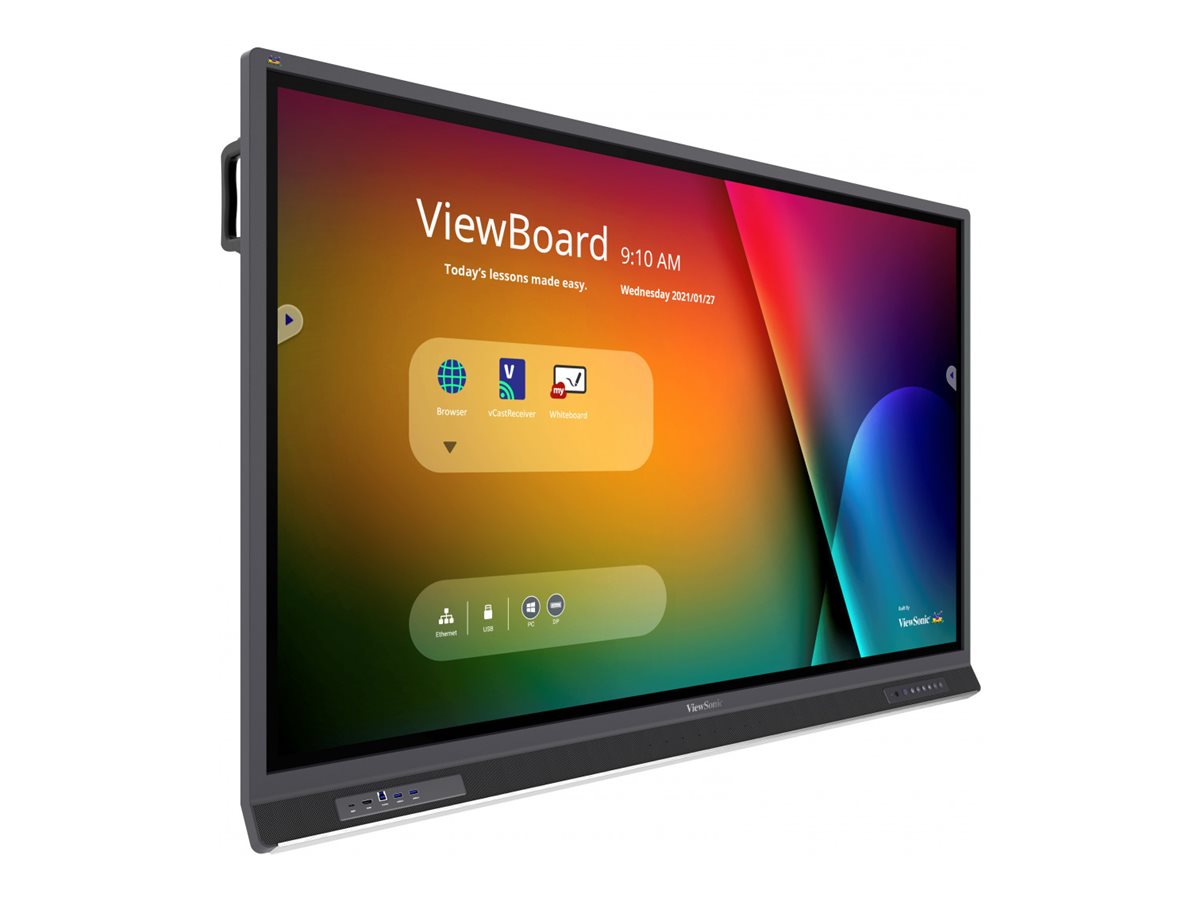

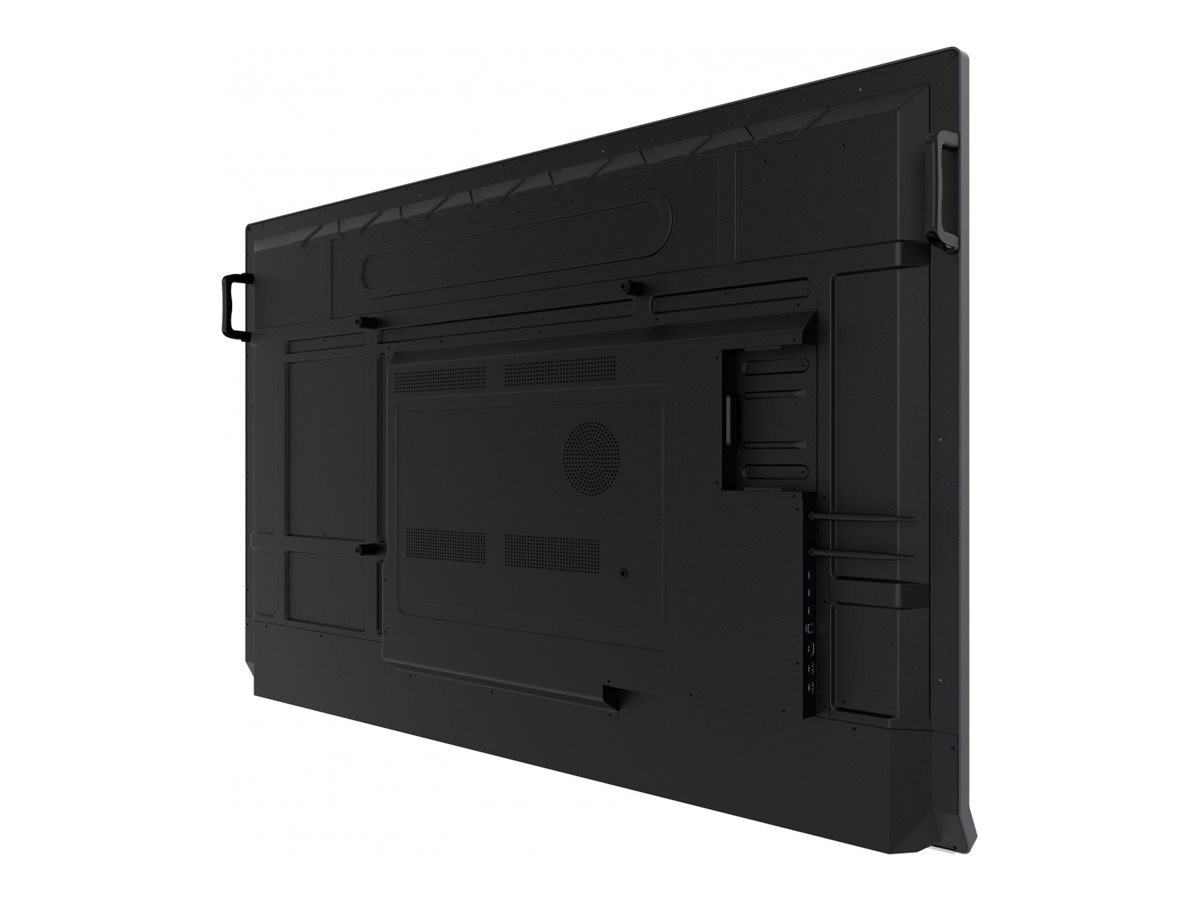

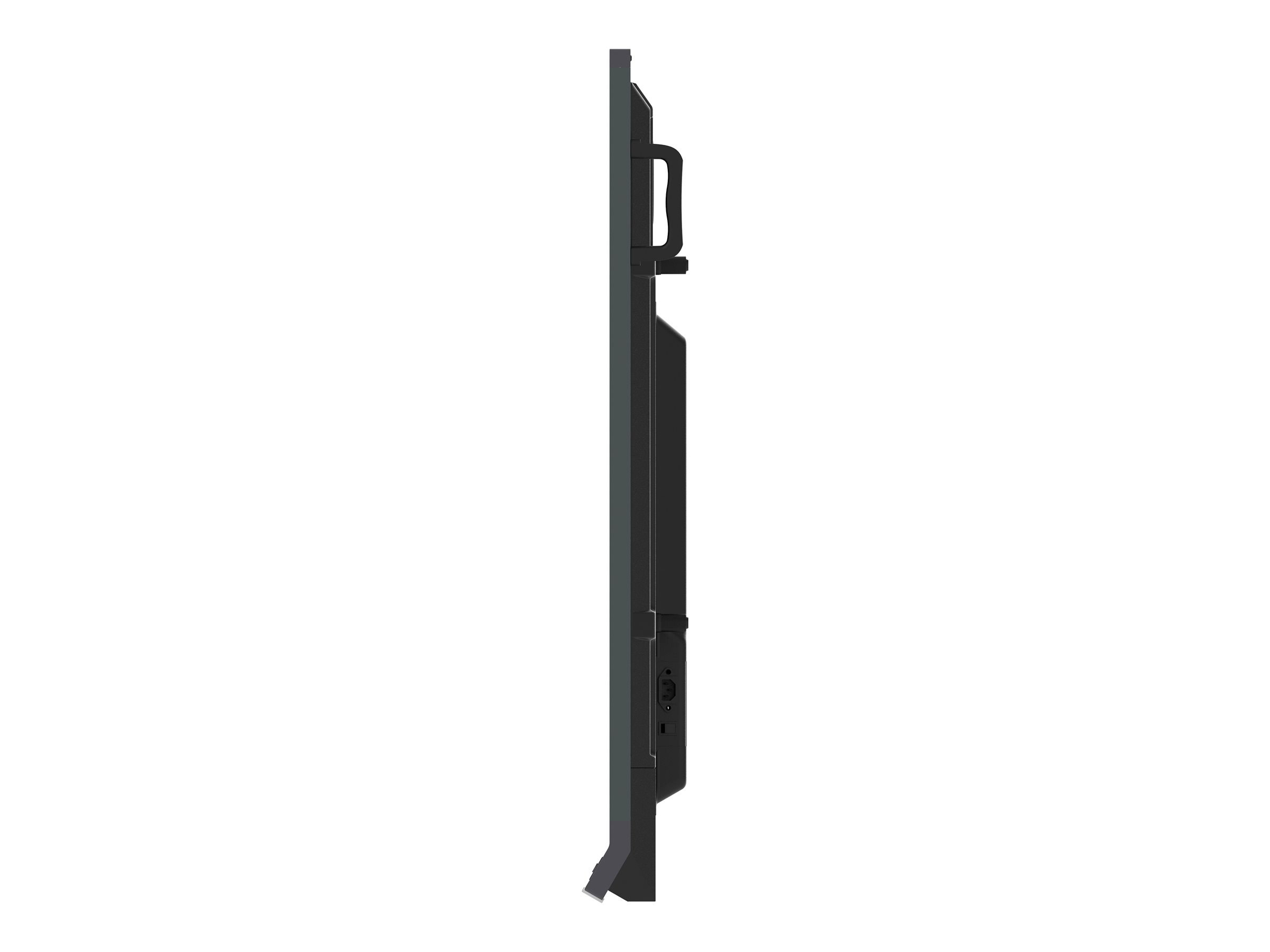

ViewSonic - ViewSonic ViewBoard IFP6552-E2
65" Diagonal Class (64.5" viewable) LED-backlit LCD display - interactive - 4K UHD (2160p) 3840 x 2160 - with ViewSonic LB-WIFI-001 Adapter, ViewSonic VB-STND-001 Cart
ViewSonic
IFP6552-E2
0766907009316
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | ViewSonic ViewBoard IFP6552-E2 65" Class (64.5" viewable) LED-backlit LCD display - 4K - for interactive communication |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 65" |
| Diagonal Size | 64.5" |
| Commercial Use | Yes - interactive |
| Bundled with | ViewSonic LB-WIFI-001 Adapter, ViewSonic VB-STND-001 Cart |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| PC Interface | VGA (HD-15), HDMI, USB-C |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Speaker System | 2 speakers, subwoofer |
| Storage Capacity | 32GB eMMC |
| USB | Yes |
| Included Accessories | Remote control, remote control, 2 pen styluses, batteries, camera plate, Wi-Fi module, 8 x screws |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Dimensions (WxDxH) - without stand | 5 ft x 4.7 in x 37.6 in |
| Weight | 96.78 lbs |
| Environmental Standards | ENERGY STAR Qualified, EPEAT Silver |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 65" |
| Diagonal Size | 64.5" |
| Commercial Use | Yes - interactive |
| Bundled with | ViewSonic LB-WIFI-001 Adapter, ViewSonic VB-STND-001 Cart |
| Operating System | Android OS 9.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | VGA (HD-15), HDMI, USB-C |
| Dimensions | Without stand |
| Width | 5 ft |
| Depth | 4.7 in |
| Height | 37.6 in |
| Weight | 96.78 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site ¦ Limited warranty - backlight - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | Remote control, 2 pen styluses, batteries, camera plate, Wi-Fi module, 8 x screws |
| Cables Included | A/V cable ¦ HDMI cable |
| Compliant Standards | CB, FCC, RoHS, WEEE, cTUVus, ERP, CE/EMC, Mexico Energy label |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Display | |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare, 7H Hard |
| Image Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 4000:1 |
| Brightness | 350 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Touchpoints Qty | 33 |
| Backlight Life | 50,000 hour(s) |
| Additional Features | Infrared multitouch technology, Open Pluggable Specification slot, Palm Rejection, Object Awareness |
| Connections | |
| Connector Type | 3 x HDMI input ¦ VGA input ¦ USB 2.0 ¦ USB-C 3.1 ¦ HDMI output ¦ LAN ¦ 4 x USB 3.0 ¦ 2 x USB 2.0 ¦ SPDIF output ¦ RS-232 |
| Remote Control | |
| Type | Remote control |
| Battery Included | Yes |
| Audio System | |
| Speaker System | 2 speakers, subwoofer |
| Output Power / Total | 45 Watt |
| Additional Features | Noise cancelling microphone |
| Speakers | 2 x main channel speaker - 15 Watt ¦ 1 x subwoofer - 15 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 5.4 ft |
| Depth (Shipping) | 9.6 in |
| Height (Shipping) | 3.4 ft |
| Weight (Shipping) | 122.13 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Gigabit Ethernet |
| Wi-Fi Protocol | 802.11ac |
| Bluetooth Version | Bluetooth 4.0 |
| Stands & Mounts | |
| Flat Panel Mount Interface | 600 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| Configuration | ARM Cortex-A73 Quad-Core ( 1.8 GHz ) - 4 GB LPDDR4 - 32GB eMMC - ARM Mali-G52 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Silver |
| ENERGY STAR Certified | Yes |
