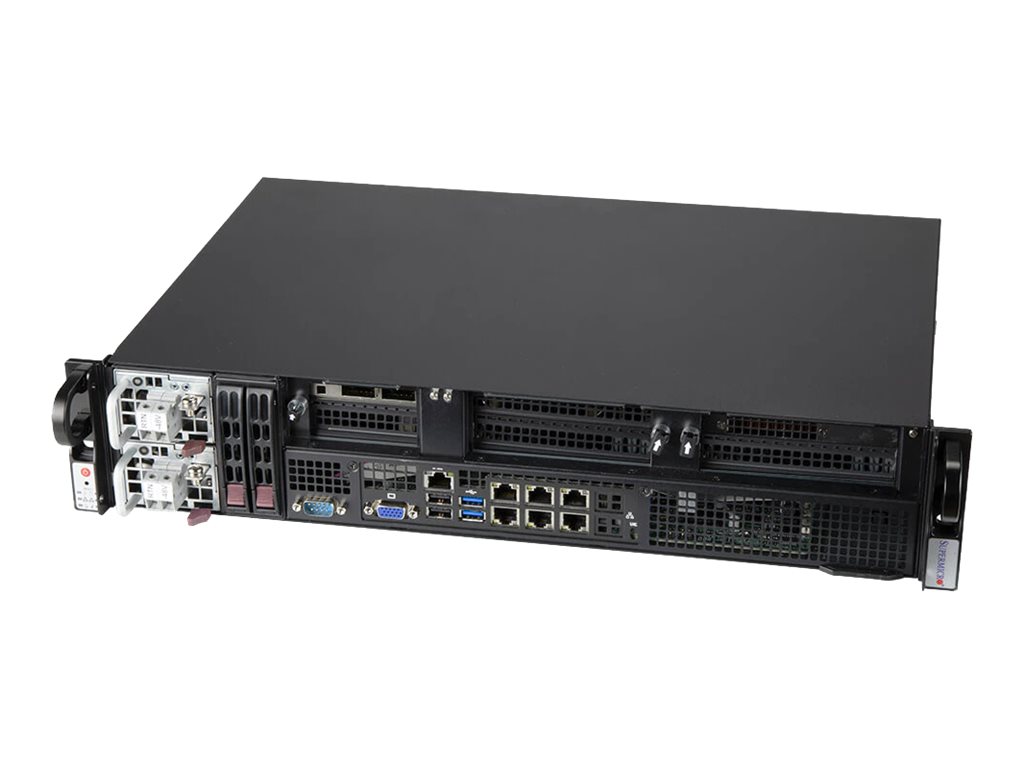

Super Micro Computer - Supermicro IoT SuperServer 210P-FRDN6T
Server - rack-mountable - 2U - 1-way - no CPU up to - RAM 0 GB - no HDD - AST2600 - Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none - black, silver
Super Micro Computer
SYS-210P-FRDN6T
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Supermicro IoT SuperServer 210P-FRDN6T - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Server Scalability | 1-way |
| Processor | No CPU |
| Processor Socket | Socket P+ |
| RAM | 0 GB (installed) / 2 TB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 |
| Networking | 1GbE, 10GbE |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | OOB Management Package |
| Color | Black, silver |
| Dimensions (WxDxH) | 17.2 in x 11.8 in x 3.5 in |
| Weight | 16.98 lbs |
| Manufacturer Warranty | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 2 |
| Color | Black, silver |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x hot-swap 2.5" |
| Slots | 2 (total) / 2 (free) x PCIe 4.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 4.0 x16 - low-profile (x16/x0, x8/x8 modes) ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 - half-length, full-height (if CPU is less than 165W with 1U heat sink) ¦ 1 (total) / 1 (free) x M.2 Card - 2280/22110 |
| Interfaces | 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.0 (2 in front) ¦ 1 x VGA (1 in front) ¦ 1 x serial (1 in front) ¦ 2 x USB 2.0 (2 in front) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| Miscellaneous | |
| Included Accessories | CPU Heatsink, riser card |
| Cables Included | Serial ATA cable (2 pcs.) ¦ SAS cable (2 pcs.) |
| RAM | |
| Installed Size | 0 GB (installed) / 2 TB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 8 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM), 3DS registered |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet, 4 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Features | KVM over IP support |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 600 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | OOB Management Package |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 11.8 in |
| Height | 3.5 in |
| Weight | 16.98 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 19.3 in |
| Shipping Depth | 23.2 in |
| Shipping Height | 7.4 in |
| Shipping Weight | 22.05 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket P+ |
| Chipset Type | Intel C621A |
| Motherboard Name | Supermicro X12SPM-LN6TF |
