StarTech.com - StarTech.com SATA PCIe Card, 2 Port PCIe SATA Expansion card, 6Gbps SATA Card, Full/Low Profile, PCI Express to SATA Adapter, ASM1061 Non-Raid SATA Controller Card
PCIe to SATA Converter - Storage controller - 2 Channel - SATA 6Gb/s - low profile - PCIe 2.0 x1 - red
StarTech.com
2P6G-PCIE-SATA-CARD
0065030895545
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | StarTech.com SATA PCIe Card, 2 Port PCIe SATA Expansion card, 6Gbps SATA Card, Full/Low Profile, PCI Express to SATA Adapter, ASM1061 Non-Raid SATA Controller Card - PCIe to SATA Converter - storage controller - SATA 6Gb/s - PCIe 2.0 x1 |
| Device Type | Storage controller - plug-in card - low profile |
| Bus Type | PCIe 2.0 x1 |
| Color | Red |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Supported Devices | Hard drive, solid state drive |
| Channel Qty | 2 |
| Max Storage Devices Qty | 2 |
| System Requirements | Microsoft Windows Vista / XP, Apple MacOS X 10.6.8 or later, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.6.32 or later, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 8.1 / 10 / 11 |
| Dimensions (WxDxH) | 0.7 in x 4.8 in x 2.7 in |
| Weight | 1.16 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Storage controller - plug-in card - low profile |
| Host Bus | PCIe 2.0 x1 |
| Color | Red |
| Expansion / Connectivity | |
| Interfaces | 2 x SATA 6Gb/s - SATA (internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |

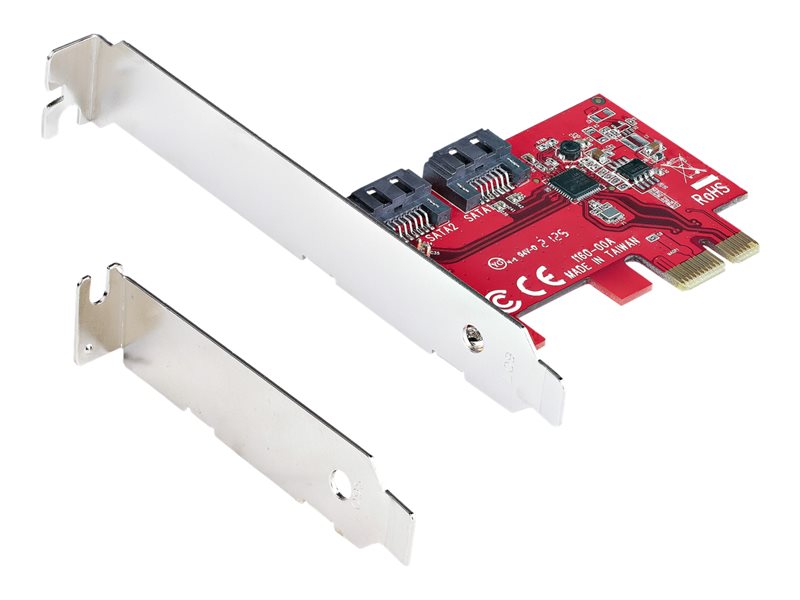

| Included Accessories | Low-profile bracket, full-height bracket |
| Features | Support port multiplier, S.M.A.R.T. support, TRIM support, 4Kn drive compatible, bootable, hdd led pin header, ATAPI support |
| Compliant Standards | Plug and Play, WEEE, RCM |
| Software / System Requirements | |
| OS Required | Microsoft Windows Vista / XP, Apple MacOS X 10.6.8 or later, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.6.32 or later, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 8.1 / 10 / 11 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 20 - 80% RH |
| Storage Controller | |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Supported Devices | Hard drive, solid state drive |
| Channel Qty | 2 |
| Max Storage Devices Qty | 2 |
| Processor | ASMedia ASM1061 |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 4.8 in |
| Height | 2.7 in |
| Weight | 1.16 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.6 in |
| Shipping Depth | 6.7 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 3.88 oz |
