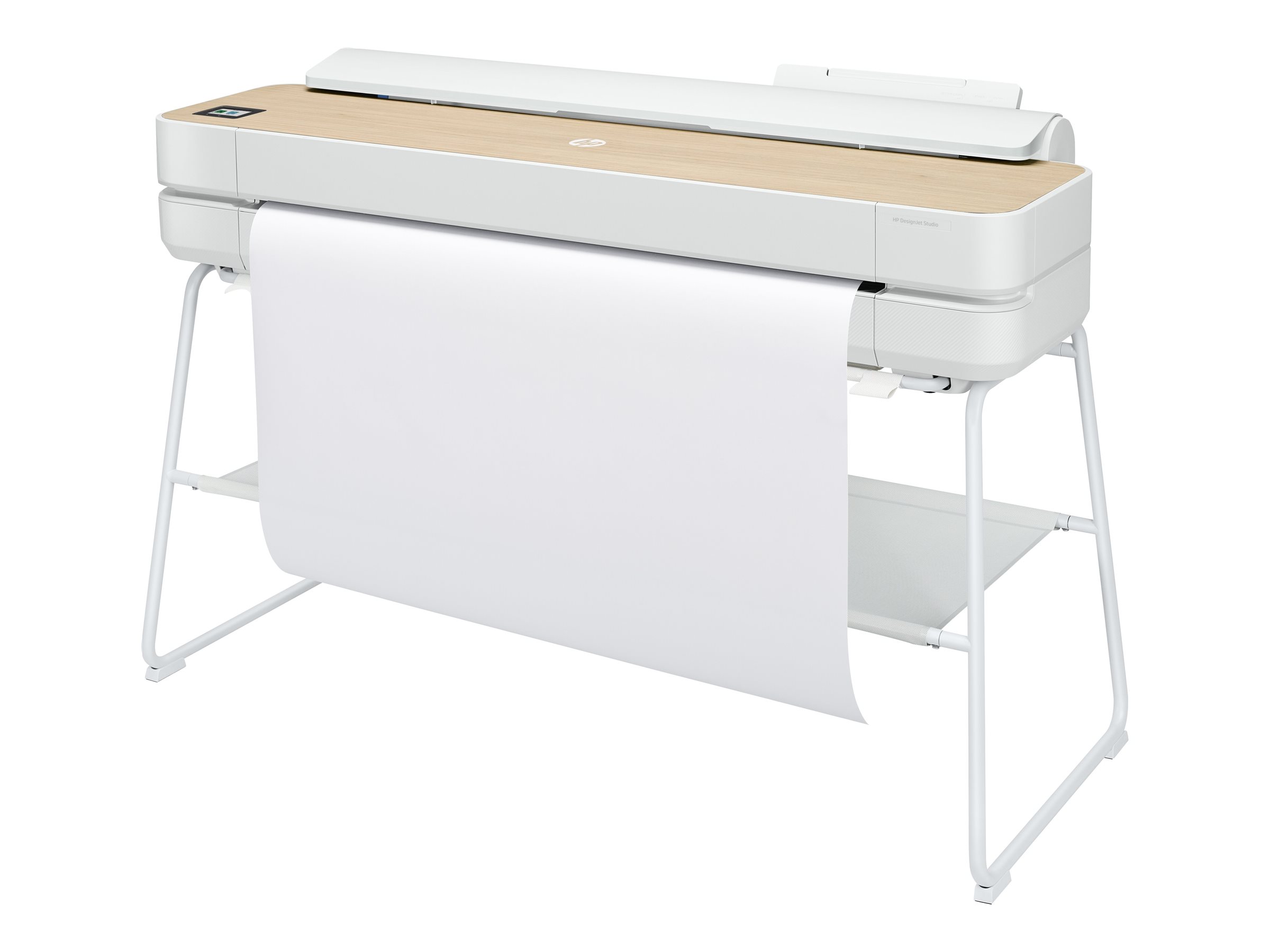

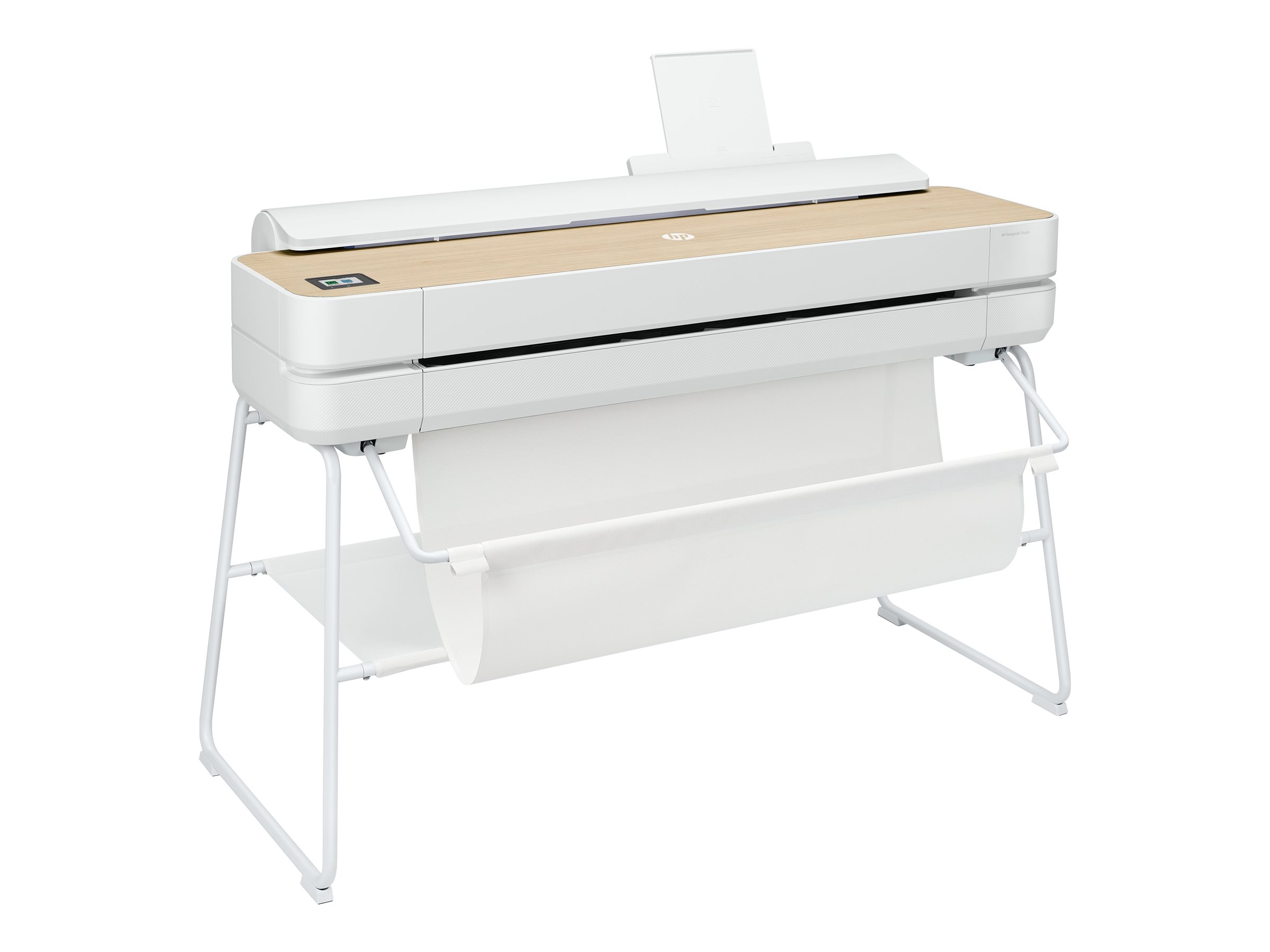

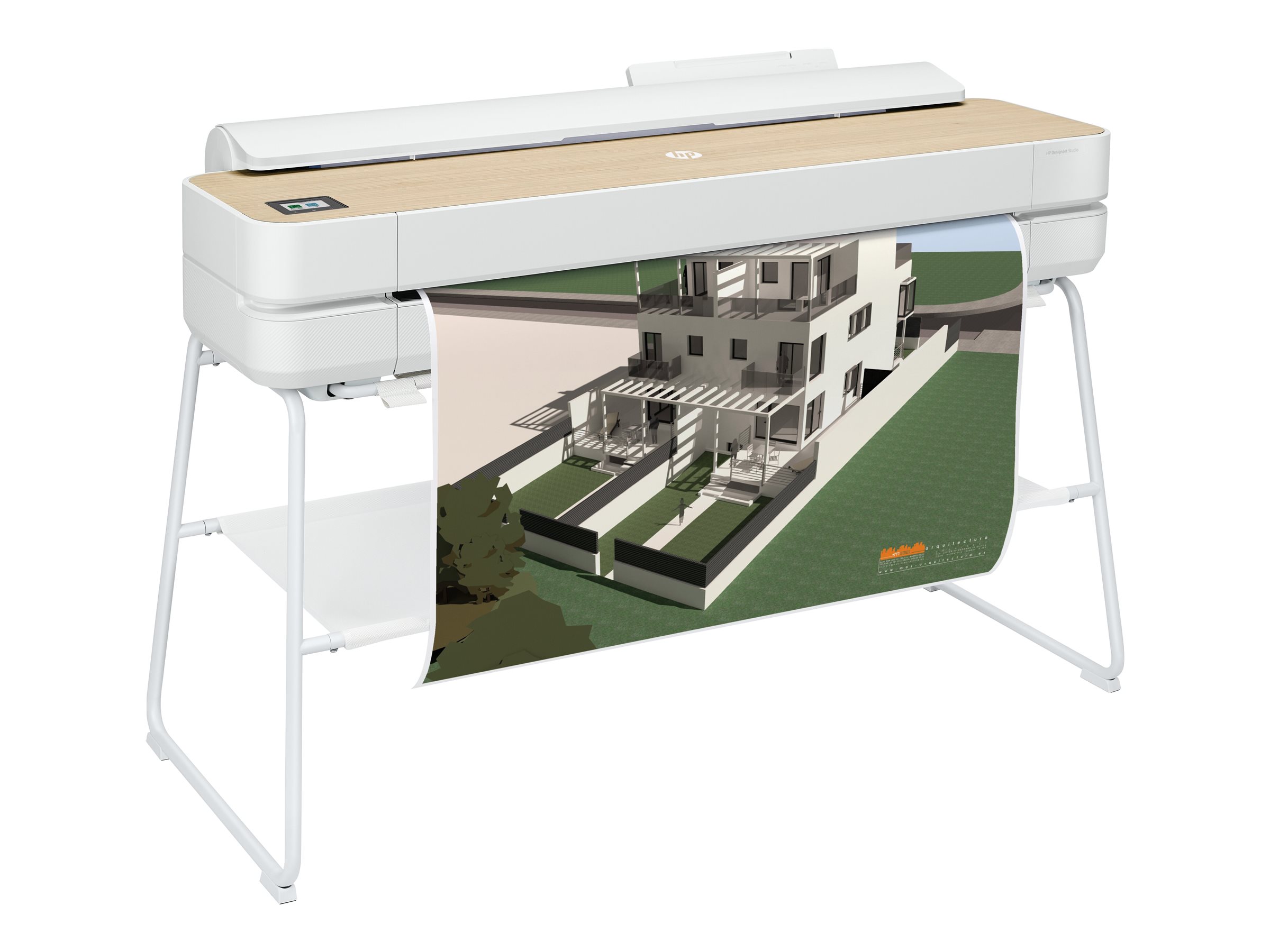

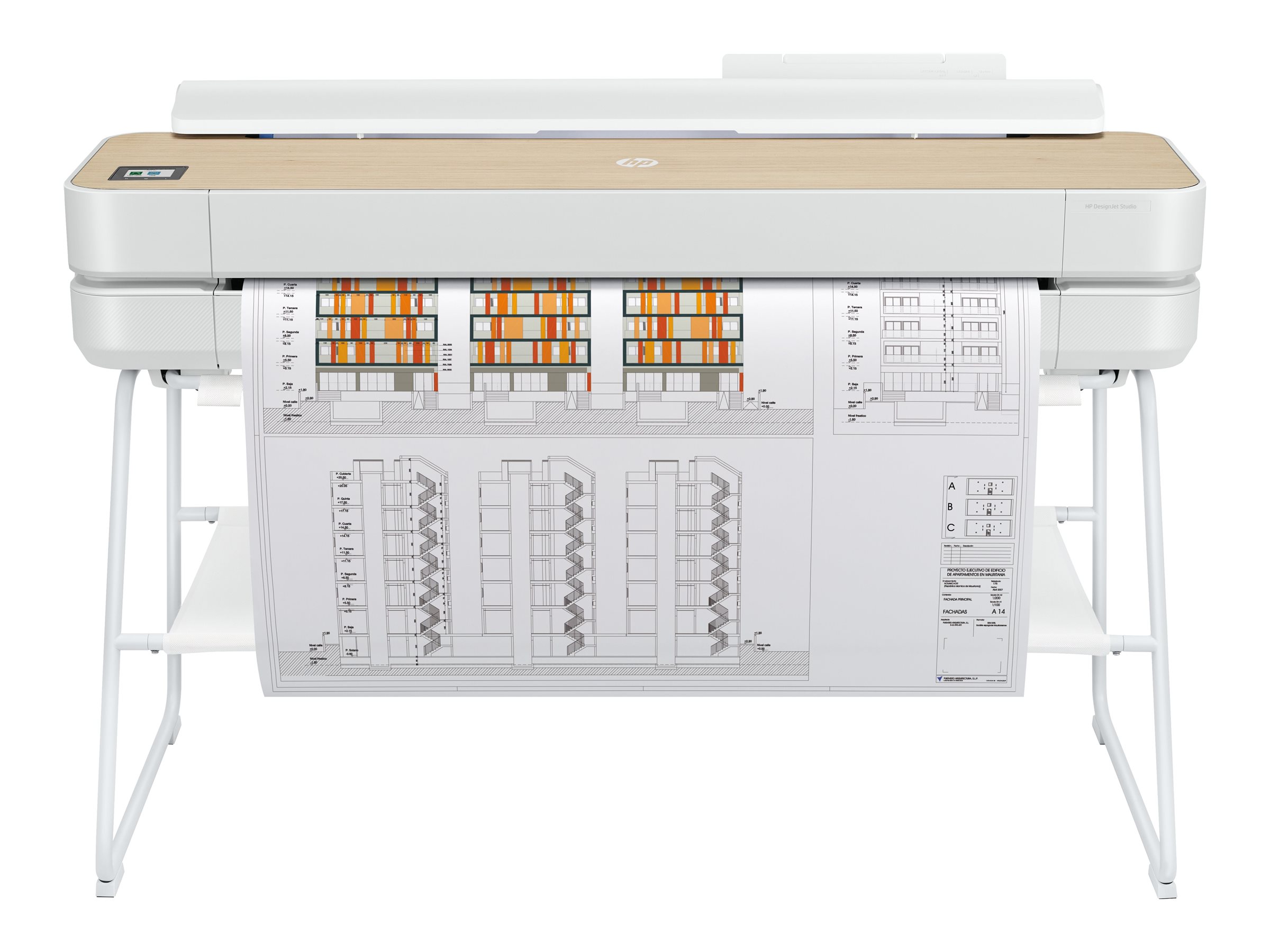

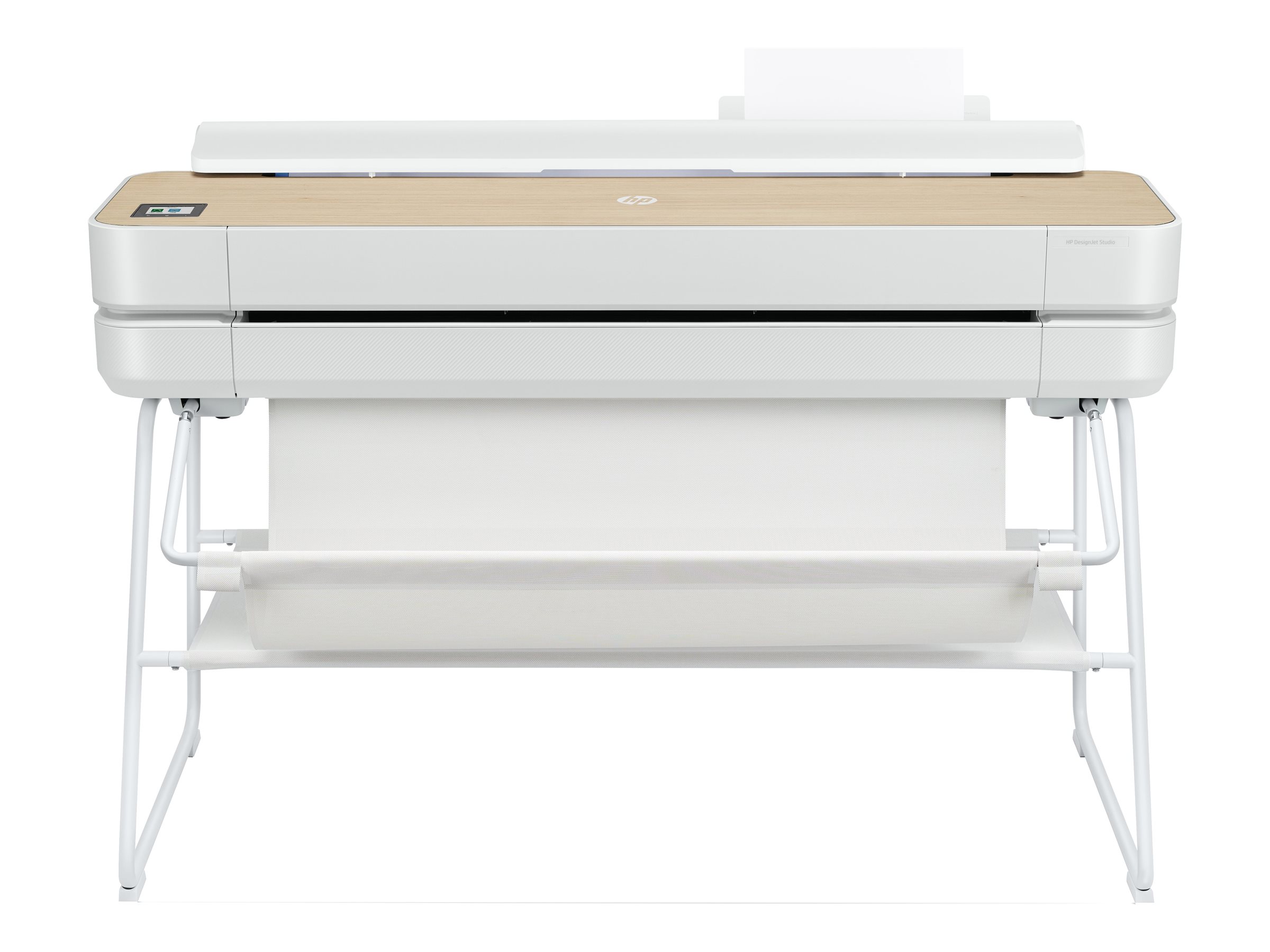

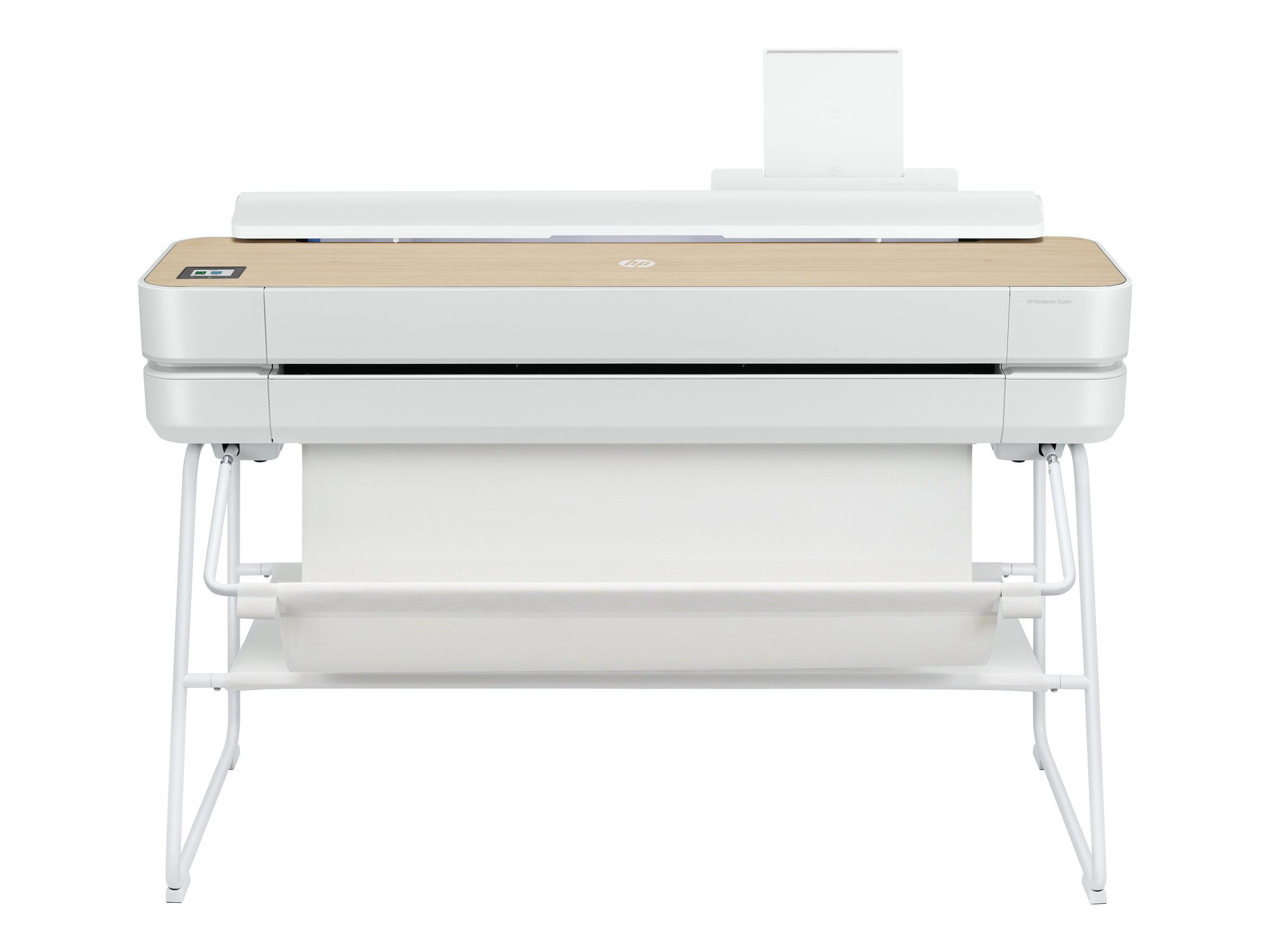

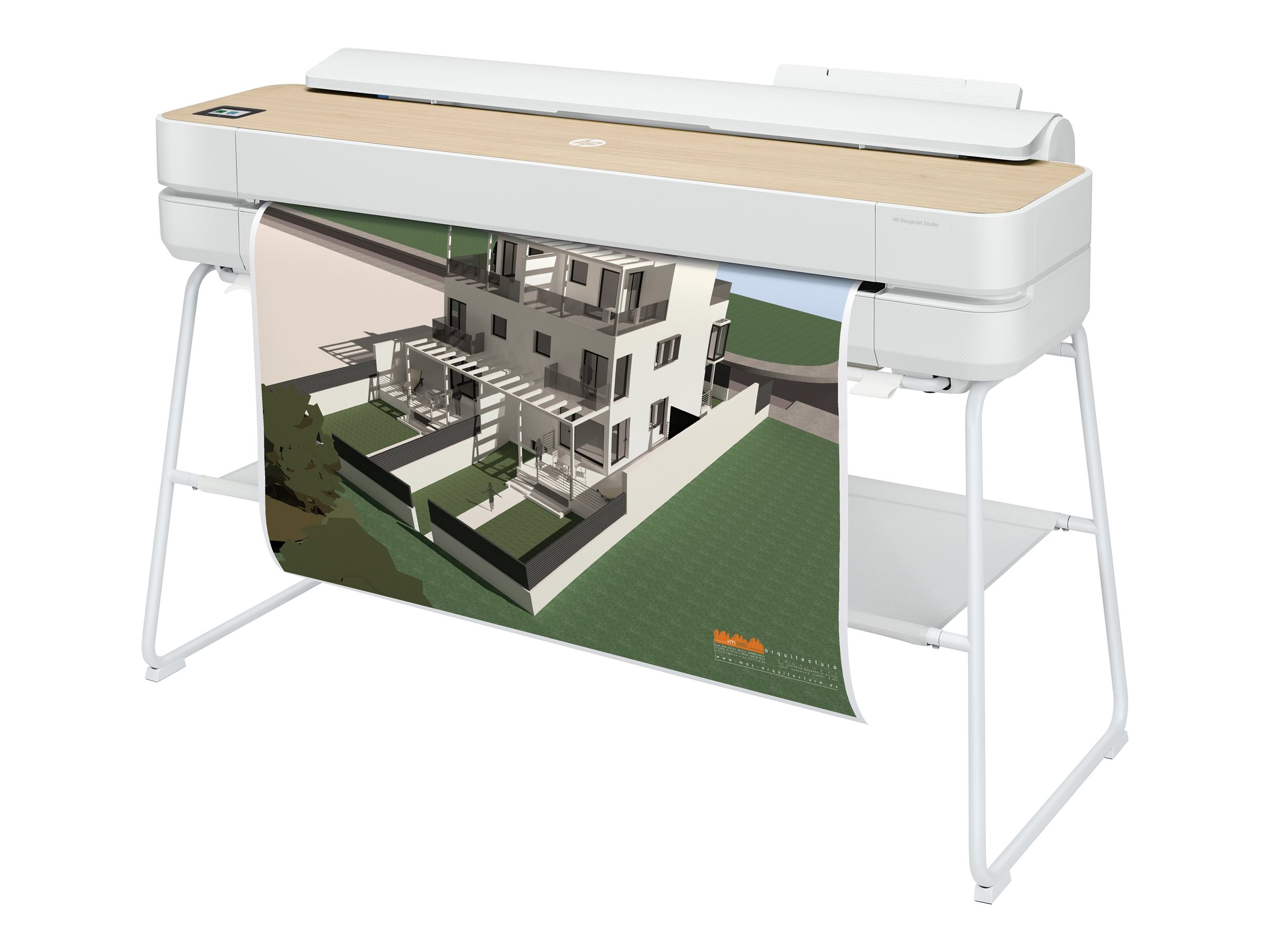

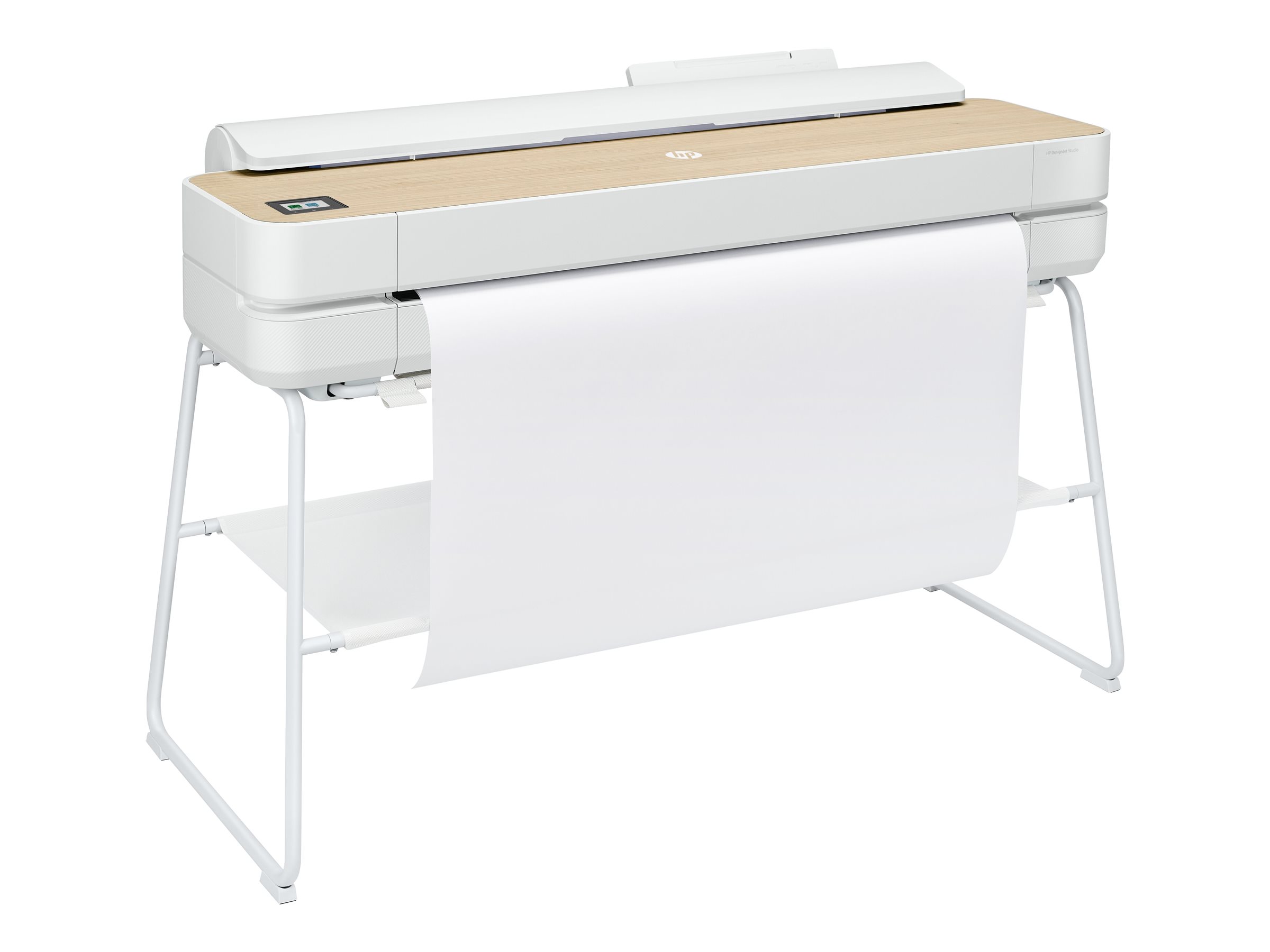

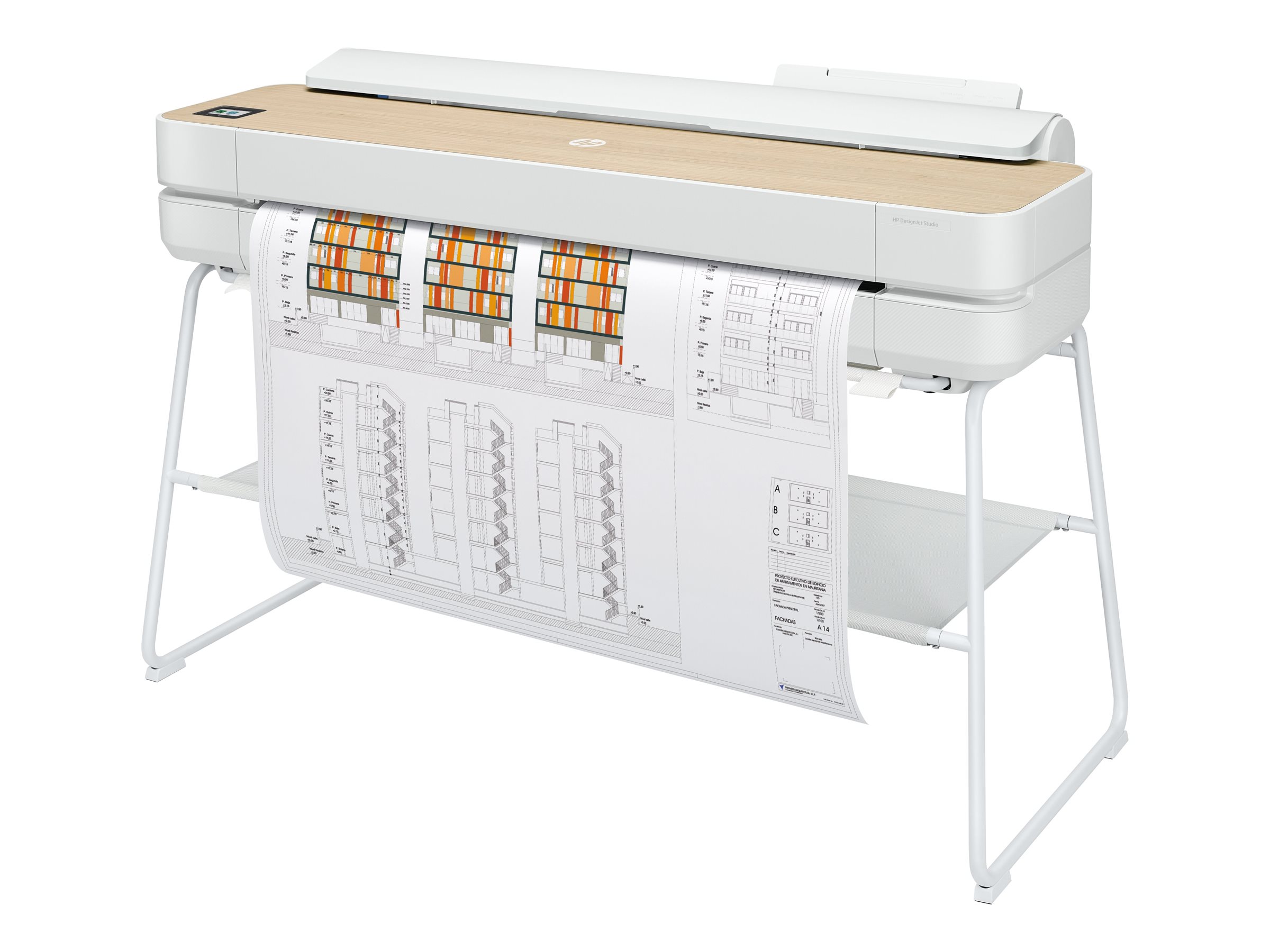

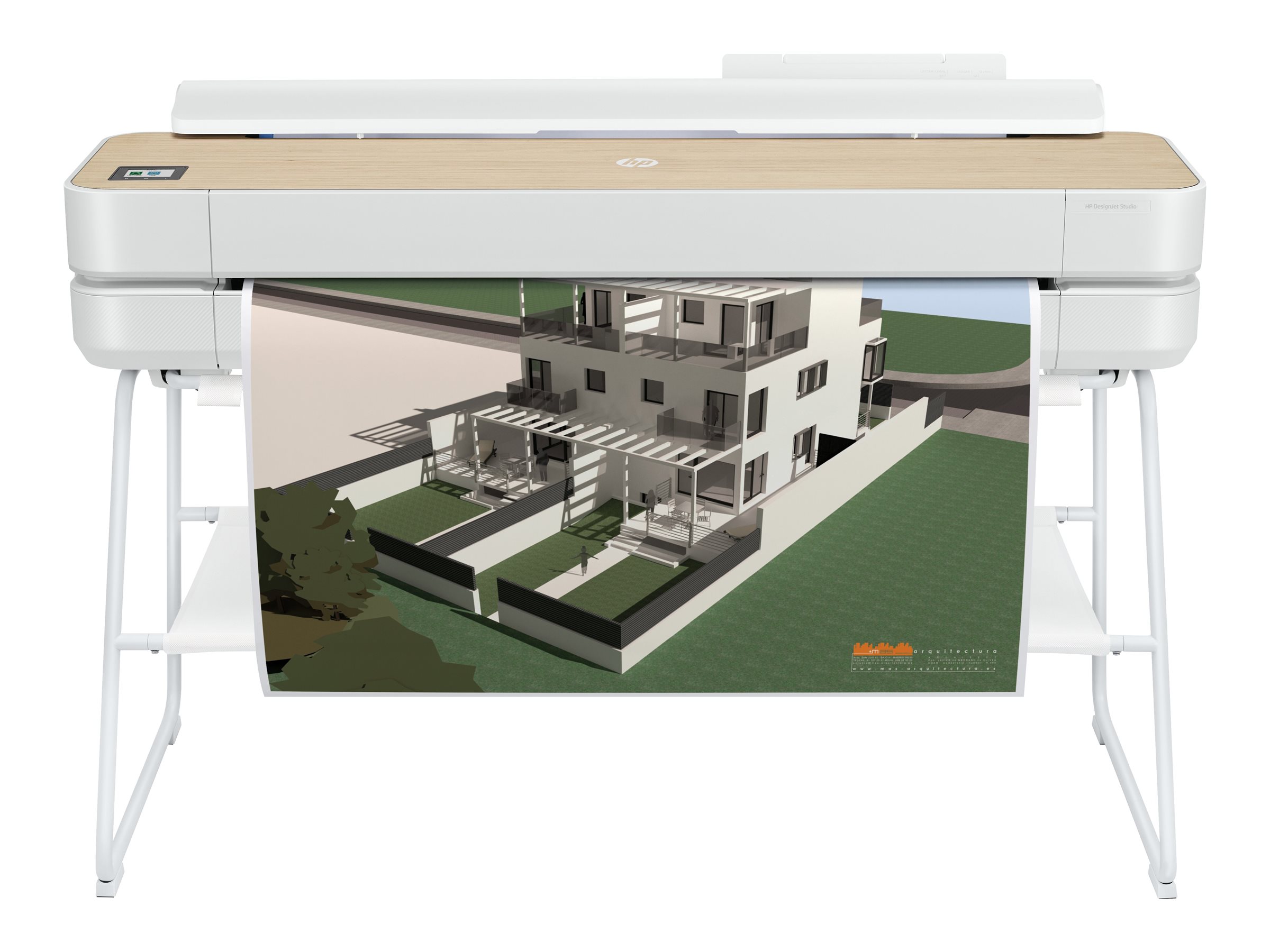

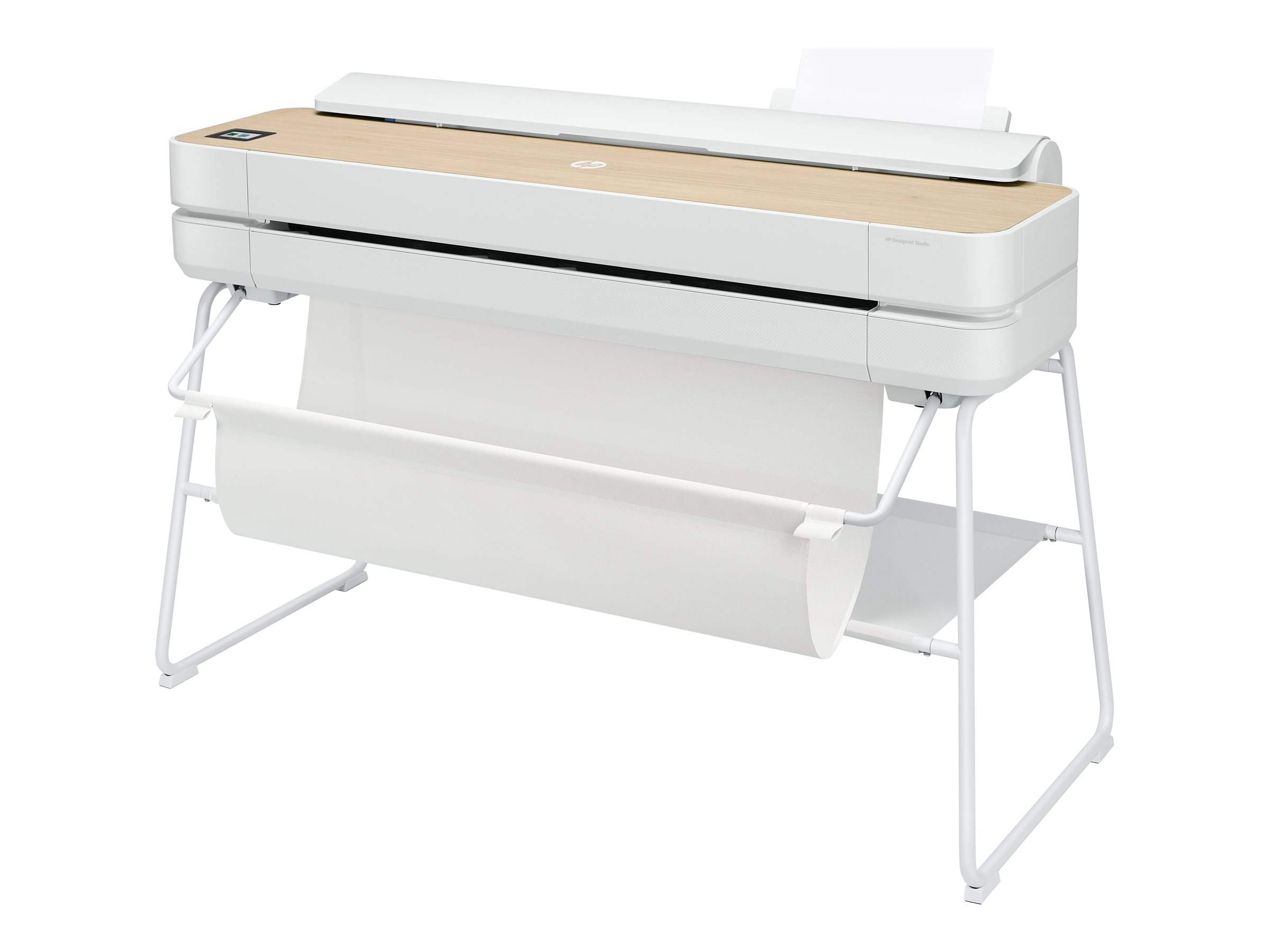

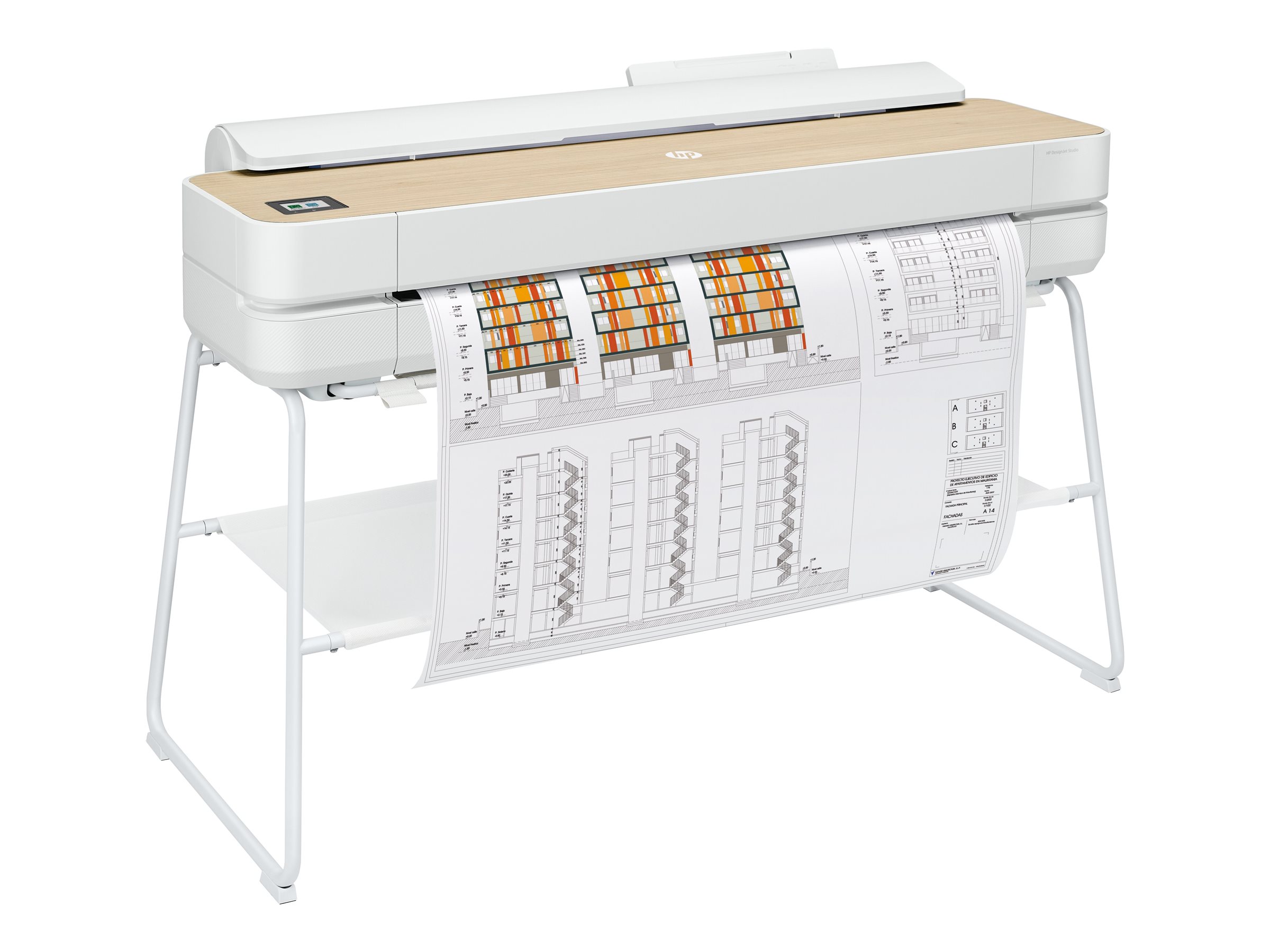

HP Inc. - HP DesignJet Studio
36" large-format printer - color - ink-jet - A0, ANSI D, - 2400 x 1200 dpi - up to 0.4 min/page (mono) / up to 0.4 min/page (color) - LAN, USB 2.0, Wi-Fi(n) - cutter
HP Inc.
5HB14H#B1K
0196548501717
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HP DesignJet Studio - large-format printer - color - ink-jet |
| Printer Type | 36" large-format printer - ink-jet - color |
| Weight | 91.93 lbs |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
| Max Media Size | A0 (33.1 in x 46.8 in), ANSI D (22 in x 34 in), Roll (36 in x 150 ft) |
| Min Media Size (Custom) | 8.25 in x 11 in |
| Max Media Size (Custom) | 36 in x 150 ft |
| Print Speed | Up to 0.4 min/page - black draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - color draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - black draft - A1 (23.4 in x 33.1 in) ¦ Up to 0.4 min/page - color draft - A1 (23.4 in x 33.1 in) |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Cutter | Yes |
| Interface | LAN, USB 2.0, Wi-Fi(n) |
| RAM Installed (Max) | 1 GB (1 GB) |
| Language Simulation | HP GL/2, HP RTL, CALS G4, JPEG, URF |
| Media Type | Bond paper, film, technical paper, plain paper, photo paper, glossy paper, self-adhesive paper, semi-gloss paper |
| Networking | Print server |
| Printer Features | 6.2 kg max roll weight, print from mobile device, Wireless Direct Print |
| Power | AC 100-240 V |
| Manufacturer Warranty | 3-year warranty |
| Dimensions (WxDxH) | 51.9 in x 21.9 in x 36.7 in |
| General | |
| Printer Type | 36" large-format printer - ink-jet - color |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Stand, roll cover, spindle, setup poster |
| Compliant Standards | FCC Class B certified, ICES Class B, EMC Class B, ACMA, RSM, CCC Class B, VCCI Class B, KCC Class B, WEEE, EU RoHS, EAEU RoHS, REACH, ERP, CSA, EU Low Voltage Directive, EN 60950-1, EN 62368-1, EAC, UA, PSB, CCC, IRAM, BIS, NYCE, FSC |
| Printer | |
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
| Nozzle Configuration | 1376 nozzles |
| Minimum Ink Droplet Size | 12 pl (black), 5.5 pl (color) |
| Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, pigment black) |
| Print Speed | Up to 0.4 min/page - black draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - color draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - black draft - A1 (23.4 in x 33.1 in) ¦ Up to 0.4 min/page - color draft - A1 (23.4 in x 33.1 in) |
| Connectivity Technology | Wireless |
| Interface | LAN, USB 2.0, Wi-Fi(n) |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Language Simulation | HP GL/2, HP RTL, CALS G4, JPEG, URF |
| Cutter | Yes |
| Printer Features | 6.2 kg max roll weight, print from mobile device, Wireless Direct Print |
| RAM | |
| RAM Installed (Max) | 1 GB / 1 GB (max) |
| Media Handling | |
| Media Type | Bond paper, film, technical paper, plain paper, photo paper, glossy paper, self-adhesive paper, semi-gloss paper |
| Max Media Size | A0 (33.1 in x 46.8 in), ANSI D (22 in x 34 in), Roll (36 in x 150 ft) |
| Min Media Size (Custom) | 8.25 in x 11 in |
| Max Media Size (Custom) | 36 in x 150 ft |
| Media Sizes | A4 (8.25 in x 11.7 in), A3 (11.7 in x 16.5 in), A2 (16.5 in x 23.4 in), A1 (23.4 in x 33.1 in), A0 (33.1 in x 46.8 in), Letter A Size (8.5 in x 11 in), Ledger B Size (11 in x 17 in), ANSI C (17 in x 22 in), ANSI D (22 in x 34 in), ANSI E (34 in x 44 in), Roll (36 in x 150 ft) |
| Media Thickness Range | Up to 0.012 in |
| Media Weight | 60 g/m² - 280 g/m² |
| Networking | |
| Networking | Print server |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 35 Watt |
| Power Consumption Stand by | 0.2 Watt |
| Power Consumption Sleep | 2.1 Watt |
| Software / System Requirements | |
| Software Included | HP Click, HP Smart App, HP Print Preview, HP Easy Start, HP DesignJet Utility, HP Support Assistant |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% RH |
| Sound Emission (Idle) | 16 dBA |
| Sound Emission (Operating) | 42 dBA |
| Dimensions & Weight | |
| Width | 51.9 in |
| Depth | 21.9 in |
| Height | 36.7 in |
| Weight | 91.93 lbs |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 57.9 in |
| Depth (Shipping) | 22.6 in |
| Height (Shipping) | 25.4 in |
| Weight (Shipping) | 136.69 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
