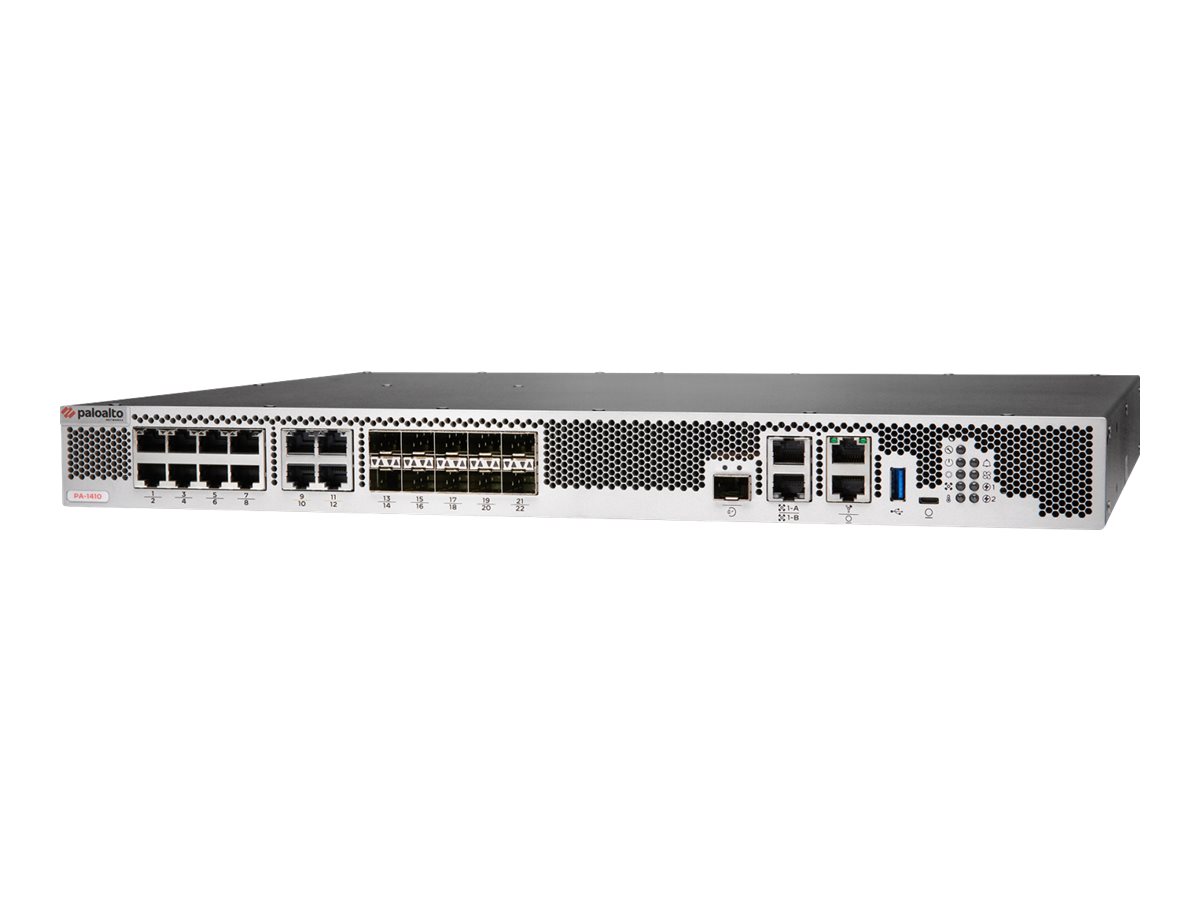

Palo Alto Networks - Palo Alto Networks PA-1410
Security appliance - on-site spare - 2.5GbE, 5GbE, 10GbE - front to back airflow - 1U - rack-mountable
Palo Alto Networks
PAN-PA-1410-OSS
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Palo Alto Networks PA-1410 - security appliance - on-site spare |
| Device Type | Security appliance |
| Form Factor | Front to back airflow rack-mountable - 1U |
| Hard Drive | 120 GB x 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Firewall throughput (HTTP): 8.9 Gbps ¦ Firewall throughput (appmix): 6.8 Gbps ¦ Threat prevention throughput (HTTP): 3.3 Gbps ¦ Threat prevention throughput (appmix): 3.2 Gbps ¦ VPN throughput (IPSec): 4.6 Gbps |
| Capacity | Maximum number of sessions: 945000 ¦ New sessions per second: 100000 ¦ VLAN tags per device: 4094 ¦ VLAN tags per interface: 4094 ¦ Virtual systems (base): 1 ¦ Virtual systems (maximum): 6 |
| Power Over Ethernet (PoE) Supported | PoE |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.2 in x 14.1 in x 1.7 in |
| Weight | 15.5 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 17.2 in |
| Depth | 14.1 in |
| Height | 1.7 in |
| Weight | 15.5 lbs |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T - RJ-45 ¦ 4 x 1/2.5/5GBase-T (PoE) - RJ-45 ¦ 6 x Ethernet 1000 - SFP ¦ 4 x 1Gb Ethernet/10Gb Ethernet - SFP/SFP+ ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x 10Gb Ethernet (HA) ¦ 1 x console - RJ-45 ¦ 1 x USB - Type A ¦ 1 x console - micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| MTBF | 24 years |
| Compliant Standards | cTUVus, CB, FCC Class A certified, VCCI Class A |
| Networking | |
| Form Factor | Rack-mountable |
| Airflow Direction | Front to back airflow |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | IPv6, PPPoE, HTTP, DNS, IPSec, DHCP, IPv4 |
| Routing Protocol | OSPFv2, OSPFv3, BGP, RIP, static IP routing, policy-based routing (PBR), PIM-SM, PIM-SSM, IGMP, IGMPv2, IGMPv3 |
| Performance | Firewall throughput (HTTP): 8.9 Gbps ¦ Firewall throughput (appmix): 6.8 Gbps ¦ Threat prevention throughput (HTTP): 3.3 Gbps ¦ Threat prevention throughput (appmix): 3.2 Gbps ¦ VPN throughput (IPSec): 4.6 Gbps |
| Capacity | Maximum number of sessions: 945000 ¦ New sessions per second: 100000 ¦ VLAN tags per device: 4094 ¦ VLAN tags per interface: 4094 ¦ Virtual systems (base): 1 ¦ Virtual systems (maximum): 6 |
| Features | SD-WAN support, web threat protection, jitter/ loss/ latency measurement, Path Selection, Stateless Address Autoconfiguration (SLAAC), Pre-Shared Key (PSK), VLAN support, NAT support, High Availability, 151W PoE power budget, PoE up to 90 watts per port, IPv6 support, machine learning, multi-factor authentication (MFA), HTTP/2 support, URL filtering, Data Loss Prevention (DLP) |
| Encryption Algorithm | SSL, IKEv1, IKEv2, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, MD5, SHA-1, 256-bit SHA, 384-bit SHA, 512-bit SHA, TLS 1.3 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP) |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 250 Watt |
| Power Provided | 450 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Processor / Memory / Storage | |
| Hard Drive | SSD 120 GB x 1 |
