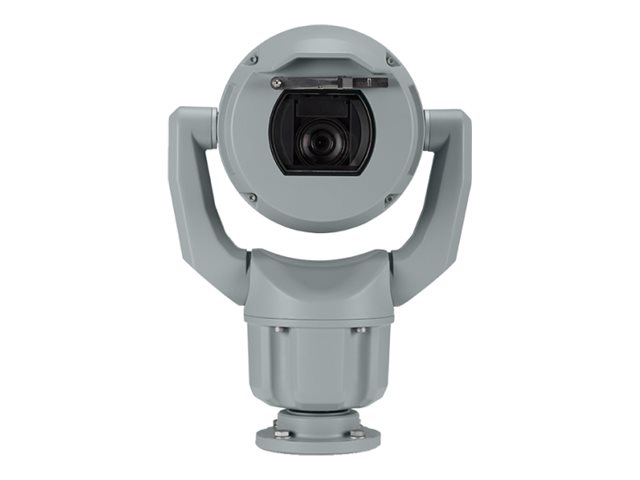

Bosch - Bosch MIC IP starlight 7100i MIC-7522-Z30G
Network surveillance camera - PTZ - outdoor - vandal / weatherproof - color (Day&Night) - 2.1 MP - 1920 x 1080 - 1080p - auto and manual iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - AC 21 - 30 V / High PoE
Bosch
MIC-7522-Z30G
0800549896856
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Bosch MIC IP starlight 7100i MIC-7522-Z30G - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom - outdoor - vandal / weatherproof |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 11.3 in x 8.3 in x 15.8 in |
| Weight | 19.18 lbs |
| Color | Gray, RAL 7001 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 30 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080p |
| Optical Sensor Type | CMOS - 1/2" - 2.1 MP |
| Minimum Illumination | 0.0047 lux - color - F1.6 - 30 IRE ¦ 0.0013 lux - B&W - F1.6 - 30 IRE |
| Focal Length Control | Motorized zoom |
| Focal Length | 6.6 mm - 198 mm |
| Focus Adjustment | Automatic, manual |
| Lens Iris | F/1.5-4.8 - auto and manual iris |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | 290 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Control Interface | RS-485 |
| Voltage | AC 21 - 30 V / High PoE |
| Features | Backlight Compensation (BLC), progressive scanning, image stabilizer, Power over Ethernet, ONVIF support, Privacy Mask Function, Intelligent Video Analysis (IVA), quad video stream, AutoScaling, AutoPivot, Defog, auto gain control, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, High Dynamic Range (HDR) |
| Environmental Parameters (operating) | -40 °F - 149 °F; 0 - 100% relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | AAC, G.711, L16 |
| Connectivity Technology | Wired |
| Width | 11.3 in |
| Depth | 8.3 in |
| Height | 15.8 in |
| Weight | 19.18 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Miscellaneous | |
| Compliant Standards | CSA, UL, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, NEMA Type 6P, IK10, IP68, EN 50121-4, IEC 60950-22, EN55022:2006, EN 60950-22, UL 60950-22, EN 50130-4 |
| Color | Gray, RAL 7001 |
| Power | |
| Power Requirements | AC 21 - 30 V / High PoE |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Relative Humidity (operating) | 0 - 100% |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080p |
| Digital Zoom | 12 |
| Exposure Range | 1 sec - 1/10000 sec |
| Minimum Illumination | 0.0047 lux - color - F1.6 - 30 IRE ¦ 0.0013 lux - B&W - F1.6 - 30 IRE |
| Digital Video Capture Resolution | 1280 x 720, 704 x 480, 1280 x 1024, 1920 x 1080, 768 x 432, 256 x 144, 512 x 288 |
| Frame Rate (max) | 60 frames per second |
| Features | Backlight Compensation (BLC), progressive scanning, image stabilizer, Power over Ethernet, ONVIF support, Privacy Mask Function, Intelligent Video Analysis (IVA), quad video stream, AutoScaling, AutoPivot, Defog, auto gain control, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, High Dynamic Range (HDR) |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 30 x |
| Focal Length | 6.6 mm - 198 mm |
| Lens Iris | F/1.5-4.8 auto and manual iris |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 2.1 - 58.3 |
| Image Sensor | |
| Type | 2.1 MP CMOS 1/2" |
| Effective Pixels | 1937 x 1097 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, Telnet, SNTP, QOS, IGMPv2, IGMPv3 |
| Control Interface | RS-485 |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 120 |
| Tilting | |
| Range (degree) | 290 |
| Speed (degree/sec) | Up to 90 |
