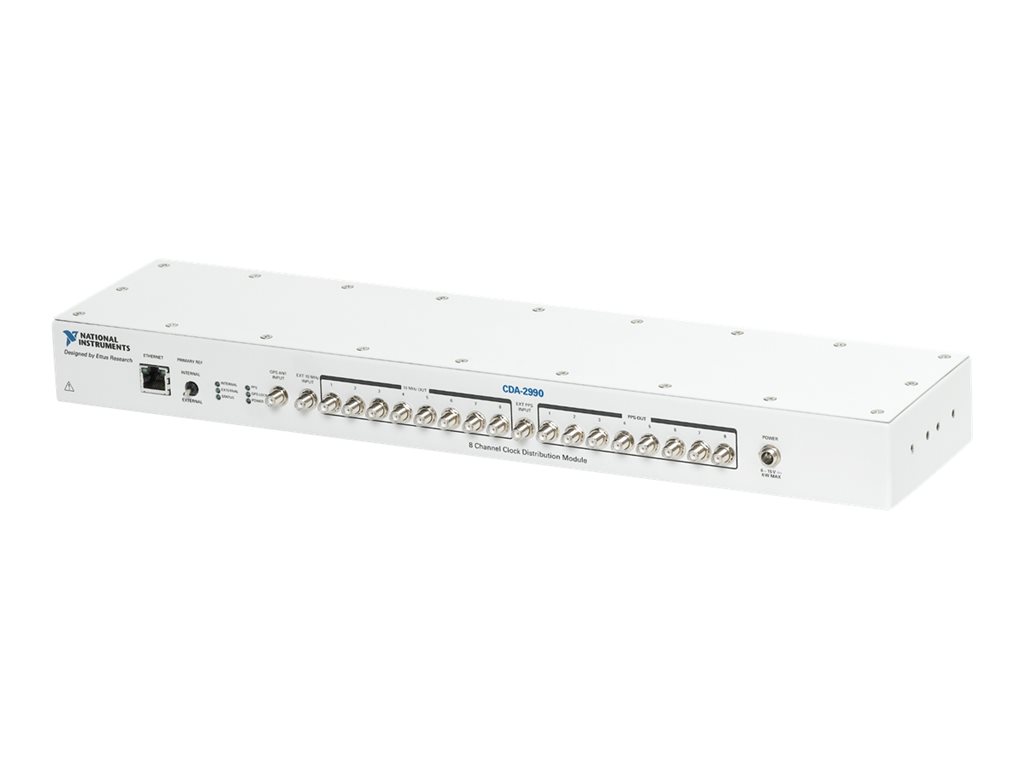

National Instruments - Ettus Research OctoClock-G CDA-2990
Clock distribution module - 1U - rack-mountable
National Instruments
784306-01
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Ettus Research OctoClock-G CDA-2990 - clock distribution module |
| Device Type | Clock distribution module |
| Form Factor | Rack-mountable - 1U |
| Dimensions (WxDxH) | 17.2 in x 4 in x 1.8 in |
| Weight | 2.6 lbs |
| General | |
| Device Type | Clock distribution module |
| Height (Rack Units) | 1U |
| Built-in Devices | GPS |
| Width | 17.2 in |
| Depth | 4 in |
| Height | 1.8 in |
| Weight | 2.6 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x management - RJ-45 ¦ 1 x antenna - SMA ¦ 1 x 10 MHz input timing port - SMA ¦ 8 x 10 MHz output timing port - SMA ¦ 1 x PPS input timing port - SMA ¦ 8 x PPS output timing port - SMA |
| Miscellaneous | |
| Compliant Standards | EN55024, WEEE, EN 55011, EN 61326-1, UL 61010-1, CSA C22.2 No. 61010-1, IEC 61010-1, AS/NZS CISPR 22, EN 61010-1, ICES-001, AS/NZS CISPR 11, FCC CFR47 Part 15 B Class A, Directive 2014/35/EU, Directive 2014/30/EU |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Features | Oven-controlled crystal oscillator |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
