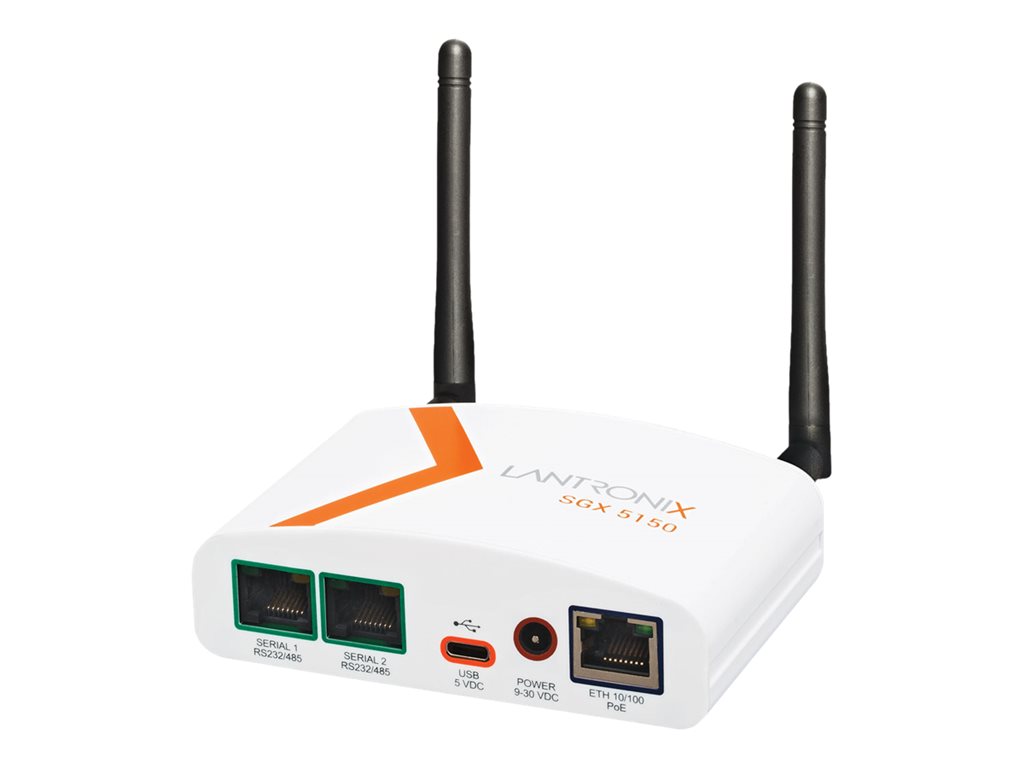

Lantronix - Lantronix SGX 5150 XL

Gateway - wireless, wired - 802.11a/b/g/n/ac - 2.4 Ghz, 5 GHz - 10/100 Ethernet


Price: CALL

MSRP: $511.00
Total Available: 0

Product Description

Additional Details

What's Included

Main Specifications
Product Description Lantronix SGX 5150 XL - gateway
Product Type Gateway
Power Source Power adapter
Connectivity Wireless, wired - 802.11a/b/g/n/ac - 10/100 Ethernet
Frequency Band 2.4 Ghz, 5 GHz
Localization United States
Manufacturer Warranty 5-year warranty
Dimensions (WxDxH) 1.7 in x 3.5 in x 1 in
Product Type Gateway
Power Source Power adapter
Connectivity Technology Wireless, wired - Ethernet, Fast Ethernet, RS-232, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band 2.4 Ghz, 5 GHz
Features 15 KV ESD Protection, WPS button auto-negotiation, auto-uplink (auto MDI/MDI-X), IPv6 support, half duplex mode, full duplex mode, software access point, firmware upgradable, DHCP server, UPnP Media Server, IPv4 support, Low Density Parity Check (LDPC), DHCP client, Space Time Blocking Code (STBC), Wi-Fi Direct, 802.1x authentication, SNMP support, Secure Com Port Redirector, IP Security (IPSec) support, secure boot, Transit Beamforming
Included Accessories 2 antennas, 8 GB USB flash drive
Localization United States
Encryption Algorithm AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2, WPA-PSK, AES-CCMP, WPA2-PSK, CCMP, ECDSA 256-bit
Authentication Method Secure Shell (SSH), MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST
Nominal Voltage AC 120/230 V
Warranty 5-year warranty
Power Consumption Operational 5.5 Watt
Compliant Standards UL, IC, FCC, UL 60601-1, WEEE, FIPS 140-2 Level 1, IP20, UL 60601-1-2, RED, IEEE 802.1x
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 185 °F
Type Lantronix DeviceInstaller
Flash Memory
Installed Size 256 MB
Dimensions & Weight
Width 1.7 in
Depth 3.5 in
Height 1 in
Weight 12.34 oz
Form Factor External detachable
Quantity 2
Internet of Things (IoT)
Internet of Things (IoT) Compatible Yes
Interfaces 2 x serial (RS-232) ¦ Fast Ethernet
