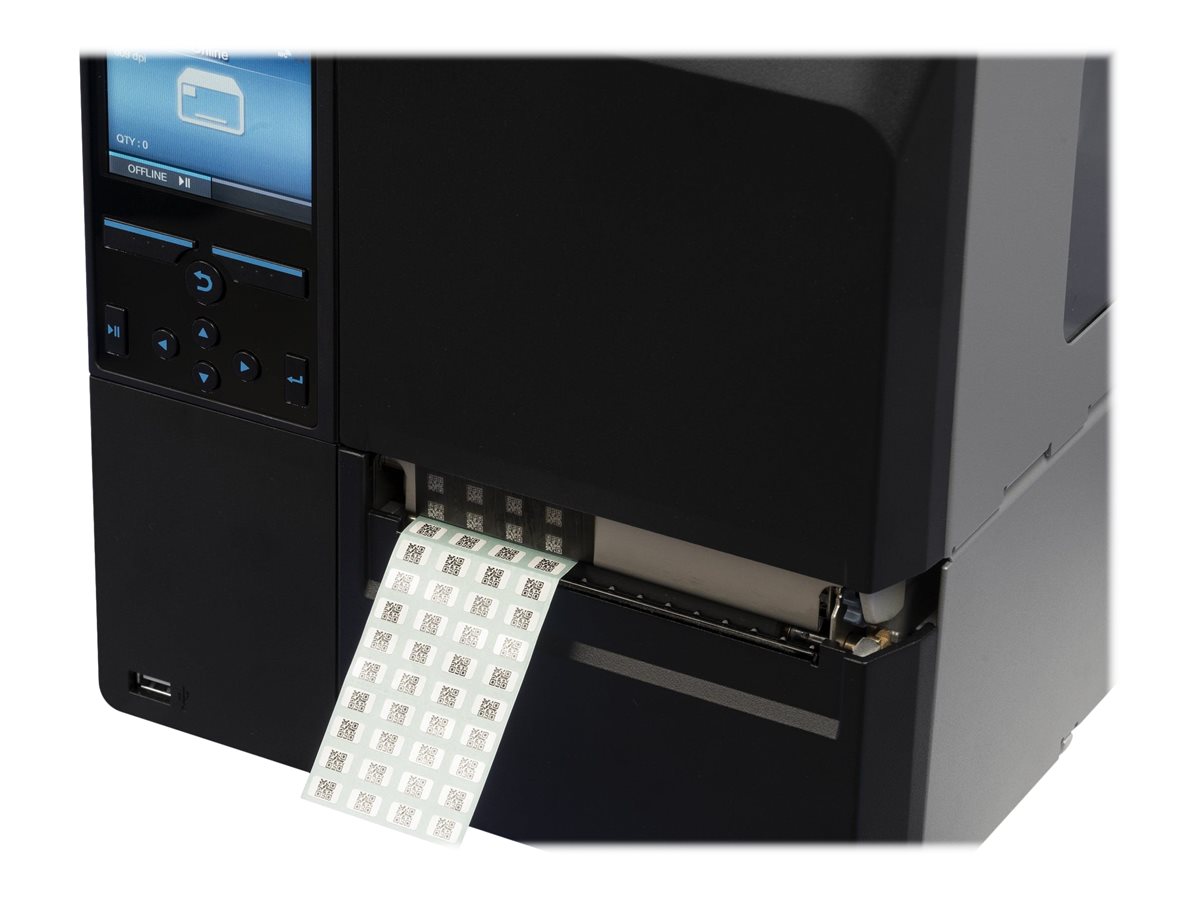

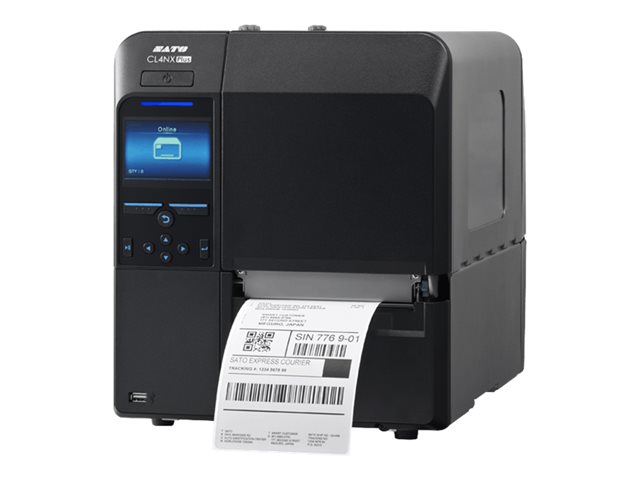

SATO - SATO CL4NX Plus
Label printer - direct thermal / thermal transfer - - 203 dpi - up to 838.6 inch/min - USB 2.0, USB 2.0 host, LAN, RS232C, parallel, Bluetooth 3.0, NFC, Wi-Fi(n)
SATO
WWCLP1201-WAR
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | SATO CL4NX Plus - label printer - B/W - direct thermal / thermal transfer |
| Printer Type | Label printer - direct thermal / thermal transfer - B/W |
| Weight | 33.29 lbs |
| Max Media Size | Roll (5.16 in) |
| Min Media Size (Custom) | 1 in x 0.35 in |
| Max Media Size (Custom) | 5.15 in x 98.43 in |
| Print Speed | Up to 838.6 inch/min - max speed |
| Max Resolution (B&W) | 203 dpi |
| Interface | USB 2.0, USB 2.0 host, LAN, RS232C, parallel, Bluetooth 3.0, NFC, Wi-Fi(n) |
| Preview Screen Size | 3.5" |
| Flash Memory Installed (Max) | 2 GB |
| Language Simulation | SATO AEP, SBPL, SDPL, SEPL, SIPL, STCL, SZPL, Extensible Mark-up Language (XML), PDF Direct |
| Barcodes | Code 93, Code 39, NW-7, Codabar, Code 128, EAN/JAN-8, EAN/JAN-13, GS1 DataBar, GS1-128, UCC/EAN-128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI, Postnet, Bookland, UPC-A, UPC-E, MaxiCode, MicroPDF417, PDF417, GS1 DataMatrix, QR code, Micro QR code, Aztec code, Composite |
| Media Type | Continuous labels, die cut labels, fanfold labels, tag labels, tickets |
| Styles & Effects | Rotated text |
| Features | Gap sensor (position adjustable), Black Mark sensor (position adjustable), paper out sensor, ribbon end sensor, ribbon out sensor, paper near end sensor, audio alarm, dispenser with internal liner rewinder, realtime clock |
| Networking | Print server |
| Printer Features | Self-diagnosis |
| Power | AC 100-240 V |
| Manufacturer Warranty | 1-year warranty |
| Dimensions (WxDxH) | 10.7 in x 18 in x 12.6 in |
| General | |
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Expansion / Connectivity | |
| Connections | 2 x USB 2.0 host - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ 1 x RS-232C ¦ 1 x parallel |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Features | Audible alarm, 3 keyhole mounting slots |
| Compliant Standards | RoHS |
| Printer | |
| Print Speed | Up to 838.6 inch/min - max speed |
| Built-in Devices | Status LCD |
| Preview Screen Size | 3.5" |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, USB 2.0 host, LAN, RS232C, parallel, Bluetooth 3.0, NFC, Wi-Fi(n) |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | SATO AEP, SBPL, SDPL, SEPL, SIPL, STCL, SZPL, Extensible Mark-up Language (XML), PDF Direct |
| Styles & Effects | Rotated text |
| Features | Gap sensor (position adjustable), Black Mark sensor (position adjustable), paper out sensor, ribbon end sensor, ribbon out sensor, paper near end sensor, audio alarm, dispenser with internal liner rewinder, realtime clock |
| Fonts Included | 17 x bitmapped ¦ 30 x scalable |
| Barcodes | Code 93, Code 39, NW-7, Codabar, Code 128, EAN/JAN-8, EAN/JAN-13, GS1 DataBar, GS1-128, UCC/EAN-128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI, Postnet, Bookland, UPC-A, UPC-E, MaxiCode, MicroPDF417, PDF417, GS1 DataMatrix, QR code, Micro QR code, Aztec code, Composite |
| Printer Features | Self-diagnosis |
| Media Handling | |
| Media Type | Continuous labels, die cut labels, fanfold labels, tag labels, tickets |
| Max Media Size | Roll (5.16 in) |
| Min Media Size (Custom) | 1 in x 0.35 in |
| Max Media Size (Custom) | 5.15 in x 98.43 in |
| Media Sizes | Roll (0.98 in - 5.16 in) |
| Max Printing Width | 4.09 in |
| Max Printing Length | 98.4 in |
| Media Thickness Range | 0.0024 in - 0.0106 in |
| Roll Maximum Outer Diameter | 10 in |
| Roll Core Diameter | 3 in |
| Media Feeders | 1 x manual - 1 roll - Roll (5.16 in) |
| Networking | |
| Networking | Print server |
| Remote Management Protocol | SNMP 3 |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 30 - 75% (non-condensing) |
| Flash Memory | |
| Flash Memory | 2 GB |
| Dimensions & Weight | |
| Width | 10.7 in |
| Depth | 18 in |
| Height | 12.6 in |
| Weight | 33.29 lbs |
