HP Inc. - HP t630
Thin client - tower - 1 x GX-420GI up to 2.2 GHz - RAM 8 GB - flash 128 GB - Radeon R7E - Gigabit Ethernet - Win 10 IoT Enterprise 64-bit - monitor: none - TAA Compliant
HP Inc.
3BG75UA#ABA
1920184273276
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HP t630 - tower GX-420GI 2 GHz - 8 GB - flash 128 GB - TAA Compliant |
| Type | Thin client - tower |
| Localization | Language: English / region: United States |
| Processor | 1 x AMD GX-420GI 2 GHz (, up to 2.2 GHz, (Quad-Core) |
| Processor Main Features | AMD Turbo CORE Technology |
| Cache Memory | 2 MB L2 cache |
| Cache Per Processor | 2 MB |
| RAM | 8 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC - PC4-14900 |
| Hard Drive | Flash 128 GB - M.2 |
| Optical Storage | No optical drive |
| Graphics Controller | AMD Radeon R7E |
| Networking | 1GbE |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | Windows 10 IoT Enterprise 64-bit Edition |
| Dimensions (WxDxH) | 4.7 in x 8.7 in x 9.9 in |
| Weight | 3.35 lbs |
| TAA Compliant | Yes |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 1 year |
| General | |
| Type | Thin client |
| Product Form Factor | Tower |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Slots | 1 (total) / 0 (free) x M.2 Card - 2280 ¦ 1 (total) / 1 (free) x M.2 Card - 2242 |

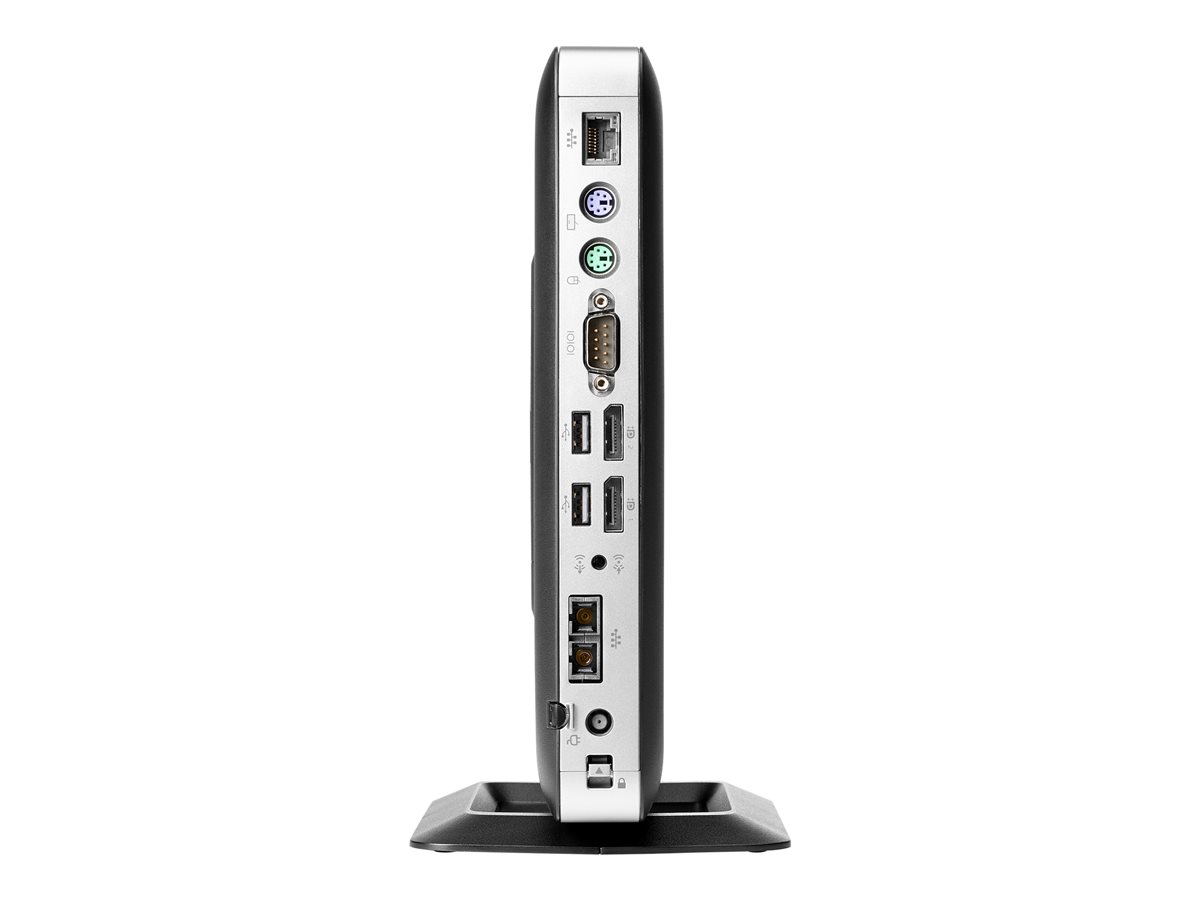

| Interfaces | 4 x USB 2.0 (2 front, 2 rear) ¦ 3 x USB 3.0 (2 front, 1 internal) ¦ 2 x DisplayPort ¦ 1 x VGA ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial ¦ 1 x headphones/microphone (1 in front) ¦ 1 x audio line-out/line-in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC Class B certified, UL, GS, CB, CCC, RoHS, ICES Class B, MEPS, KCC Class B, ERP, CECP, VCCI Class B, CISPR Class B |
| TAA Compliant | Yes |
| RAM | |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 1866 MHz |
| Rated Memory Speed | 1866 MHz |
| Memory Specification Compliance | PC4-14900 |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 0 (empty) |
| Features | Unbuffered |
| Configuration Features | 2 x 4 GB |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Cache Memory | |
| Installed Size | L2 cache - 2 MB |
| Cache Per Processor | 2 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | AMD Radeon R7E |
| Video Interfaces | VGA, DisplayPort |
| Max Monitors Supported | 2 |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 64-bit Edition English |
| Hard Drive | |
| Type | Flash - M.2 |
| Capacity | 1 x 128 GB |
| Input Device | |
| Type | Mouse |
| Dimensions & Weight | |
| Width | 4.7 in |
| Depth | 8.7 in |
| Height | 9.9 in |
| Weight | 3.35 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 9.04 lbs |
| Mouse | |
| Technology | Optical |
| Interface | USB |
| Processor / Chipset | |
| CPU | AMD GX-420GI |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 2.2 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | AMD Turbo CORE Technology |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
