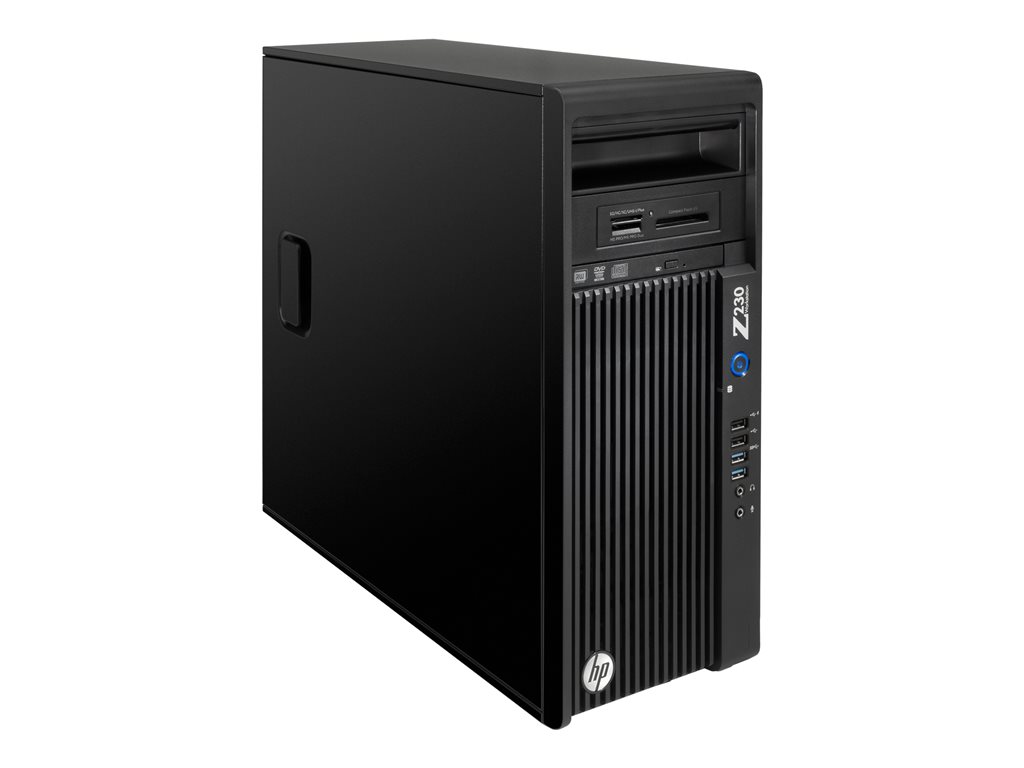

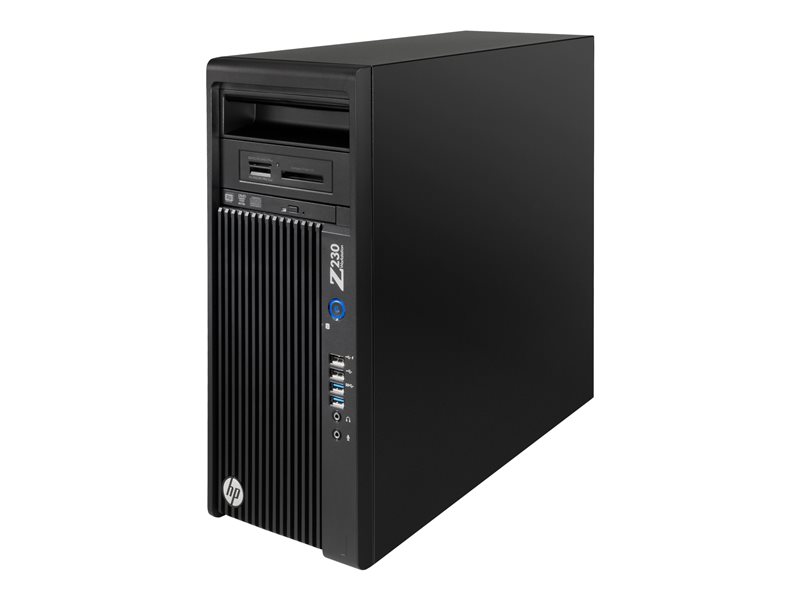

HP Inc. - HP Workstation Z230

MT - RAM 0 MB - no HDD - GigE - monitor: none - CTO

HP Inc.
D5G46AV
N/A
N/A
N/A

Price: $150.00

MSRP: $150.00
Total Available: 0
Tech Data Promotional Price
$4.27
09/30/2019

Product Description

What's Included

Main Specifications
Product Description HP Workstation Z230 - MT - no CPU - 0 MB
Type Workstation - mini tower
Processor No CPU
Processor Socket LGA1150 Socket
RAM 0 MB (installed) / 32 GB (max) - DDR3 SDRAM
Storage Controller SATA (SATA 6Gb/s)
Hard Drive No HDD
Optical Storage No optical drive
Audio Output Integrated
Networking GigE
Power AC 120/230 V (50/60 Hz)
Color Jack black
Dimensions (WxDxH) 6.7 in x 17.4 in x 15.7 in
Weight 19.4 lbs
Pricing Type CTO
General
Type Workstation
Recommended Use Small business, corporate business
Product Form Factor Mini tower
Built-in Devices Speaker
Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
Color Jack black
Expansion / Connectivity
Bays 2 (total) / 2 (free) x external 5.25" x 1/2H ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x internal 2.5"
Slots 1 (total) / 1 (free) x CPU ¦ 4 (total) / 4 (free) x DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 2.0 x4 - full-height (x1 mode) ¦ 1 (total) / 1 (free) x PCIe 2.0 x16 - full-length, full-height (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 2.0 x1 - full-height ¦ 1 (total) / 1 (free) x PCI - full-length, full-height
Interfaces 4 x USB 3.0 (2 front, 2 rear) ¦ 6 x USB 2.0 (2 front, 4 rear) ¦ 1 x headphones (1 in front) ¦ 2 x microphone (1 front, 1 rear) ¦ 1 x DVI-I ¦ 2 x DisplayPort ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in ¦ 1 x audio line-out
Miscellaneous
Features Power-on password, USB port control, audio ports control, network port control, Setup Password
Theft/Intrusion Protection Security lock slot (cable lock sold separately)
Security Slot Type Kensington security slot
Compliant Standards RoHS, WEEE, ACPI 4.0
Pricing Type CTO
RAM
Installed Size 0 MB / 32 GB (max)
Technology DDR3 SDRAM
Form Factor DIMM 240-pin
Slots 4 (total) / 4 (empty)
Features Unbuffered, dual channel memory architecture
RAM Supported 32 GB unbuffered - ECC ¦ 32 GB unbuffered - non-ECC
Networking
Type Integrated
Ethernet Controller Intel I217-LM
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Features Wake on LAN (WoL), PXE support
Power
Device Type Power supply
Nominal Voltage AC 120/230 V (50/60 Hz)
Power Provided 400 Watt
80 PLUS Certification 80 PLUS Gold
Efficiency 92%
Power Factor Correction Yes (active)
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 85% (non-condensing)
Storage Controller
Type 1 x SATA - integrated
Controller Interface Type SATA 6Gb/s
Channel Qty 6
RAID Level RAID 0, RAID 1
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Type Integrated
Audio Output
Type Integrated
Compliant Standards High Definition Audio
Hard Drive
Type No HDD
Input Device
Type Mouse, keyboard
Dimensions & Weight
Width 6.7 in
Depth 17.4 in
Height 15.7 in
Weight 19.4 lbs
Processor / Chipset
CPU No CPU
Max CPU Qty 1
CPU Upgradability Upgradable
CPU Socket LGA1150 Socket
Chipset Type Intel C226
