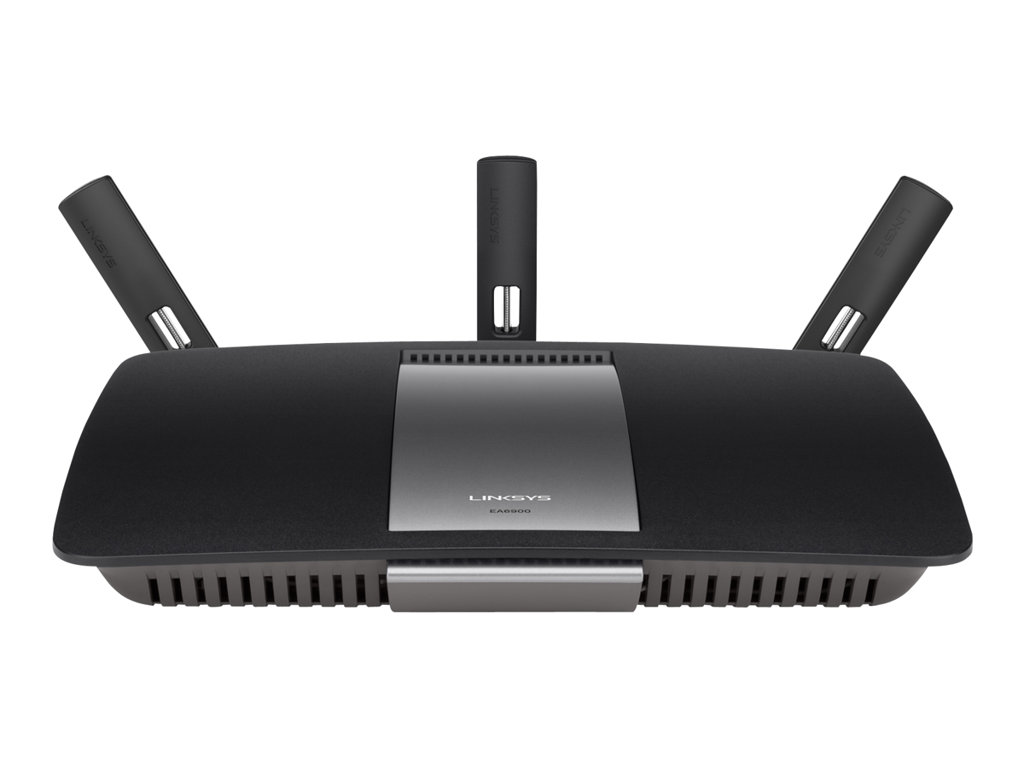

Wireless router - 4-port switch - GigE - Wi-Fi 5 - Dual Band
| Main Specifications | |
|---|---|
| Product Description | Linksys EA6900 - wireless router - Wi-Fi 5 - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Features | Stateful Packet Inspection (SPI), IPv6 support, parental control, firmware upgradable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Wi-Fi Protected Setup (WPS), reset button, DLNA Media Server, SimpleTap technology |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, DLNA CERTIFIED, UPnP, IEEE 802.11ac (draft) |
| Dimensions (WxDxH) | 10.1 in x 1.6 in x 7.3 in |
| Weight | 18.83 oz |
| Microsoft Certification | Compatible with Windows 7 |
| System Requirements | Microsoft Windows 7, Microsoft Windows XP SP3 or later, Apple MacOS X 10.5.8 or later, Microsoft Windows Vista SP1 or later, Apple MacOS X 10.6.1 or later, Apple MacOS X 10.7 or later, Windows 8 |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Encryption Algorithm | WPA, WPA2, WEP |
| Features | Stateful Packet Inspection (SPI), IPv6 support, parental control, firmware upgradable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Wi-Fi Protected Setup (WPS), reset button, DLNA Media Server, SimpleTap technology |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, DLNA CERTIFIED, UPnP, IEEE 802.11ac (draft), ICES-003, RSS-210, FCC, WEEE, LVD |
| Status Indicators | Power, LAN, link/activity, WPS |
| Expansion / Connectivity | |

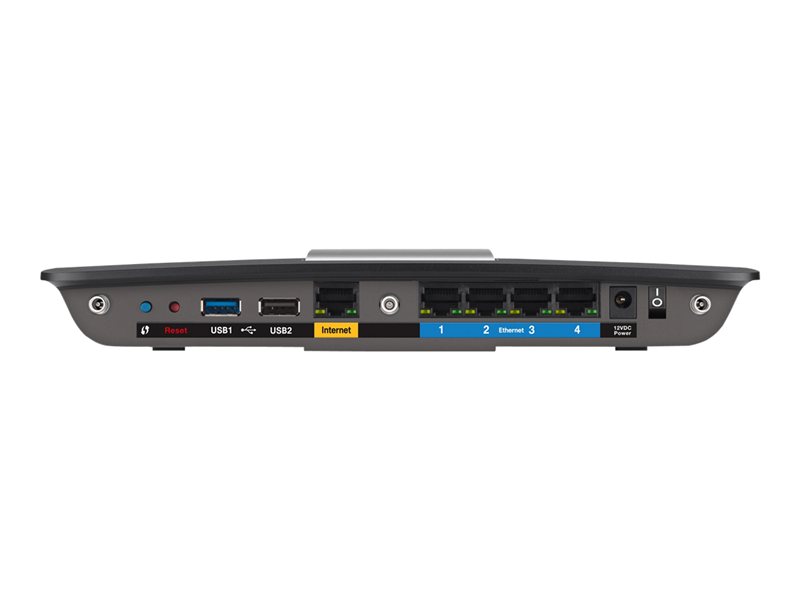

| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A ¦ USB 2.0: 1 x 4 pin USB Type A ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Microsoft Windows XP SP3 or later, Apple MacOS X 10.5.8 or later, Microsoft Windows Vista SP1 or later, Apple MacOS X 10.6.1 or later, Apple MacOS X 10.7 or later, Windows 8 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 10.1 in |
| Depth | 1.6 in |
| Height | 7.3 in |
| Weight | 18.83 oz |
| Antenna | |

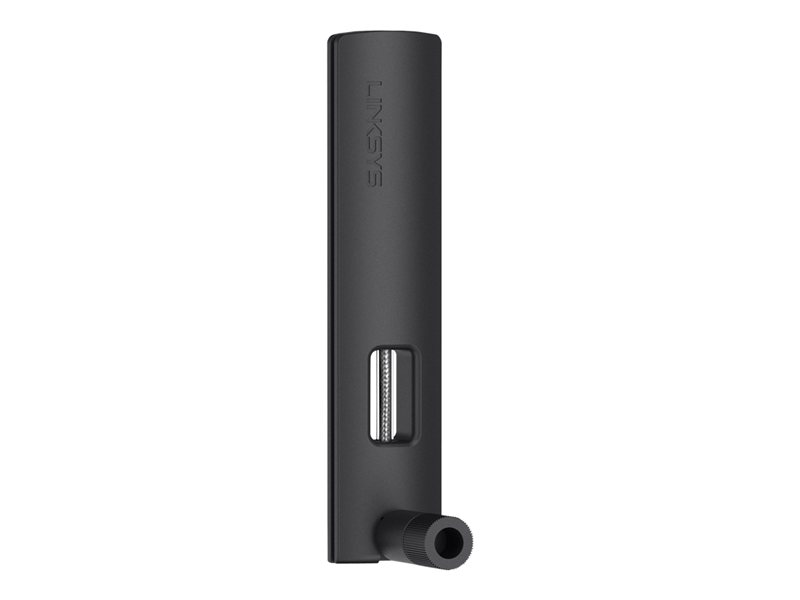

| Antenna | External detachable |
| Antenna Qty | 3 |
