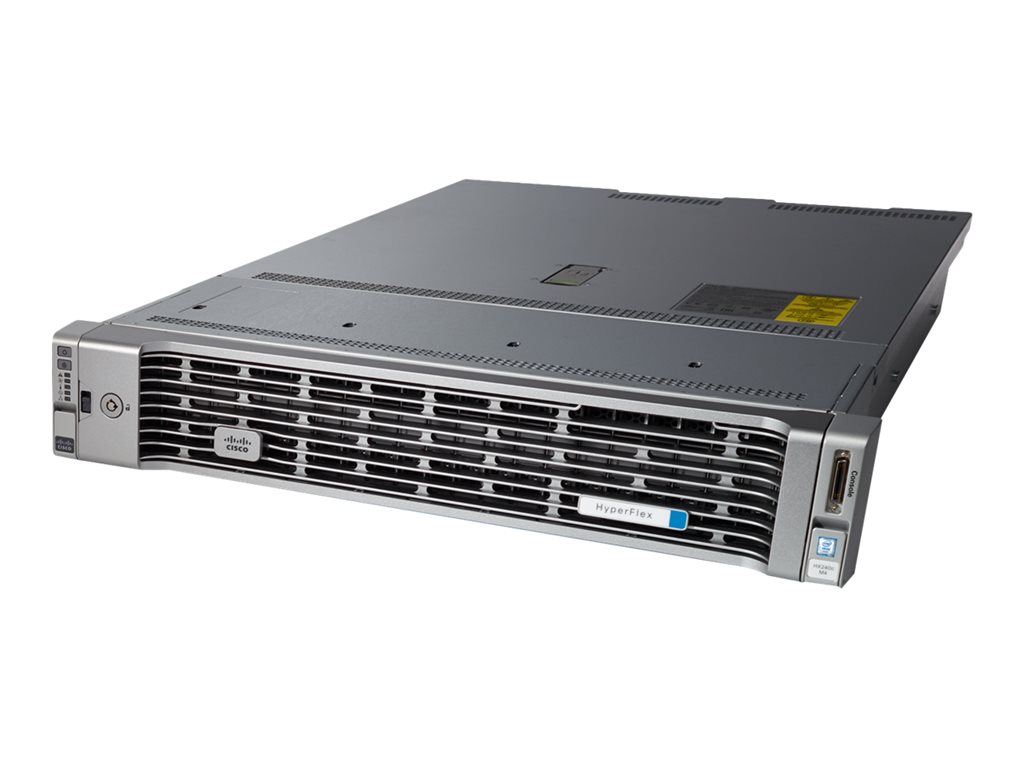

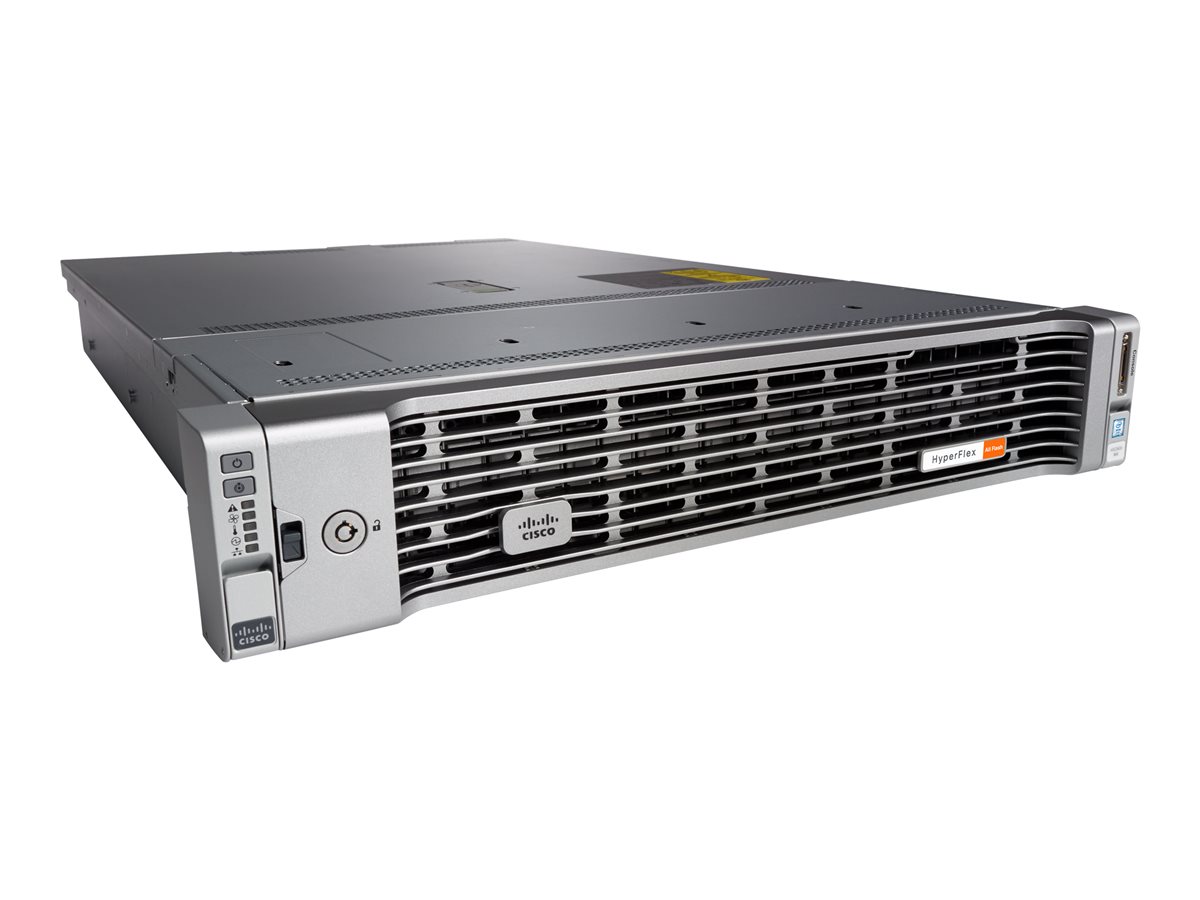

Cisco - Cisco Hyperflex System HX240c M4 All-Flash

Server - rack-mountable - 2U - SAS - hot-swap 2.5" - no HDD - G200e - GigE - monitor: none

Cisco
HXAF240C-M4SX
N/A
N/A
N/A

Price: $1,902.00

MSRP: $4,195.00
Total Available: 1

Product Description

What's Included

Main Specifications
Product Description Cisco Hyperflex System HX240c M4 All-Flash - rack-mountable - no CPU
Type Server - rack-mountable
Height (Rack Units) 2U
Processor No CPU
RAM 1.5 TB (max) - ECC
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Optical Storage No optical drive
Graphics Controller Matrox G200e
Video Memory 8 MB
Networking GigE
Power Redundancy Yes
Dimensions (WxDxH) 17.6 in x 29.1 in x 3.4 in
Manufacturer Warranty Limited warranty - replacement - 3 years - response time: next business day
General
Type Server
Product Form Factor Rack-mountable - 2U
Hot-Swap Bays Qty 24
Expansion / Connectivity
Bays 24 hot-swap 2.5" SFF
Slots 2 (free) x CPU ¦ 24 DIMM 288-pin ¦ 2 (total) / 2 (free) x SD card (internal) ¦ 6 PCIe

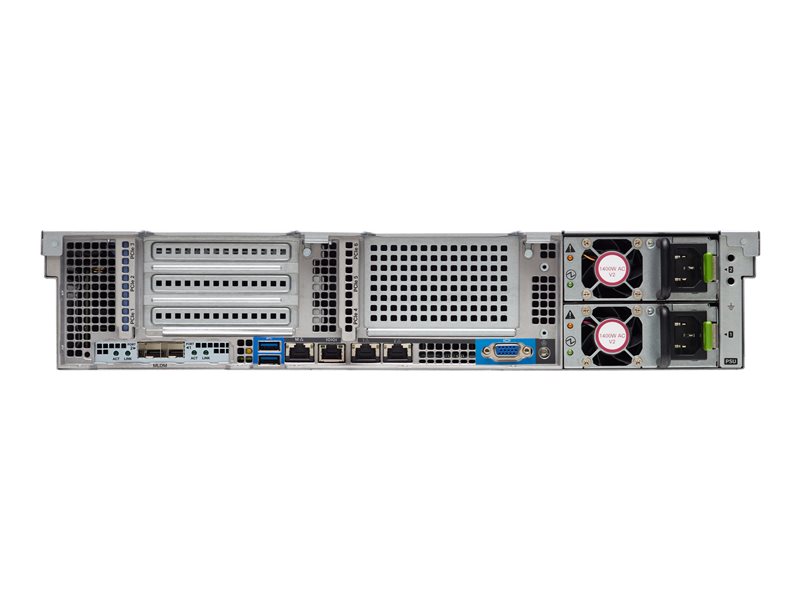

Interfaces 1 x VGA ¦ 1 x serial - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x KVM (1 in front) ¦ 2 x USB 3.0
Manufacturer Warranty
Service & Support Limited warranty - replacement - 3 years - response time: next business day
Miscellaneous
Included Accessories Bezel, 24 x HDD blanking panel, power supply blanking panel
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22, KN24, EN 300386, CNS13438:2006, AS/NZS CISPR 22, GB4943.1-2001, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, CAN/CSA C22.2 No. 60950-1 Second Edition
RAM
Installed Size 1.5 TB (max)
Technology ECC
Form Factor DIMM 288-pin
Slots 24 (total)
Networking
Ethernet Ports 2 x Gigabit Ethernet
Ethernet Controller 2 x Intel I350
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller Cisco Integrated Management Controller
Features PXE support
Power
Device Type Power supply - hot-plug
Power Redundancy Yes
Power Redundancy Scheme 1+1
Max Supported Qty 2
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
Humidity Range Operating 10 - 90% (non-condensing)
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Matrox G200e
Video Memory 8 MB
Video Interfaces VGA
Hard Drive
Type No HDD
Dimensions & Weight
Width 17.6 in
Depth 29.1 in
Height 3.4 in
Processor / Chipset
CPU No CPU
Max CPU Qty 2
