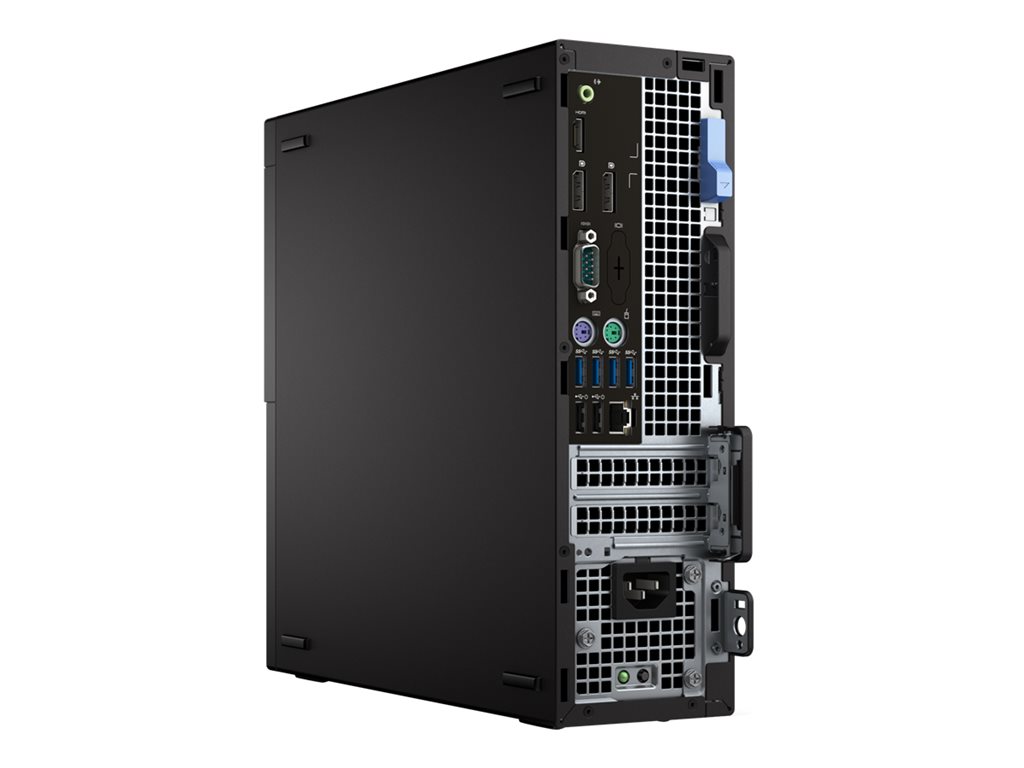

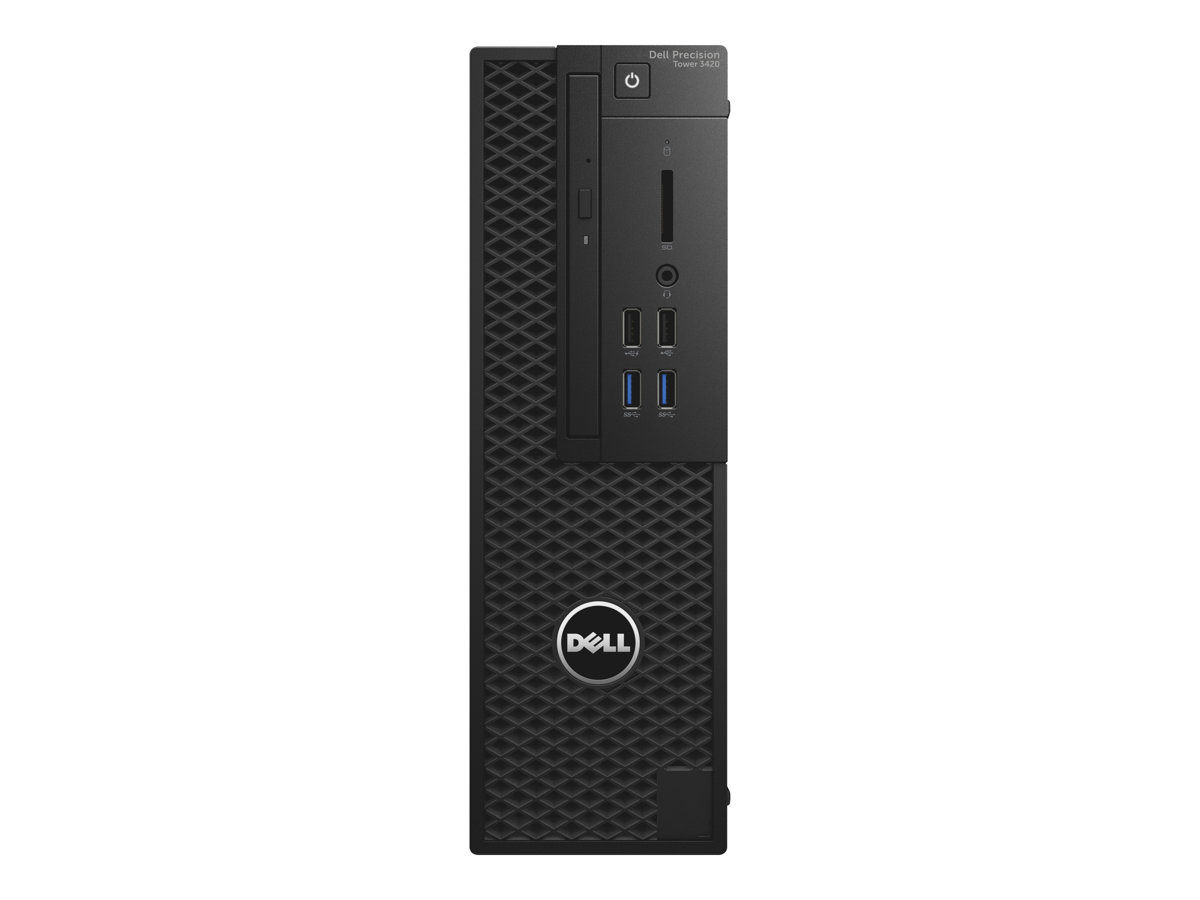

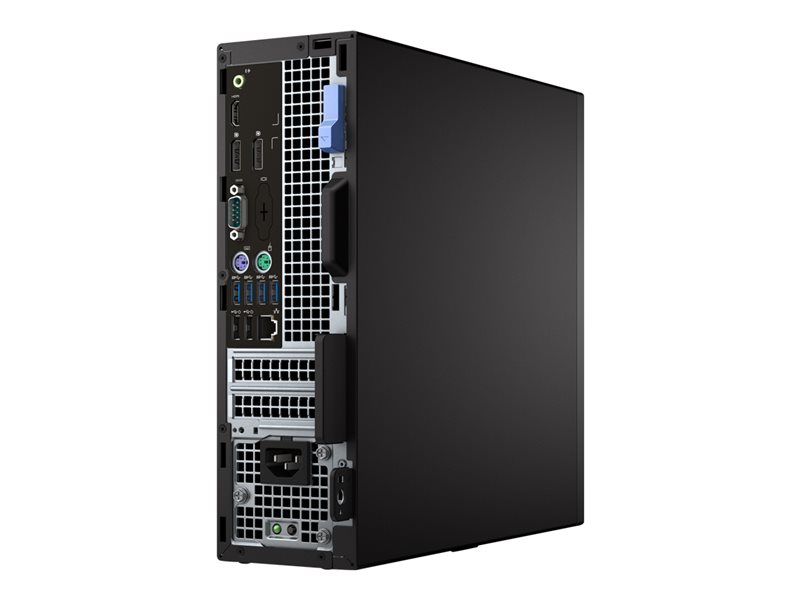

SFF - 1 x Xeon E3-1240V6 / 3.7 GHz - RAM 16 GB - SSD 256 GB - DVD-Writer - Quadro K1200 - GigE - Windows 10 - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Dell Precision Tower 3420 - SFF - Xeon E3-1240V6 3.7 GHz - 16 GB - SSD 256 GB |
| Type | Workstation - small form factor |
| Processor | 1 x Intel Xeon E3-1240V6 / 3.7 GHz (4.1 GHz) (Quad-Core) |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Cache Memory | 8 MB |
| Cache Per Processor | 8 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 256 GB |
| Optical Storage | DVD-Writer |
| Graphics Controller | NVIDIA Quadro K1200 |
| Audio Output | Stereo |
| Networking | GigE |
| OS Provided | Windows 10 |
| Dimensions (WxDxH) | 3.6 in x 11.5 in x 11.4 in |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Type | Workstation |
| Product Form Factor | Small form factor |
| Built-in Devices | Speaker |
| Expansion / Connectivity | |
| Bays | Internal 2x2.5" / 1x3.5" shared ¦ 1 (total) / 0 (free) x external 5.25" Slim Line |
| Slots | 1 (total) / 0 (free) x CPU ¦ 4 (total) / 2 (free) x DIMM 288-pin ¦ 1 PCIe 3.0 x16 - low-profile ¦ 1 PCIe 3.0 x4 - low-profile ¦ 1 M.2 Card |
| Interfaces | 4 x USB 2.0 (2 front, 2 rear) ¦ 6 x USB 3.0 (2 front, 4 rear) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x audio line-out ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial ¦ 1 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Compliant Standards | GS, CECP |
| RAM | |
| Installed Size | 16 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 2 (empty) |
| Features | Unbuffered |
| Configuration Features | 2 x 8 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Power Provided | 240 Watt |
| Efficiency | 92% |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | DVD-Writer |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA Quadro K1200 |
| Audio Output | |
| Sound Output Mode | Stereo |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 |
| Software | Microsoft Office (30 days trial) |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 256 GB |
| Input Device | |
| Type | Mouse (on selected markets only), keyboard (on selected markets only) |
| Dimensions & Weight | |
| Width | 3.6 in |
| Depth | 11.5 in |
| Height | 11.4 in |
| Keyboard | |
| Keyboard Name | Dell KB216 Wired Keyboard |
| Mouse | |
| Mouse Name | Dell MS116 USB Optical Mouse |
| Technology | Optical |
| Interface | USB |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Processor / Chipset | |
| CPU | Intel Xeon E3-1240V6 |
| Clock Speed | 3.7 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Chipset Type | Intel C236 |
