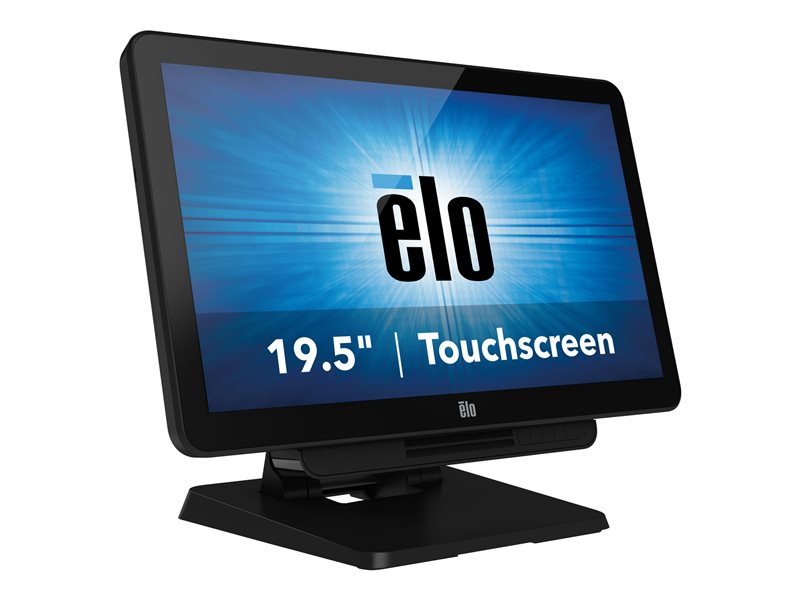

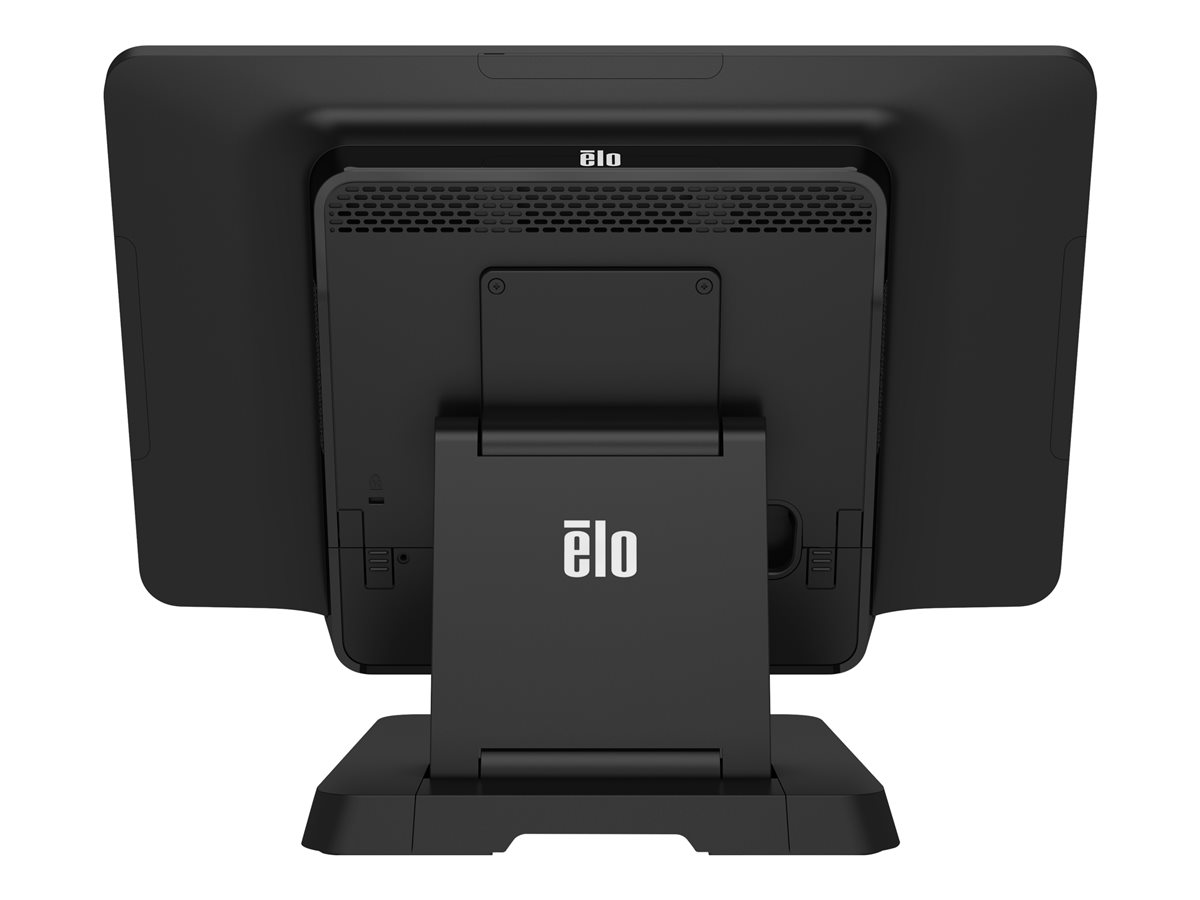

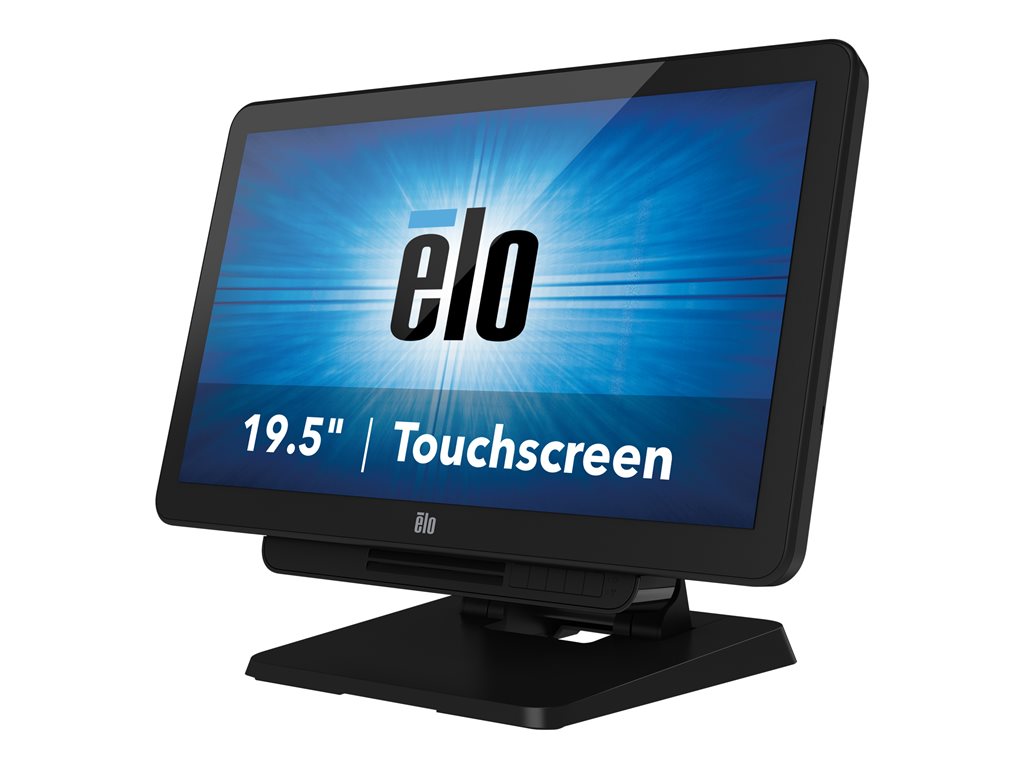

Elo TouchSystems - Elo X-Series Touchcomputer ESY20X5

All-in-one - 1 x Core i5 6500TE - RAM 4 GB - SSD 128 GB - HD Graphics 530 - GigE - WLAN: Bluetooth 4.0, 802.11a/b/g/n/ac - Win 7 - monitor: LED 19.5" 1920 x 1080 (Full HD) touchscreen

Elo TouchSystems
E549231
N/A
0815335027819
N/A
New

Price: $2,105.00

MSRP: $2,108.00
Total Available: 0

Product Description

Additional Details

    What's Included

    Main Specifications
    Product Description Elo X-Series Touchcomputer ESY20X5 - all-in-one - Core i5 6500TE - 4 GB - 128 GB - LED 19.5"
    Type Kiosk - all-in-one
    Localization Region: Worldwide
    Processor 1 x Intel Core i5 (6th Gen) 6500TE (3.3 GHz) (Quad-Core)
    Processor Main Features Intel Turbo Boost Technology 2, Intel Smart Cache
    Cache Memory 6 MB L3 cache
    Cache Per Processor 6 MB
    RAM 4 GB (installed) / 16 GB (max) DDR4 SDRAM
    Storage Controller SATA
    Hard Drive 1 x SSD 128 GB - SATA
    Optical Storage No optical drive
    Monitor 19.5" - LED - 1920 x 1080 (Full HD) - 16:9 - touchscreen
    Graphics Controller Intel HD Graphics 530
    Audio Output Stereo
    Networking GigE, 802.11a, 802.11b/g/n, Bluetooth 4.0, 802.11ac
    Power AC 120/230 V (50 - 60 Hz)
    OS Provided Microsoft Windows 7
    Color Black
    Dimensions (WxDxH) 19.4 in x 9.9 in x 14.1 in
    Weight 16.6 lbs
    Environmental Standards ENERGY STAR Qualified
    Manufacturer Warranty Limited warranty - 3 years
    General
    Type Kiosk
    Product Form Factor All-in-one
    Color Black
    Localization Region: Worldwide
    Expansion / Connectivity
    Interfaces 2 x USB 3.0 ¦ 7 x USB 2.0 ¦ 1 x serial ¦ 1 x serial - RJ-45 ¦ 2 x VGA output ¦ 1 x DisplayPort output ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PoweredUSB (24 V) ¦ 1 x cash drawer
    Manufacturer Warranty
    Service & Support Limited warranty - 3 years
    Miscellaneous
    Theft/Intrusion Protection Security lock slot (cable lock sold separately)
    VESA Mounting Interface 100 x 100 mm
    Compliant Standards UL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, Mexico CoC
    RAM
    Installed Size 4 GB / 16 GB (max)
    Technology DDR4 SDRAM
    Effective Memory Speed 2133 MHz
    Rated Memory Speed 2133 MHz
    Slots 2 (total) / 1 (empty)
    RAM Supported PC4-19200 16 GB
    Networking
    Wireless LAN Supported Yes
    Data Link Protocol Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac
    Power
    Device Type Power adapter
    Nominal Voltage AC 120/230 V (50 - 60 Hz)
    Power Consumption Operational 75 Watt
    Environmental Parameters
    Min Operating Temperature 32 °F
    Max Operating Temperature 95 °F
    Humidity Range Operating 20 - 80% (non-condensing)
    Storage Controller
    Type SATA
    Cache Memory
    Installed Size L3 cache - 6 MB
    Cache Per Processor 6 MB
    Optical Storage
    Type No optical drive
    Monitor
    Monitor Type LED
    Touchscreen Yes (10-point multi-touch)
    Diagonal Size 19.5"
    Native Resolution 1920 x 1080 (Full HD)
    Widescreen Display Yes
    Image Aspect Ratio 16:9
    Horizontal Viewing Angle 178
    Vertical Viewing Angle 178
    Response Time 20 ms
    Image Brightness 212.5 cd/m²
    Image Contrast Ratio 3000:1
    Monitor Features Anti-glare, Zero-Bezel Design, Projected Capacitive Touch (P-CAP) technology
    Graphics Controller
    Graphics Processor Intel HD Graphics 530
    Audio Output
    Sound Output Mode Stereo
    Speakers Included 2 x right / left channel
    Operating System / Software
    OS Provided Microsoft Windows 7
    Hard Drive
    Type SSD
    Capacity 1 x 128 GB
    Interface Type SATA
    Dimensions & Weight
    Dimensions & Weight Details 19.4 in - 2.6 in - 12.6 in - 10.9 lbs - without stand ¦ 19.4 in - 9.9 in - 14.1 in - 16.6 lbs - with stand
    Width 19.4 in
    Depth 9.9 in
    Height 14.1 in
    Weight 16.6 lbs
    Dimensions & Weight (Shipping)
    Shipping Width 27.2 in
    Shipping Depth 17.5 in
    Shipping Height 14.4 in
    Shipping Weight 25.86 lbs
    Environmental Standards
    ENERGY STAR Certified Yes
    Processor / Chipset
    CPU Intel Core i5 (6th Gen) 6500TE
    Max Turbo Speed 3.3 GHz
    Number of Cores Quad-Core
    CPU Qty 1
    Max CPU Qty 1
    Processor Main Features Intel Turbo Boost Technology 2, Intel Smart Cache
    Chipset Type Intel Q170 Express
