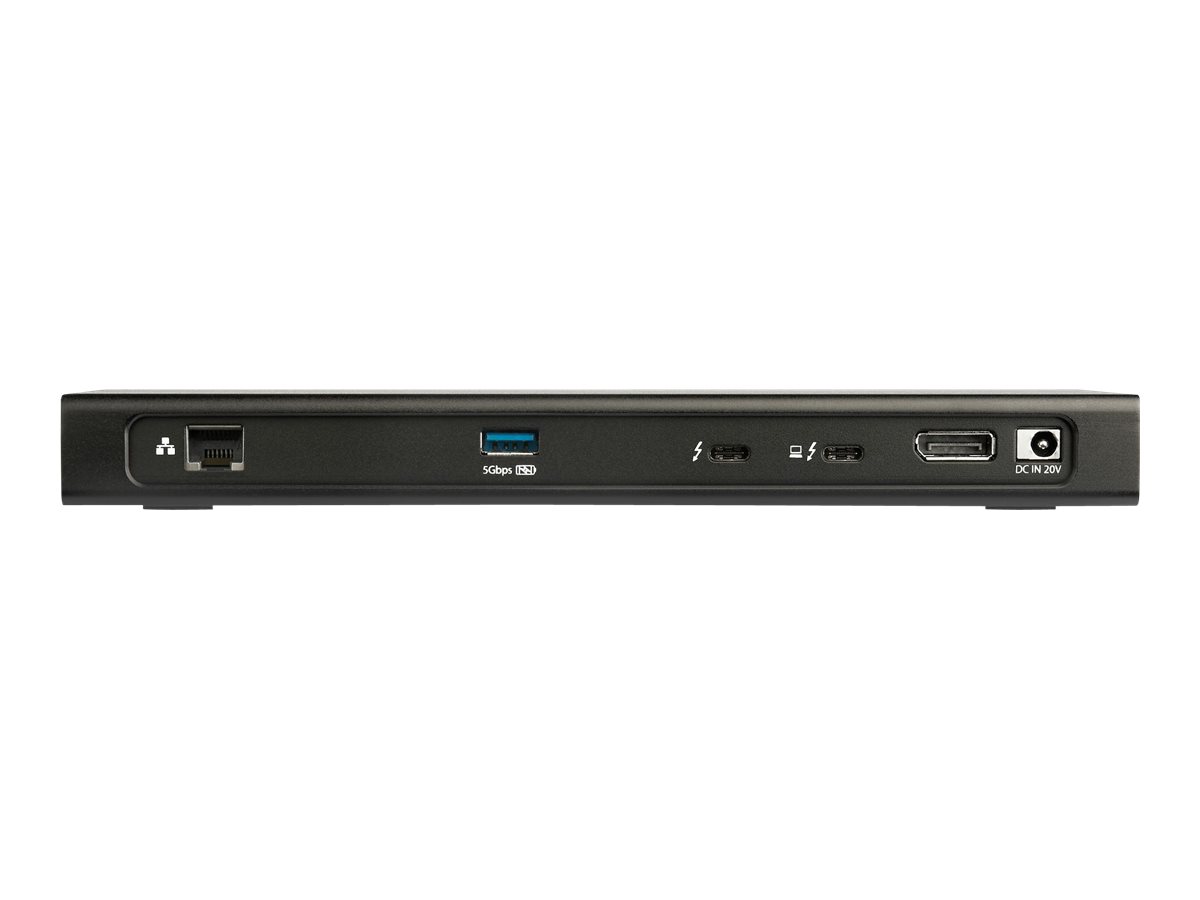

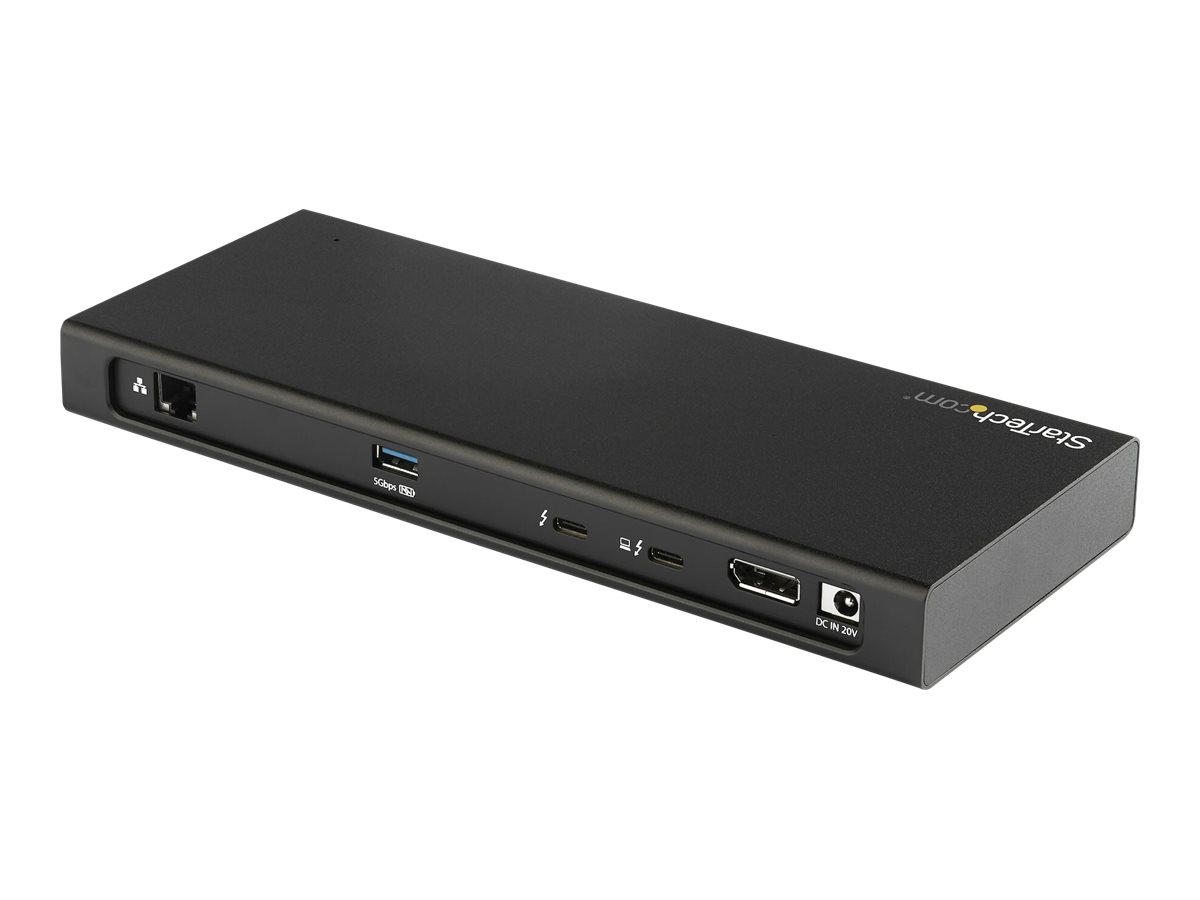

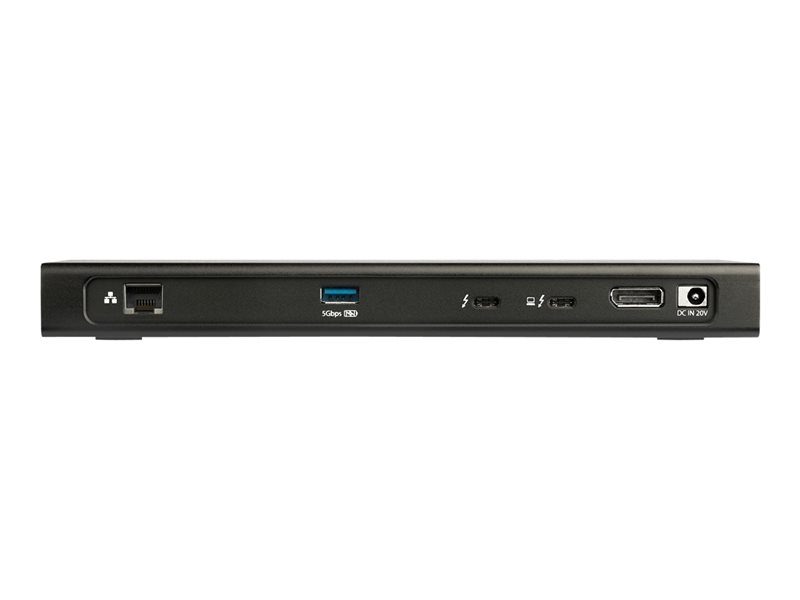

85W Thunderbolt 3 Dock (TB3DK2DPM2) - Docking station - Thunderbolt 3 - DP, Thunderbolt - 1GbE - TAA Compliant - for P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL, ARMDUAL30, ARMDUALV, ARMSLIMDUO
| Main Specifications | |
|---|---|
| Product Description | StarTech.com Thunderbolt 3 Dock, Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort, PCIe M.2 NVMe SSD Enclosure, 85W Power Delivery, SD 4.0 Reader, 10Gbps USB-C, 2 USB-A Hub - 85W Thunderbolt 3 Dock (TB3DK2DPM2) - docking station - Thunderbolt 3 - DP, Thunderbolt - 1GbE - TAA Compliant |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 3 |
| Video Interfaces | DP, Thunderbolt |
| Dimensions (WxDxH) | 9.4 in x 3.7 in x 1 in |
| Weight | 27.51 oz |
| Color | Black |
| Localization | Australia, Europe, Japan, New Zealand, North Asia, United Kingdom |
| Networking | Gigabit Ethernet |
| Power | Power adapter |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL, ARMDUAL30, ARMDUALV, ARMSLIMDUO |
| General | |
| Product Type | Docking station |
| Width | 9.4 in |
| Depth | 3.7 in |
| Height | 1 in |
| Weight | 27.51 oz |
| Enclosure Color | Black |
| Localization | Australia, Europe, Japan, New Zealand, North Asia, United Kingdom |
| Expansion / Connectivity | |

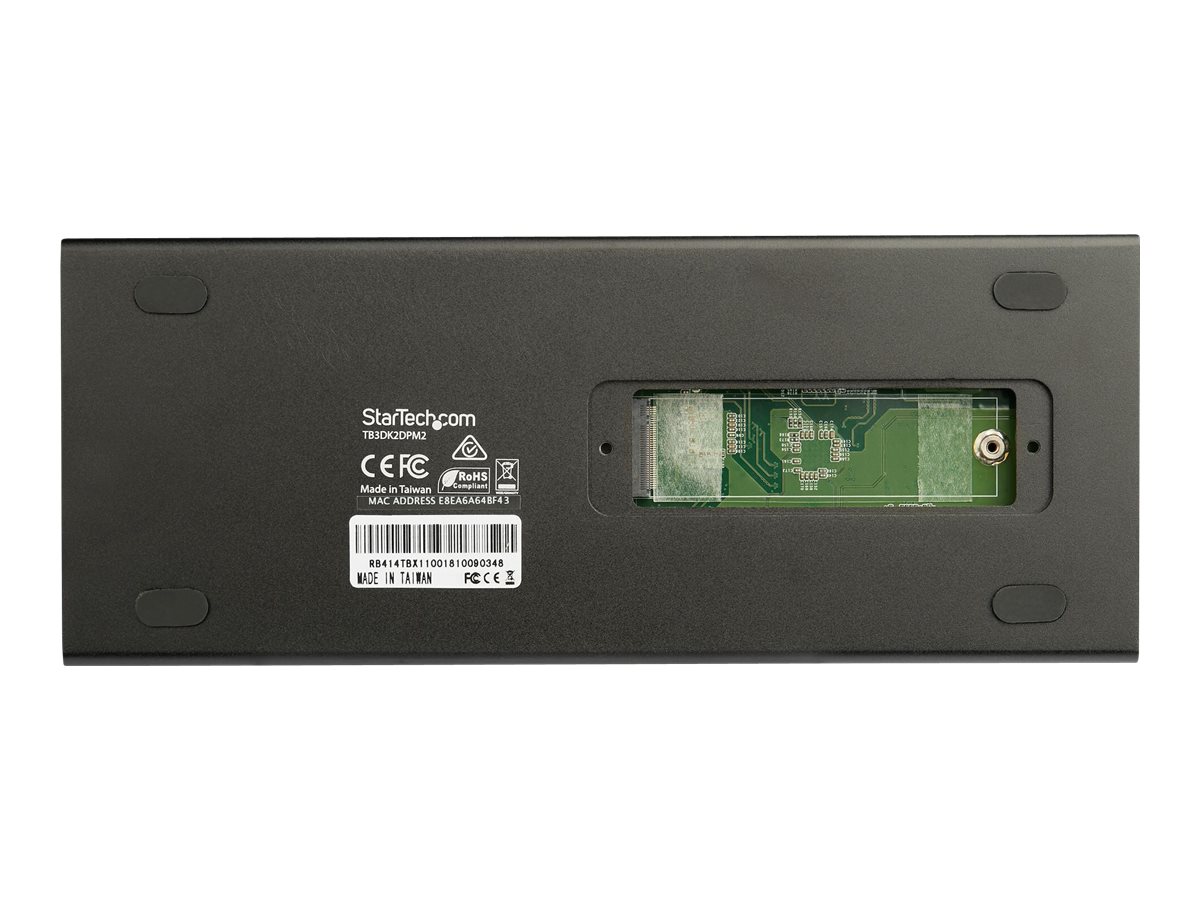

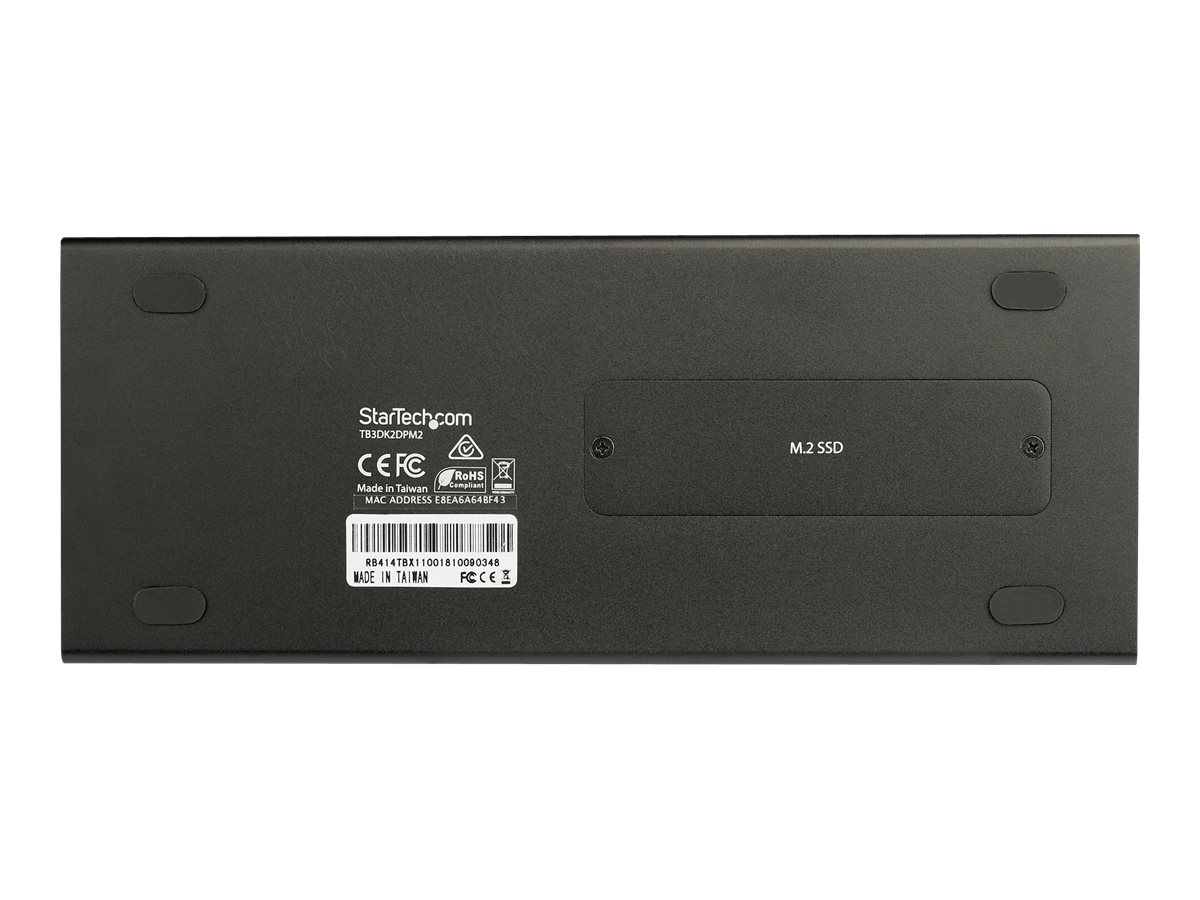

| Expansion Slots | 1 (total) / 1 (free) x PCI Express Mini Card (M.2) - M.2 2280 |

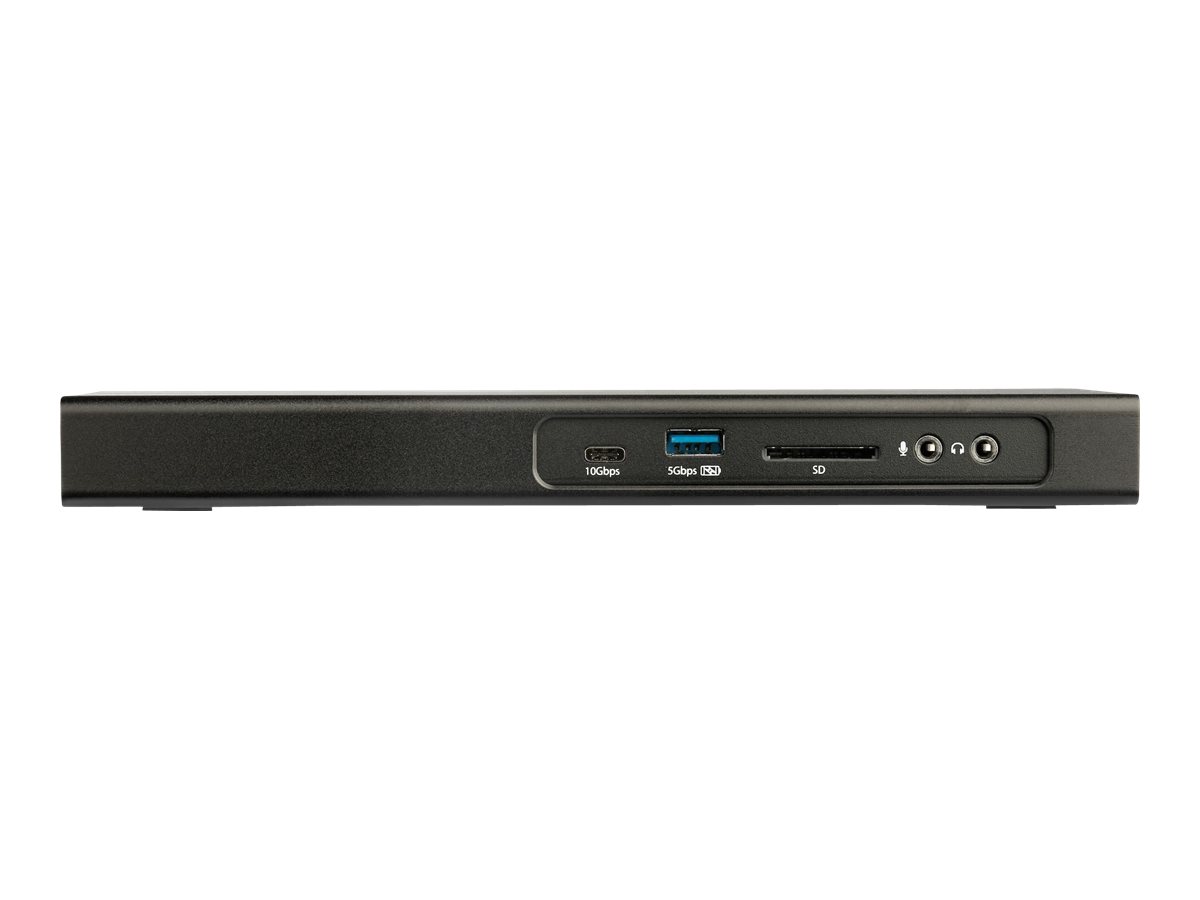

| Interfaces | 1 x USB-C - 24 pin USB-C ¦ 1 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x SuperSpeed USB 3.0 with Fast Charging - 9 pin USB Type A ¦ 1 x network - 1000Base-T - RJ-45 ¦ 1 x USB-C / Thunderbolt 3 with Power Delivery - 24 pin USB-C ¦ 1 x audio - mini-phone 3.5 mm ¦ 1 x microphone - mini-phone 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Input Device | SD card reader |

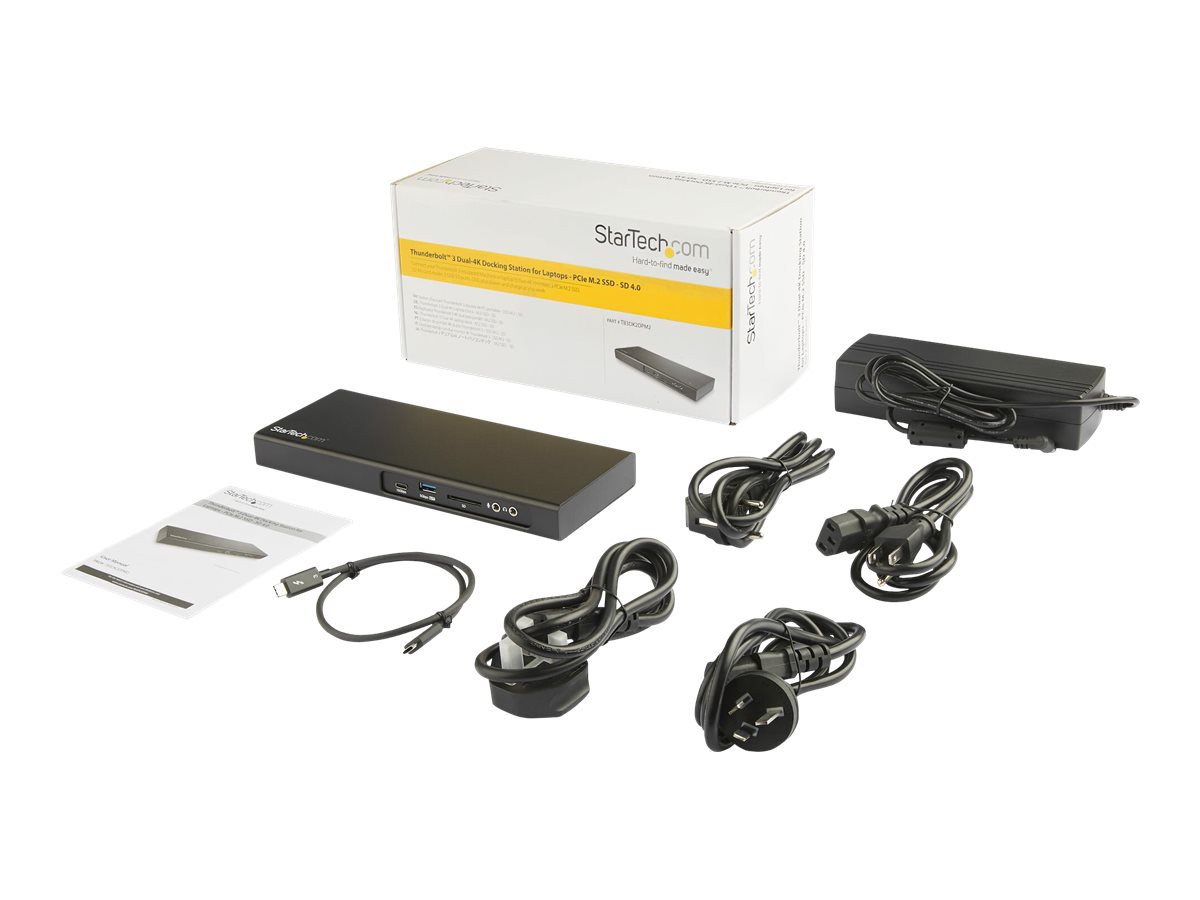

| Cables Included | 1 x Thunderbolt 3 / USB-C cable - external |
| Features | 85W power delivery, Preboot Execution Environment (PXE) support, wake on LAN, dual display support, 5K Ultra HD |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Storage | |
| Storage Controller | PCI Express |
| Networking | |
| Data Link Protocol | Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Video | |
| Max Resolution Details | 4096 x 2160 - 60 Hz |
| System Requirements | |
| OS Required | Windows 8 / 8.1 / 10 / 11, Apple macOS 10.12 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0 |
| Compatibility Information | |
| Designed For | P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL, ARMDUAL30, ARMDUALV, ARMSLIMDUO |
