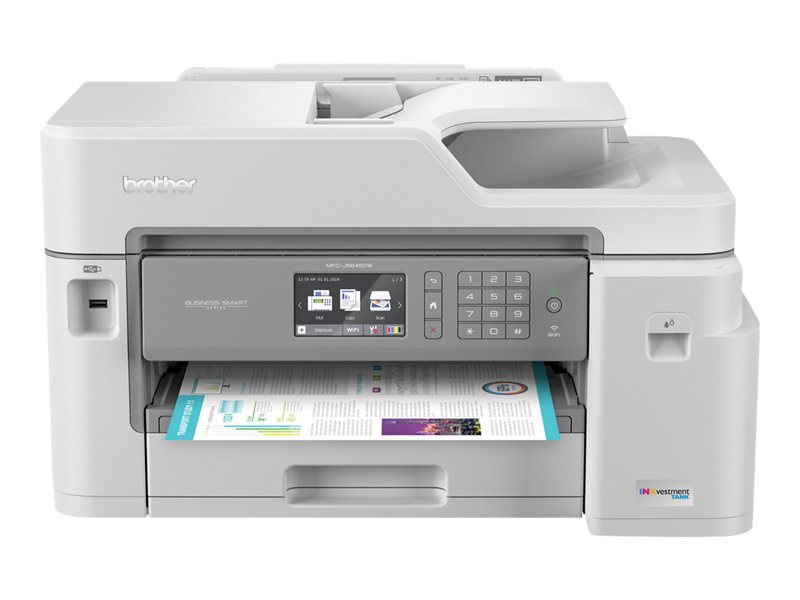

Multifunction printer - color - ink-jet - 8.5 in x 35.4 in (original) - A3/Ledger (media) - up to 15 ppm (copying) - up to 22 ppm (printing) - 350 sheets - 33.6 Kbps - USB 2.0, LAN, Wi-Fi(n), USB 2.0 host - white, gray
| Main Specifications | |
|---|---|
| Product Description | Brother MFC-J5845DW - multifunction printer - color |
| Device Type | Multifunction printer |
| Fax Type | Super G3 - plain paper |
| Printing Technology | Ink-jet (color) |
| Inkjet Technology | 4-ink |
| Monthly Duty Cycle (max) | 30000 pages |
| Recommended Monthly Volume | 250 - 2000 pages |
| Max Copying Speed | Up to 15 ppm (mono) / up to 11 ppm (color) |
| Max Copying Resolution | Up to 1200 x 4800 dpi (mono) / up to 1200 x 4800 dpi (color) |
| Max Copying Resolution Class | Up to 1200 x 4800 dpi (mono) / up to 1200 x 4800 dpi (color) |
| Max Printing Speed | Up to 22 ppm (mono) / up to 20 ppm (color) |
| Max Printing Resolution | Up to 1200 x 4800 dpi (mono) / up to 1200 x 4800 dpi (color) |
| Max Printing Resolution Class | Up to 1200 x 4800 dpi (mono) / up to 1200 x 4800 dpi (color) |
| Max Fax Transmission Speed | 33.6 Kbps |
| Data Compression System | MH, MR, MMR, JPEG |
| Fax Resolutions | 203 x 98 dpi, 203 x 196 dpi, 203 x 392 dpi |
| Scanning | 1200 x 2400 dpi |
| Display | 3.7" |
| Original Size | 8.5 in x 35.4 in (max) |
| Original Type | Sheets |
| Document Feeder Capacity | 50 sheets |
| Media Size | A3 (11.7 in x 16.5 in), Ledger B Size (11 in x 17 in) (max) |
| Media Type | Envelopes, plain paper, recycled paper, coated paper, glossy paper |
| Standard Media Capacity | 350 sheets |
| Bypass Feeder Capacity | 100 sheets |
| Output Trays Capacity | 100 sheets |
| Automatic Duplexing | Yes (printing) |
| Connection Availability | Yes |
| Interface | USB 2.0, LAN, Wi-Fi(n), USB 2.0 host |
| AirPrint Enabled | Yes |
| Office Machine Features | Print from USB flash drive, scan to e-mail, scan to network, scan to FTP, scan to OCR, scan to USB host, scan to e-mail server |
| Power | AC 120 V (50/60Hz) |
| Dimensions (WxDxH) | 21.5 in x 17.2 in x 12.2 in |
| Weight | 38.58 lbs |
| Enclosure Color | White, gray |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Multifunction printer |
| Fax Type | Plain paper |
| Printing Technology | Ink-jet - color |
| Monthly Duty Cycle (max) | 30000 pages |
| Recommended Monthly Volume | 250 - 2000 pages |
| Display Diagonal Size | 3.7" |
| Display Color Support | Color |
| Display Features | Touch screen |
| Connection Availability | Yes |
| Interface | USB 2.0, LAN, Wi-Fi(n), USB 2.0 host |
| AirPrint Enabled | Yes |
| Office Machine Features | Print from USB flash drive, scan to e-mail, scan to network, scan to FTP, scan to OCR, scan to USB host, scan to e-mail server |
| Enclosure Color | White, gray |
| Memory | |
| Standard Memory | 128 MB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| First Copy Out Time B/W | 10 sec |
| First Copy Out Time Color | 11 sec |
| Consumables Included | 2 x ink cartridge (black) ¦ 2 x ink cartridge (cyan) ¦ 2 x ink cartridge (magenta) ¦ 2 x ink cartridge (yellow) |
| Power | |
| Voltage Required | AC 120 V (50/60Hz) |
| Power Consumption Operational | 30 Watt |
| Power Consumption Standby | 5.5 Watt |
| Power Consumption Sleep | 1.5 Watt |
| Environmental Parameters | |
| Sound Emission | 50 dBA (operating) |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Connections | |
| Interfaces | 1 x USB 2.0 ¦ 1 x LAN - RJ-45 ¦ 1 x USB 2.0 host - 4 pin USB Type A |
| Security Protocols & Features | Kerberos, SSL, LEAP, WEP, WPA-PSK, TLS, IPsec, 802.1x, WPA2-PSK, TKIP, AES, WPS, TTLS, PEAP, MD5 |
| Operating System Support | Linux, MS Windows Server 2008 R2 x64 Edition, MS Windows Server 2012 x64 Edition, Android, iOS, MS Windows Server 2008 (32/64-bits), MS Windows Server 2012 R2 x64 Edition, MS Windows 7 (32/64 bits), Windows 8 (32/64-bits), Windows 8.1 (32/64-bits), Windows Phone, Windows 10 (32/64-bits), Apple Mac OS X 10.11, macOS 10.12, MS Windows Server 2016, macOS 10.13 |
| Copying | |
| Max Copying Speed | Up to 15 ppm (mono) / up to 11 ppm (color) |
| Max Copying Resolution | Up to 1200 x 4800 dpi (mono) / up to 1200 x 4800 dpi (color) |
| Max Copying Resolution Class | Up to 1200 x 4800 dpi (mono) / up to 1200 x 4800 dpi (color) |
| Max Document Enlargement | 400% |
| Max Document Reduction | 25% |
| Maximum Copies | 999 |
| Copying Features | 2 on 1, 4 on 1, fit to page, ID Card Copy, Sort, Poster Copy |
| Printing | |
| Nozzle Configuration | 420 nozzles (black), 3 x 420 nozzles (cyan, magenta, yellow) |
| Max Printing Resolution | Up to 1200 x 4800 dpi (mono) / up to 1200 x 4800 dpi (color) |
| Max Printing Resolution Class | Up to 1200 x 4800 dpi (mono) / up to 1200 x 4800 dpi (color) |
| Max Printing Speed | Up to 22 ppm (mono) / up to 20 ppm (color) |
| Ink Cartridge Configuration | 4 individual ink tanks |
| Ink Palette Supported (Colors) | Cyan, magenta, yellow, black |
| Color | 4-ink |
| Minimum Ink Droplet Size | 4 pl (black), 1.5 pl (color) |
| Printer Drivers / Emulations | PCL 6, BR-Script 3, PDF 1.7, XPS 1.0 |
| Ink Type | Brother INKvestment |
| Automatic Duplexing | Yes |
| First Print Out Time B/W | 5.5 sec |
| First Print Out Time Color | 6 sec |
| Scanning | |
| Scan Element | CIS |
| Optical Resolution | 1200 x 2400 dpi |
| Interpolated Resolution | 19200 x 19200 dpi |
| Grayscale Depth | 8-bit |
| Color Depth | 24-bit |
| Color Depth (Internal) | 48-bit |
| Scanning Resolution Details | 600 x 600 dpi - ADF ¦ 1200 x 2400 dpi - flatbed |
| Fax Machine | |
| Compatibility | Super G3 |
| Max Transmission Speed | 33.6 Kbps |
| Data Compression System | MH, MR, MMR, JPEG |
| Fax Resolutions | 203 x 98 dpi, 203 x 196 dpi, 203 x 392 dpi |
| Reception Memory Capacity | Up to 180 pages |
| Transmission Memory Capacity | Up to 180 pages |
| PC Faxing | Yes |
| Fax Machine Features | |
| Speed Dialing | 200 station(s) |
| Broadcast Transmission | 250 stations |
| Features | Automatic redialing, group dialing, Dual Access |
| Document & Media Handling | |
| Max Original Size | 8.5 in x 35.4 in |
| Supported Original Sizes | Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in), A6 (4.13 in x 5.83 in), 8.5 in x 35.4 in |
| Original Type | Sheets |
| Document Feeder Capacity | 50 sheets |
| Max Media Size | A3/Ledger |
| Min Media Weight | 64 g/m² |
| Max Media Weight | 220 g/m² |
| Min Media Weight (lb) | 17 lbs |
| Max Media Weight (lb) | 58 lbs |
| Supported Media Type | Envelopes, plain paper, recycled paper, coated paper, glossy paper |
| Supported Media Sizes | Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in), Executive (7.25 in x 10.5 in), A4 (8.25 in x 11.7 in), A5 (5.83 in x 8.25 in), A3 (11.7 in x 16.5 in), A6 (4.13 in x 5.83 in), Ledger B Size (11 in x 17 in), 3.95 in x 5.9 in, 5.12 in x 7.1 in, Folio (8.5 in x 13 in), 3.5 in x 5.12 in, 5.12 in x 7.87 in |
| Supported Envelope Sizes | International DL (4.33 in x 8.66 in), Com-10 (4.13 in x 9.5 in), International C5 (6.38 in x 9 in), Monarch (3.87 in x 7.5 in) |
| Standard Media Capacity | 350 sheets |
| Bypass Feeder Capacity | 100 sheets |
| Output Trays Capacity | 100 sheets |
| Document & Media Handling Details | Input tray - 250 sheets - Ledger/A3 (11.7 in x 17 in) weight: 64 g/m² - 220 g/m²; weight (lbs): 17 lbs - 58 lbs ¦ Multi-purpose tray - 100 sheets - Ledger/A3 (11.7 in x 17 in) weight: 64 g/m² - 220 g/m²; weight (lbs): 17 lbs - 58 lbs ¦ ADF - 50 sheets size: A5 (5.83 in x 8.25 in) - 8.5 in x 35.4 in weight: 64 g/m² - 90 g/m²; weight (lbs): 17 lbs - 24 lbs |
| Speed Details | Printing: up to 22 ppm - B/W (ISO/IEC 24734) ¦ Printing: up to 20 ppm - color (ISO/IEC 24734) ¦ Copying: up to 15 ipm - B/W (ISO/IEC 24735) ¦ Copying: up to 11 ipm - color (ISO/IEC 24735) |
| Dimensions & Weight | |
| Width | 21.5 in |
| Depth | 17.2 in |
| Height | 12.2 in |
| Weight | 38.58 lbs |
