Server - blade - 2-way - no CPU up to - RAM 0 GB - no HDD - AST2500 - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|

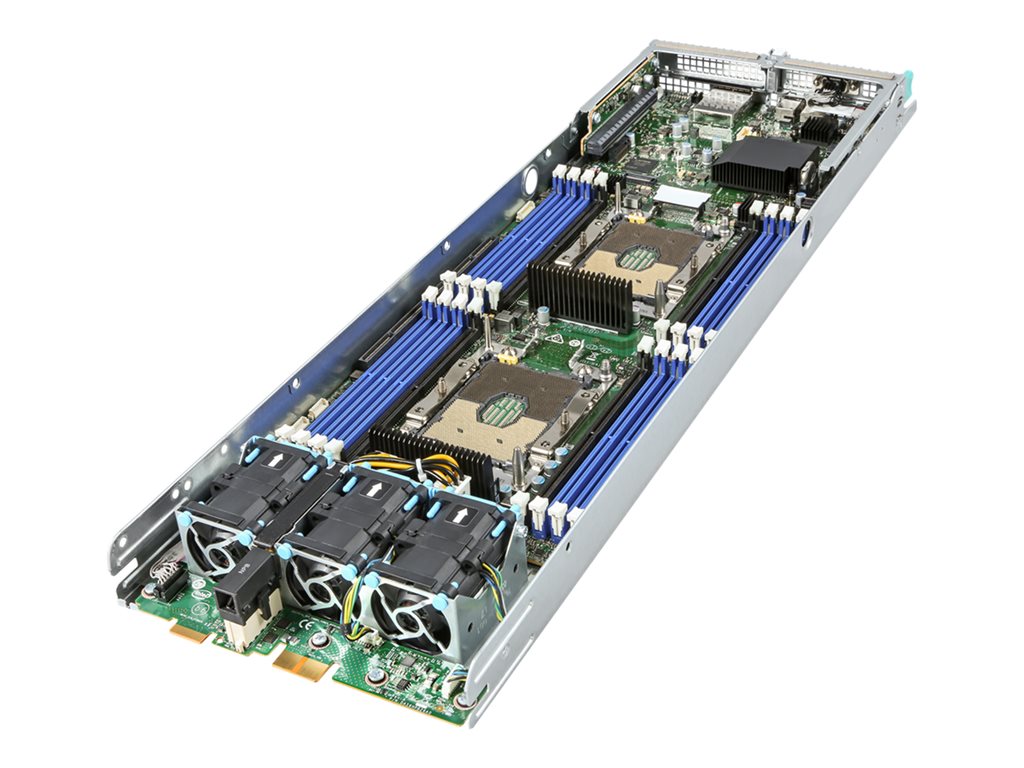

| Product Description | Intel Compute Module HNS2600BPS24R - blade - no CPU - 0 GB - no HDD |
| Type | Server - blade |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | Socket P |
| RAM | 0 GB (installed) / 2.8 TB (max) - DDR4 SDRAM - ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2500 |
| Networking | 1GbE, 10GbE |
| Dimensions (WxDxH) | 7 in x 24.8 in x 1.6 in |
| Weight | 9.52 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Server |
| Product Form Factor | Blade |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242 ¦ 4 (total) / 4 (free) x expansion slot |
| Interfaces | 1 x VGA ¦ 2 x USB 3.0 ¦ 2 x LAN (10Gigabit Ethernet) - SFP+ ¦ 1 x management - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 x CPU Heatsink, air duct, 3 x system fans, M.2 (80 mm) riser card |
| RAM | |
| Installed Size | 0 GB / 2.8 TB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 16 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM) |
| Networking | |
| Ethernet Ports | 2 x SFP+ |
| Ethernet Controller | Intel X722 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Intel Baseboard Management Controller (BMC) |
| Features | Integrated BMC with IPMI |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2500 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 24.8 in |
| Height | 1.6 in |
| Weight | 9.52 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.7 in |
| Shipping Depth | 28.3 in |
| Shipping Height | 6.3 in |
| Shipping Weight | 12.35 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket P |
| Chipset Type | Intel C622 |
